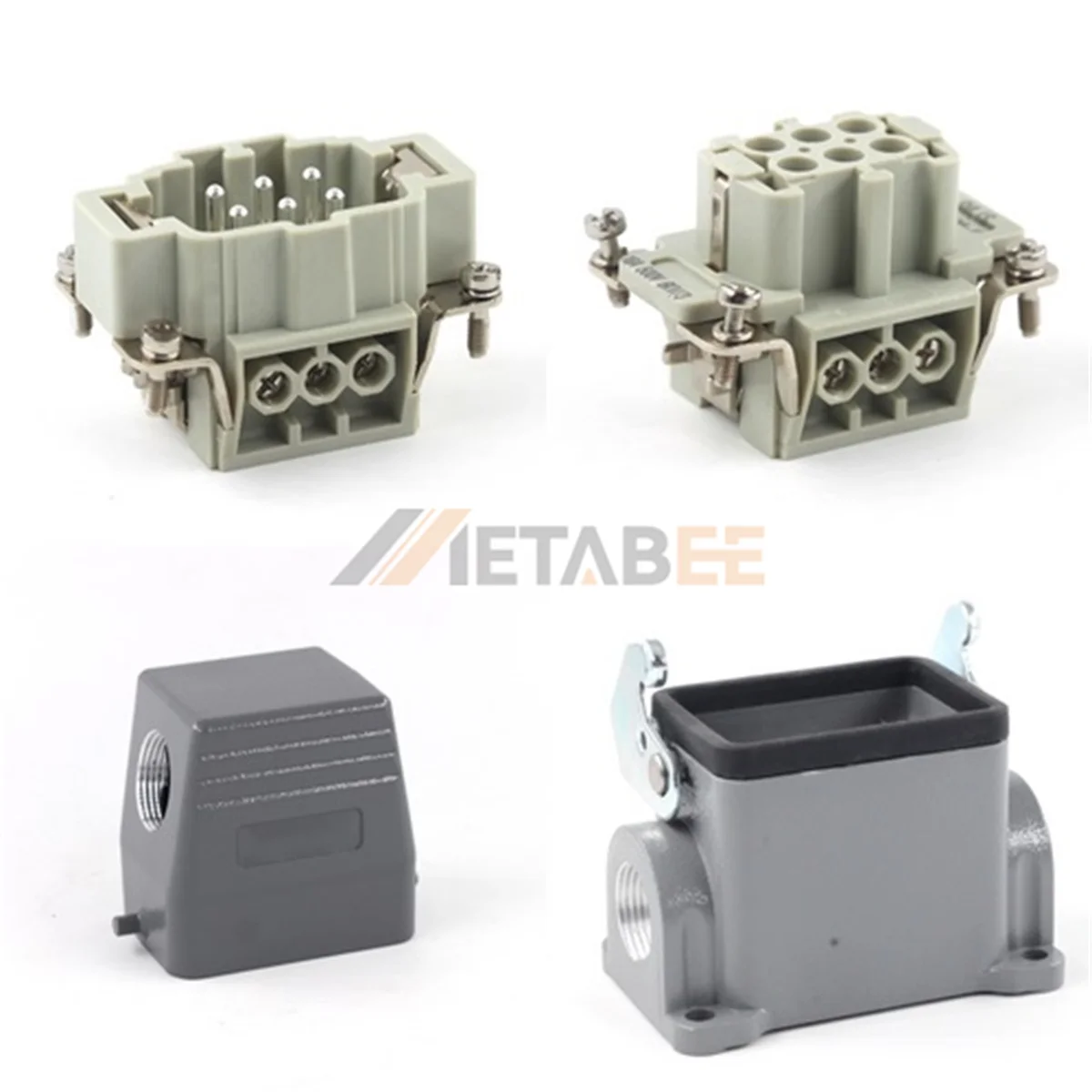

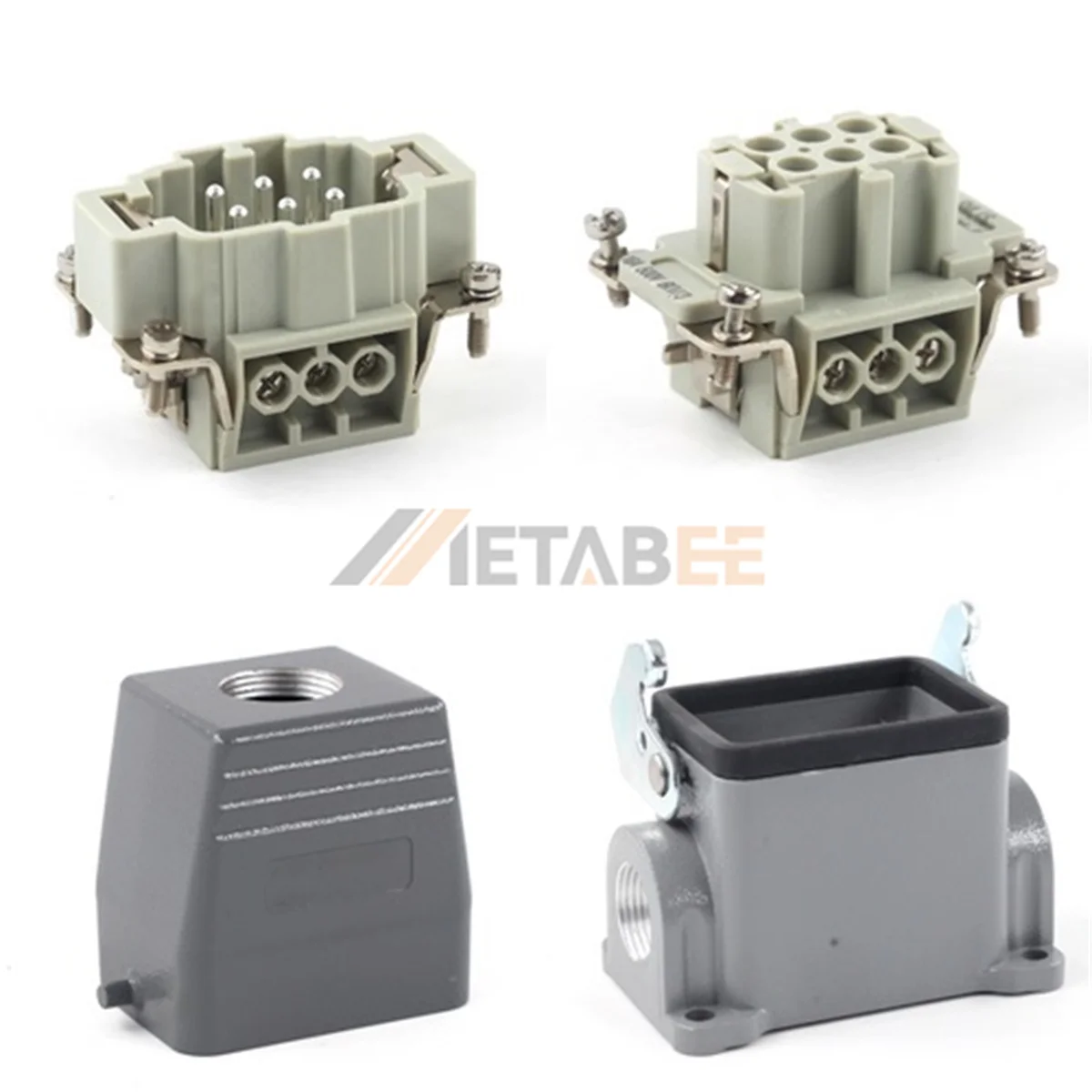

HE Series Heavy Duty Connector, 6+PE, Screw Terminal, Surface Mounting, Top/Side Entry, 16A/500V
Introduction:
Heavy-duty connectors (HDC) use strong aluminum or thermoplastic housings to protect against dust, moisture and mechanical stress. They consist of five main components: housing, hood, inserts, contacts and cable glands. Modular and monolithic inserts combine power, signal, data and pneumatic lines in one connector to save space in control cabinets. Flexible cable outlet directions and hoods for large-diameter cables also help with wiring in tight spaces.
The HE series heavy duty connector is an excellent choice for surface mounting applications. It features a housing base that installs directly onto flat walls without panel cutouts. This 6+PE assembly supports high-performance power with 16A and 500V ratings. The inserts utilize screw terminal technology for simple maintenance. You can complete the wiring quickly using just a standard screwdriver. The hood allows for flexible cable routing with top or side entry options. A single locking lever secures the connection against industrial vibrations.
Note: The product supports multiple thread size options, and customers can choose the specification that matches their installation needs.
Key Features:
- Surface mounting base installs easily on flat surfaces.
- Robust 6+PE configuration rated at 16A 500V.
- Screw terminal inserts need no special crimping tools.
- Single locking lever ensures vibration-resistant mating.
- Hood design supports top or side cable entry.
Main Specifications:
General Information:
| Product No.: | HE-006-SGR-TG, HE-006-SGR-TS | |
| Category: | Heavy-Duty Connector Assemblies | |
| Inserts Series: | HE Series | |
| Number of Contacts: | 6+PE | |
| Contacts Termination: | Screw Terminal | |
| Hood/Housing Series: | H6B Series | |
| Housing Mounting Type: | Surface Mounting | |
| Housing Locking: | 1 Locking Lever | |
| Cable Entry Angle: | Top Entry, Side Entry | |
| Sealable: | N/A | |
| Thread Size: | M20, M25, PG16, PG21 | |
| Housing/Hood Material: | Die-cast aluminum | |
| Contact Material: | Copper Alloy | |
| Rated Current: | 16A | |
| Rated Voltage: | 500V | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 |
Heavy-duty connector main components
Four Types of Terminals
Heavy-duty Connector Housing Mounting Type
Applications
- Rail transportation;
- CNC equipment;
- Energy storage systems;
- Renewable energy devices;
- Smart grid installations;
- AC power distribution equipment;
- Power reliability systems;
Factory pricing and exceptional product quality. OEM & ODM Services. Get a free quote now!
Metabee is a professional connector manufacturer from China. We can provide all kinds of heavy-duty connectors.
