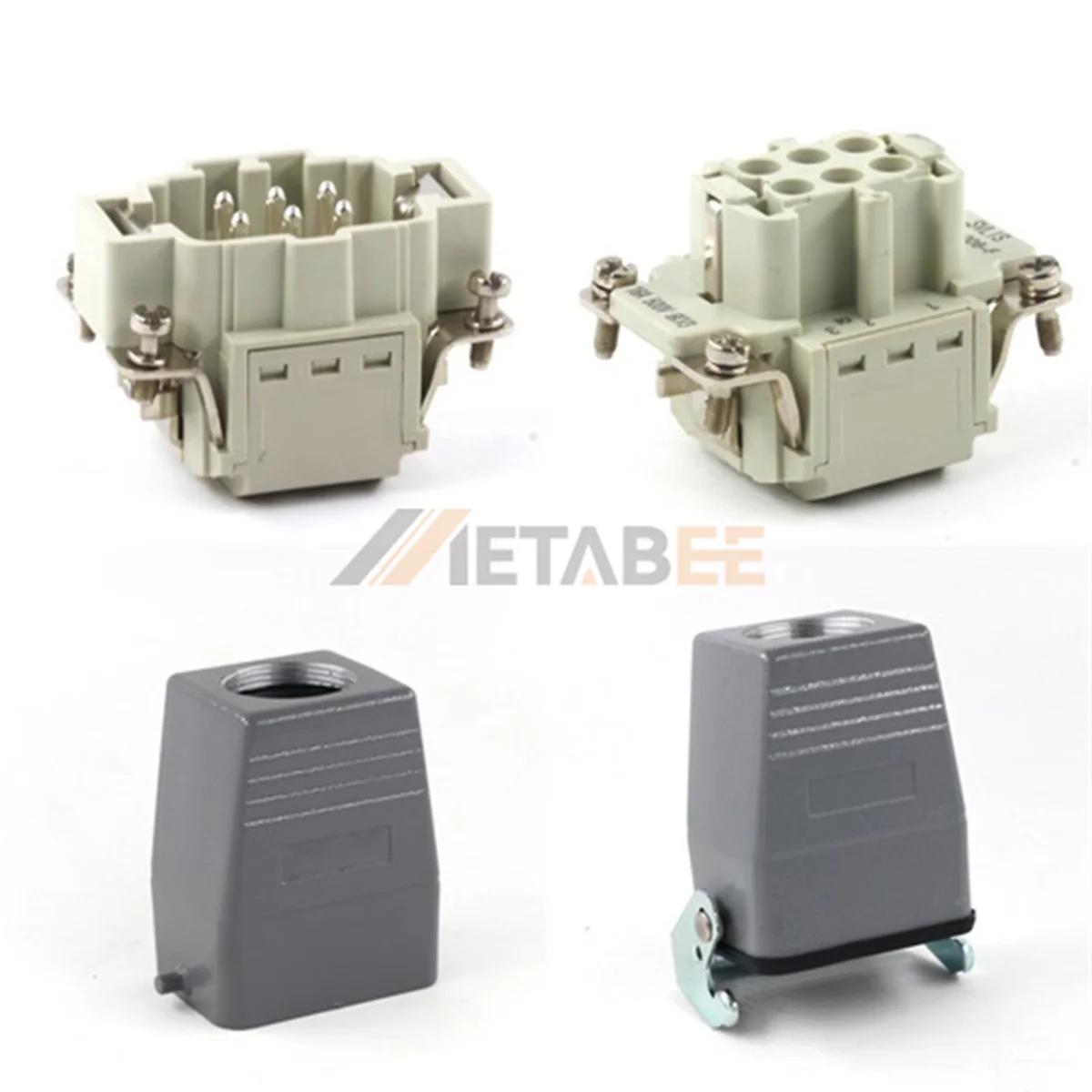

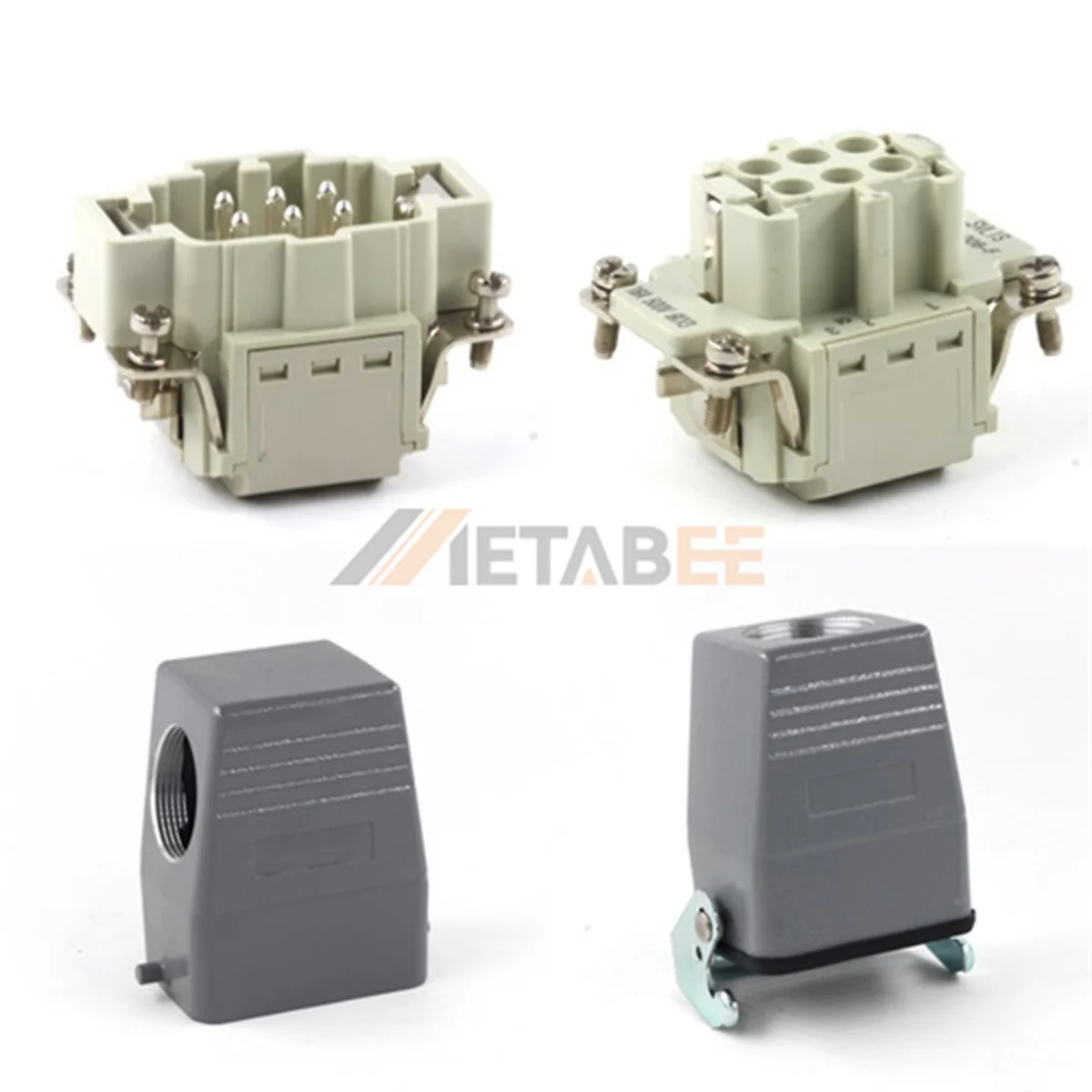

HE Series Heavy Duty Connector, 6+PE, Quick Lock Terminal, Cable to Cable, High Construction
Introduction:
Heavy-duty connectors (HDC) use strong aluminum or thermoplastic housings to protect against dust, moisture and mechanical stress. They consist of five main components: housing, hood, inserts, contacts and cable glands. Modular and monolithic inserts combine power, signal, data and pneumatic lines in one connector to save space in control cabinets. Flexible cable outlet directions and hoods for large-diameter cables also help with wiring in tight spaces.
The HE series heavy duty connector features a high construction housing design. This provides extra internal space for managing cables easily. It is a cable-to-cable model for extending power lines efficiently. The assembly uses quick lock terminal technology to save time. You can connect wires instantly without any tools. It offers a reliable 6+PE configuration rated at 16A and 500V. The hood supports top or side entry options. A single locking lever keeps the connection vibration-proof.
Note: The product supports multiple thread size options, and customers can choose the specification that matches their installation needs.
Key Features:
- High construction housing offers more wiring space.
- Cable-to-cable design allows secure inline extension.
- Quick lock terminals enable fast screwless connection.
- Standard 6+PE configuration rated at 16A 500V.
- Hood design offers top or side cable entry.
Main Specifications:
General Information:
| Product No.: | HESH-006-TBFH-TGH, HESH-006-TBFH-TSH | |
| Category: | Heavy-Duty Connector Assemblies | |
| Inserts Series: | HE Series | |
| Number of Contacts: | 6+PE | |
| Contacts Termination: | Quick Lock Terminal | |
| Hood/Housing Series: | H6B Series | |
| Housing Mounting Type: | Cable to Cable | |
| Housing Locking: | 1 Locking Lever | |
| Cable Entry Angle: | Top Entry, Side Entry | |
| Sealable: | N/A | |
| Thread Size: | M25, PG21, PG29 | |
| Housing/Hood Material: | Die-cast aluminum | |
| Contact Material: | Copper Alloy | |
| Rated Current: | 16A | |
| Rated Voltage: | 500V | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 |
Heavy-duty connector main components
Four Types of Terminals
Heavy-duty Connector Housing Mounting Type
Applications
- Rail transportation;
- CNC equipment;
- Energy storage systems;
- Renewable energy devices;
- Smart grid installations;
- AC power distribution equipment;
- Power reliability systems;
Factory pricing and exceptional product quality. OEM & ODM Services. Get a free quote now!
Metabee is a professional connector manufacturer from China. We can provide all kinds of heavy-duty connectors.
