HE Series Heavy Duty Connector, 6+PE, Bulkhead Mounting, Quick Lock Terminal, Top/Side Entry, 16A/500V
Introduction:
Heavy-duty connectors (HDC) use strong aluminum or thermoplastic housings to protect against dust, moisture and mechanical stress. They consist of five main components: housing, hood, inserts, contacts and cable glands. Modular and monolithic inserts combine power, signal, data and pneumatic lines in one connector to save space in control cabinets. Flexible cable outlet directions and hoods for large-diameter cables also help with wiring in tight spaces.
The HE series heavy-duty connector features advanced quick-lock terminal technology. This allows for rapid wire connection without time-consuming screwing. The 6+PE assembly is rated at 16A and 500V for heavy industrial loads. It includes a bulkhead mounting housing for secure attachment to machine panels. The quick-lock design offers superior vibration resistance compared to standard screws. You can route cables easily with the top or side entry hood options. A single locking lever keeps the mating unit firmly in place.
Note: The product supports multiple thread size options, and customers can choose the specification that matches their installation needs.
Key Features:
- Quick lock terminals enable fast vibration-proof wiring.
- Standard 6+PE configuration rated at 16A 500V.
- Bulkhead mounting base ensures secure panel installation.
- Hood design supports top or side cable entry.
- Single locking lever protects against mechanical shock.
Main Specifications:
General Information:

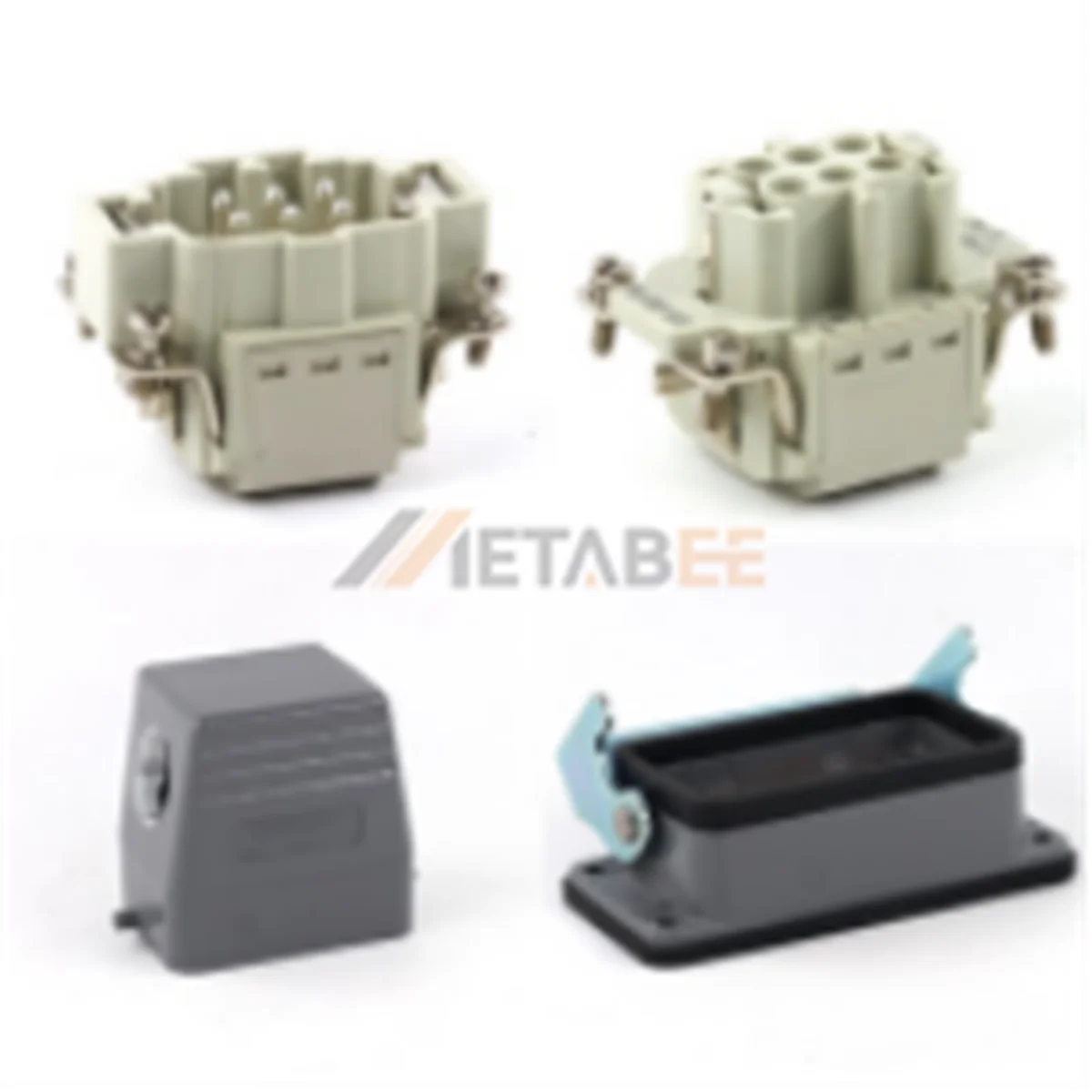

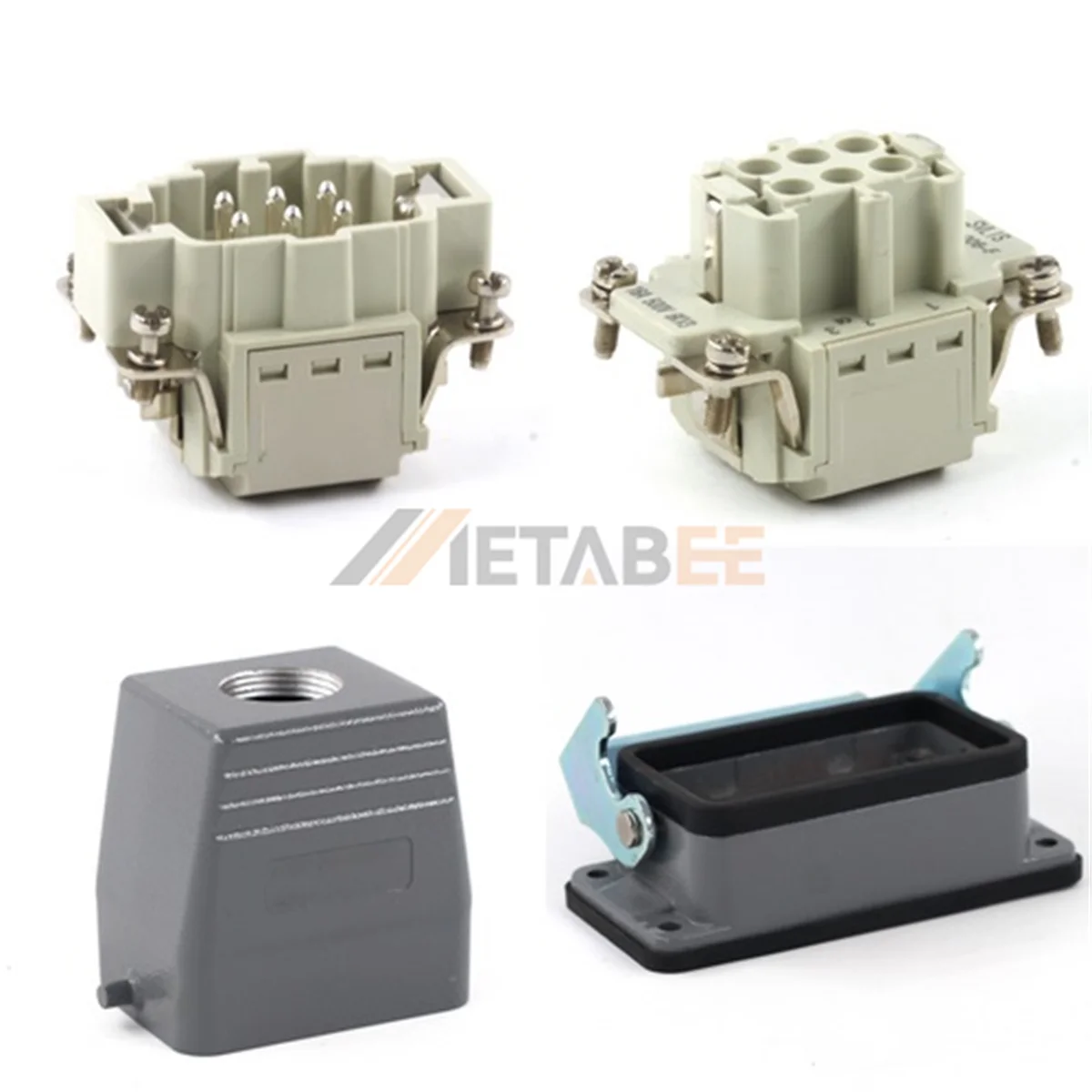

| Product No.: | HESH-006-AG-TS, HESH-006-AG-TG | |
| Category: | Heavy-Duty Connector Assemblies | |
| Inserts Series: | HE Series | |
| Number of Contacts: | 6+PE | |
| Contacts Termination: | Quick Lock Terminal | |
| Hood/Housing Series: | H6B Series | |
| Housing Mounting Type: | Bulkhead Mounting | |
| Housing Locking: | 1 Locking Lever | |
| Cable Entry Angle: | Top Entry, Side Entry | |
| Sealable: | N/A | |
| Thread Size: | M20, M25, M32, M40, PG16, PG21, PG29 | |
| Housing/Hood Material: | Die-cast aluminum | |
| Contact Material: | Copper Alloy | |
| Rated Current: | 16A | |
| Rated Voltage: | 500V | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 |
Heavy-duty connector main components
Four Types of Terminals
Heavy-duty Connector Housing Mounting Type
Applications
- Rail transportation;
- CNC equipment;
- Energy storage systems;
- Renewable energy devices;
- Smart grid installations;
- AC power distribution equipment;
- Power reliability systems;
