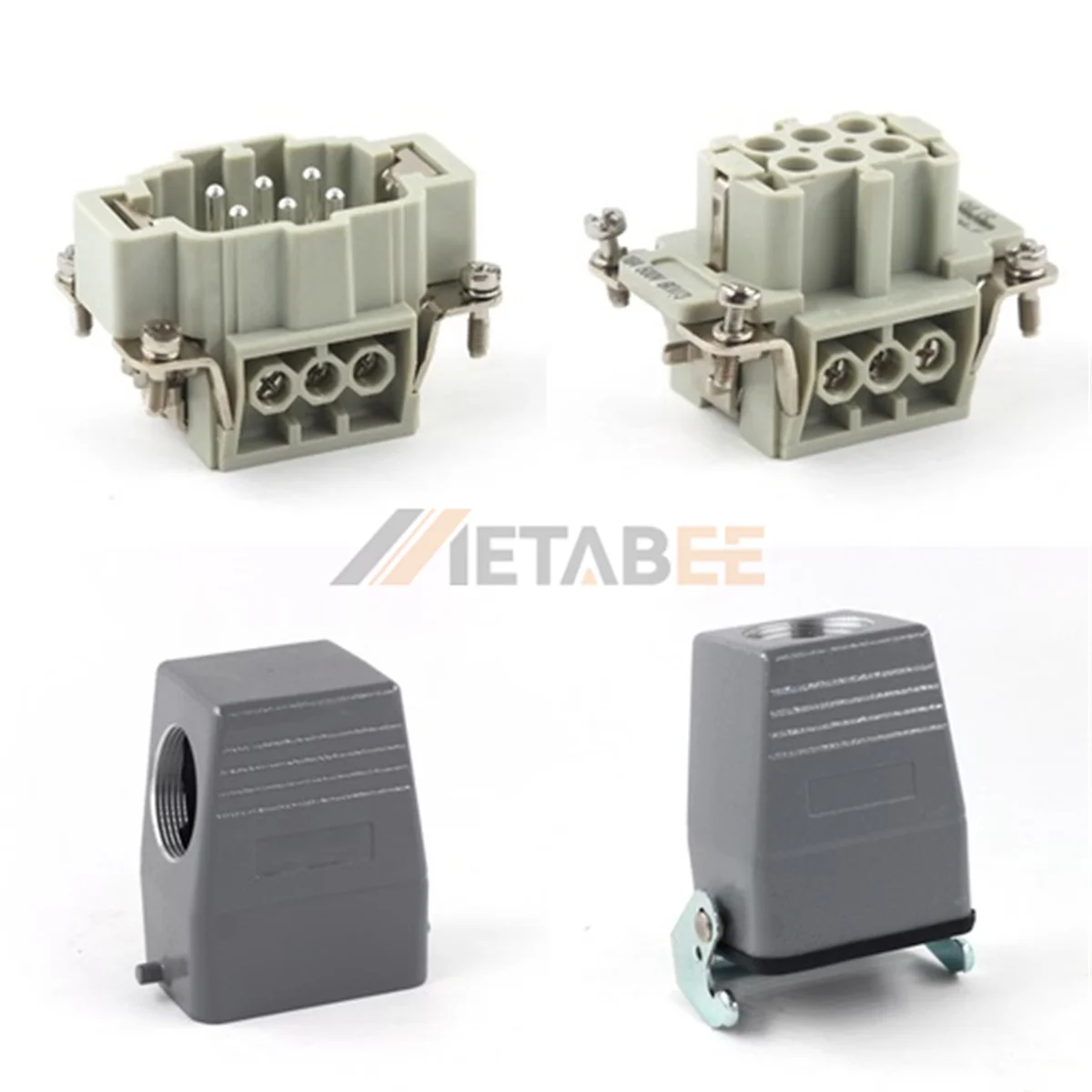

HE Series Heavy Duty Connector, 6+PE, Cable to Cable, High Construction, Top/Side Entry, 16A/500V
Introduction:
Heavy-duty connectors (HDC) use strong aluminum or thermoplastic housings to protect against dust, moisture and mechanical stress. They consist of five main components: housing, hood, inserts, contacts and cable glands. Modular and monolithic inserts combine power, signal, data and pneumatic lines in one connector to save space in control cabinets. Flexible cable outlet directions and hoods for large-diameter cables also help with wiring in tight spaces.
The HE series heavy duty connector features a high construction housing design. This offers extra internal space for managing thick cables easily. The assembly is a cable-to-cable model intended for free-hanging line extensions. It does not require mounting on a machine panel. The kit provides a reliable 6+PE configuration rated at 16A and 500V. You can connect wires simply using screw terminal inserts without special tools. The hood supports top or side entry options. A single locking lever ensures the connection stays secure against vibration.
Note: The product supports multiple thread size options, and customers can choose the specification that matches their installation needs.
Key Features:
- High construction housing allows easier cable management.
- Cable-to-cable design enables secure inline extension.
- Standard 6+PE configuration rated at 16A 500V.
- Screw terminal inserts need no crimping tools.
- Hood options support top or side cable entry.
Main Specifications:
General Information:
| Product No.: | HE-006-TBFH-TGH, HE-006-TBFH-TSH | |
| Category: | Heavy-Duty Connector Assemblies | |
| Inserts Series: | HE Series | |
| Number of Contacts: | 6+PE | |
| Contacts Termination: | Screw Terminal | |
| Hood/Housing Series: | H6B Series | |
| Housing Mounting Type: | Cable to Cable | |
| Housing Locking: | 1 Locking Lever | |
| Cable Entry Angle: | Top Entry, Side Entry | |
| Sealable: | N/A | |
| Thread Size: | M25, PG21, PG29 | |
| Housing/Hood Material: | Die-cast aluminum | |
| Contact Material: | Copper Alloy | |
| Rated Current: | 16A | |
| Rated Voltage: | 500V | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 |
Heavy-duty connector main components
Four Types of Terminals
Heavy-duty Connector Housing Mounting Type
Applications
- Rail transportation;
- CNC equipment;
- Energy storage systems;
- Renewable energy devices;
- Smart grid installations;
- AC power distribution equipment;
- Power reliability systems;
