HE Series Heavy Duty Connector, 6+PE, Quick Lock Terminal, High Construction, Top/Side Entry, 16A/500V
Introduction:
Heavy-duty connectors (HDC) use strong aluminum or thermoplastic housings to protect against dust, moisture and mechanical stress. They consist of five main components: housing, hood, inserts, contacts and cable glands. Modular and monolithic inserts combine power, signal, data and pneumatic lines in one connector to save space in control cabinets. Flexible cable outlet directions and hoods for large-diameter cables also help with wiring in tight spaces.
The HE series heavy duty connector features a high construction housing design. This offers valuable extra space for routing cables inside the shell. The assembly uses quick lock terminal technology to speed up installation. You can connect wires instantly without using a screwdriver. This method provides better vibration resistance than standard screws. The kit provides a reliable 6+PE configuration rated at 16A and 500V. The hood supports top or side entry to fit your machinery. A single locking lever secures the system firmly.
Note: The product supports multiple thread size options, and customers can choose the specification that matches their installation needs.
Key Features:
- High construction housing provides extra internal wiring space.
- Quick lock terminals enable fast screwless connection.
- Standard 6+PE configuration rated at 16A 500V.
- Single locking lever guarantees vibration-resistant mating.
- Hood design offers top or side cable entry.
Main Specifications:
General Information:

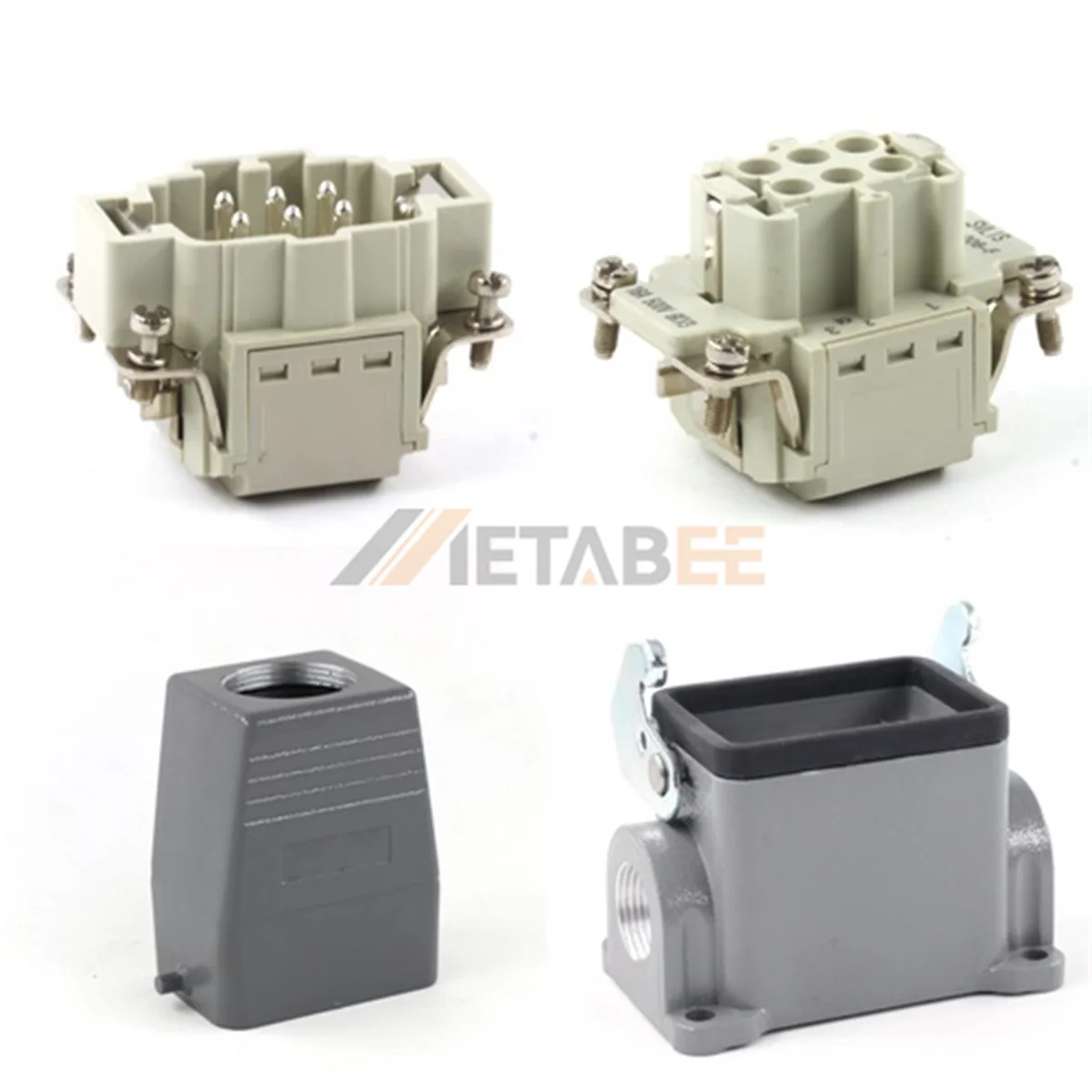

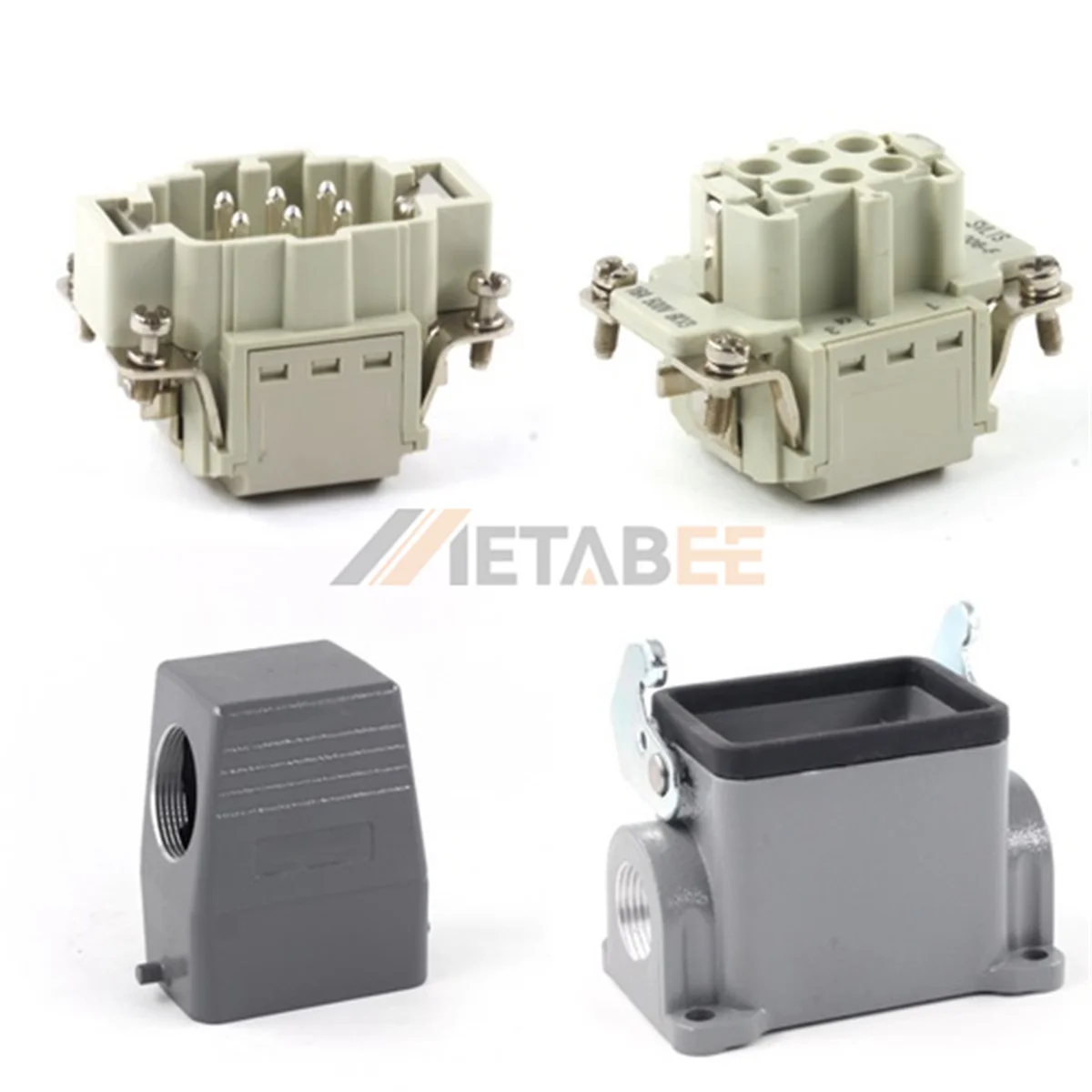

| Product No.: | HESH-006-SGRH-TSH, HESH-006-SGRH-TGH | |
| Category: | Heavy-Duty Connector Assemblies | |
| Inserts Series: | HE Series | |
| Number of Contacts: | 6+PE | |
| Contacts Termination: | Quick Lock Terminal | |
| Hood/Housing Series: | H6B Series | |
| Housing Mounting Type: | Bulkhead Mounting | |
| Housing Locking: | 1 Locking Lever | |
| Cable Entry Angle: | Top Entry, Side Entry | |
| Sealable: | N/A | |
| Thread Size: | M20, PG29 | |
| Housing/Hood Material: | Die-cast aluminum | |
| Contact Material: | Copper Alloy | |
| Rated Current: | 16A | |
| Rated Voltage: | 500V | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 |
Heavy-duty connector main components
Four Types of Terminals
Heavy-duty Connector Housing Mounting Type
Applications
- Rail transportation;
- CNC equipment;
- Energy storage systems;
- Renewable energy devices;
- Smart grid installations;
- AC power distribution equipment;
- Power reliability systems;
