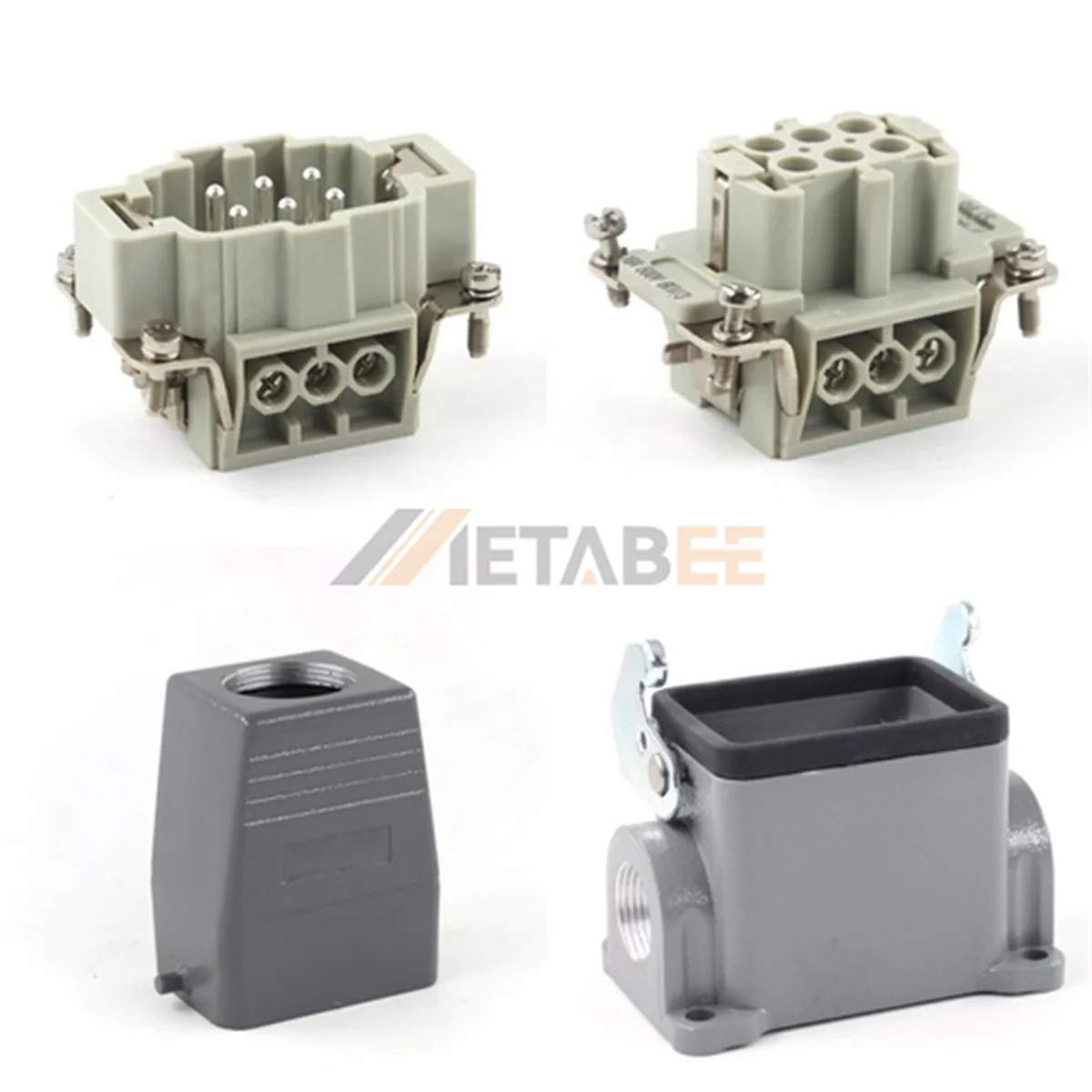

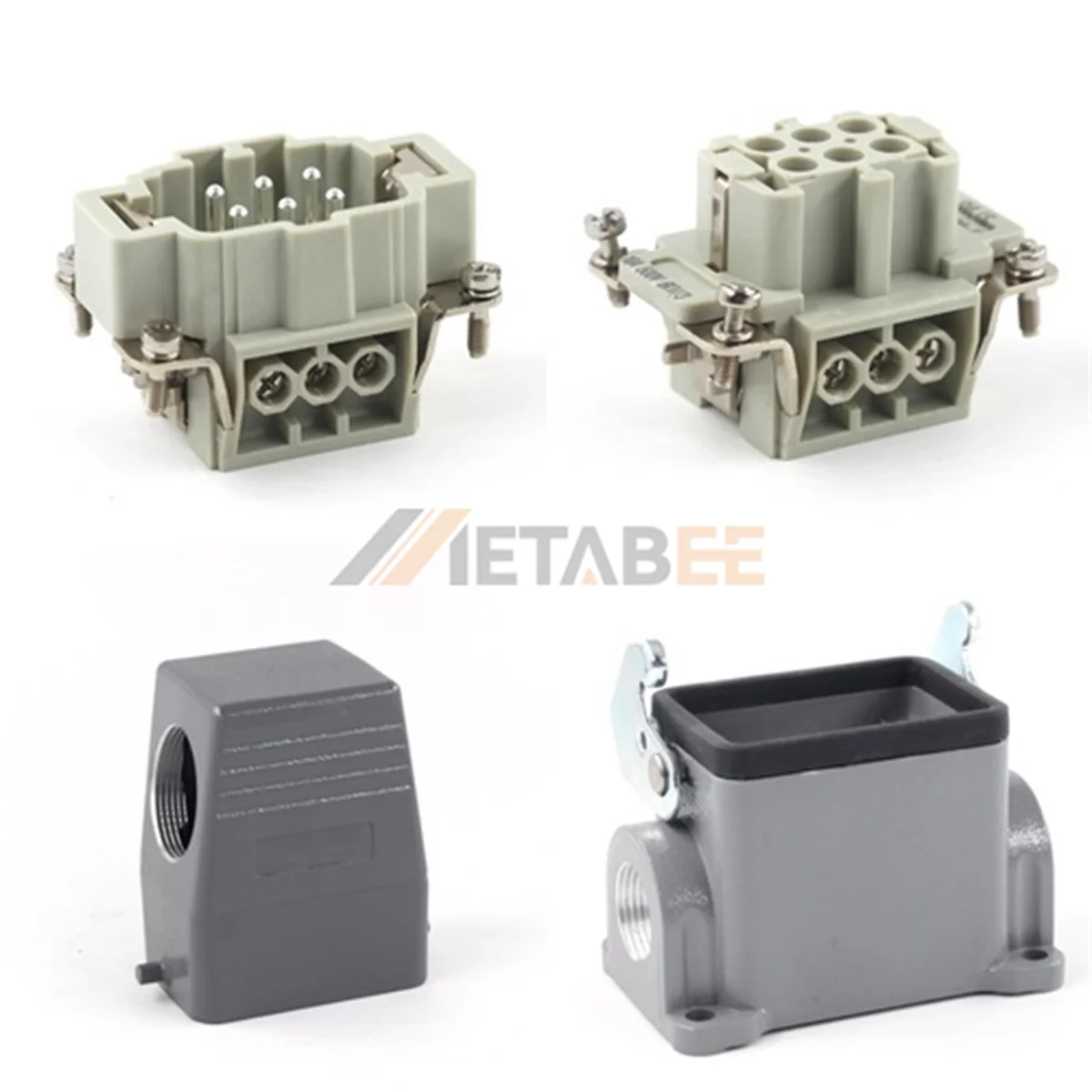

HE Series Heavy Duty Connector, 6+PE, Surface Mounting, High Construction, Top/Side Entry, 16A/500V
Introduction:
Heavy-duty connectors (HDC) use strong aluminum or thermoplastic housings to protect against dust, moisture and mechanical stress. They consist of five main components: housing, hood, inserts, contacts and cable glands. Modular and monolithic inserts combine power, signal, data and pneumatic lines in one connector to save space in control cabinets. Flexible cable outlet directions and hoods for large-diameter cables also help with wiring in tight spaces.
The HE series heavy duty connector features a high construction housing and hood design. This provides extra internal space for easier wiring and cable management. The assembly includes a surface mounting base that installs directly on flat walls. It offers a reliable 6+PE configuration with a rating of 16A and 500V. The screw terminal inserts allow you to connect wires quickly using just a screwdriver. You do not need any special crimping tools. The hood supports top or side cable entry to suit your system. A single locking lever keeps the connection secure.
Note: The product supports multiple thread size options, and customers can choose the specification that matches their installation needs.
Key Features:
- High construction housing/hood offers more internal wiring space.
- Surface mounting base installs securely on flat walls.
- Standard 6+PE configuration rated at 16A 500V.
- Screw terminal inserts require no crimping tools.
- Hood design supports top or side cable entry.
Main Specifications:
General Information:
| Product No.: | HE-006-SGRH-TGH, HE-006-SGRH-TSH | |
| Category: | Heavy-Duty Connector Assemblies | |
| Inserts Series: | HE Series | |
| Number of Contacts: | 6+PE | |
| Contacts Termination: | Screw Terminal | |
| Hood/Housing Series: | H6B Series | |
| Housing Mounting Type: | Surface Mounting | |
| Housing Locking: | 1 Locking Lever | |
| Cable Entry Angle: | Top Entry, Side Entry | |
| Sealable: | N/A | |
| Thread Size: | M20, PG29 | |
| Housing/Hood Material: | Die-cast aluminum | |
| Contact Material: | Copper Alloy | |
| Rated Current: | 16A | |
| Rated Voltage: | 500V | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 |
Heavy-duty connector main components
Four Types of Terminals
Heavy-duty Connector Housing Mounting Type
Applications
- Rail transportation;
- CNC equipment;
- Energy storage systems;
- Renewable energy devices;
- Smart grid installations;
- AC power distribution equipment;
- Power reliability systems;
