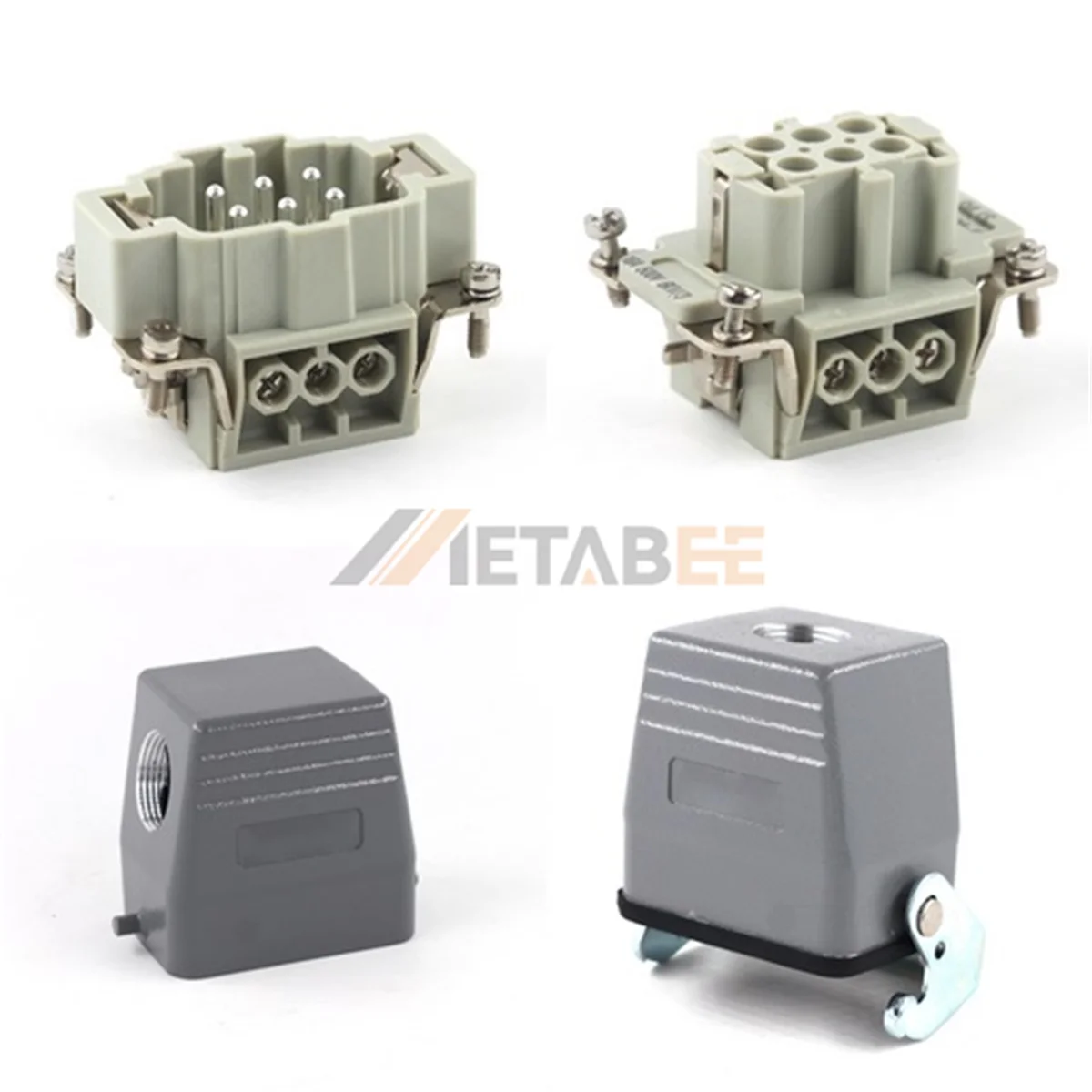

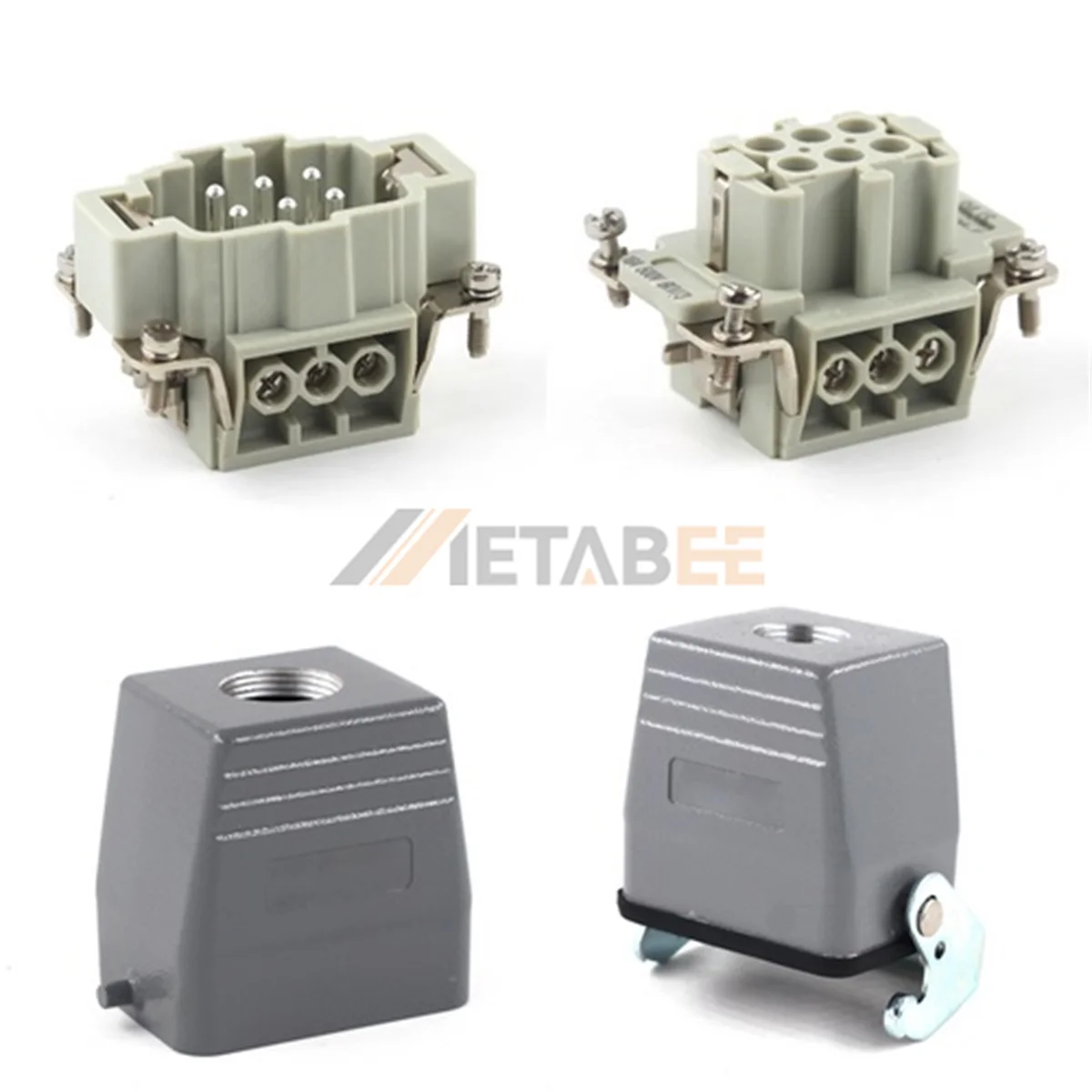

HE Series Heavy Duty Connector, 6+PE, Screw Terminal, Cable to Cable, Top/Side Entry, 16A/500V
Introduction:
Heavy-duty connectors (HDC) use strong aluminum or thermoplastic housings to protect against dust, moisture and mechanical stress. They consist of five main components: housing, hood, inserts, contacts and cable glands. Modular and monolithic inserts combine power, signal, data and pneumatic lines in one connector to save space in control cabinets. Flexible cable outlet directions and hoods for large-diameter cables also help with wiring in tight spaces.
The HE series heavy duty connector is designed for extending power lines efficiently. It features a cable-to-cable housing that allows for free-hanging connections without a panel. This 6+PE assembly handles high loads with a rating of 16A and 500V. The screw terminal inserts make wiring very simple. You only need a standard screwdriver to connect the wires. No crimping tools are required. The hood supports top or side entry to fit your routing needs. A single locking lever ensures the mating stays secure.
Note: The product supports multiple thread size options, and customers can choose the specification that matches their installation needs.
Key Features:
- Cable-to-cable housing enables secure inline extension.
- Standard 6+PE configuration rated at 16A 500V.
- Screw terminal inserts allow easy tool-free wiring.
- Single locking lever resists industrial vibration and shock.
- Hood design supports top or side cable entry.
Main Specifications:
General Information:
| Product No.: | HE-006-TBF-TG, HE-006-TBF-TS | |
| Category: | Heavy-Duty Connector Assemblies | |
| Inserts Series: | HE Series | |
| Number of Contacts: | 6+PE | |
| Contacts Termination: | Screw Terminal | |
| Hood/Housing Series: | H6B Series | |
| Housing Mounting Type: | Cable to Cable | |
| Housing Locking: | 1 Locking Lever | |
| Cable Entry Angle: | Top Entry, Side Entry | |
| Sealable: | N/A | |
| Thread Size: | M20, M25, PG16, PG21 | |
| Housing/Hood Material: | Die-cast aluminum | |
| Contact Material: | Copper Alloy | |
| Rated Current: | 16A | |
| Rated Voltage: | 500V | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 |
Heavy-duty connector main components
Four Types of Terminals
Heavy-duty Connector Housing Mounting Type
Applications
- Rail transportation;
- CNC equipment;
- Energy storage systems;
- Renewable energy devices;
- Smart grid installations;
- AC power distribution equipment;
- Power reliability systems;
