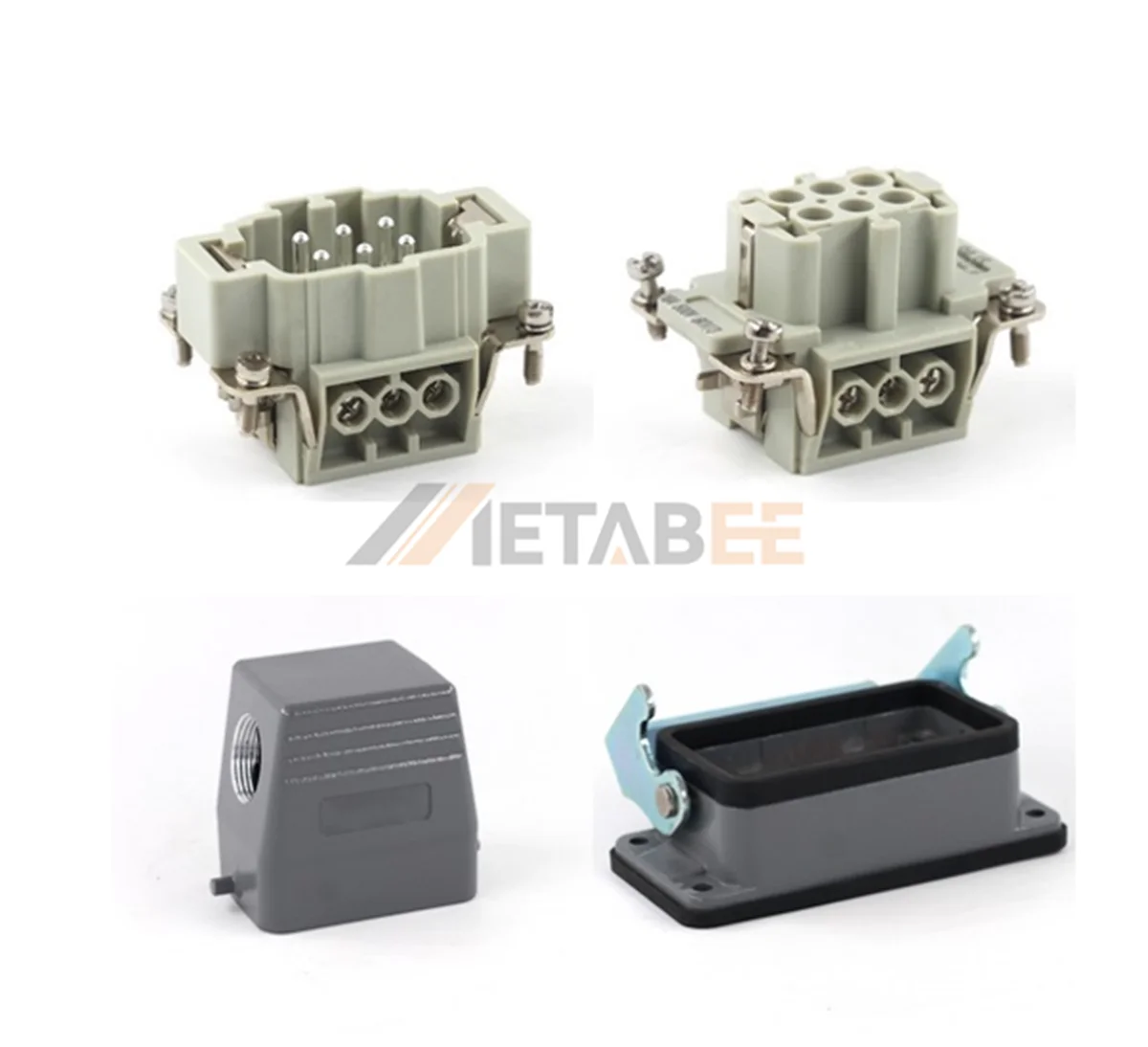

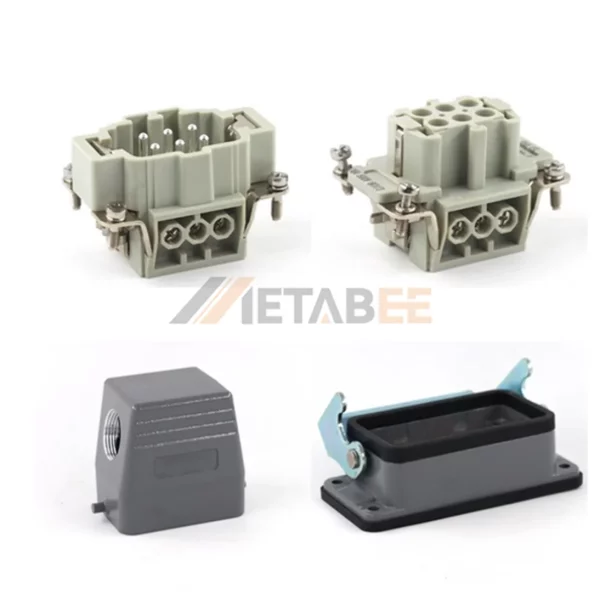

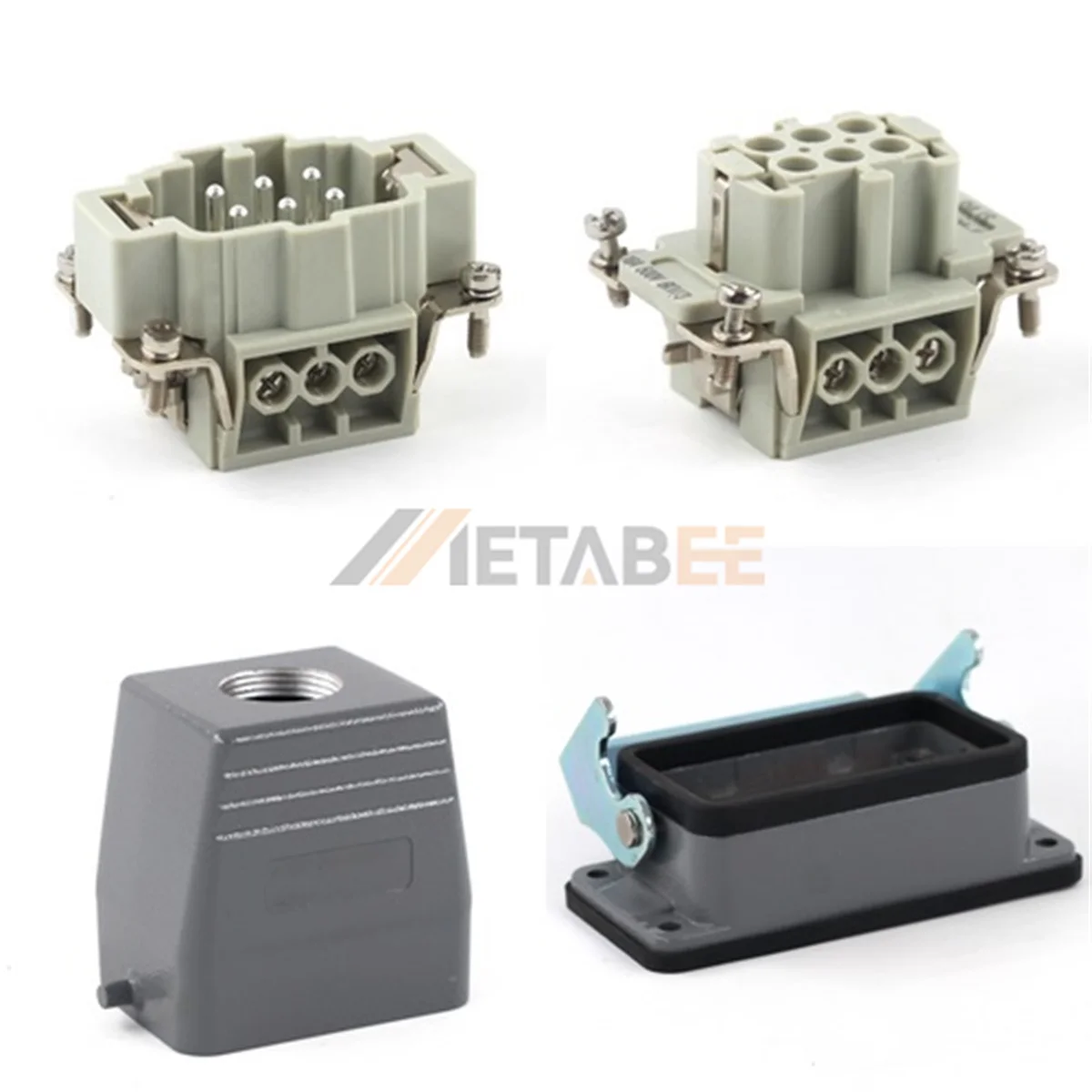

HE Series Heavy Duty Connector, 6+PE, Screw Terminal, Bulkhead Mounting, Top/Side Entry, 16A/500V
Introduction:
Heavy-duty connectors (HDC) use strong aluminum or thermoplastic housings to protect against dust, moisture and mechanical stress. They consist of five main components: housing, hood, inserts, contacts and cable glands. Modular and monolithic inserts combine power, signal, data and pneumatic lines in one connector to save space in control cabinets. Flexible cable outlet directions and hoods for large-diameter cables also help with wiring in tight spaces.
The HE series heavy duty connector is built for secure panel integration. It uses a bulkhead mounting housing to attach firmly to machine walls. This 6+PE kit allows for easy wiring with screw terminal inserts. You do not need specialized tools, just a standard screwdriver. It supports high power transmission with a rating of 16A and 500V. The assembly includes a hood with top or side entry for flexible cable routing. A single locking lever protects the connection from industrial vibrations.
Note: The product supports multiple thread size options, and customers can choose the specification that matches their installation needs.
Key Features:
- Bulkhead mounting base ensures secure panel installation.
- Standard 6+PE configuration rated at 16A 500V.
- Screw terminals allow quick wiring without crimping.
- Hood options support top or side cable entry.
- Single locking lever resists vibration and shock.
Main Specifications:
General Information:
| Product No.: | HE-006-AG-TS, HE-006-AG-TG | |
| Category: | Heavy-Duty Connector Assemblies | |
| Inserts Series: | HE Series | |
| Number of Contacts: | 6+PE | |
| Contacts Termination: | Screw Terminal | |
| Hood/Housing Series: | H6B Series | |
| Housing Mounting Type: | Bulkhead Mounting | |
| Housing Locking: | 1 Locking Lever | |
| Cable Entry Angle: | Top Entry, Side Entry | |
| Sealable: | N/A | |
| Thread Size: | M25, M32, M40, PG16, PG21, PG29 | |
| Housing/Hood Material: | Die-cast aluminum | |
| Contact Material: | Copper Alloy | |
| Rated Current: | 16A | |
| Rated Voltage: | 500V | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 |
Heavy-duty connector main components
Four Types of Terminals
Heavy-duty Connector Housing Mounting Type
Applications
- Rail transportation;
- CNC equipment;
- Energy storage systems;
- Renewable energy devices;
- Smart grid installations;
- AC power distribution equipment;
- Power reliability systems;
Factory pricing and exceptional product quality. OEM & ODM Services. Get a free quote now!
Metabee is a professional connector manufacturer from China. We can provide all kinds of heavy-duty connectors.
