HE Series Heavy Duty Connector, 32+PE, Surface Mounting Cover, Screw Terminal, Top/Side Entry, 16A/250V
Introduction:
Heavy-duty connectors (HDC) use strong aluminum or thermoplastic housings to protect against dust, moisture and mechanical stress. They consist of five main components: housing, hood, inserts, contacts and cable glands. Modular and monolithic inserts combine power, signal, data and pneumatic lines in one connector to save space in control cabinets. Flexible cable outlet directions and hoods for large-diameter cables also help with wiring in tight spaces.

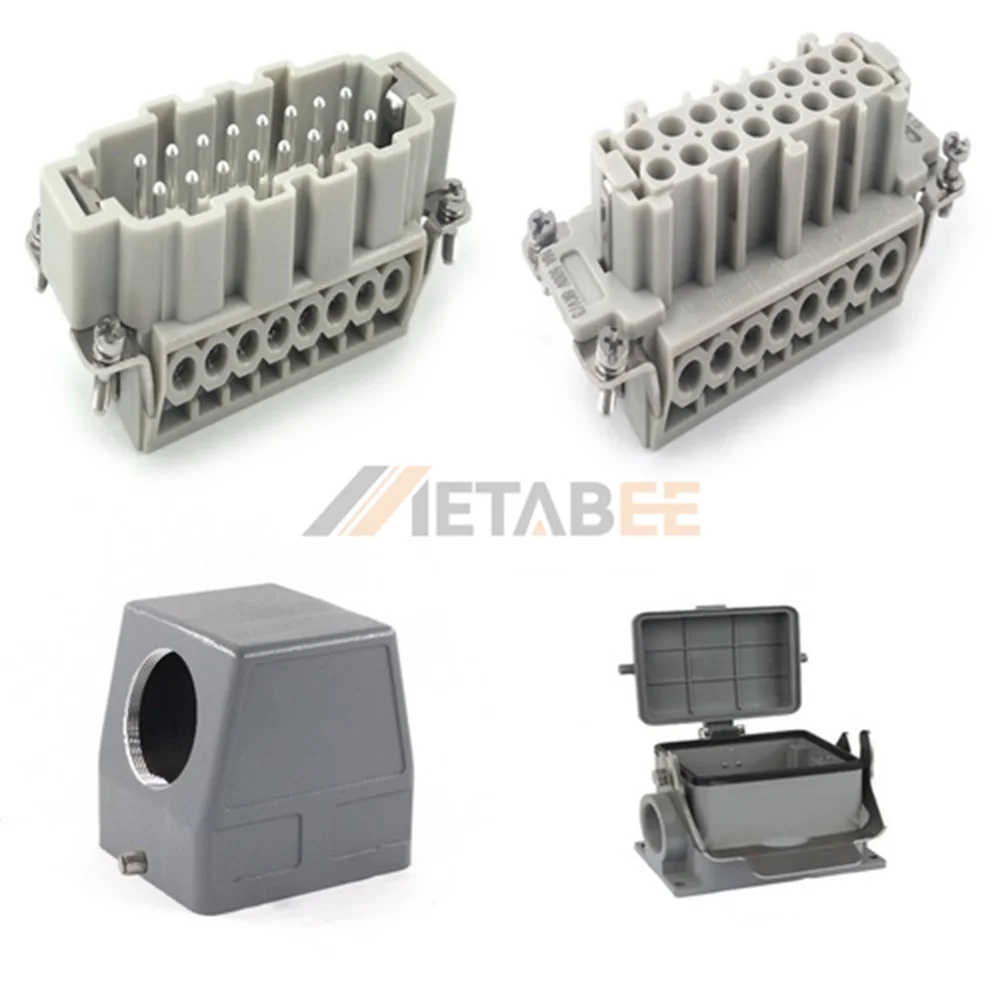

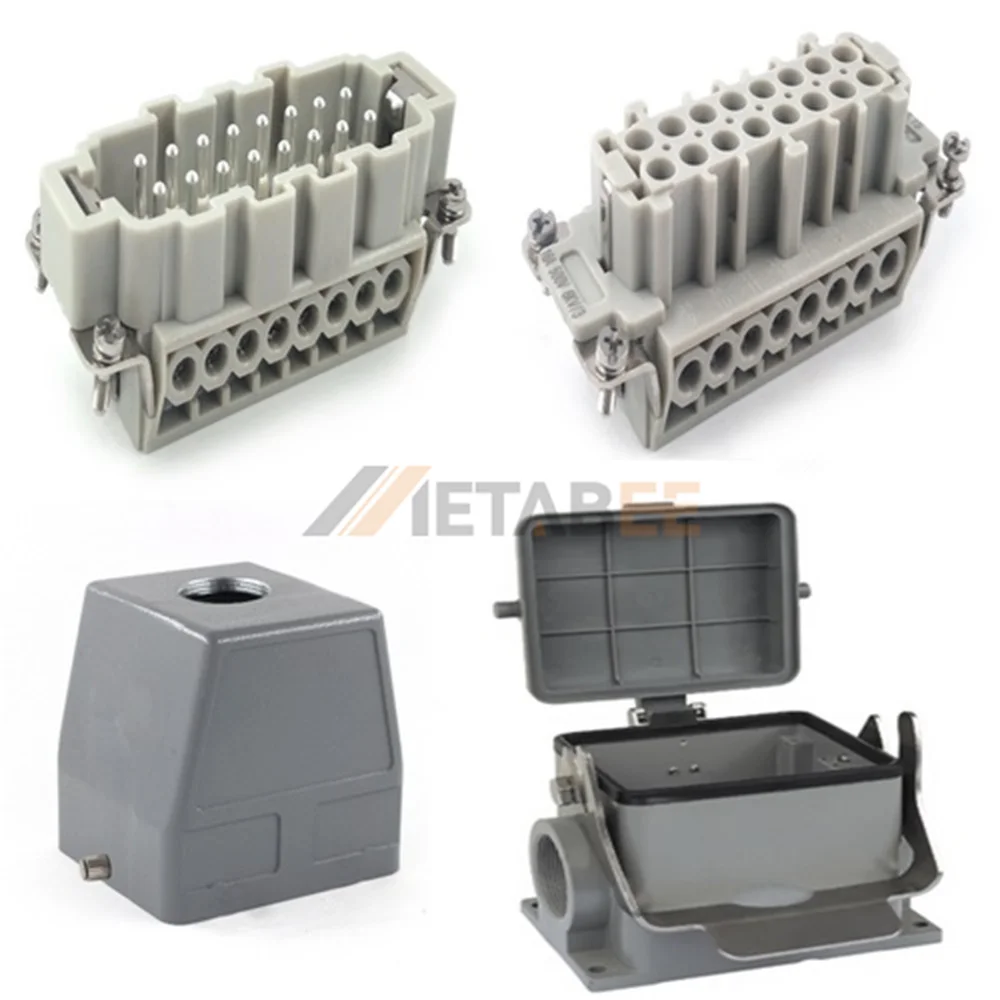

The HE series heavy duty connector ensures your large connections stay clean. It features a surface mounting base equipped with a protective cover. This keeps the wide 32+PE interface free from dust when disconnected. The assembly combines two 16-pin inserts side by side in one housing. You can mount the unit directly on flat walls without panel cutouts. Wiring is simple thanks to screw terminal technology. It handles industrial loads rated at 16A and 500V. The hood offers top or side cable entry options.
Note: The product supports multiple thread size options, and customers can choose the specification that matches their installation needs.
Key Features:
- Surface mounting base includes a cover for dust protection.
- Combines two 16-pin inserts for 32+PE connection.
- Screw terminal inserts require no crimping tools.
- Rated at 16A 500V for high-density wiring.
- Hood design offers top or side cable entry.
Main Specifications:
General Information:
| Product No.: | HE-032-SDR-LB-TS-RO, HE-032-SDR-LB-TS-RO | |
| Category: | Heavy-Duty Connector Assemblies | |
| Inserts Series: | HE Series | |
| Number of Contacts: | 32+PE | |
| Contacts Termination: | Screw Terminal | |
| Hood/Housing Series: | H32B Series | |
| Housing Mounting Type: | Surface Mounting | |
| Housing Locking: | 1 Locking Lever | |
| Cable Entry Angle: | Top Entry, Side Entry | |
| Sealable: | With Cover | |
| Thread Size: | M32, M40, PG29, PG36, PG42 | |
| Housing/Hood Material: | Die-cast aluminum | |
| Contact Material: | Copper Alloy | |
| Rated Current: | 16A | |
| Rated Voltage: | 250V | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 |
Heavy-duty connector main components
Four Types of Terminals
Heavy-duty Connector Housing Mounting Type
Applications
- Rail transportation;
- CNC equipment;
- Energy storage systems;
- Renewable energy devices;
- Smart grid installations;
- AC power distribution equipment;
- Power reliability systems;
