HE Series Heavy Duty Connector, 32+PE, Cable to Cable, Quick Lock Terminal, Top/Side Entry, 16A/500V
Introduction:
Heavy-duty connectors (HDC) use strong aluminum or thermoplastic housings to protect against dust, moisture and mechanical stress. They consist of five main components: housing, hood, inserts, contacts and cable glands. Modular and monolithic inserts combine power, signal, data and pneumatic lines in one connector to save space in control cabinets. Flexible cable outlet directions and hoods for large-diameter cables also help with wiring in tight spaces.
The HE series heavy duty connector offers a flexible solution for extending large power lines. It features a cable-to-cable housing designed to join two lines without a fixed panel. The assembly handles a high-density 32+PE configuration by combining two 16-pin inserts. Wiring is incredibly fast due to the quick lock terminal technology. You can connect all wires instantly without using screws or tools. This vibration-proof design is perfect for mobile connections. It handles 16A and 500V loads reliably. The hood supports top or side entry.
Note: The product supports multiple thread size options, and customers can choose the specification that matches their installation needs.
Key Features:
- Cable-to-cable housing allows secure inline extension.
- Combines two 16-pin inserts for 32+PE connection.
- Quick lock terminals enable fast screwless connection.
- Rated at 16A 500V for high-density wiring.
- Hood design offers top or side cable entry.
Main Specifications:
General Information:

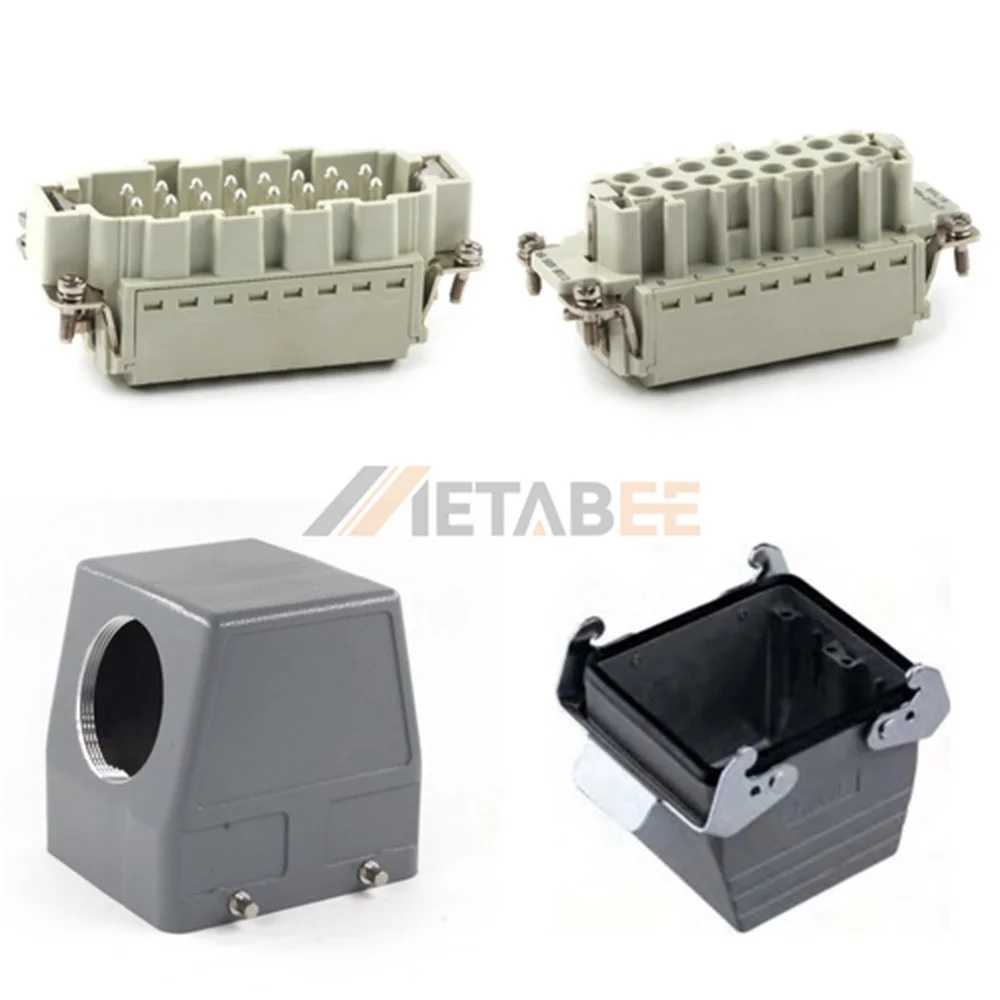

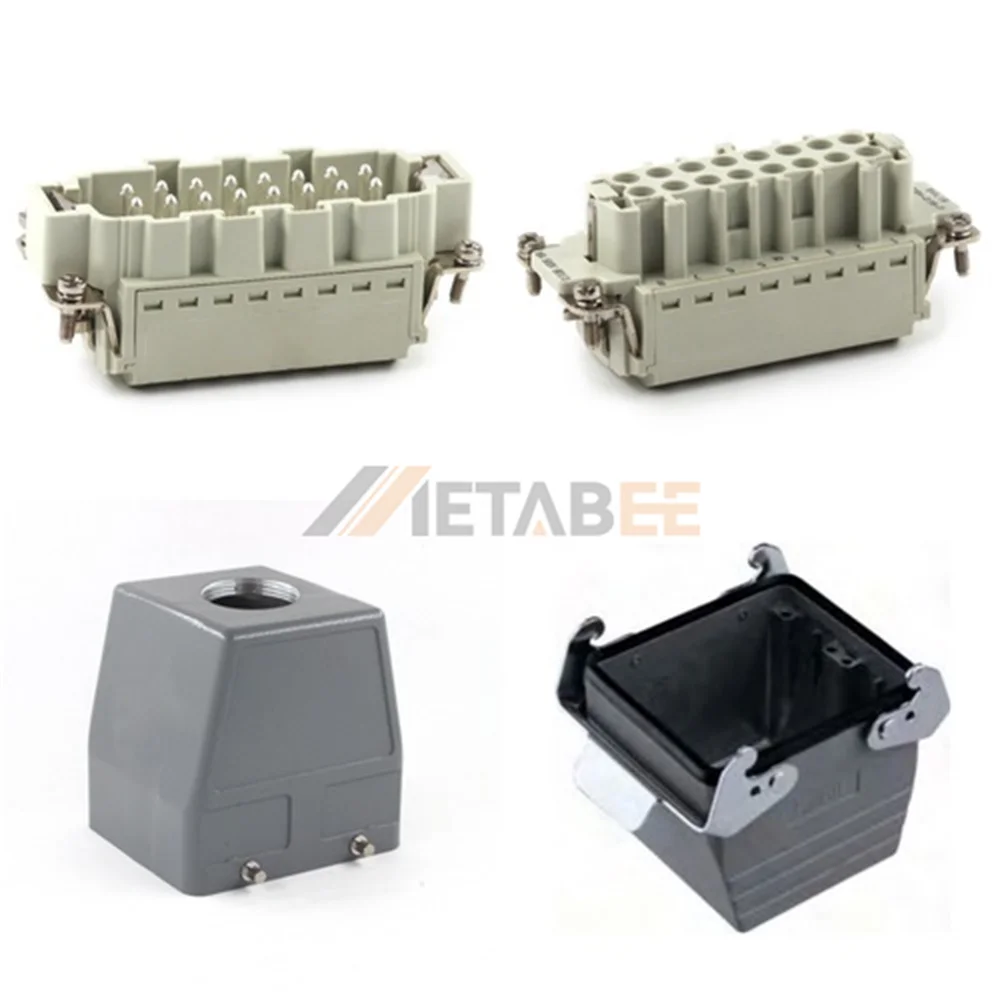

| Product No.: | HESH-032-TBF-TG, HESH-032-TBF-TS | |
| Category: | Heavy-Duty Connector Assemblies | |
| Inserts Series: | HE Series | |
| Number of Contacts: | 32+PE | |
| Contacts Termination: | Quick Lock Terminal | |
| Hood/Housing Series: | H32B Series | |
| Housing Mounting Type: | Cable to Cable | |
| Housing Locking: | 2 Locking Levers | |
| Cable Entry Angle: | Top Entry, Side Entry | |
| Sealable: | N/A | |
| Thread Size: | M32, M40, PG29, PG36, PG42 | |
| Housing/Hood Material: | Die-cast aluminum | |
| Contact Material: | Copper Alloy | |
| Rated Current: | 16A | |
| Rated Voltage: | 500V | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 |
Heavy-duty connector main components
Four Types of Terminals
Heavy-duty Connector Housing Mounting Type
Applications
- Rail transportation;
- CNC equipment;
- Energy storage systems;
- Renewable energy devices;
- Smart grid installations;
- AC power distribution equipment;
- Power reliability systems;
