HE Series Heavy Duty Connector, 32+PE, Bulkhead, Screw Terminal, Top/Side Entry, 16A/250V
Introduction:
Heavy-duty connectors (HDC) use strong aluminum or thermoplastic housings to protect against dust, moisture and mechanical stress. They consist of five main components: housing, hood, inserts, contacts and cable glands. Modular and monolithic inserts combine power, signal, data and pneumatic lines in one connector to save space in control cabinets. Flexible cable outlet directions and hoods for large-diameter cables also help with wiring in tight spaces.
The HE series heavy duty connector is perfect for integrating large systems. It features a bulkhead mounting base that fits into machine panels. This 32+PE assembly is unique because it combines two 16-pin inserts. You can manage high-density wiring easily in one location. The screw terminal technology allows for simple connection without special tools. A standard screwdriver is all you need. It handles industrial loads rated at 16A and 250V. The hood offers top or side cable entry options.
Note: The product supports multiple thread size options, and customers can choose the specification that matches their installation needs.
Key Features:
- Combines two 16-pin inserts for 32+PE connection.
- Bulkhead mounting base fits standard panel cutouts.
- Rated at 16A 250V for high-density wiring.
- Screw terminal inserts require no crimping tools.
- Hood design offers top or side cable entry.
Main Specifications:
General Information:

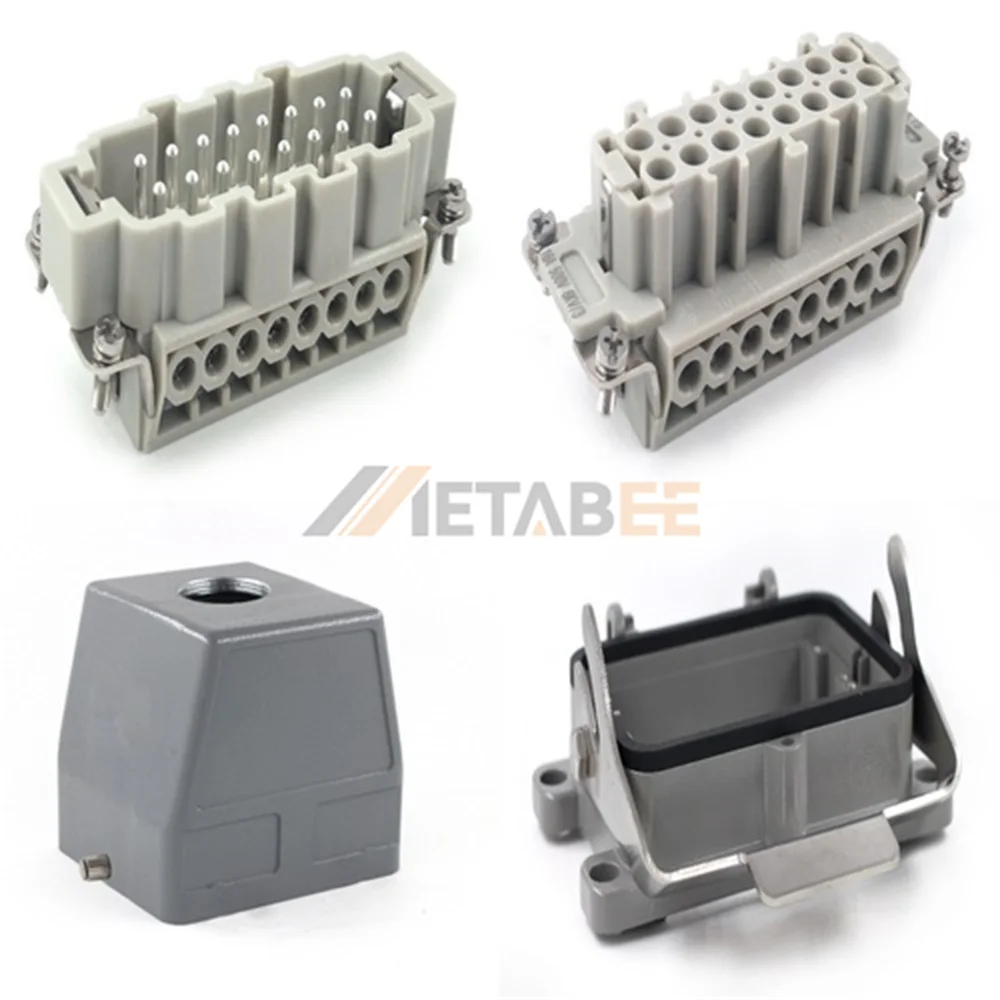

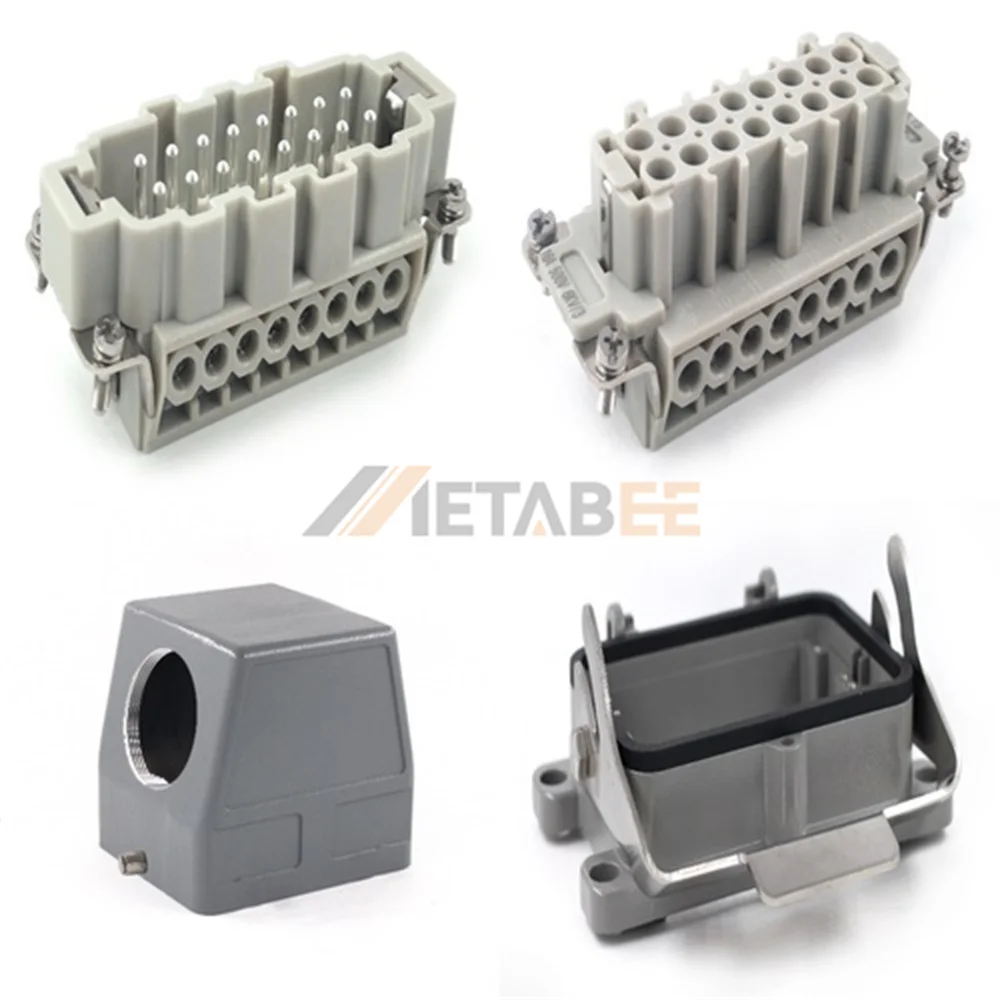

| Product No.: | HE-032-AG-LB-TS-RO, HE-032-AG-LB-TG-RO | |
| Category: | Heavy-Duty Connector Assemblies | |
| Inserts Series: | HE Series | |
| Number of Contacts: | 32+PE | |
| Contacts Termination: | Screw Terminal | |
| Hood/Housing Series: | H32B Series | |
| Housing Mounting Type: | Bulkhead Mounting | |
| Housing Locking: | 1 Locking Lever | |
| Cable Entry Angle: | Top Entry, Side Entry | |
| Sealable: | N/A | |
| Thread Size: | M32, M40, M50, PG29, PG36, PG42 | |
| Housing/Hood Material: | Die-cast aluminum | |
| Contact Material: | Copper Alloy | |
| Rated Current: | 16A | |
| Rated Voltage: | 250V | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 |
Heavy-duty connector main components
Four Types of Terminals
Heavy-duty Connector Housing Mounting Type
Applications
- Rail transportation;
- CNC equipment;
- Energy storage systems;
- Renewable energy devices;
- Smart grid installations;
- AC power distribution equipment;
- Power reliability systems;
