HE Series Heavy Duty Connector, 32+PE, Bulkhead, 2 Levers, Screw Terminal, Top/Side Entry, 16A/500V
Introduction:
Heavy-duty connectors (HDC) use strong aluminum or thermoplastic housings to protect against dust, moisture and mechanical stress. They consist of five main components: housing, hood, inserts, contacts and cable glands. Modular and monolithic inserts combine power, signal, data and pneumatic lines in one connector to save space in control cabinets. Flexible cable outlet directions and hoods for large-diameter cables also help with wiring in tight spaces.
The HE series heavy duty connector handles complex high-density wiring. It utilizes a large bulkhead mounting base secured by two locking levers. This double lever system provides maximum stability for the 32+PE configuration. The assembly houses two separate 16-pin inserts side by side. This modular design simplifies the connection of multiple circuits. It supports 16A and 500V industrial ratings. Wiring is easy because of the screw terminal technology. The hood supports top or side cable entry.
Note: The product supports multiple thread size options, and customers can choose the specification that matches their installation needs.
Key Features:
- Combines two 16-pin inserts for 32+PE connection.
- Two locking levers ensure maximum connection stability.
- Bulkhead mounting base fits large panel cutouts.
- Screw terminal inserts need no special tools.
- Rated at 16A 500V for industrial power.
Main Specifications:
General Information:

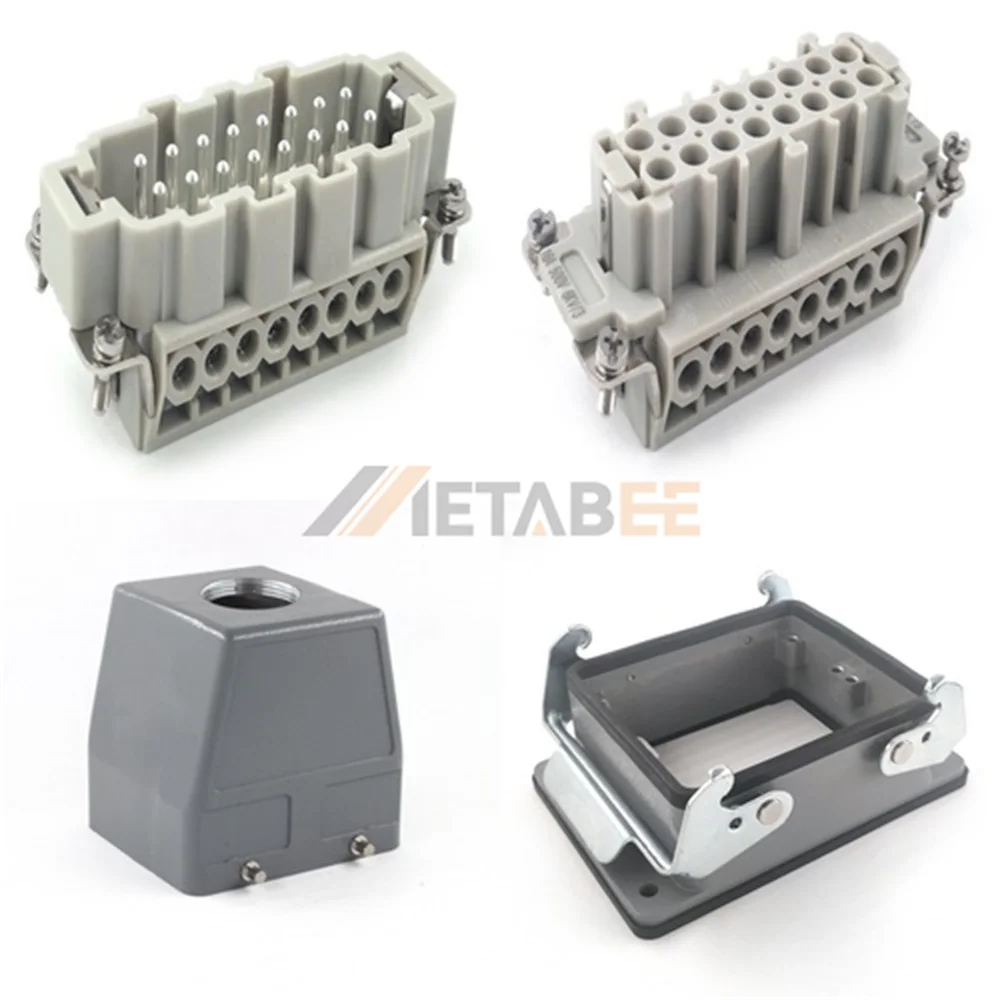

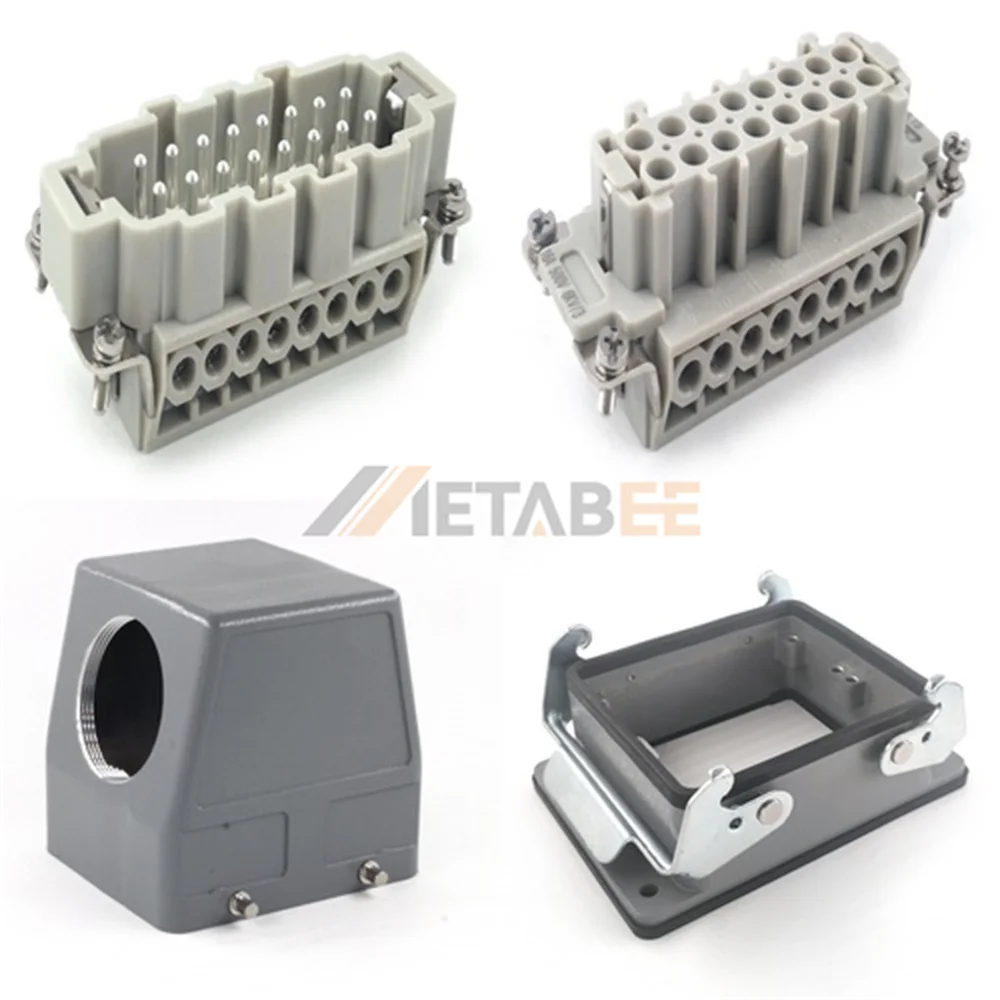

| Product No.: | HE-032-AG-TG, HE-032-AG-TS | |
| Category: | Heavy-Duty Connector Assemblies | |
| Inserts Series: | HE Series | |
| Number of Contacts: | 32+PE | |
| Contacts Termination: | Screw Terminal | |
| Hood/Housing Series: | H32B Series | |
| Housing Mounting Type: | Bulkhead Mounting | |
| Housing Locking: | 2 Locking Levers | |
| Cable Entry Angle: | Top Entry, Side Entry | |
| Sealable: | N/A | |
| Thread Size: | M32, M40, M50, PG29, PG36, PG42 | |
| Housing/Hood Material: | Die-cast aluminum | |
| Contact Material: | Copper Alloy | |
| Rated Current: | 16A | |
| Rated Voltage: | 500V | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 |
Heavy-duty connector main components
Four Types of Terminals
Heavy-duty Connector Housing Mounting Type
Applications
- Rail transportation;
- CNC equipment;
- Energy storage systems;
- Renewable energy devices;
- Smart grid installations;
- AC power distribution equipment;
- Power reliability systems;
