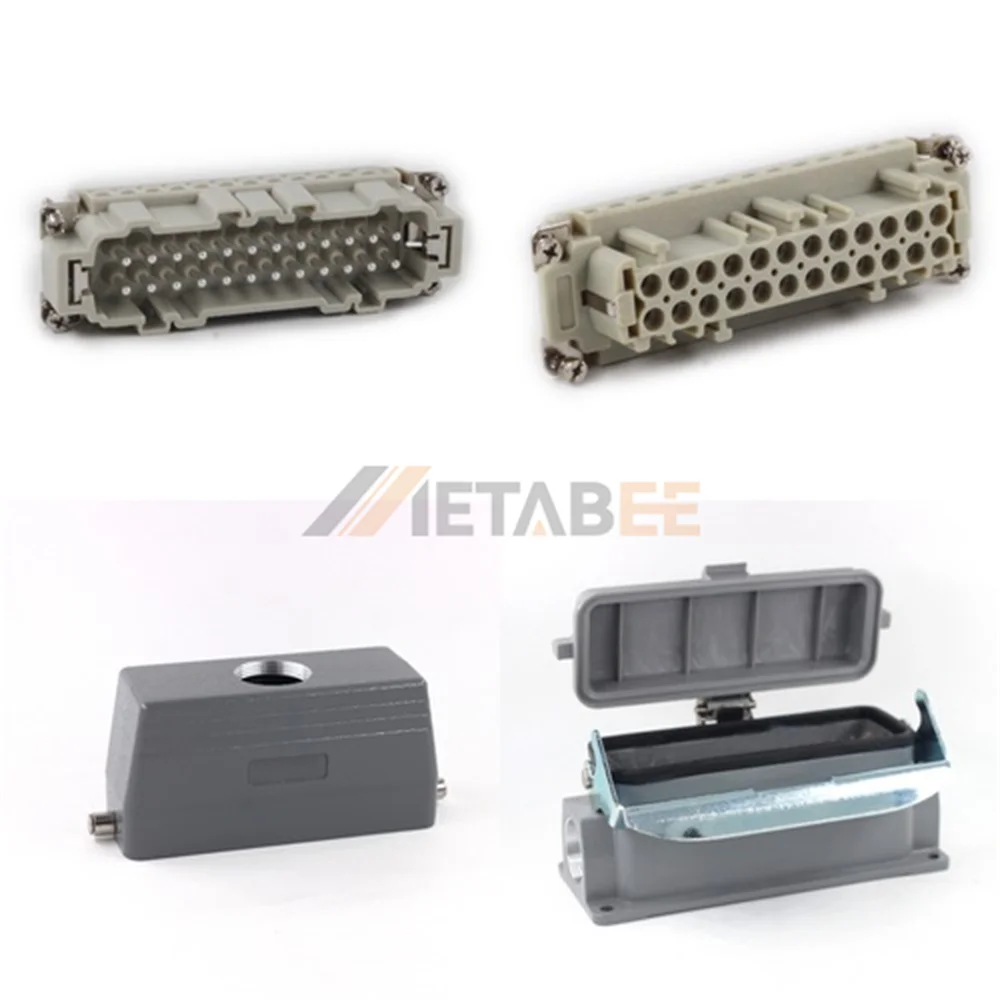

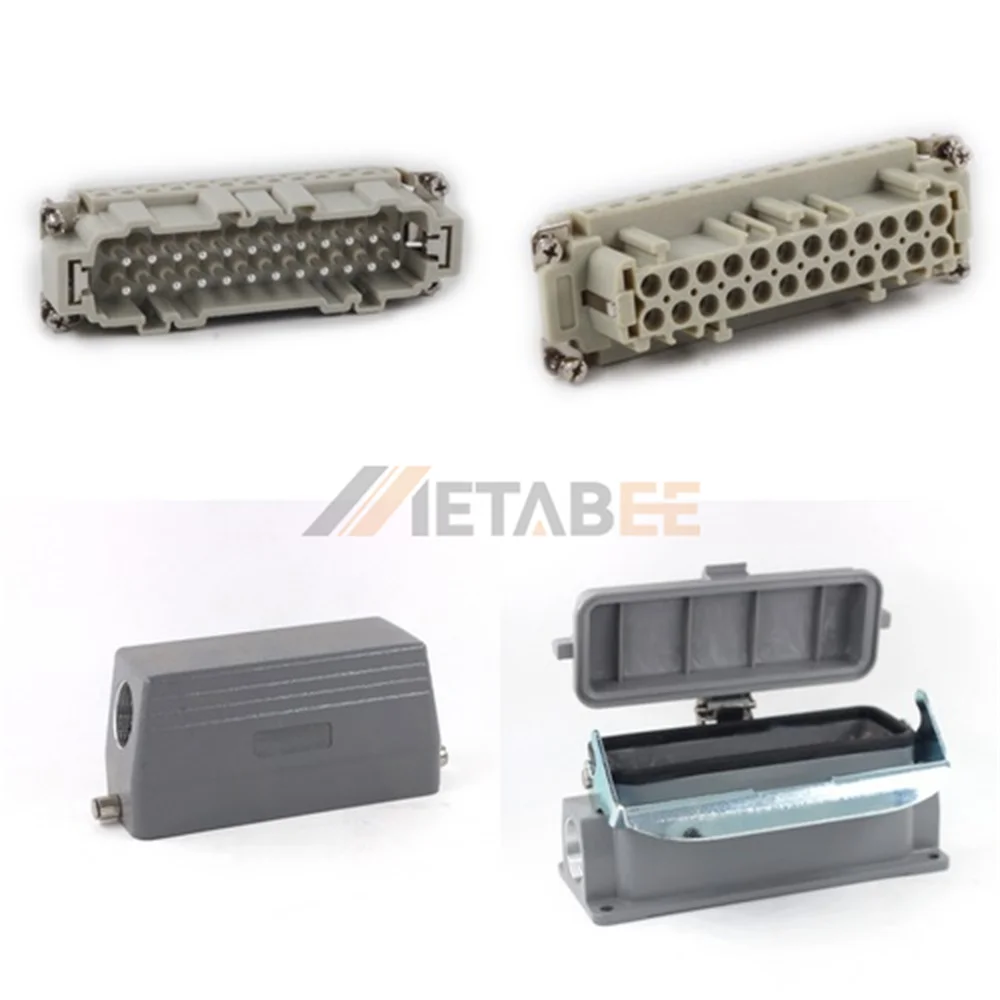

HE Series Heavy Duty Connector, 24+PE, Surface Mounting Cover, Screw Terminal, Top/Side Entry, 16A/500V
Introduction:
Heavy-duty connectors (HDC) use strong aluminum or thermoplastic housings to protect against dust, moisture and mechanical stress. They consist of five main components: housing, hood, inserts, contacts and cable glands. Modular and monolithic inserts combine power, signal, data and pneumatic lines in one connector to save space in control cabinets. Flexible cable outlet directions and hoods for large-diameter cables also help with wiring in tight spaces.
The HE series heavy duty connector ensures your large connections stay clean and safe. It features a surface mounting base equipped with a protective cover. This keeps the high-density 24+PE inserts free from dust when disconnected. You can install the housing directly on flat walls without panel cutouts. Wiring is simple because of the screw terminal inserts. You only need a standard screwdriver to connect the wires. It supports industrial loads rated at 16A and 500V. The hood offers top or side cable entry options.
Note: The product supports multiple thread size options, and customers can choose the specification that matches their installation needs.
Key Features:
- Surface mounting base includes a cover for dust protection.
- High-density 24+PE configuration rated at 16A 500V.
- Screw terminal inserts require no crimping tools.
- Single locking lever ensures vibration-resistant mating.
- Hood design offers top or side cable entry.
Main Specifications:
General Information:
| Product No.: | HE-024-SDR-LB-TS-RO, HE-024-SDR-LB-TG-RO | |
| Category: | Heavy-Duty Connector Assemblies | |
| Inserts Series: | HE Series | |
| Number of Contacts: | 24+PE | |
| Contacts Termination: | Screw Terminal | |
| Hood/Housing Series: | H24B Series | |
| Housing Mounting Type: | Surface Mounting | |
| Housing Locking: | 1 Locking Lever | |
| Cable Entry Angle: | Top Entry, Side Entry | |
| Sealable: | With Cover | |
| Thread Size: | M25, PG21 | |
| Housing/Hood Material: | Die-cast aluminum | |
| Contact Material: | Copper Alloy | |
| Rated Current: | 16A | |
| Rated Voltage: | 500V | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 |
Heavy-duty connector main components
Four Types of Terminals
Heavy-duty Connector Housing Mounting Type
Applications
- Rail transportation;
- CNC equipment;
- Energy storage systems;
- Renewable energy devices;
- Smart grid installations;
- AC power distribution equipment;
- Power reliability systems;
