HE Series Heavy Duty Connector, 24+PE, Surface Mounting, Screw Terminal, Top/Side Entry, 16A/500V
Introduction:
Heavy-duty connectors (HDC) use strong aluminum or thermoplastic housings to protect against dust, moisture and mechanical stress. They consist of five main components: housing, hood, inserts, contacts and cable glands. Modular and monolithic inserts combine power, signal, data and pneumatic lines in one connector to save space in control cabinets. Flexible cable outlet directions and hoods for large-diameter cables also help with wiring in tight spaces.
The HE series heavy duty connector simplifies installing large interfaces. It utilizes a surface mounting base that attaches directly to walls. You do not need to cut panel holes for the 24+PE configuration. This assembly handles industrial power rated at 16A and 500V. The screw terminal inserts allow for easy field wiring. You can finish the setup using just a standard screwdriver. The hood supports top or side cable entry options. A locking mechanism secures the system against vibration.
Note: The product supports multiple thread size options, and customers can choose the specification that matches their installation needs.
Key Features:
- Surface mounting base installs without panel cutouts.
- High-density 24+PE configuration rated at 16A 500V.
- Screw terminal inserts require no crimping tools.
- Hood design offers top or side cable entry.
- Secure locking system ensures vibration-resistant mating.
Main Specifications:
General Information:

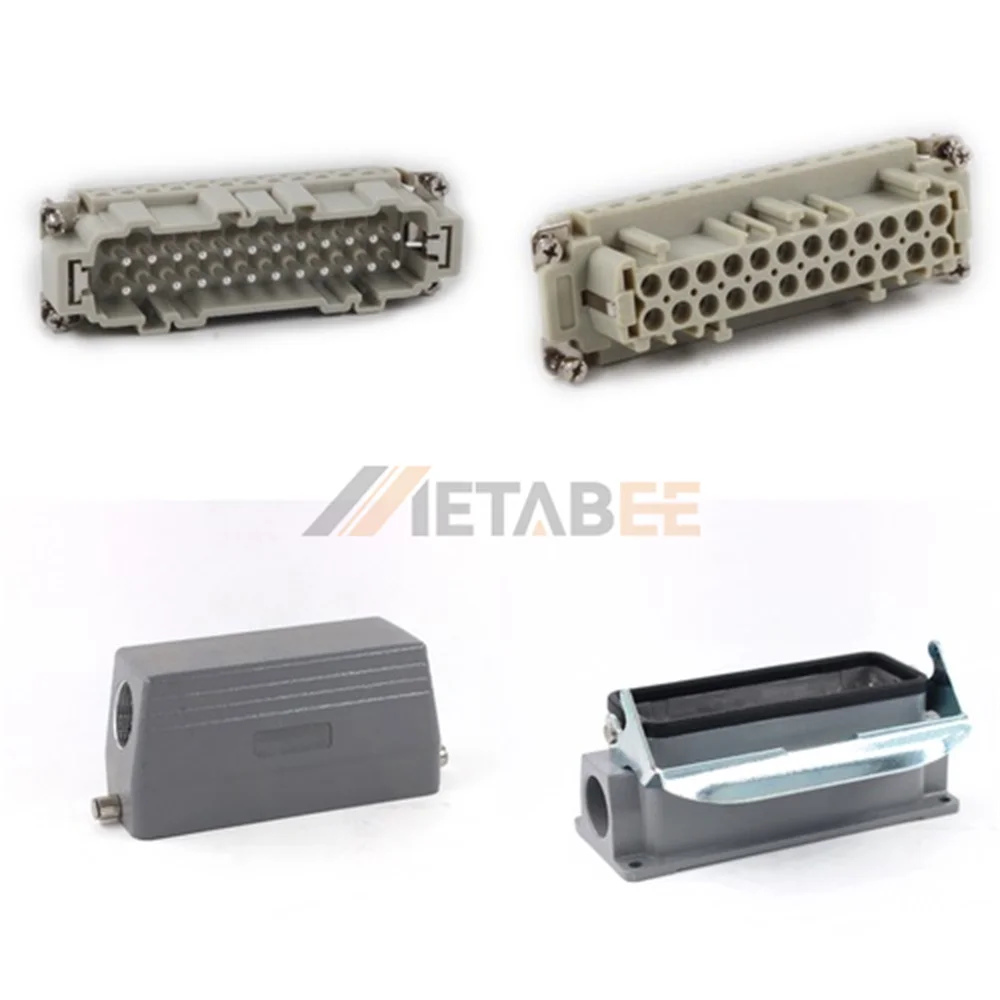

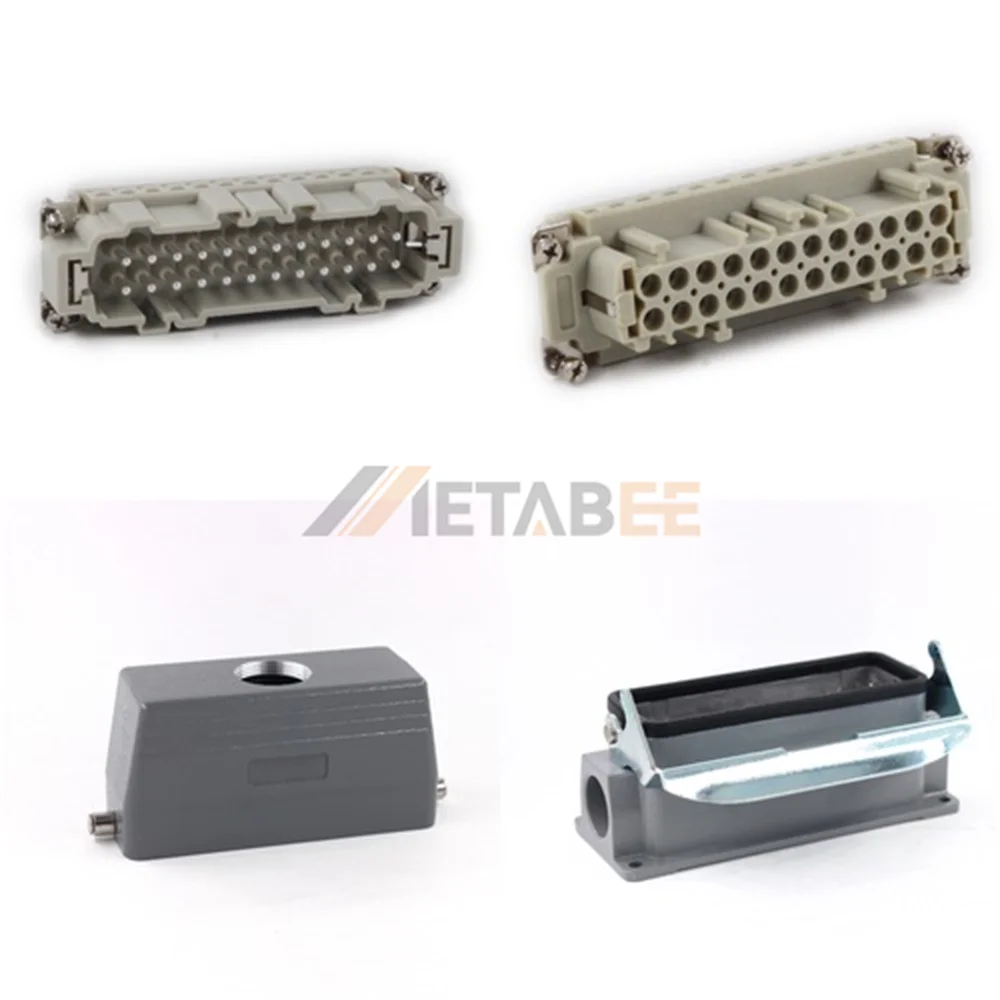

| Product No.: | HE-024-SGR-LB-TS-RO, HE-024-SGR-LB-TG-RO | |
| Category: | Heavy-Duty Connector Assemblies | |
| Inserts Series: | HE Series | |
| Number of Contacts: | 24+PE | |
| Contacts Termination: | Screw Terminal | |
| Hood/Housing Series: | H24B Series | |
| Housing Mounting Type: | Surface Mounting | |
| Housing Locking: | 1 Locking Lever | |
| Cable Entry Angle: | Top Entry, Side Entry | |
| Sealable: | N/A | |
| Thread Size: | M25, PG21 | |
| Housing/Hood Material: | Die-cast aluminum | |
| Contact Material: | Copper Alloy | |
| Rated Current: | 16A | |
| Rated Voltage: | 500V | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 |
Heavy-duty connector main components
Four Types of Terminals
Heavy-duty Connector Housing Mounting Type
Applications
- Rail transportation;
- CNC equipment;
- Energy storage systems;
- Renewable energy devices;
- Smart grid installations;
- AC power distribution equipment;
- Power reliability systems;
