Introduction:
Heavy-duty connectors (HDC) use strong aluminum or thermoplastic housings to protect against dust, moisture and mechanical stress. They consist of five main components: housing, hood, inserts, contacts and cable glands. Modular and monolithic inserts combine power, signal, data and pneumatic lines in one connector to save space in control cabinets. Flexible cable outlet directions and hoods for large-diameter cables also help with wiring in tight spaces.

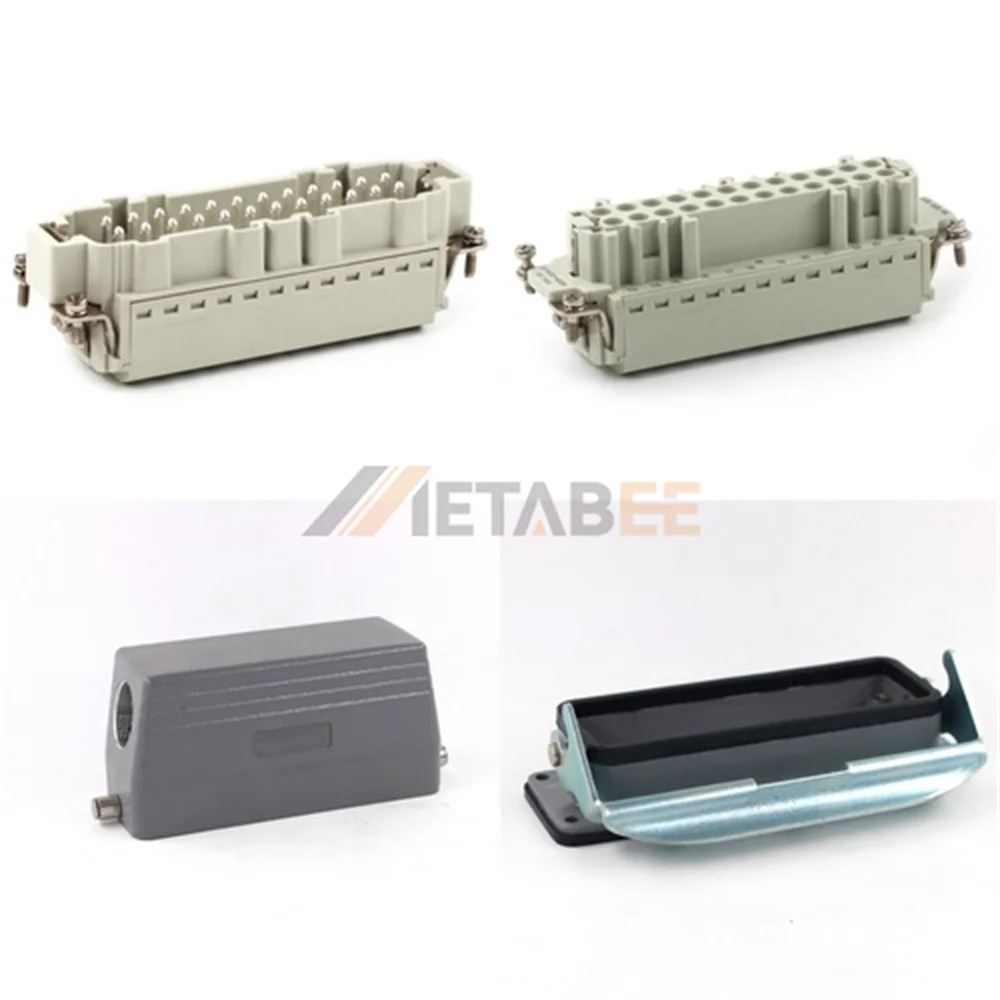

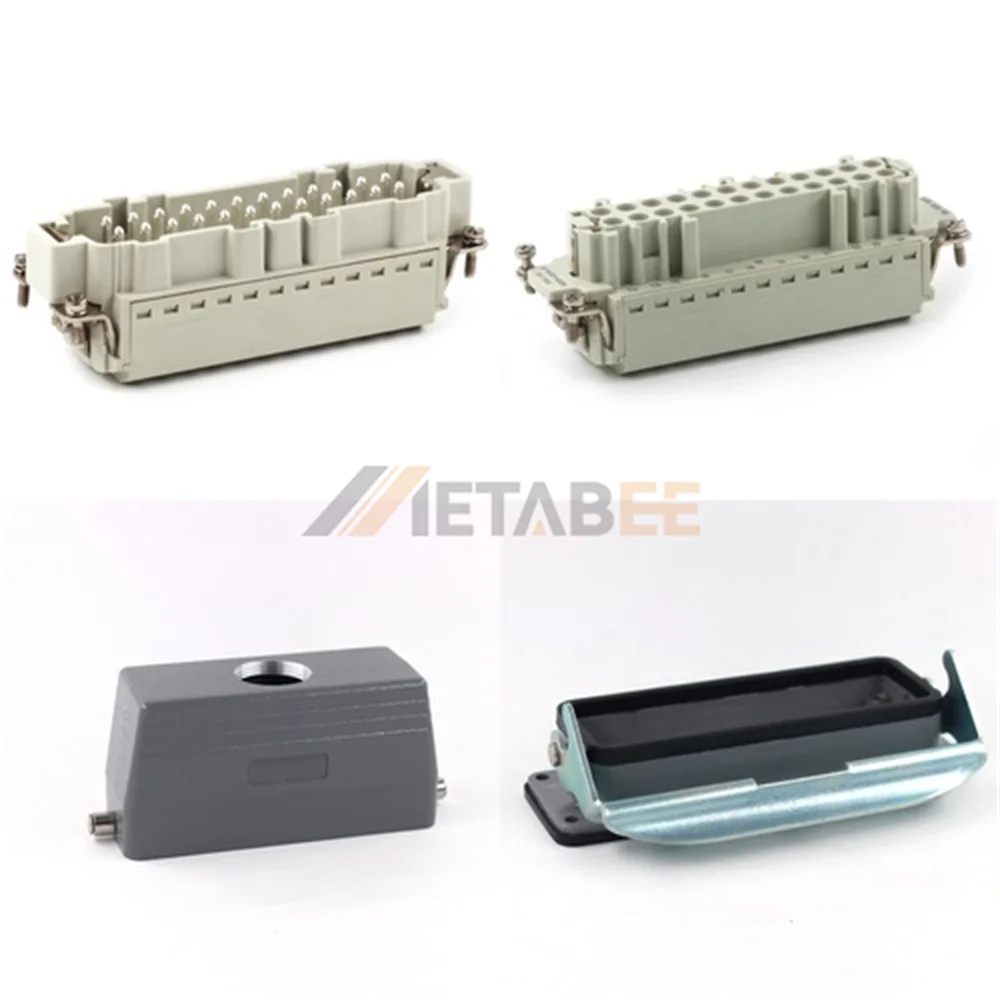

The HE series heavy duty connector is designed for efficient panel integration. It features a bulkhead mounting base that fits standard machine cutouts. This allows for a secure connection directly through the device wall. The assembly utilizes quick lock terminal technology to handle the high-density 24+PE configuration. You can connect all wires instantly without turning a single screw. This significantly speeds up the installation process for large systems. The unit handles industrial loads rated at 16A and 500V. The hood supports top or side cable entry.
Note: The product supports multiple thread size options, and customers can choose the specification that matches their installation needs.
Key Features:
- Quick lock terminals enable fast screwless connection.
- High-density 24+PE configuration rated at 16A 500V.
- Bulkhead mounting base fits standard panel cutouts.
- Vibration-proof design ensures reliable signal transmission.
- Hood design offers top or side cable entry.
Main Specifications:
General Information:
| Product No.: | HESH-024-AG-LB-TS-RO, HESH-024-AG-LB-TS-RO | |
| Category: | Heavy-Duty Connector Assemblies | |
| Inserts Series: | HE Series | |
| Number of Contacts: | 24+PE | |
| Contacts Termination: | Quick Lock Terminal | |
| Hood/Housing Series: | H24B Series | |
| Housing Mounting Type: | Bulkhead Mounting | |
| Housing Locking: | 1 Locking Lever | |
| Cable Entry Angle: | Top Entry, Side Entry | |
| Sealable: | N/A | |
| Thread Size: | M25, M32, M40, PG21, PG29 | |
| Housing/Hood Material: | Die-cast aluminum | |
| Contact Material: | Copper Alloy | |
| Rated Current: | 16A | |
| Rated Voltage: | 500V | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 |
Heavy-duty connector main components
Four Types of Terminals
Heavy-duty Connector Housing Mounting Type
Applications
- Rail transportation;
- CNC equipment;
- Energy storage systems;
- Renewable energy devices;
- Smart grid installations;
- AC power distribution equipment;
- Power reliability systems;
