Introduction:
Heavy-duty connectors (HDC) use strong aluminum or thermoplastic housings to protect against dust, moisture and mechanical stress. They consist of five main components: housing, hood, inserts, contacts and cable glands. Modular and monolithic inserts combine power, signal, data and pneumatic lines in one connector to save space in control cabinets. Flexible cable outlet directions and hoods for large-diameter cables also help with wiring in tight spaces.

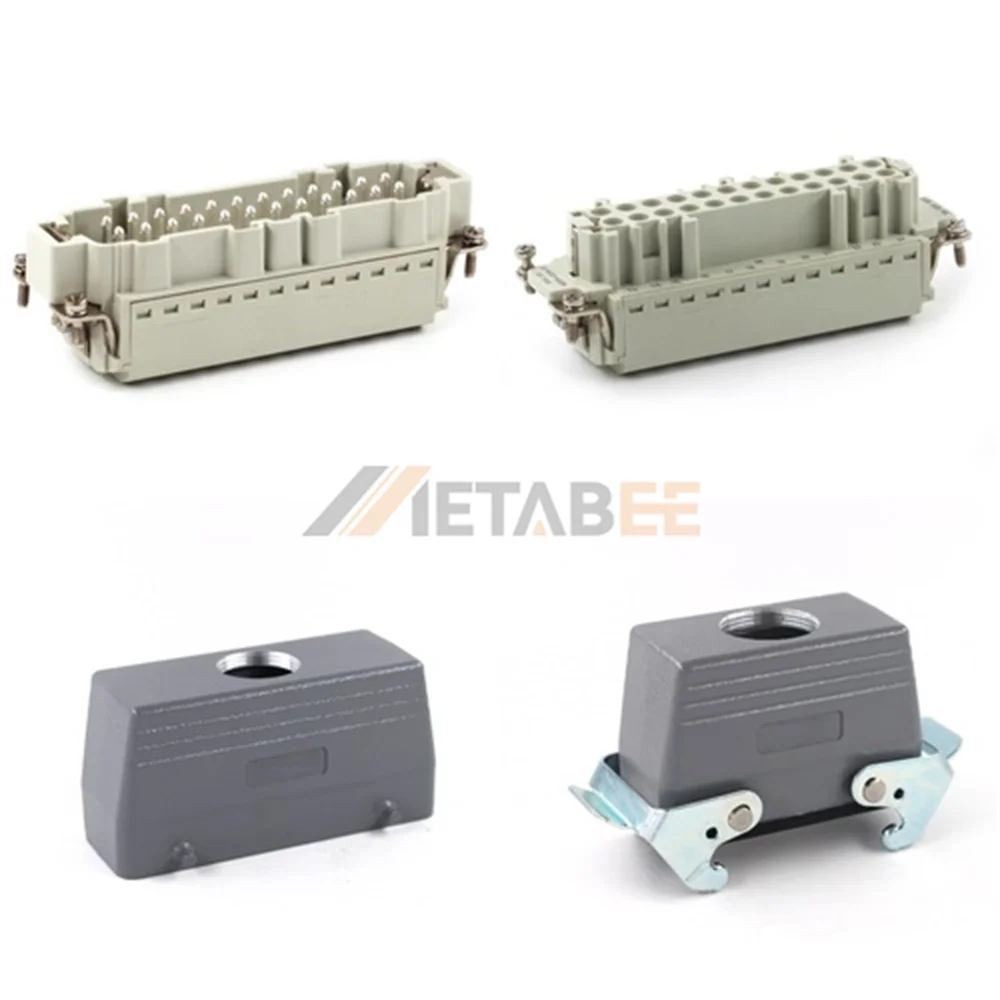

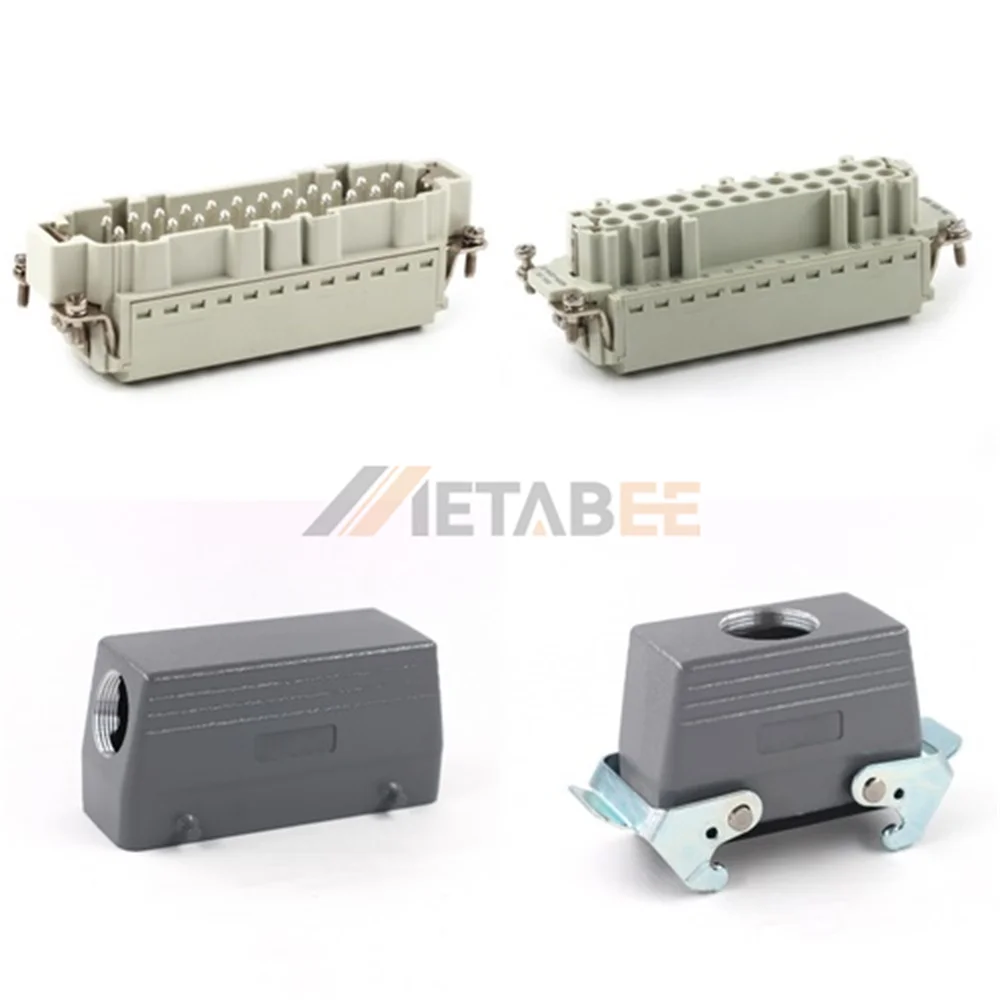

The HE series heavy duty connector is ideal for mobile power extensions. It allows you to connect 24+PE wires without a fixed panel. The assembly features a cable-to-cable housing for secure inline joining. Wiring is incredibly fast due to quick lock terminal technology. You can connect all cables instantly without screws. This screwless design resists vibration during movement. It handles industrial loads rated at 16A and 500V efficiently. The hood supports top or side entry options.
Note: The product supports multiple thread size options, and customers can choose the specification that matches their installation needs.
Key Features:
- Cable-to-cable housing enables secure inline extension.
- Quick lock terminals allow fast screwless wiring.
- High-density 24+PE configuration rated at 16A 500V.
- Vibration-proof design ensures reliable signal transmission.
- Hood design offers top or side cable entry.
Main Specifications:
General Information:
| Product No.: | HESH-024-TBF-TG, HESH-024-TBF-TS | |
| Category: | Heavy-Duty Connector Assemblies | |
| Inserts Series: | HE Series | |
| Number of Contacts: | 24+PE | |
| Contacts Termination: | Quick Lock Terminal | |
| Hood/Housing Series: | H24B Series | |
| Housing Mounting Type: | Cable to Cable | |
| Housing Locking: | 2 Locking Levers | |
| Cable Entry Angle: | Top Entry, Side Entry | |
| Sealable: | N/A | |
| Thread Size: | M25, M32, PG21 | |
| Housing/Hood Material: | Die-cast aluminum | |
| Contact Material: | Copper Alloy | |
| Rated Current: | 16A | |
| Rated Voltage: | 500V | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 |
Heavy-duty connector main components
Four Types of Terminals
Heavy-duty Connector Housing Mounting Type
Applications
- Rail transportation;
- CNC equipment;
- Energy storage systems;
- Renewable energy devices;
- Smart grid installations;
- AC power distribution equipment;
- Power reliability systems;
