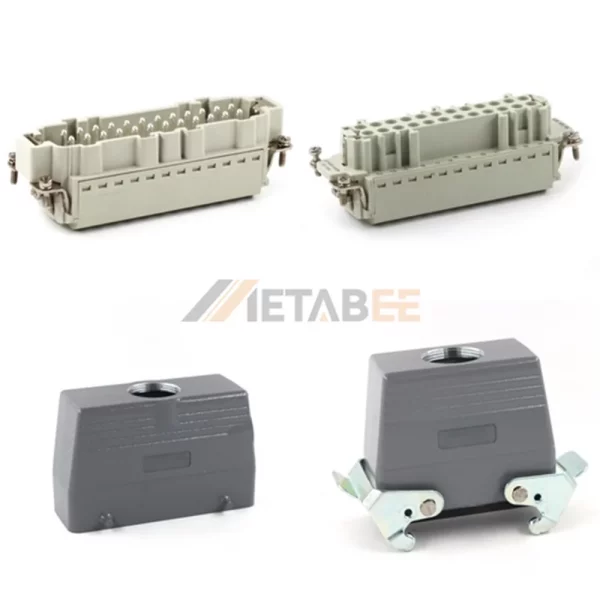

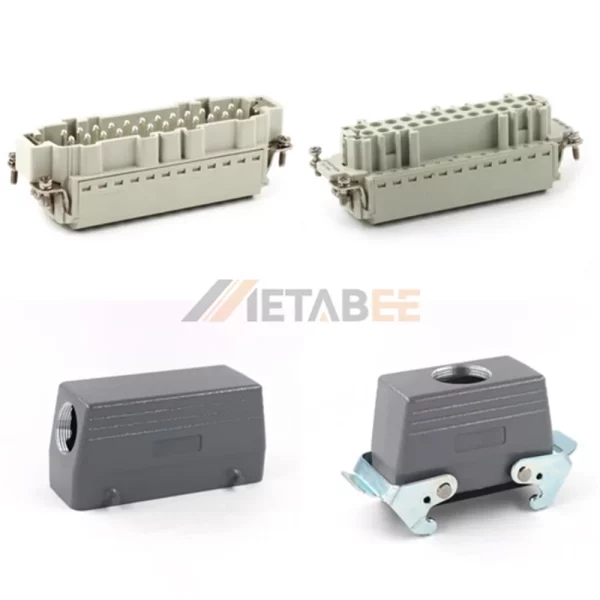

HE Series Heavy Duty Connector, 24+PE, Cable to Cable, Screw Terminal, Top/Side Entry, 16A/500V
Introduction:
Heavy-duty connectors (HDC) use strong aluminum or thermoplastic housings to protect against dust, moisture and mechanical stress. They consist of five main components: housing, hood, inserts, contacts and cable glands. Modular and monolithic inserts combine power, signal, data and pneumatic lines in one connector to save space in control cabinets. Flexible cable outlet directions and hoods for large-diameter cables also help with wiring in tight spaces.
The HE series heavy duty connector is perfect for extending complex multi-wire systems. It features a cable-to-cable housing designed to join two lines without a machine panel. This flexibility is ideal for temporary or mobile connections. The kit supports a high-density 24+PE configuration rated at 16A and 500V. Wiring is straightforward because of the screw terminal inserts. You can connect all wires quickly using just a standard screwdriver. The hood allows for top or side cable entry. A locking lever keeps the large mating unit secure.
Note: The product supports multiple thread size options, and customers can choose the specification that matches their installation needs.
Key Features:
- Cable-to-cable housing allows secure inline extension.
- High-density 24+PE configuration rated at 16A 500V.
- Screw terminal inserts need no special tools.
- Single locking lever resists industrial vibration.
- Hood design offers top or side cable entry.
Main Specifications:
General Information:

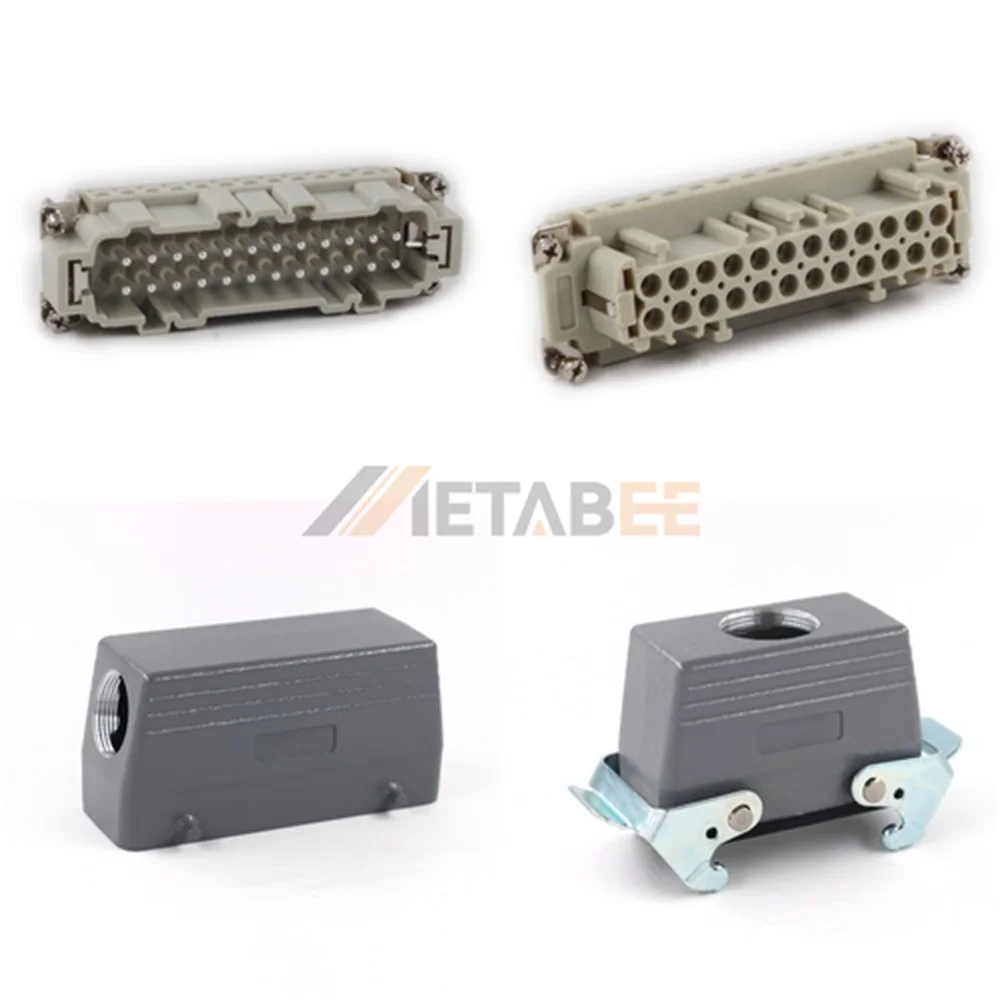

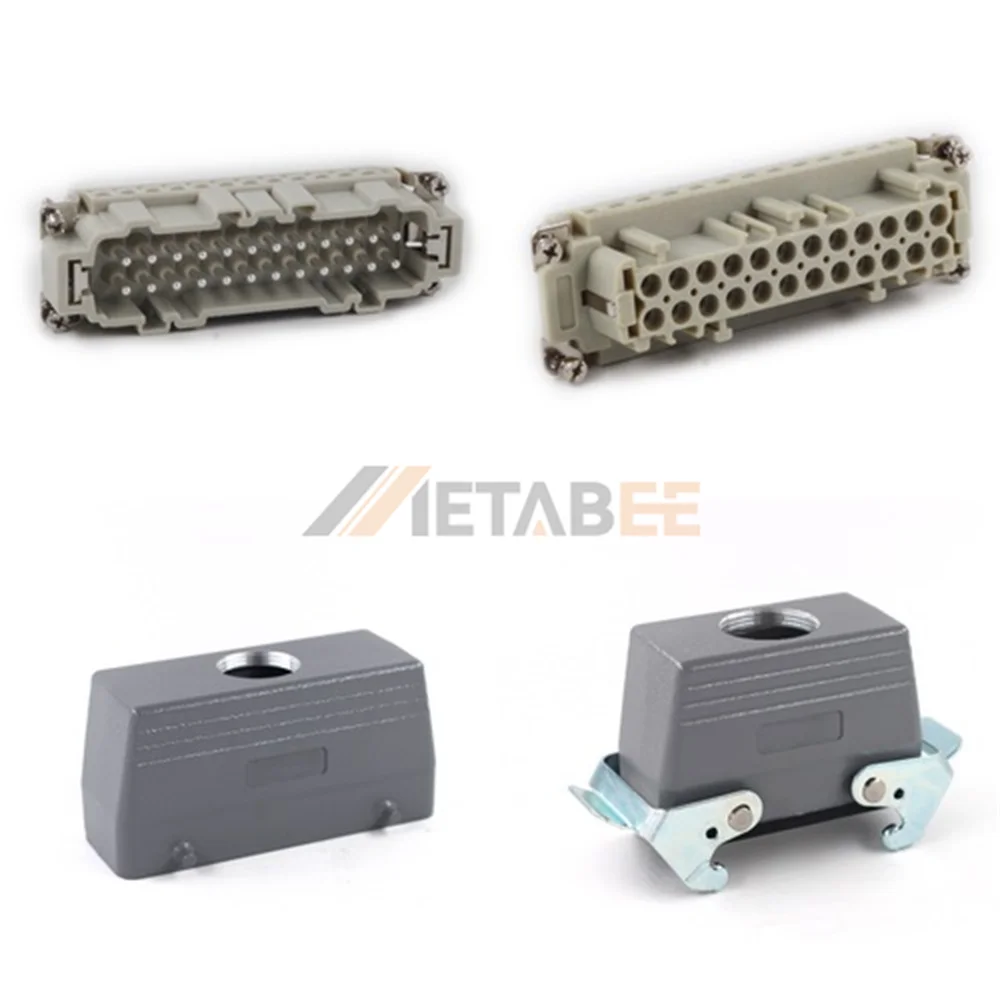

| Product No.: | HE-024-TBF-TG, HE-024-TBF-TS | |
| Category: | Heavy-Duty Connector Assemblies | |
| Inserts Series: | HE Series | |
| Number of Contacts: | 24+PE | |
| Contacts Termination: | Screw Terminal | |
| Hood/Housing Series: | H24B Series | |
| Housing Mounting Type: | Cable to Cable | |
| Housing Locking: | 1 Locking Lever | |
| Cable Entry Angle: | Top Entry, Side Entry | |
| Sealable: | N/A | |
| Thread Size: | M25, M32, PG21 | |
| Housing/Hood Material: | Die-cast aluminum | |
| Contact Material: | Copper Alloy | |
| Rated Current: | 16A | |
| Rated Voltage: | 500V | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 |
Heavy-duty connector main components
Four Types of Terminals
Heavy-duty Connector Housing Mounting Type
Applications
- Rail transportation;
- CNC equipment;
- Energy storage systems;
- Renewable energy devices;
- Smart grid installations;
- AC power distribution equipment;
- Power reliability systems;
