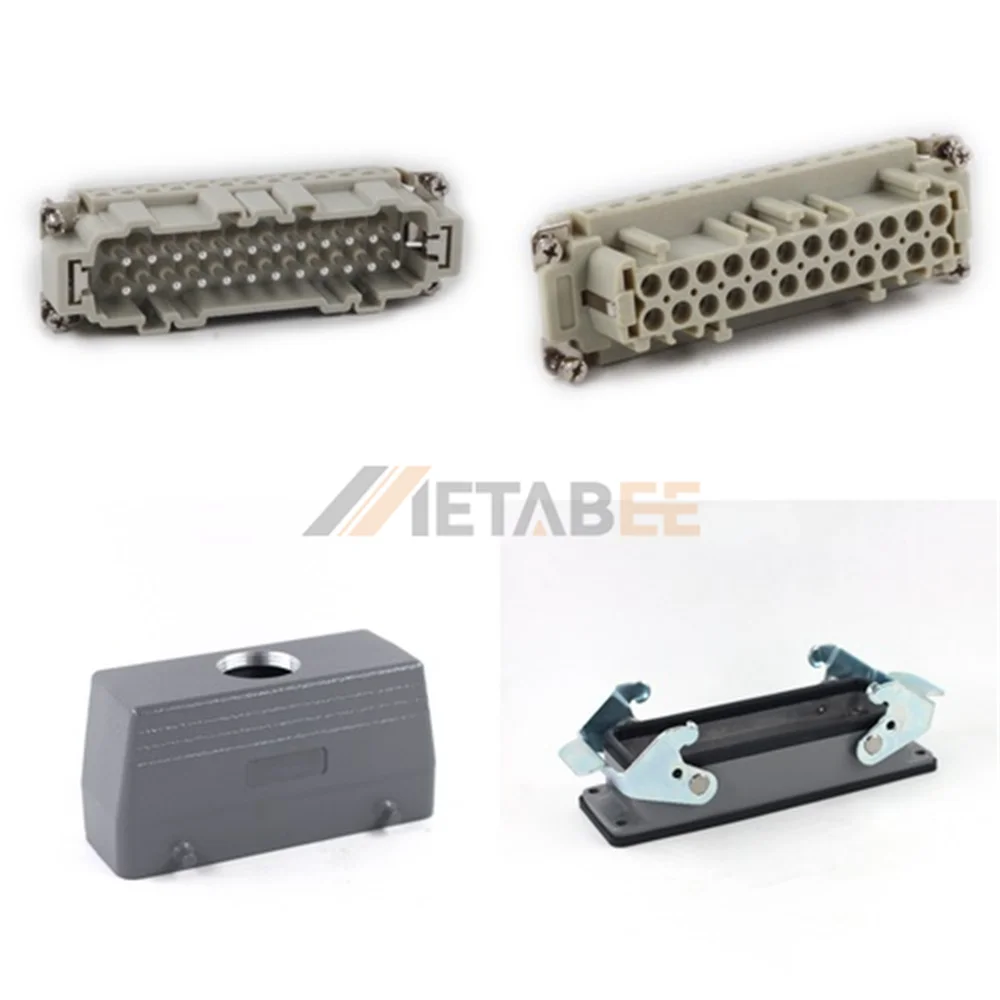

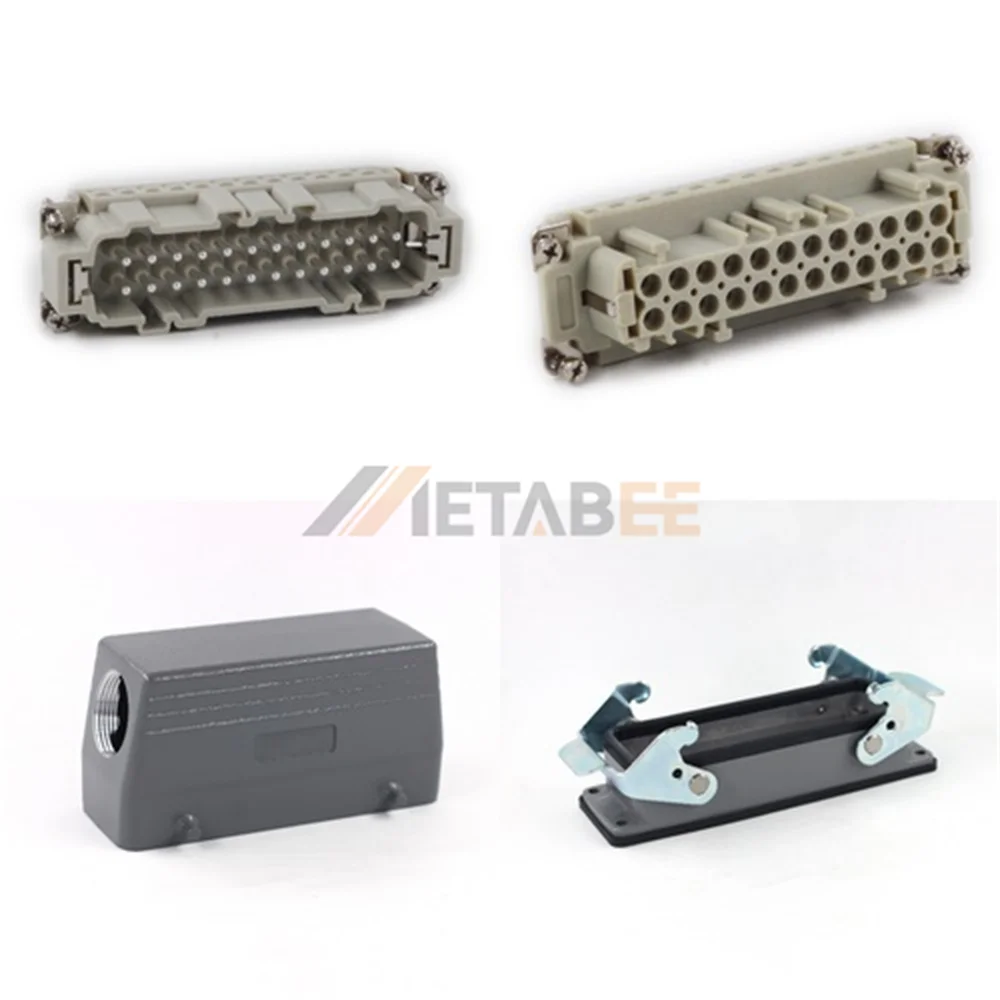

HE Series Heavy Duty Connector, 24+PE, Bulkhead with 2 Levers, Screw Terminal, Top/Side Entry, 16A/500V
Introduction:
Heavy-duty connectors (HDC) use strong aluminum or thermoplastic housings to protect against dust, moisture and mechanical stress. They consist of five main components: housing, hood, inserts, contacts and cable glands. Modular and monolithic inserts combine power, signal, data and pneumatic lines in one connector to save space in control cabinets. Flexible cable outlet directions and hoods for large-diameter cables also help with wiring in tight spaces.
The HE series heavy duty connector manages complex control systems effectively. It features a high-density 24+PE configuration to handle multiple circuits. The bulkhead mounting base is equipped with two locking levers. This double lever system ensures the large connection remains secure under vibration. Installation is straightforward because of the screw terminal inserts. You only need a standard screwdriver to connect the wires. It supports industrial power loads rated at 16A and 500V. The hood offers top or side cable entry.
Note: The product supports multiple thread size options, and customers can choose the specification that matches their installation needs.
Key Features:
- High-density 24+PE configuration rated at 16A 500V.
- Two locking levers ensure maximum connection stability.
- Bulkhead mounting base fits standard panel cutouts.
- Screw terminal inserts allow easy tool-free wiring.
- Hood design offers top or side cable entry.
Main Specifications:
General Information:
| Product No.: | HE-024-AG-TS, HE-024-AG-TG | |
| Category: | Heavy-Duty Connector Assemblies | |
| Inserts Series: | HE Series | |
| Number of Contacts: | 24+PE | |
| Contacts Termination: | Screw Terminal | |
| Hood/Housing Series: | H24B Series | |
| Housing Mounting Type: | Bulkhead Mounting | |
| Housing Locking: | 2 Locking Levers | |
| Cable Entry Angle: | Top Entry, Side Entry | |
| Sealable: | N/A | |
| Thread Size: | M25, M32, M40, PG21, PG29 | |
| Housing/Hood Material: | Die-cast aluminum | |
| Contact Material: | Copper Alloy | |
| Rated Current: | 16A | |
| Rated Voltage: | 500V | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 |
Heavy-duty connector main components
Four Types of Terminals
Heavy-duty Connector Housing Mounting Type
Applications
- Rail transportation;
- CNC equipment;
- Energy storage systems;
- Renewable energy devices;
- Smart grid installations;
- AC power distribution equipment;
- Power reliability systems;
