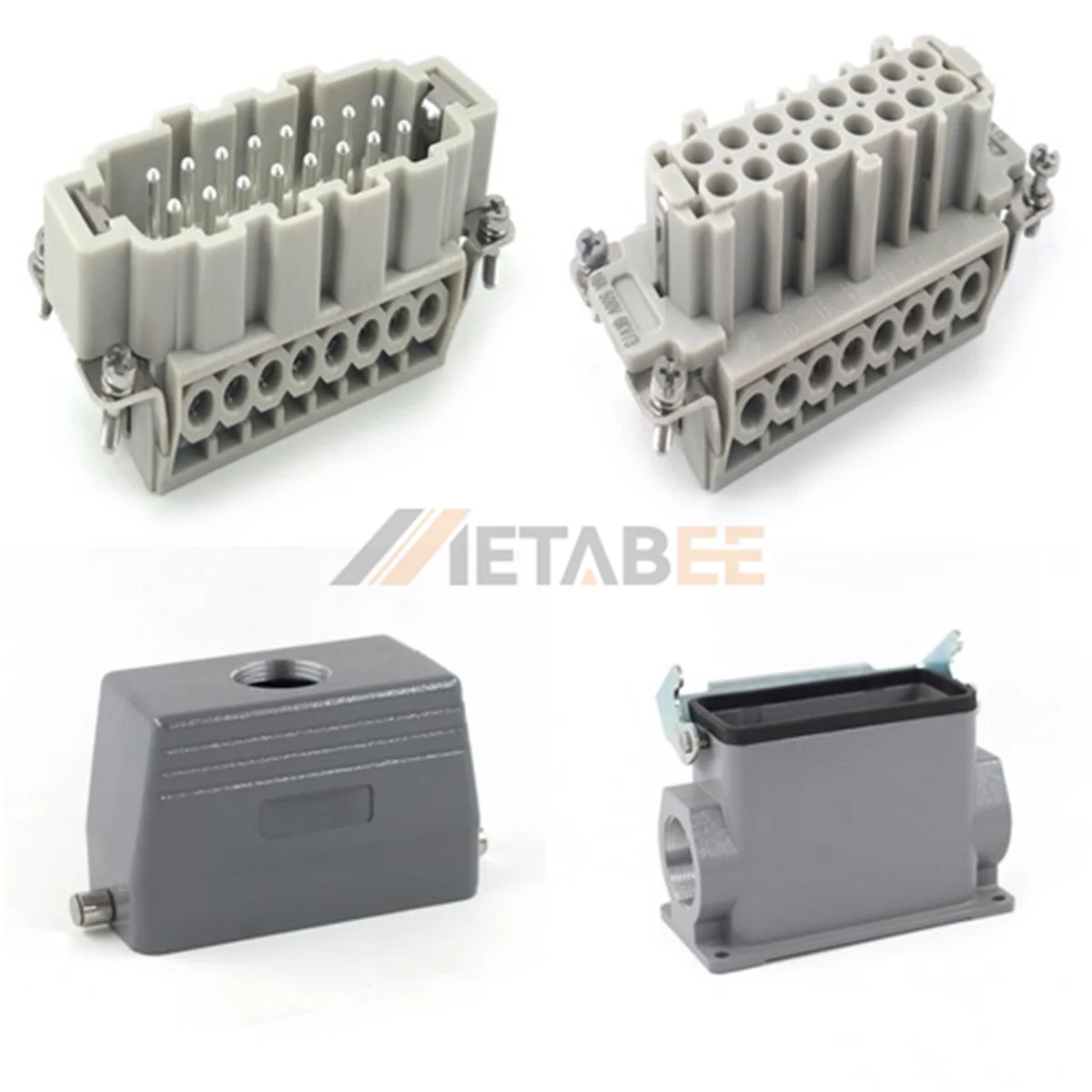

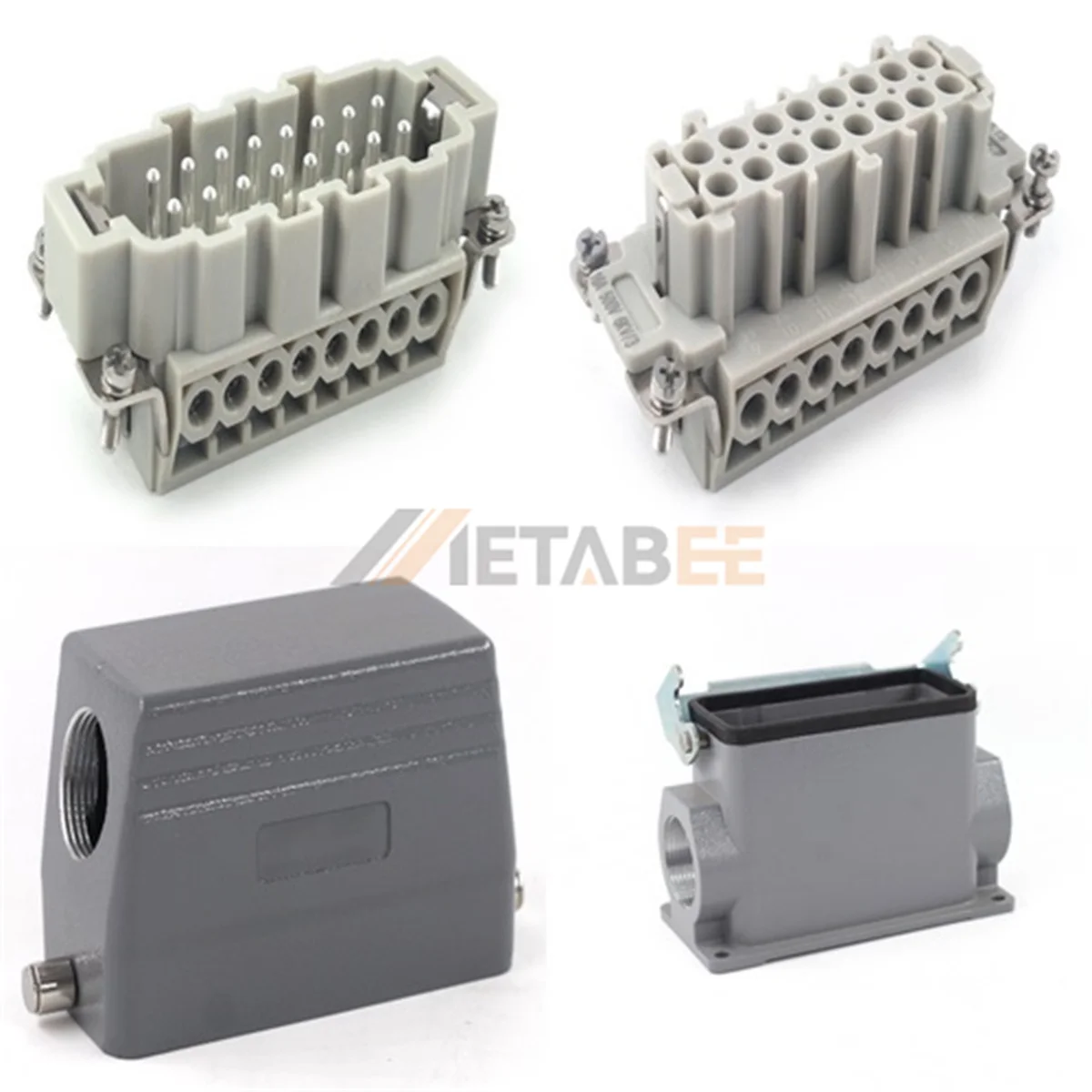

HE Series Heavy Duty Connector, 16+PE, Surface Mounting, Screw Terminal, Top/Side Entry, 16A/500V
Introduction:
Heavy-duty connectors (HDC) use strong aluminum or thermoplastic housings to protect against dust, moisture and mechanical stress. They consist of five main components: housing, hood, inserts, contacts and cable glands. Modular and monolithic inserts combine power, signal, data and pneumatic lines in one connector to save space in control cabinets. Flexible cable outlet directions and hoods for large-diameter cables also help with wiring in tight spaces.
The HE series heavy duty connector simplifies mounting on machine exteriors. It features a surface mounting base that attaches directly to flat walls. This eliminates the need for complex panel cutouts. The assembly supports a high-density 16+PE configuration rated at 16A and 500V. Wiring remains easy because the inserts use screw terminal technology. You can connect all wires quickly using just a standard screwdriver. The hood allows for top or side cable entry options. A single locking lever secures the connection against industrial vibration.
Note: The product supports multiple thread size options, and customers can choose the specification that matches their installation needs.
Key Features:
- Surface mounting base installs on flat walls.
- Robust 16+PE configuration rated at 16A 500V.
- Screw terminal inserts need no special tools.
- Single locking lever ensures vibration-resistant mating.
- Hood design offers top or side cable entry.
Main Specifications:
General Information:
| Product No.: | HE-016-SGR-LB-TS-RO, HE-016-SGR-LB-TS-RO | |
| Category: | Heavy-Duty Connector Assemblies | |
| Inserts Series: | HE Series | |
| Number of Contacts: | 16+PE | |
| Contacts Termination: | Screw Terminal | |
| Hood/Housing Series: | H16B Series | |
| Housing Mounting Type: | Surface Mounting | |
| Housing Locking: | 1 Locking Lever | |
| Cable Entry Angle: | Top Entry, Side Entry | |
| Sealable: | N/A | |
| Thread Size: | M25 | |
| Housing/Hood Material: | Die-cast aluminum | |
| Contact Material: | Copper Alloy | |
| Rated Current: | 16A | |
| Rated Voltage: | 500V | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 |
Heavy-duty connector main components
Four Types of Terminals
Heavy-duty Connector Housing Mounting Type
Applications
- Rail transportation;
- CNC equipment;
- Energy storage systems;
- Renewable energy devices;
- Smart grid installations;
- AC power distribution equipment;
- Power reliability systems;
