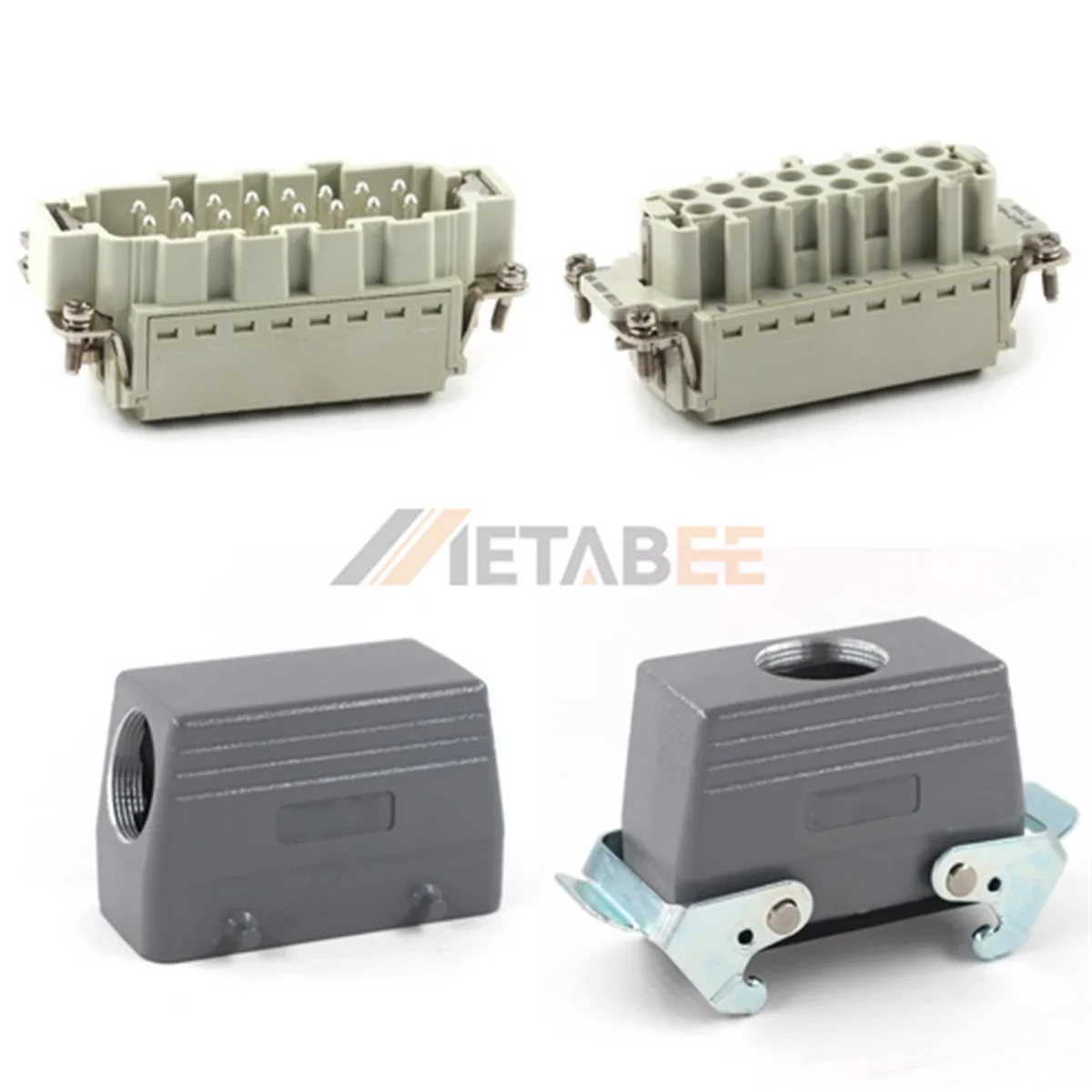

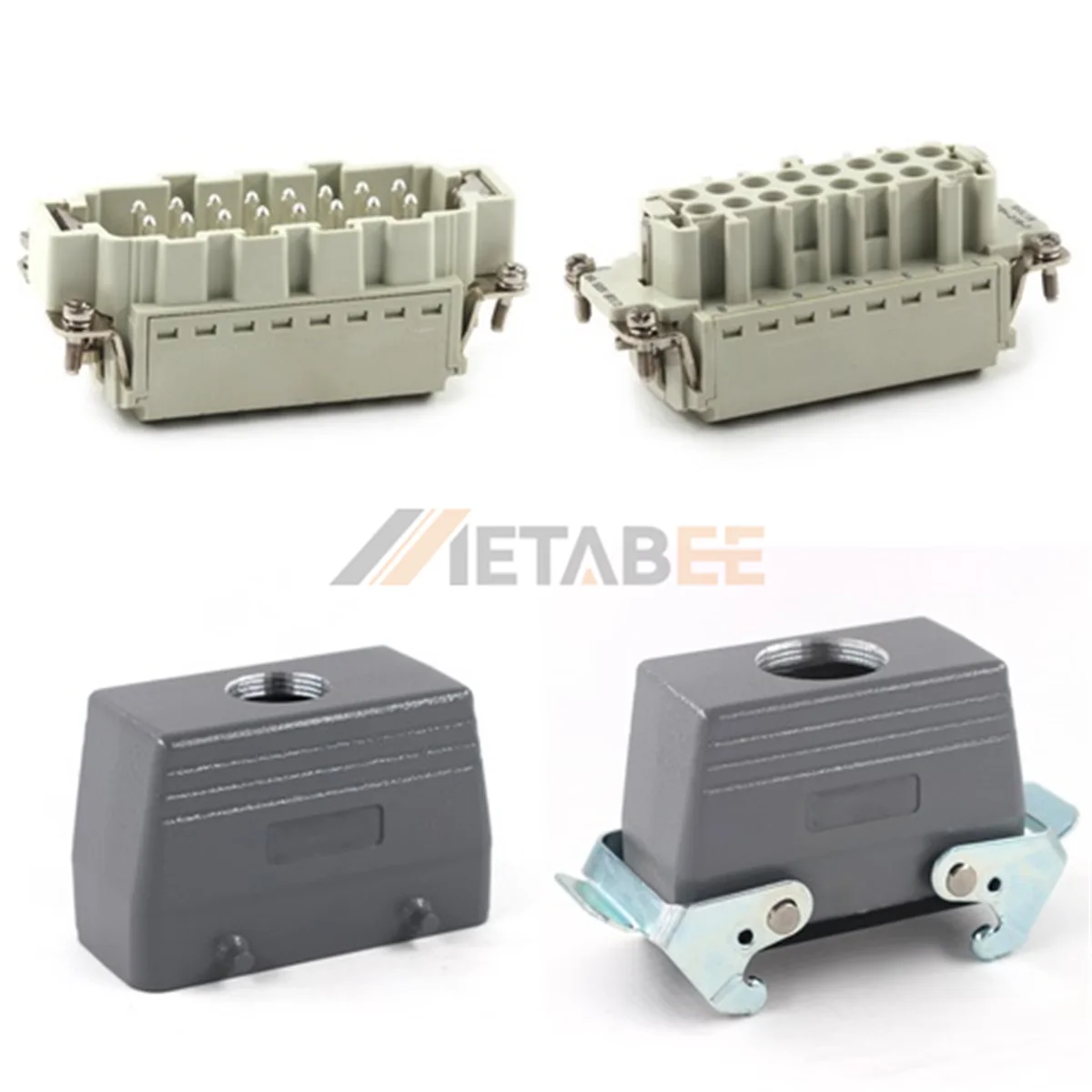

HE Series Heavy Duty Connector, 16+PE, Cable to Cable, Quick Lock Terminal, Top/Side Entry, 16A/500V
Introduction:
Heavy-duty connectors (HDC) use strong aluminum or thermoplastic housings to protect against dust, moisture and mechanical stress. They consist of five main components: housing, hood, inserts, contacts and cable glands. Modular and monolithic inserts combine power, signal, data and pneumatic lines in one connector to save space in control cabinets. Flexible cable outlet directions and hoods for large-diameter cables also help with wiring in tight spaces.
The HE series heavy duty connector is perfect for mobile power extensions. It features a cable-to-cable housing that connects two lines securely without a fixed panel. The assembly utilizes quick lock terminal technology to handle the 16+PE configuration. You can connect all wires instantly without using screws or tools. This vibration-proof method is ideal for free-hanging connections. It handles industrial loads rated at 16A and 500V efficiently. The hood allows for top or side cable entry.
Note: The product supports multiple thread size options, and customers can choose the specification that matches their installation needs.
Key Features:
- Cable-to-cable housing enables secure inline extension.
- Quick lock terminals allow fast screwless wiring.
- Robust 16+PE configuration rated at 16A 500V.
- Single locking lever resists industrial vibration.
- Hood design offers top or side cable entry.
Main Specifications:
General Information:
| Product No.: | HESH-016-TBF-TG, HESH-016-TBF-TS | |
| Category: | Heavy-Duty Connector Assemblies | |
| Product Series: | HE Series | |
| Number of Contacts: | 16+PE | |
| Contacts Termination: | Quick Lock Terminal | |
| Hood/Housing Series: | H16B Series | |
| Housing Mounting Type: | Surface Mounting | |
| Housing Locking: | 2 Locking Levers | |
| Cable Entry Angle: | Top Entry, Side Entry | |
| Sealable: | N/A | |
| Thread Size: | M25, M32 | |
| Housing/Hood Material: | Die-cast aluminum | |
| Contact Material: | Copper Alloy | |
| Rated Current: | 16A | |
| Rated Voltage: | 500V | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 |
Heavy-duty connector main components
Four Types of Terminals
Heavy-duty Connector Housing Mounting Type
Applications
- Rail transportation;
- CNC equipment;
- Energy storage systems;
- Renewable energy devices;
- Smart grid installations;
- AC power distribution equipment;
- Power reliability systems;
