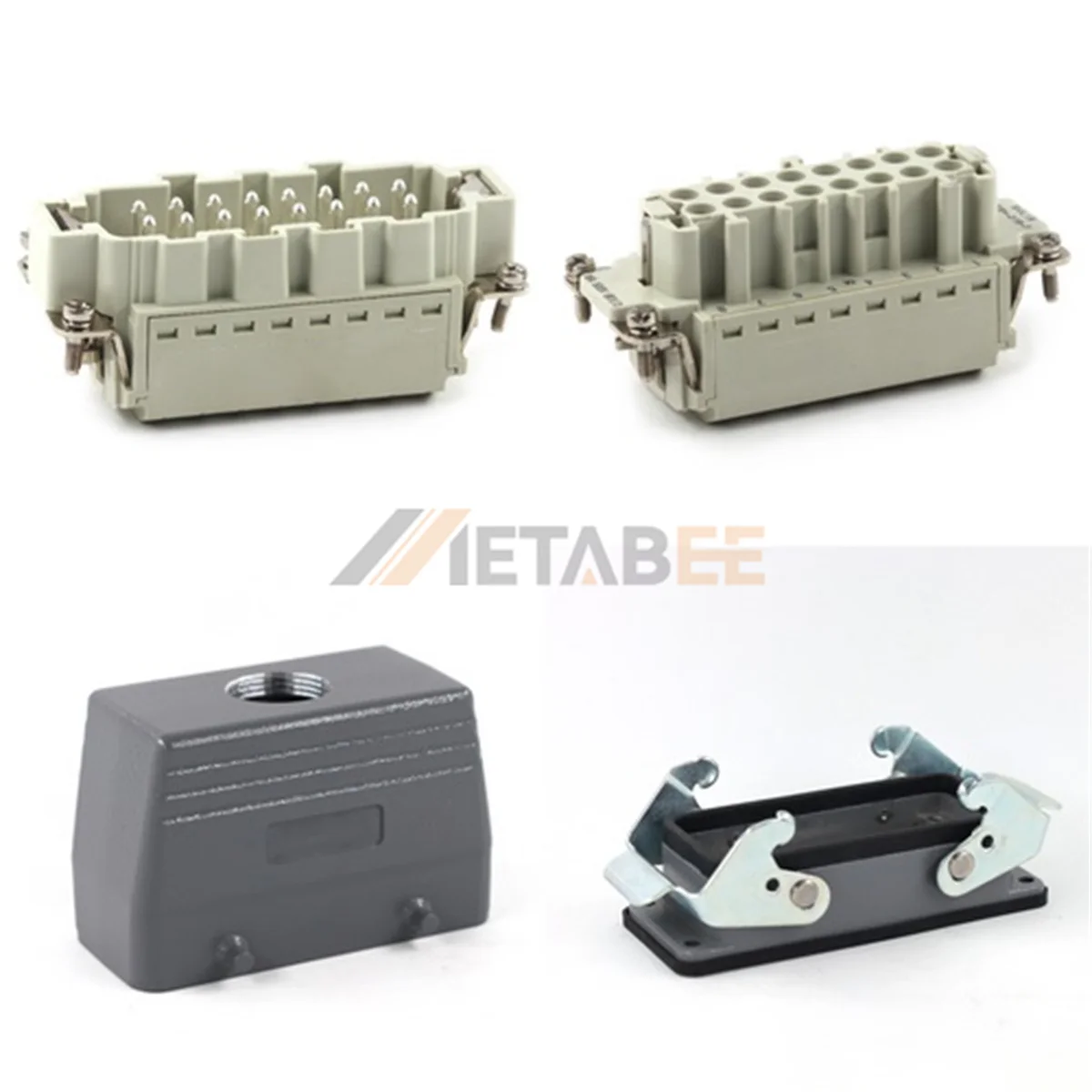

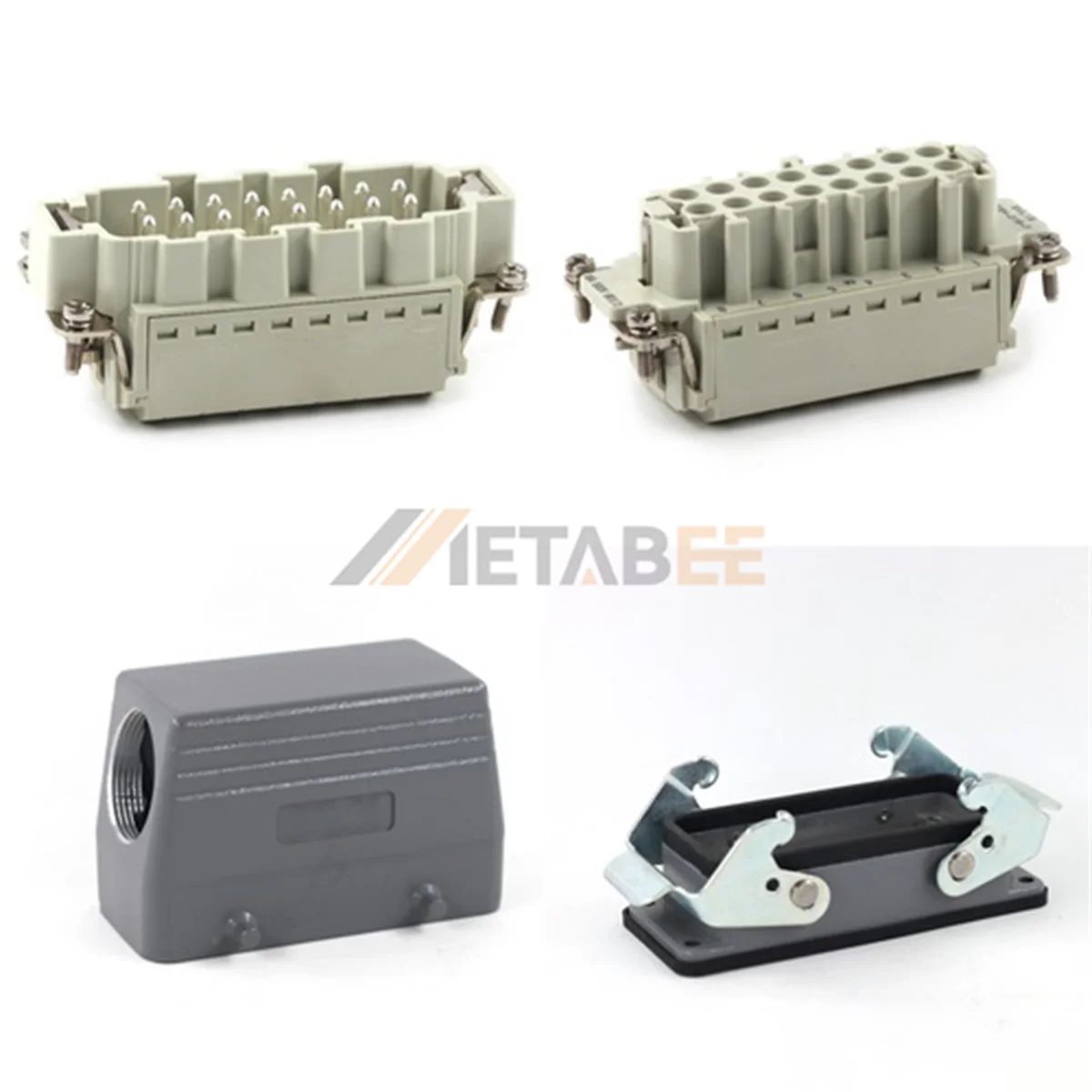

HE Series Heavy Duty Connector, 16+PE, Bulkhead with 2 Levers, Quick Lock Terminal, Top/Side Entry, 16A/500V
Introduction:
Heavy-duty connectors (HDC) use strong aluminum or thermoplastic housings to protect against dust, moisture and mechanical stress. They consist of five main components: housing, hood, inserts, contacts and cable glands. Modular and monolithic inserts combine power, signal, data and pneumatic lines in one connector to save space in control cabinets. Flexible cable outlet directions and hoods for large-diameter cables also help with wiring in tight spaces.
The HE series heavy duty connector provides exceptional security for multi-wire systems. It utilizes a bulkhead housing equipped with two locking levers. This double lever design ensures the 16+PE configuration stays tight under vibration. Installation is incredibly fast due to the quick lock terminal technology. You can connect wires instantly without any tools. The assembly reliably handles industrial power rated at 16A and 500V. The hood supports top or side cable entry options to fit your machine.
Note: The product supports multiple thread size options, and customers can choose the specification that matches their installation needs.
Key Features:
- Two locking levers ensure maximum connection stability.
- Quick lock terminals enable fast screwless wiring.
- Robust 16+PE configuration rated at 16A 500V.
- Bulkhead mounting base fits standard panel cutouts.
- Hood design offers top or side cable entry.
Main Specifications:
General Information:
| Product No.: | HESH-016-AG-TS, HESH-016-AG-TG | |
| Category: | Heavy-Duty Connector Assemblies | |
| Inserts Series: | HE Series | |
| Number of Contacts: | 16+PE | |
| Contacts Termination: | Quick Lock Terminal | |
| Hood/Housing Series: | H16B Series | |
| Housing Mounting Type: | Bulkhead Mounting | |
| Housing Locking: | 2 Locking Levers | |
| Cable Entry Angle: | Top Entry, Side Entry | |
| Sealable: | N/A | |
| Thread Size: | M25, M32, M40, PG21, PG29 | |
| Housing/Hood Material: | Die-cast aluminum | |
| Contact Material: | Copper Alloy | |
| Rated Current: | 16A | |
| Rated Voltage: | 500V | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 |
Heavy-duty connector main components
Four Types of Terminals
Heavy-duty Connector Housing Mounting Type
Applications
- Rail transportation;
- CNC equipment;
- Energy storage systems;
- Renewable energy devices;
- Smart grid installations;
- AC power distribution equipment;
- Power reliability systems;
