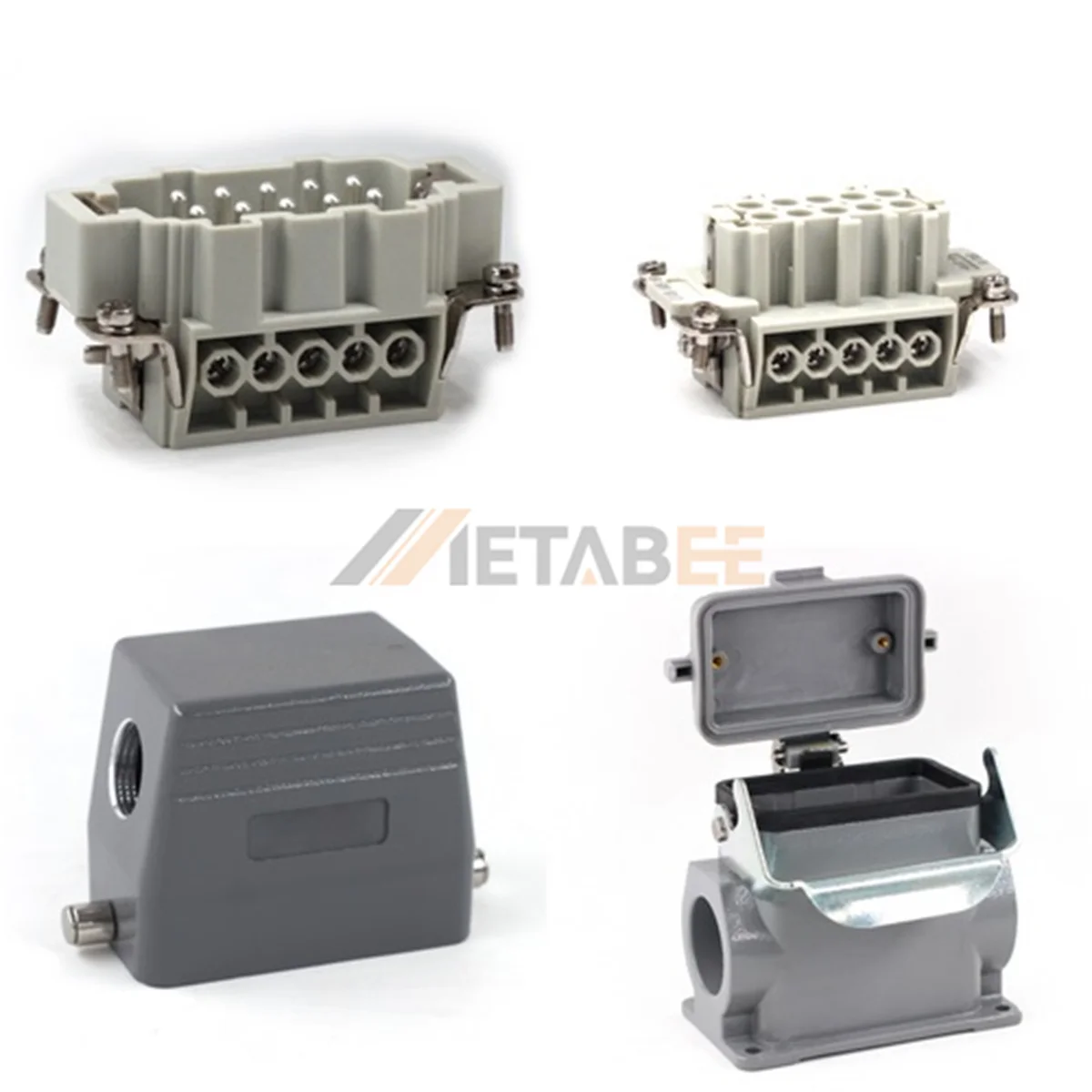

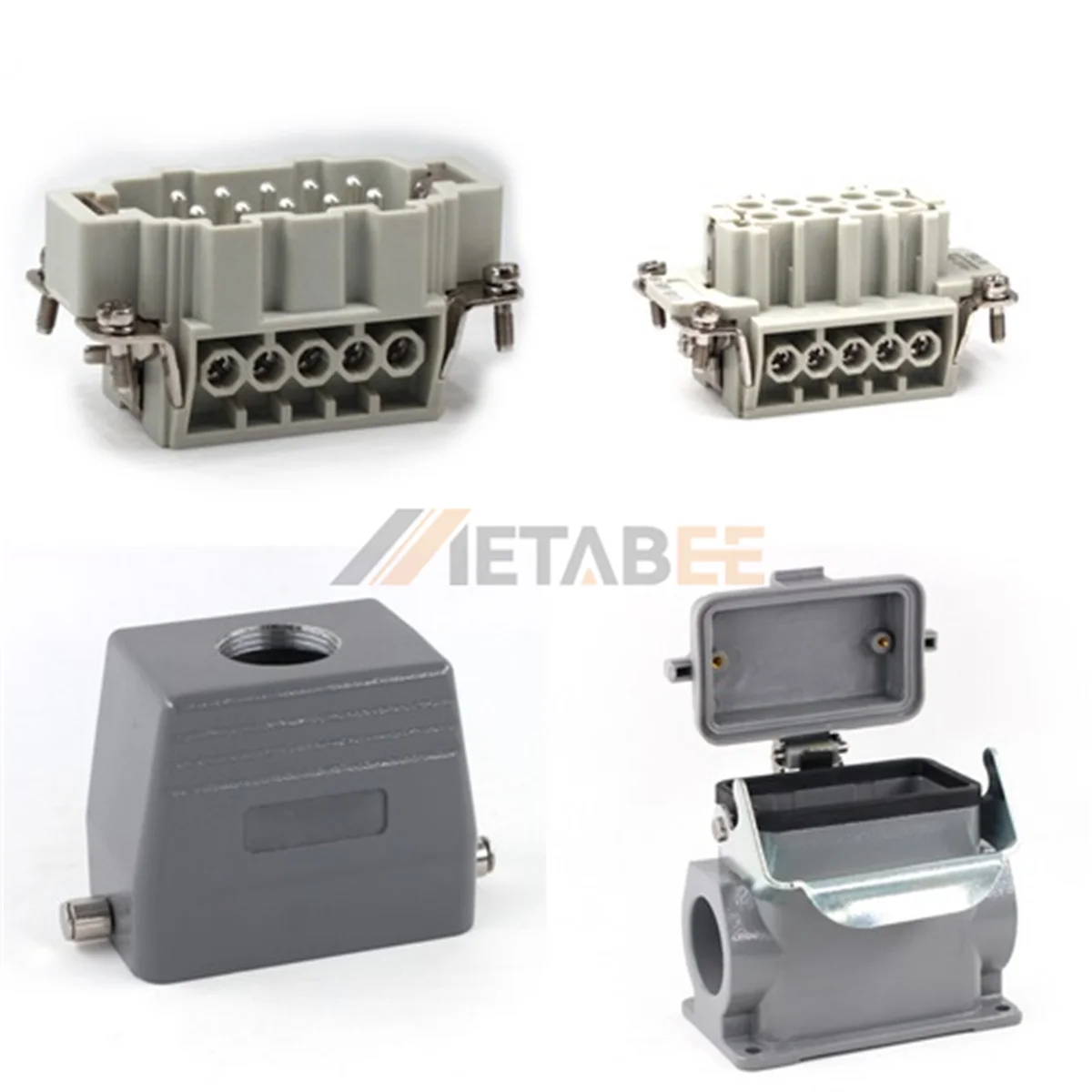

HE Series Heavy Duty Connector, 10+PE, Screw Terminal, Surface Mounting, Top/Side Entry, 16A/500V
Introduction:
Heavy-duty connectors (HDC) use strong aluminum or thermoplastic housings to protect against dust, moisture and mechanical stress. They consist of five main components: housing, hood, inserts, contacts and cable glands. Modular and monolithic inserts combine power, signal, data and pneumatic lines in one connector to save space in control cabinets. Flexible cable outlet directions and hoods for large-diameter cables also help with wiring in tight spaces.
The HE series heavy duty connector simplifies installation on flat surfaces. It features a surface mounting base that attaches directly to walls. You do not need to cut large holes in your machine panel. The assembly uses screw terminal inserts for easy field wiring. You can connect the 10+PE configuration quickly using a standard screwdriver. This kit handles high industrial loads with a rating of 16A and 500V. The hood supports top or side cable entry options. A durable locking system secures the connection against vibration.
Note: The product supports multiple thread size options, and customers can choose the specification that matches their installation needs.
Key Features:
- Surface mounting base installs without panel cutouts.
- Standard 10+PE configuration rated at 16A 500V.
- Screw terminal inserts require no crimping tools.
- Hood design offers top or side cable entry.
- Reliable locking system ensures vibration-resistant mating.
Main Specifications:
General Information:
| Product No.: | HE-010-SDR-LB-TG-RO, HE-010-SDR-LB-TG-RO | |
| Category: | Heavy-Duty Connector Assemblies | |
| Inserts Series: | HE Series | |
| Number of Contacts: | 10+PE | |
| Contacts Termination: | Screw Terminal | |
| Hood/Housing Series: | H10B Series | |
| Housing Mounting Type: | Surface Mounting | |
| Housing Locking: | 1 Locking Lever | |
| Cable Entry Angle: | Top Entry, Side Entry | |
| Sealable: | With Cover | |
| Thread Size: | M20, M25, PG16, PG21 | |
| Housing/Hood Material: | Die-cast aluminum | |
| Contact Material: | Copper Alloy | |
| Rated Current: | 16A | |
| Rated Voltage: | 500V | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 |
Heavy-duty connector main components
Four Types of Terminals
Heavy-duty Connector Housing Mounting Type
Applications
- Rail transportation;
- CNC equipment;
- Energy storage systems;
- Renewable energy devices;
- Smart grid installations;
- AC power distribution equipment;
- Power reliability systems;
