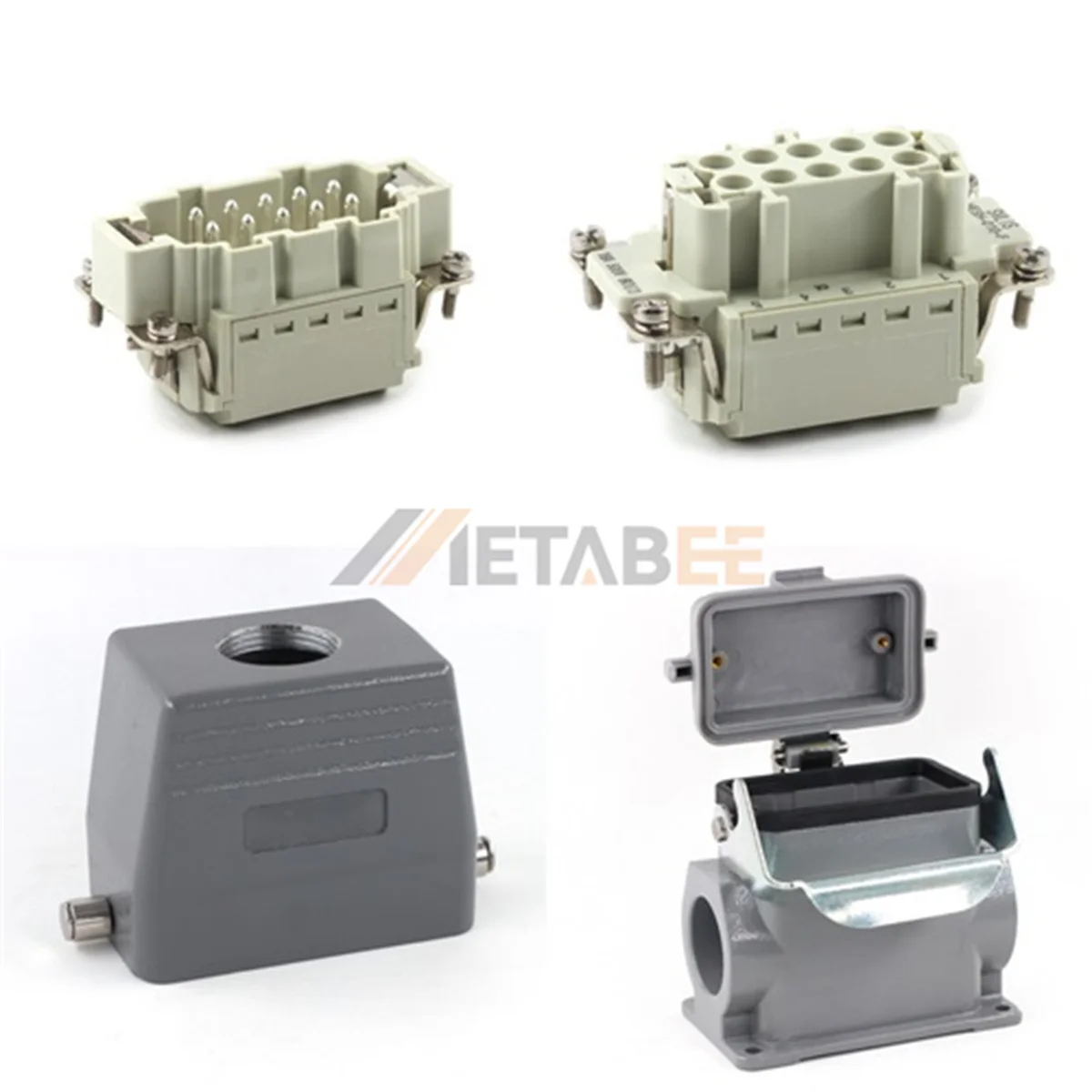

HE Series Heavy Duty Connector, 10+PE, Surface Mounting Cover, Quick Lock Terminal, Top/Side Entry, 16A/500V
Introduction:
Heavy-duty connectors (HDC) use strong aluminum or thermoplastic housings to protect against dust, moisture and mechanical stress. They consist of five main components: housing, hood, inserts, contacts and cable glands. Modular and monolithic inserts combine power, signal, data and pneumatic lines in one connector to save space in control cabinets. Flexible cable outlet directions and hoods for large-diameter cables also help with wiring in tight spaces.
The HE series heavy duty connector is designed to save installation time. It utilizes quick lock terminal technology for instant wire connection. You do not need any screws or special tools for assembly. This feature makes the 10+PE configuration highly resistant to vibration. The kit includes a surface mounting base for direct attachment to walls. This eliminates the need for cutting holes in your machine panel. It handles industrial loads rated at 16A and 500V reliably. The hood allows for flexible top or side cable entry.
Note: The product supports multiple thread size options, and customers can choose the specification that matches their installation needs.
Key Features:
- Quick lock terminals allow fast screwless wiring.
- Surface mounting base installs on flat walls.
- Standard 10+PE configuration rated at 16A 500V.
- Vibration-proof design ensures reliable signal transmission.
- Hood design offers top or side cable entry.
Main Specifications:
General Information:
| Product No.: | HESH-010-SGR-LB-TS-RO, HESH-010-SGR-LB-TG-RO | |
| Category: | Heavy-Duty Connector Assemblies | |
| Inserts Series: | HE Series | |
| Number of Contacts: | 10+PE | |
| Contacts Termination: | Quick Lock Terminal | |
| Hood/Housing Series: | H10B Series | |
| Housing Mounting Type: | Surface Mounting | |
| Housing Locking: | 1 Locking Lever | |
| Cable Entry Angle: | Top Entry, Side Entry | |
| Sealable: | With Cover | |
| Thread Size: | M20, M25, PG16, PG21 | |
| Housing/Hood Material: | Die-cast aluminum | |
| Contact Material: | Copper Alloy | |
| Rated Current: | 16A | |
| Rated Voltage: | 500V | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 |
Heavy-duty connector main components
Four Types of Terminals
Heavy-duty Connector Housing Mounting Type
Applications
- Rail transportation;
- CNC equipment;
- Energy storage systems;
- Renewable energy devices;
- Smart grid installations;
- AC power distribution equipment;
- Power reliability systems;
