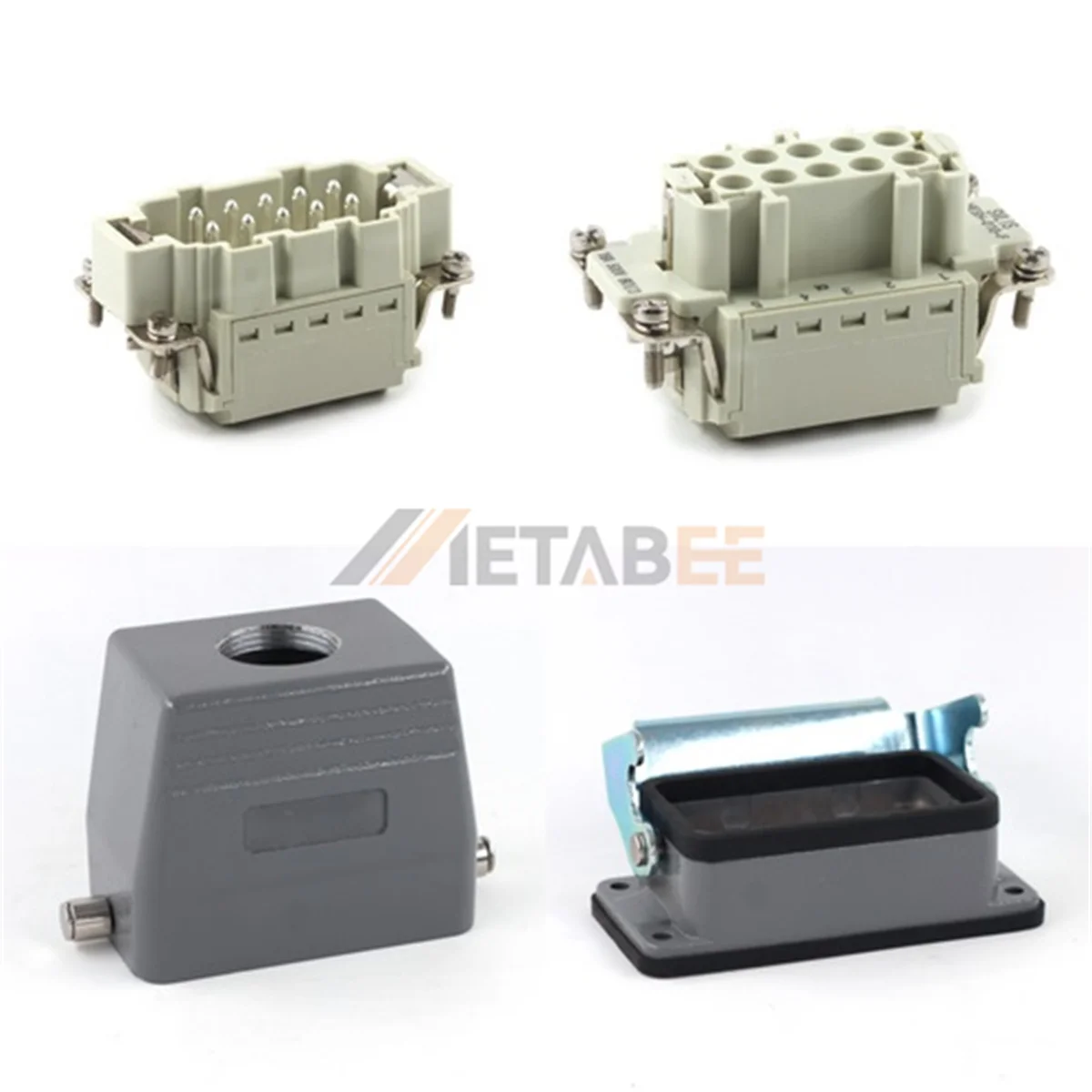

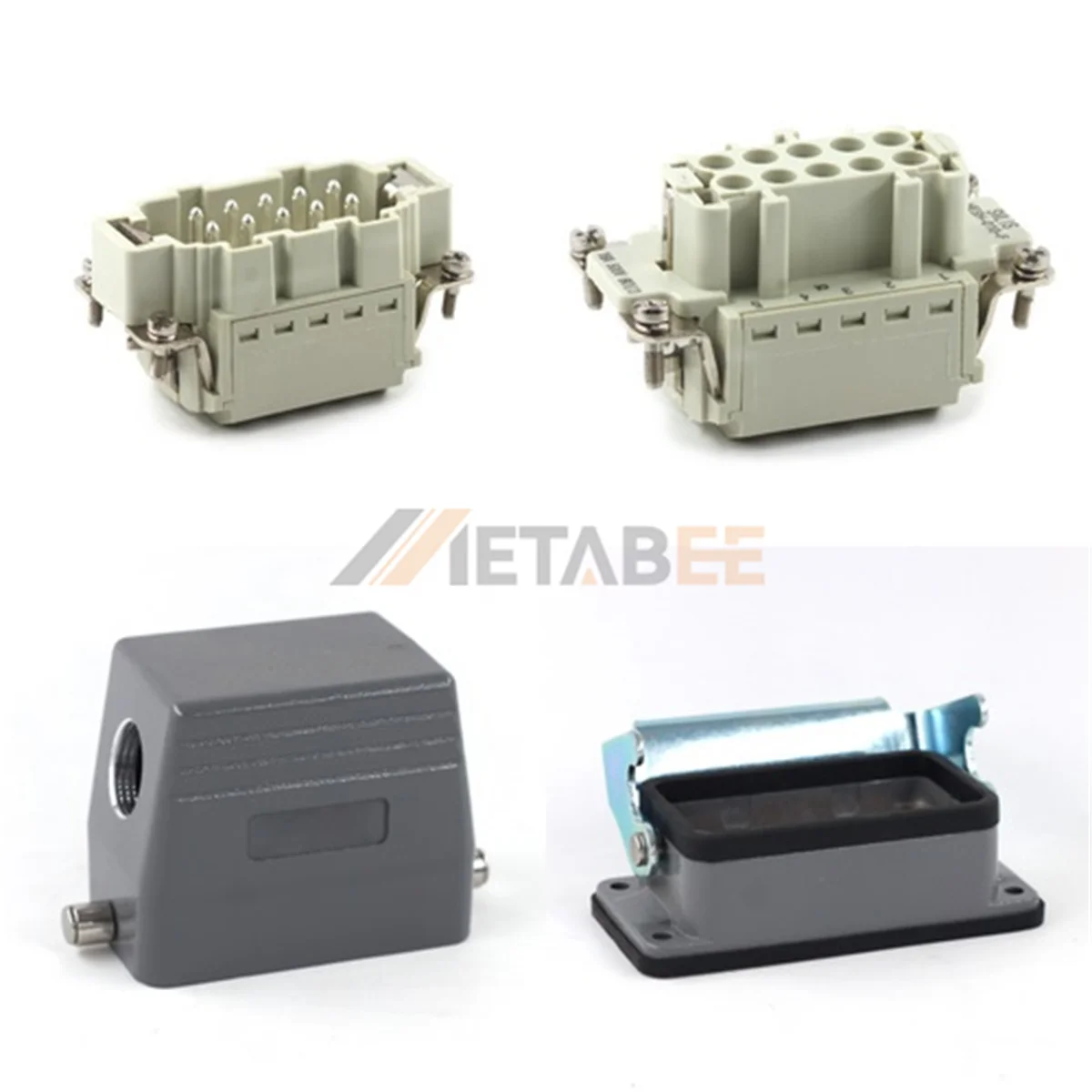

HE Series Heavy Duty Connector, 10+PE, Bulkhead, Quick Lock Terminal, Top/Side Entry, 16A/500V
Introduction:
Heavy-duty connectors (HDC) use strong aluminum or thermoplastic housings to protect against dust, moisture and mechanical stress. They consist of five main components: housing, hood, inserts, contacts and cable glands. Modular and monolithic inserts combine power, signal, data and pneumatic lines in one connector to save space in control cabinets. Flexible cable outlet directions and hoods for large-diameter cables also help with wiring in tight spaces.
The HE series heavy duty connector maximizes installation efficiency with quick lock terminal technology. This smart design allows you to connect wires instantly without turning any screws. It significantly reduces assembly time and requires no special tools. The 10+PE configuration is held securely even under constant vibration. The kit includes a bulkhead mounting housing that fits standard machine panel cutouts. It is rated at 16A and 500V for reliable industrial power. The hood supports top or side cable entry to suit your wiring needs.
Note: The product supports multiple thread size options, and customers can choose the specification that matches their installation needs.
Key Features:
- Quick lock terminals enable fast screwless connection.
- Bulkhead mounting base fits standard panel cutouts.
- Standard 10+PE configuration rated at 16A 500V.
- Vibration-proof design ensures secure signal transmission.
- Hood design offers top or side cable entry.
Main Specifications:
General Information:
| Product No.: | HESH-010-AG-LB-TS-RO, HESH-010-AG-LB-TG-RO | |
| Category: | Heavy-Duty Connector Assemblies | |
| Inserts Series: | HE Series | |
| Number of Contacts: | 10+PE | |
| Contacts Termination: | Quick Lock Terminal | |
| Hood/Housing Series: | H10B Series | |
| Housing Mounting Type: | Bulkhead Mounting | |
| Housing Locking: | 1 Locking Lever | |
| Cable Entry Angle: | Top Entry, Side Entry | |
| Sealable: | N/A | |
| Thread Size: | M20, M25, M32, M40, PG16, PG21, PG29 | |
| Housing/Hood Material: | Die-cast aluminum | |
| Contact Material: | Copper Alloy | |
| Rated Current: | 16A | |
| Rated Voltage: | 500V | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 |
Heavy-duty connector main components
Four Types of Terminals
Heavy-duty Connector Housing Mounting Type
Applications
- Rail transportation;
- CNC equipment;
- Energy storage systems;
- Renewable energy devices;
- Smart grid installations;
- AC power distribution equipment;
- Power reliability systems;
Factory pricing and exceptional product quality. OEM & ODM Services. Get a free quote now!
Metabee is a professional connector manufacturer from China. We can provide all kinds of heavy-duty connectors.
