HE Series Heavy Duty Connector, 10+PE, Surface Mounting, High Construction, Top/Side Entry, 16A/500V
Introduction:
Heavy-duty connectors (HDC) use strong aluminum or thermoplastic housings to protect against dust, moisture and mechanical stress. They consist of five main components: housing, hood, inserts, contacts and cable glands. Modular and monolithic inserts combine power, signal, data and pneumatic lines in one connector to save space in control cabinets. Flexible cable outlet directions and hoods for large-diameter cables also help with wiring in tight spaces.

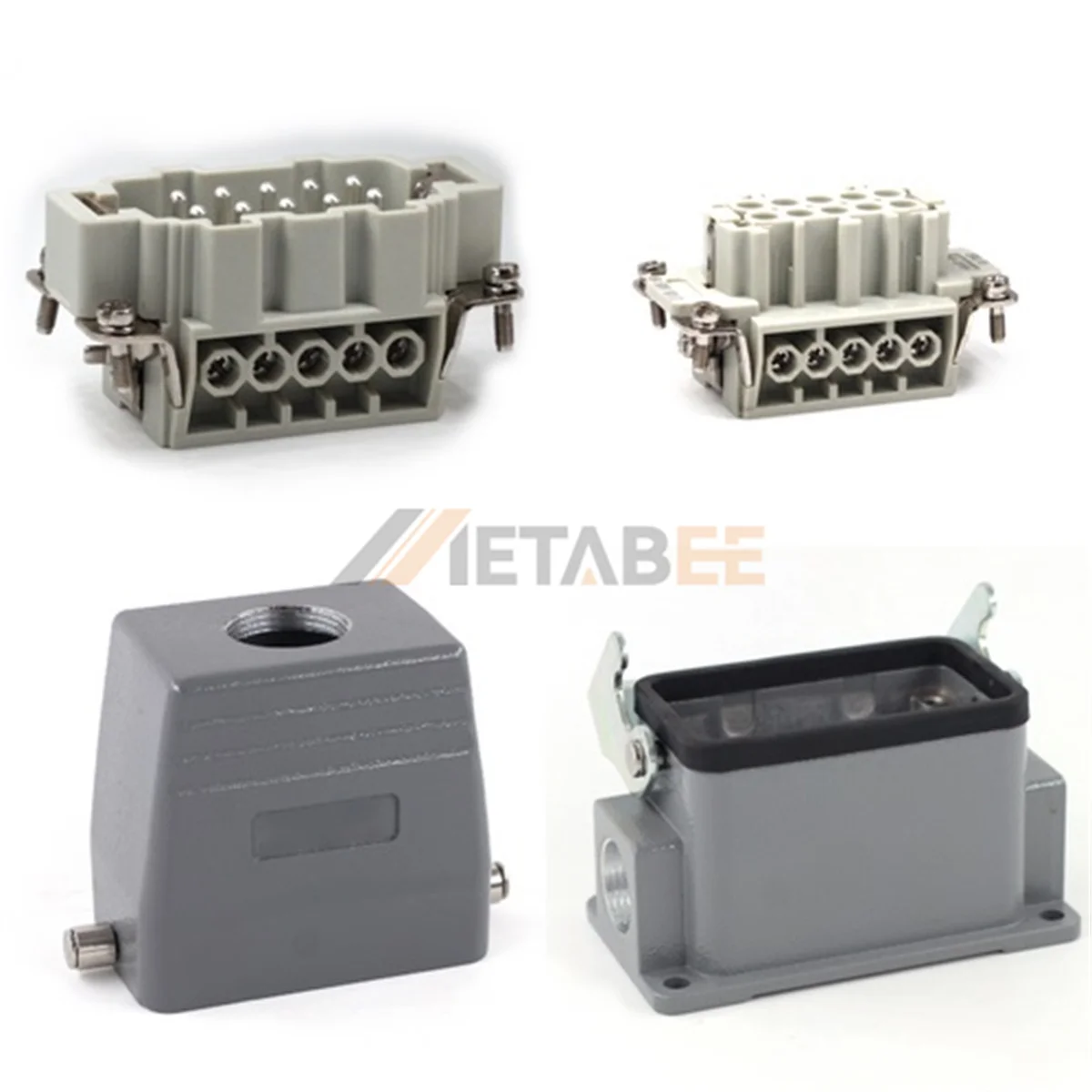

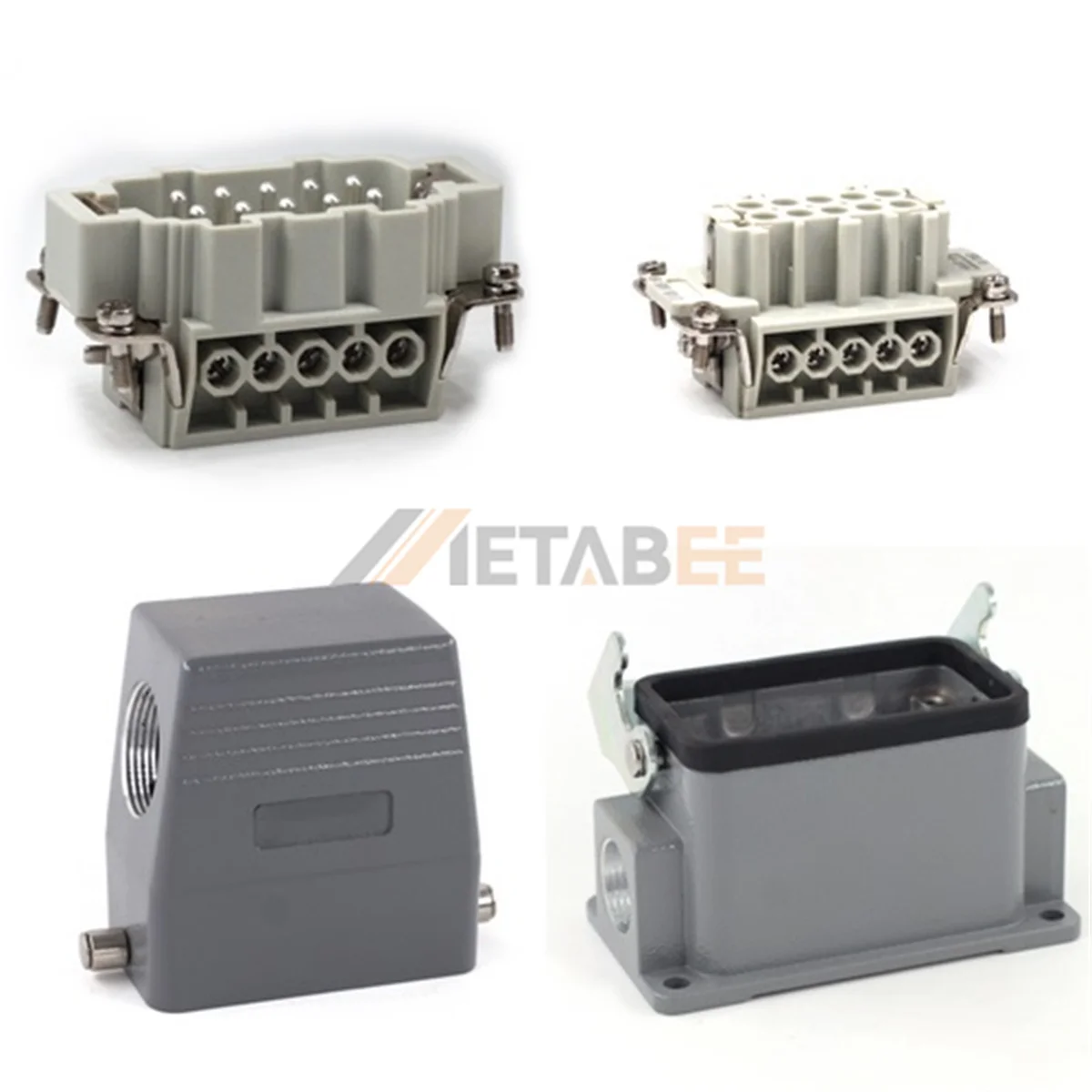

The HE series heavy duty connector features a high construction housing design. This provides valuable extra space inside the shell for easier cable management. The assembly includes a surface mounting base that attaches directly to flat walls. This eliminates the need for cutting large holes in your panel. It offers a robust 10+PE configuration rated at 16A and 500V. Wiring is simple and requires no special crimping tools. The hood supports top or side cable entry options. A single locking lever ensures the connection remains vibration-proof.
Note: The product supports multiple thread size options, and customers can choose the specification that matches their installation needs.
Key Features:
- High construction housing provides extra internal wiring space.
- Surface mounting base installs on flat walls.
- Standard 10+PE configuration rated at 16A 500V.
- Simple wiring process requires no special tools.
- Hood design offers top or side cable entry.
Main Specifications:
General Information:
| Product No.: | HE-010-SGRH-LB-TSH-RO, HE-010-SGRH-LB-TGH-RO | |
| Category: | Heavy-Duty Connector Assemblies | |
| Inserts Series: | HE Series | |
| Number of Contacts: | 10+PE | |
| Contacts Termination: | Screw Terminal | |
| Hood/Housing Series: | H10B Series | |
| Housing Mounting Type: | Surface Mounting | |
| Housing Locking: | 1 Locking Lever | |
| Cable Entry Angle: | Top Entry, Side Entry | |
| Sealable: | N/A | |
| Thread Size: | M20, M32, PG29 | |
| Housing/Hood Material: | Die-cast aluminum | |
| Contact Material: | Copper Alloy | |
| Rated Current: | 16A | |
| Rated Voltage: | 500V | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 |
Heavy-duty connector main components
Four Types of Terminals
Heavy-duty Connector Housing Mounting Type
Applications
- Rail transportation;
- CNC equipment;
- Energy storage systems;
- Renewable energy devices;
- Smart grid installations;
- AC power distribution equipment;
- Power reliability systems;
Factory pricing and exceptional product quality. OEM & ODM Services. Get a free quote now!
Metabee is a professional connector manufacturer from China. We can provide all kinds of heavy-duty connectors.
