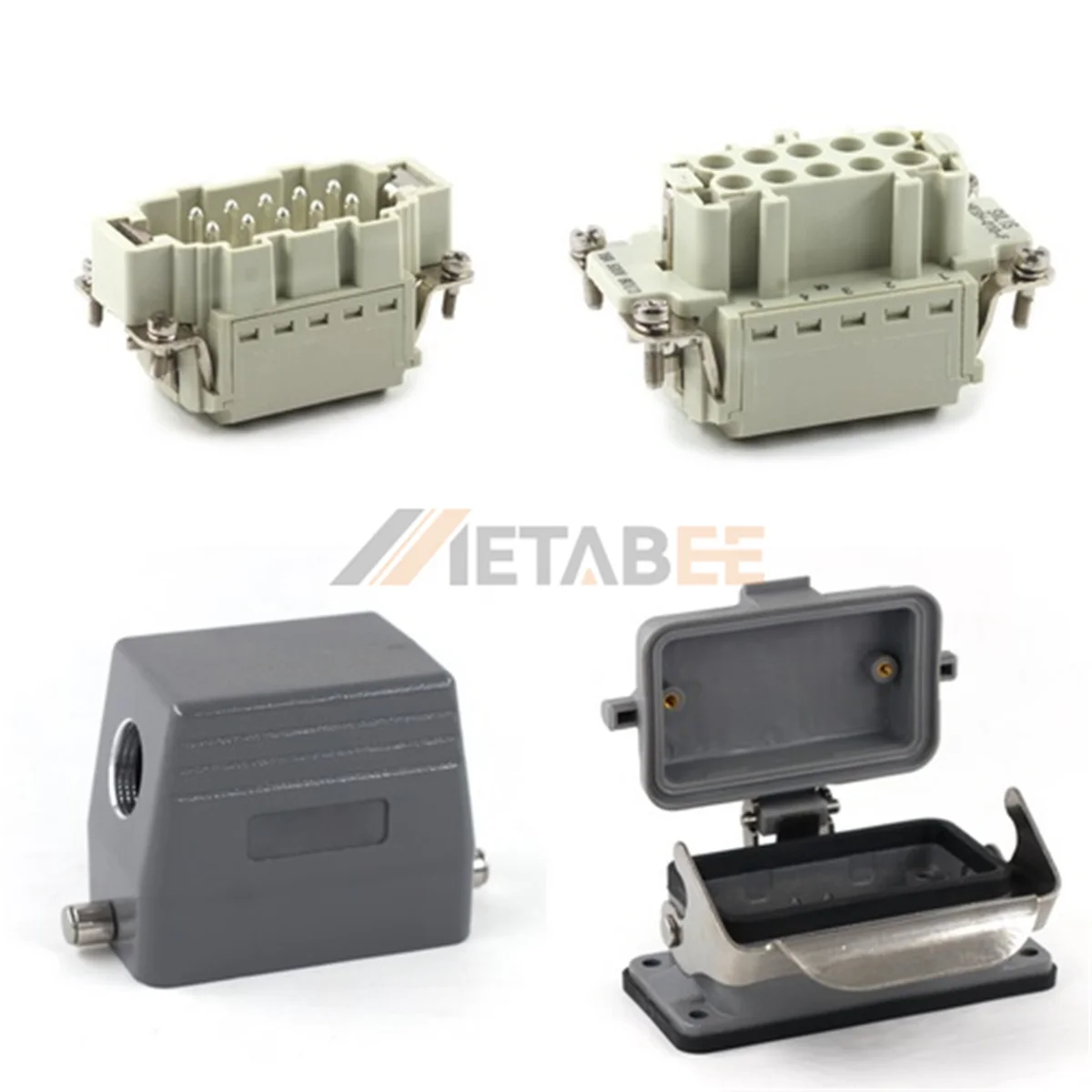

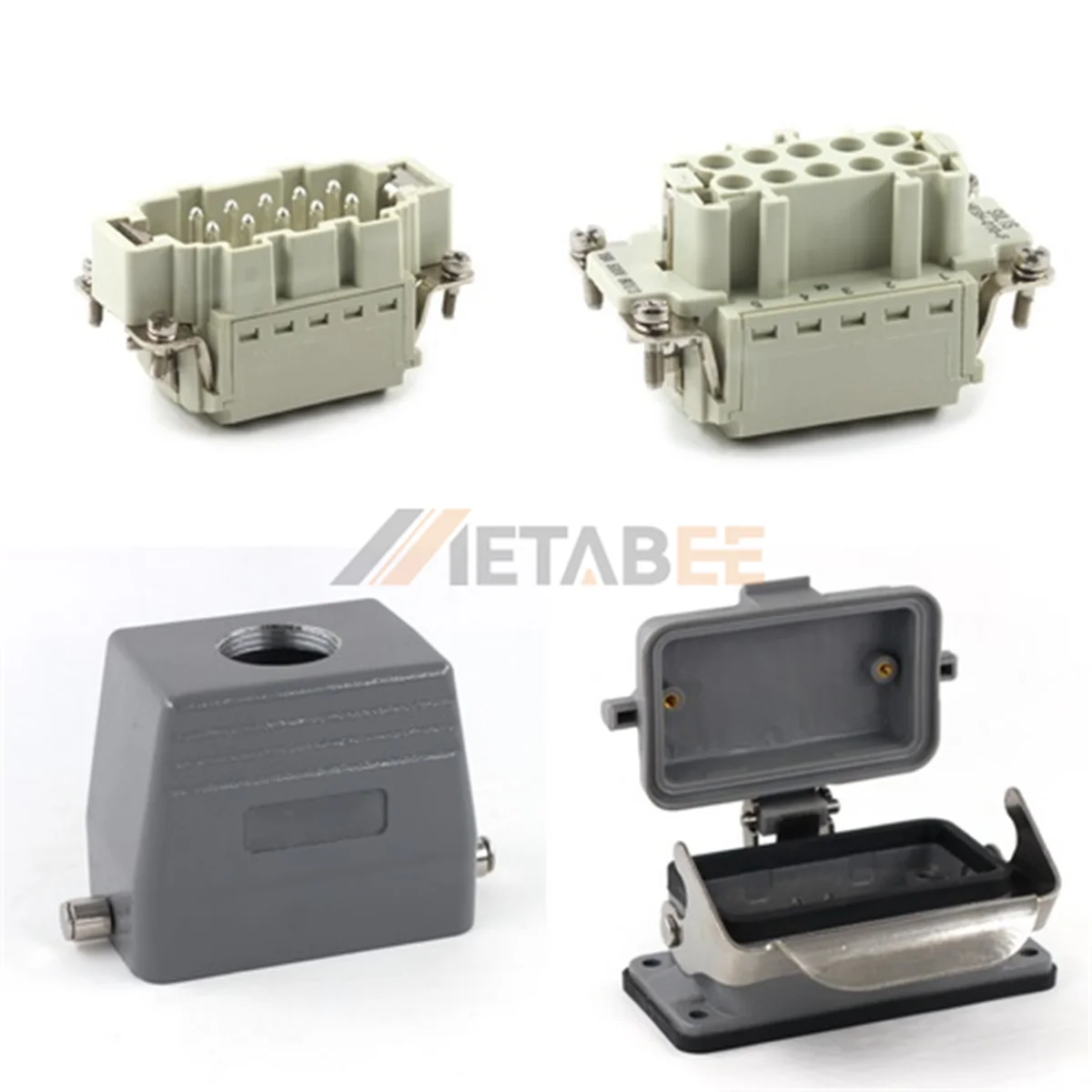

HE Series Heavy Duty Connector, 10+PE, Bulkhead with Cover, Quick Lock Terminal, Top/Side Entry, 16A/500V
Introduction:
Heavy-duty connectors (HDC) use strong aluminum or thermoplastic housings to protect against dust, moisture and mechanical stress. They consist of five main components: housing, hood, inserts, contacts and cable glands. Modular and monolithic inserts combine power, signal, data and pneumatic lines in one connector to save space in control cabinets. Flexible cable outlet directions and hoods for large-diameter cables also help with wiring in tight spaces.
The HE series heavy duty connector comes with a protective cover on the base. This keeps dust and moisture out when the cable is unplugged. The assembly uses quick lock terminal technology for instant wiring. You do not need to turn screws or use special tools. It supports a 10+PE configuration rated at 16A and 500V. The bulkhead housing fits securely on machine panels. The hood allows for top or side cable entry. A single locking lever holds the unit tight against vibration.
Note: The product supports multiple thread size options, and customers can choose the specification that matches their installation needs.
Key Features:
- Bulkhead base includes a cover for dust protection.
- Quick lock terminals enable fast screwless connection.
- Standard 10+PE configuration rated at 16A 500V.
- Single locking lever ensures vibration-resistant mating.
- Hood design offers top or side cable entry.
Main Specifications:
General Information:
| Product No.: | HESH-010-AD-TS, HESH-010-AD-TS | |
| Category: | Heavy-Duty Connector Assemblies | |
| Inserts Series: | HE Series | |
| Number of Contacts: | 10+PE | |
| Contacts Termination: | Quick Lock Terminal | |
| Hood/Housing Series: | H10B Series | |
| Housing Mounting Type: | Bulkhead Mounting | |
| Housing Locking: | 1 Locking Lever | |
| Cable Entry Angle: | Top Entry, Side Entry | |
| Sealable: | With Cover | |
| Thread Size: | M20, M25, M32, M40, PG16, PG21, PG29 | |
| Housing/Hood Material: | Die-cast aluminum | |
| Contact Material: | Copper Alloy | |
| Rated Current: | 16A | |
| Rated Voltage: | 500V | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 |
Heavy-duty connector main components
Four Types of Terminals
Heavy-duty Connector Housing Mounting Type
Applications
- Rail transportation;
- CNC equipment;
- Energy storage systems;
- Renewable energy devices;
- Smart grid installations;
- AC power distribution equipment;
- Power reliability systems;
