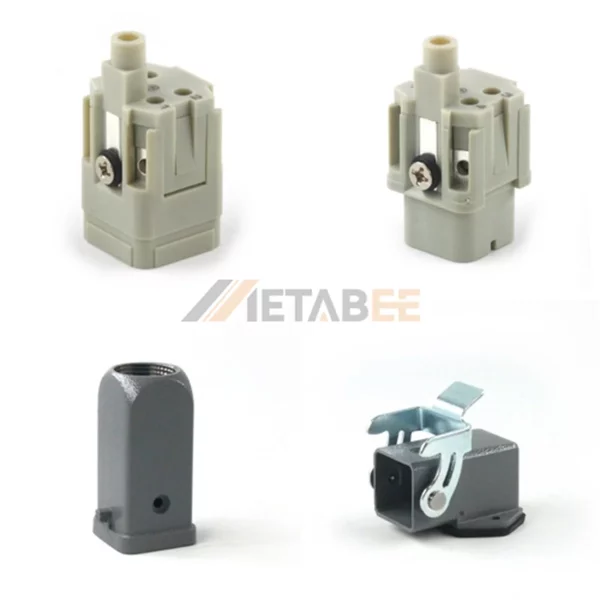

HA Series Heavy Duty Connector, 4+PE, Screw Terminal, Side Bulkhead, Top/Side Entry, 10A/250V
Introduction:
Heavy-duty connectors (HDC) use strong aluminum or thermoplastic housings to protect against dust, moisture and mechanical stress. They consist of five main components: housing, hood, inserts, contacts and cable glands. Modular and monolithic inserts combine power, signal, data and pneumatic lines in one connector to save space in control cabinets. Flexible cable outlet directions and hoods for large-diameter cables also help with wiring in tight spaces.
The HA series heavy duty connector delivers a dependable 4+PE connection solution for compact control systems. Rated at 10A and 250V, this assembly is equipped with a side-bulkhead base, enabling secure attachment to equipment walls or panels. The kit prioritizes user convenience by featuring inserts with screw terminal technology, which facilitates quick assembly using standard screwdrivers without crimping tools. Paired with a hood capable of either top or side cable entry, this rugged connector ensures optimal protection and mechanical stability for industrial machinery.
Note: The product supports multiple thread size options, and customers can choose the specification that matches their installation needs.
Key Features:
- Reliable 4+PE design rated at 10A 250V.
- Side-bulkhead base for efficient panel mounting.
- Screw connection requires no special crimping tools.
- Versatile hood supports top or side entry.
- Single locking lever guarantees vibration resistance.
Main Specifications:
General Information:
| Product No.: | HA-004-MAGS-MTG, HA-004-MAGS-MTS | |
| Category: | Heavy-Duty Connector Assemblies | |
| Inserts Series: | HA Series | |
| Number of Contacts: | 4+PE | |
| Contacts Termination: | Screw Terminal | |
| Hood/Housing Series: | H3A Series | |
| Housing Mounting Type: | Bulkhead Mounting | |
| Housing Locking: | 1 Locking Lever | |
| Cable Entry Angle: | Top Entry, Side Entry | |
| Sealable: | N/A | |
| Thread Size: | M20, PG11 | |
| Housing/Hood Material: | Die-cast aluminum | |
| Contact Material: | Copper Alloy | |
| Rated Current: | 10A | |
| Rated Voltage: | 250V | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 |
Heavy-duty connector main components
Four Types of Terminals
Heavy-duty Connector Housing Mounting Type
Applications
- Rail transportation;
- CNC equipment;
- Energy storage systems;
- Renewable energy devices;
- Smart grid installations;
- AC power distribution equipment;
- Power reliability systems;
