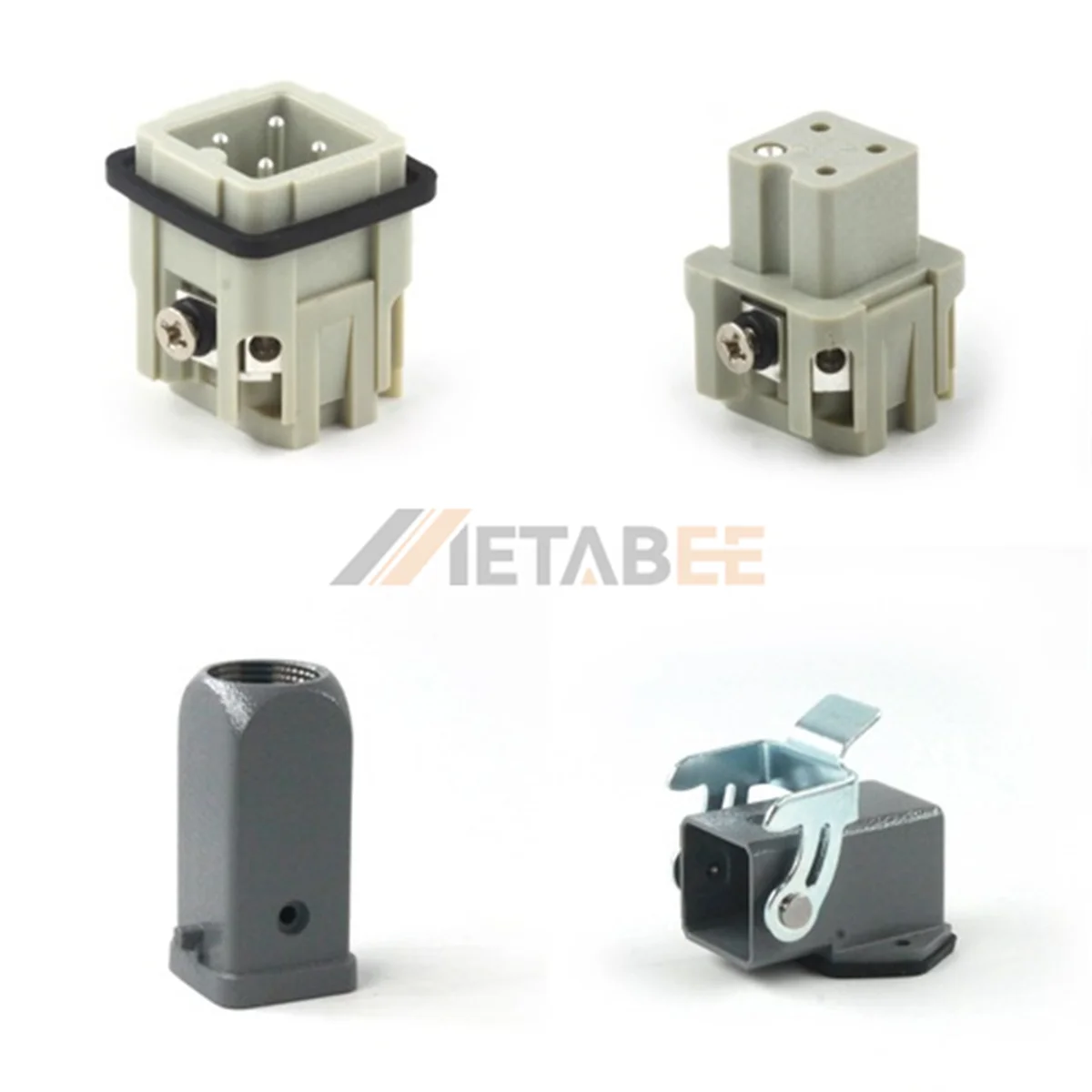

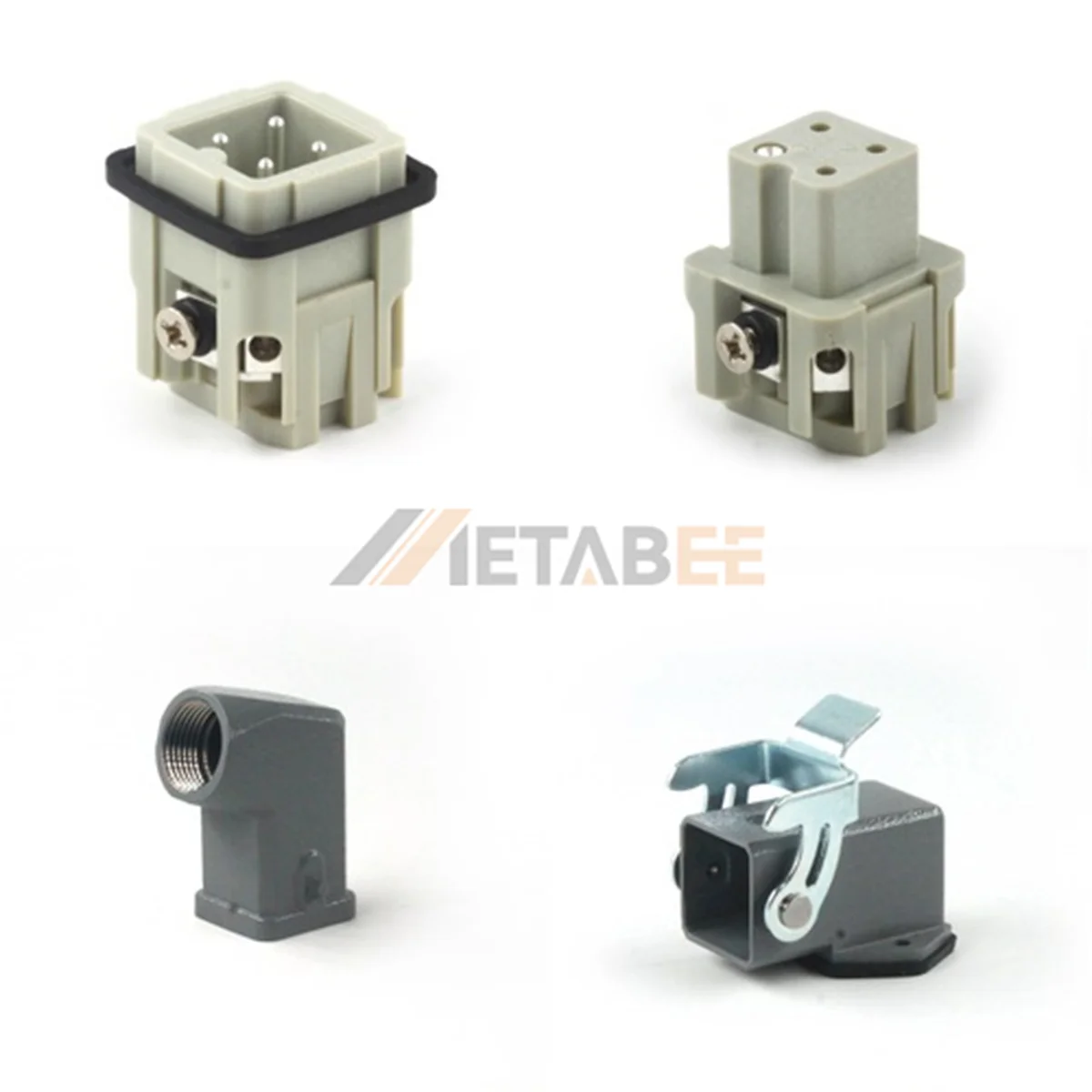

HA Series Heavy Duty Connector, 3+PE, Screw Terminal, Side-Bulkhead Base, Top/Side Entry Hood, 10A/250V
Introduction:
Heavy-duty connectors (HDC) use strong aluminum or thermoplastic housings to protect against dust, moisture and mechanical stress. They consist of five main components: housing, hood, inserts, contacts and cable glands. Modular and monolithic inserts combine power, signal, data and pneumatic lines in one connector to save space in control cabinets. Flexible cable outlet directions and hoods for large-diameter cables also help with wiring in tight spaces.
The HA series heavy duty connector provides a dependable interface for power and signal lines in automated equipment. Rated at 10A and 250V, this 3+PE assembly includes a side-bulkhead base optimized for secure panel integration in tight spaces. The system prioritizes ease of use with screw terminal inserts, allowing technicians to connect wires rapidly using standard tools without crimping. Paired with a hood offering top or side entry flexibility, the connector ensures robust ingress protection and mechanical stability.
Note: The product supports multiple thread size options, and customers can choose the specification that matches their installation needs.
Key Features:
- Reliable 3+PE power interface rated 10A 250V.
- Side-bulkhead base designed for compact panel mounting.
- Screw terminal inserts simplify on-site wiring tasks.
- The integrated locking lever guarantees a vibration-proof connection.
- The hood design allows top or side cable exit.
Main Specifications:
General Information:
| Product No.: | HA-003-MAGS-MTG, HA-003-MAGS-MTS | |
| Category: | Heavy-Duty Connector Assemblies | |
| Inserts Series: | HA Series | |
| Number of Contacts: | 3+PE | |
| Contacts Termination: | Screw Terminal | |
| Hood/Housing Series: | H3A Series | |
| Housing Mounting Type: | Bulkhead Mounting | |
| Housing Locking: | 1 Locking Lever | |
| Cable Entry Angle: | Top Entry, Side Entry | |
| Sealable: | With Cover | |
| Thread Size: | M20, PG11 | |
| Housing/Hood Material: | Die-cast aluminum | |
| Contact Material: | Copper Alloy | |
| Rated Current: | 10A | |
| Rated Voltage: | 250V | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 |
Heavy-duty connector main components
Four Types of Terminals
Heavy-duty Connector Housing Mounting Type
Applications
- Rail transportation;
- CNC equipment;
- Energy storage systems;
- Renewable energy devices;
- Smart grid installations;
- AC power distribution equipment;
- Power reliability systems;
Factory pricing and exceptional product quality. OEM & ODM Services. Get a free quote now!
Metabee is a professional connector manufacturer from China. We can provide all kinds of heavy-duty connectors.
