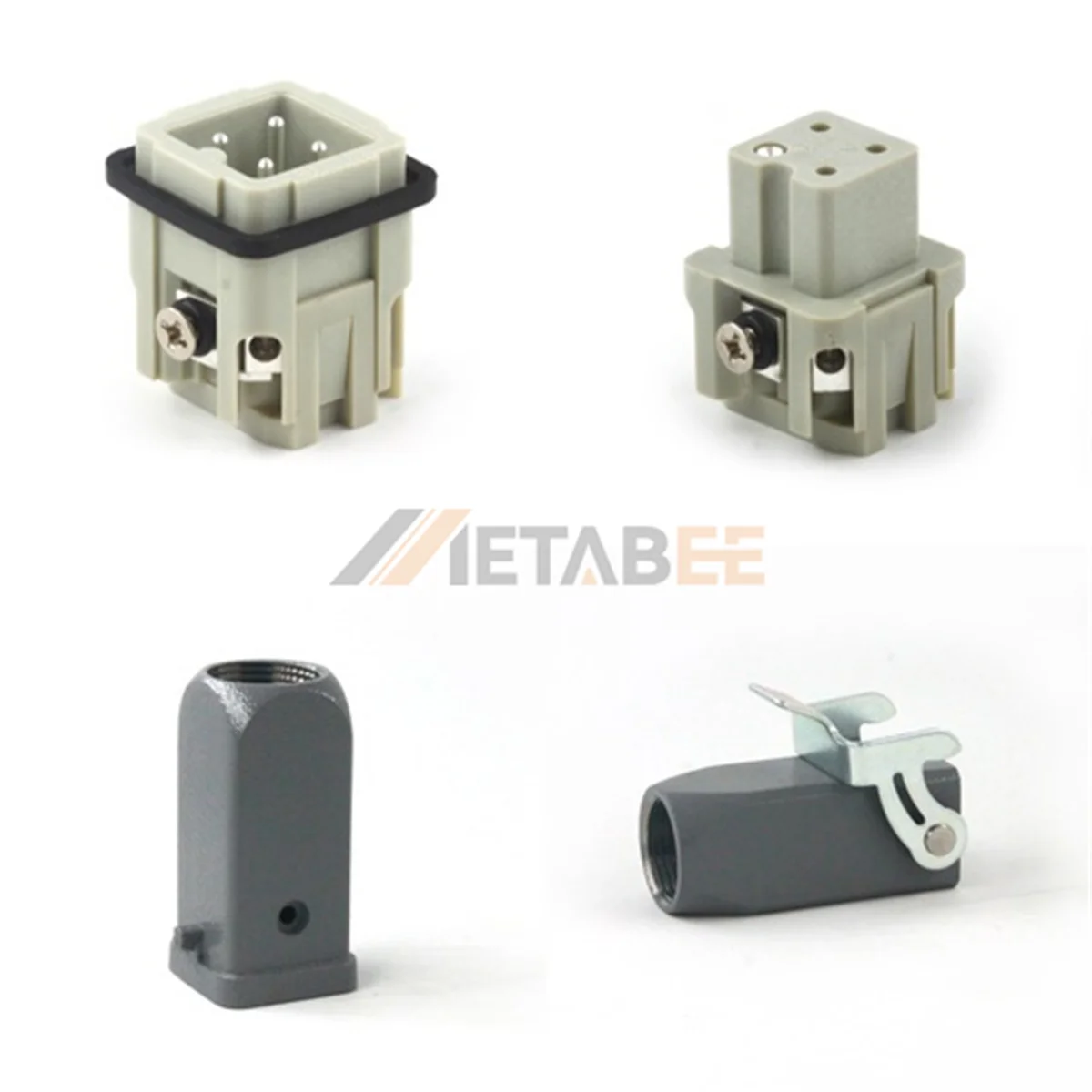

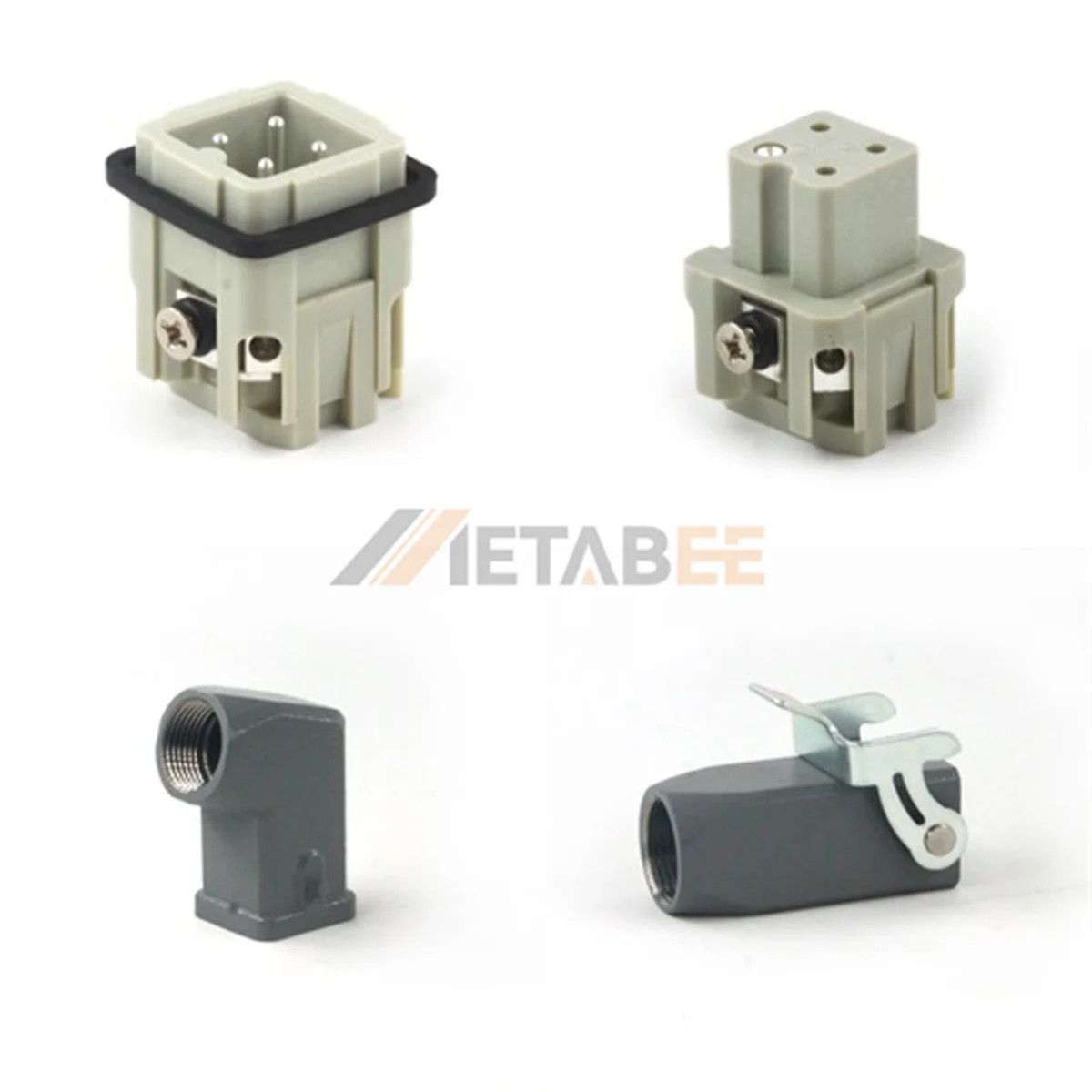

HA Series Heavy Duty Connector, 3+PE, Screw Terminal, Cable to Cable, Top/Side Entry Hood, 10A/250V
Introduction:
The HA series heavy duty connector assembly is engineered for reliable power transmission in space-constrained industrial environments. This kit features a compact 3+PE configuration rated at 10A and 250V, utilizing a robust cable-to-cable housing design that allows for secure extension connections without the need for fixed panel mounting.
The inserts use screw terminal technology to ensure efficient maintenance. This design allows for quick wire connection using only a standard screwdriver. The durable hood protects the assembly and offers top or side entry options. Additionally, a single locking lever secures the unit, providing strong resistance to vibrations in harsh conditions.
Note: The product supports multiple thread size options, and customers can choose the specification that matches their installation needs.
Key Features:
-
Compact 3+PE configuration rated at 10A and 250V.
-
Screw terminal connection requires no special crimping tools.
-
Cable-to-cable housing designed for free-hanging extension.
-
A single locking lever ensures quick and secure mating.
-
Versatile hood options support top or side cable entry.
Main Specifications:
General Information:
| Product No.: | HA-003-MTGVB-MTG, HA-003-MTGVB-MTS | |
| Category: | Heavy-Duty Connector Assemblies | |
| Inserts Series: | HA Series | |
| Number of Contacts: | 3+PE | |
| Contacts Termination: | Screw Terminal | |
| Hood/Housing Series: | H3A Series | |
| Housing Mounting Type: | Cable to Cable | |
| Housing Locking: | 1 Locking Lever | |
| Cable Entry Angle: | Top Entry, Side Entry | |
| Sealable: | N/A | |
| Thread Size: | M20, PG11 | |
| Housing/Hood Material: | Die-cast aluminum | |
| Contact Material: | Copper Alloy | |
| Rated Current: | 10A | |
| Rated Voltage: | 250V | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 |
Heavy-duty connector main components
Four Types of Terminals
Heavy-duty Connector Housing Mounting Type
Applications
- Rail transportation;
- CNC equipment;
- Energy storage systems;
- Renewable energy devices;
- Smart grid installations;
- AC power distribution equipment;
- Power reliability systems;
