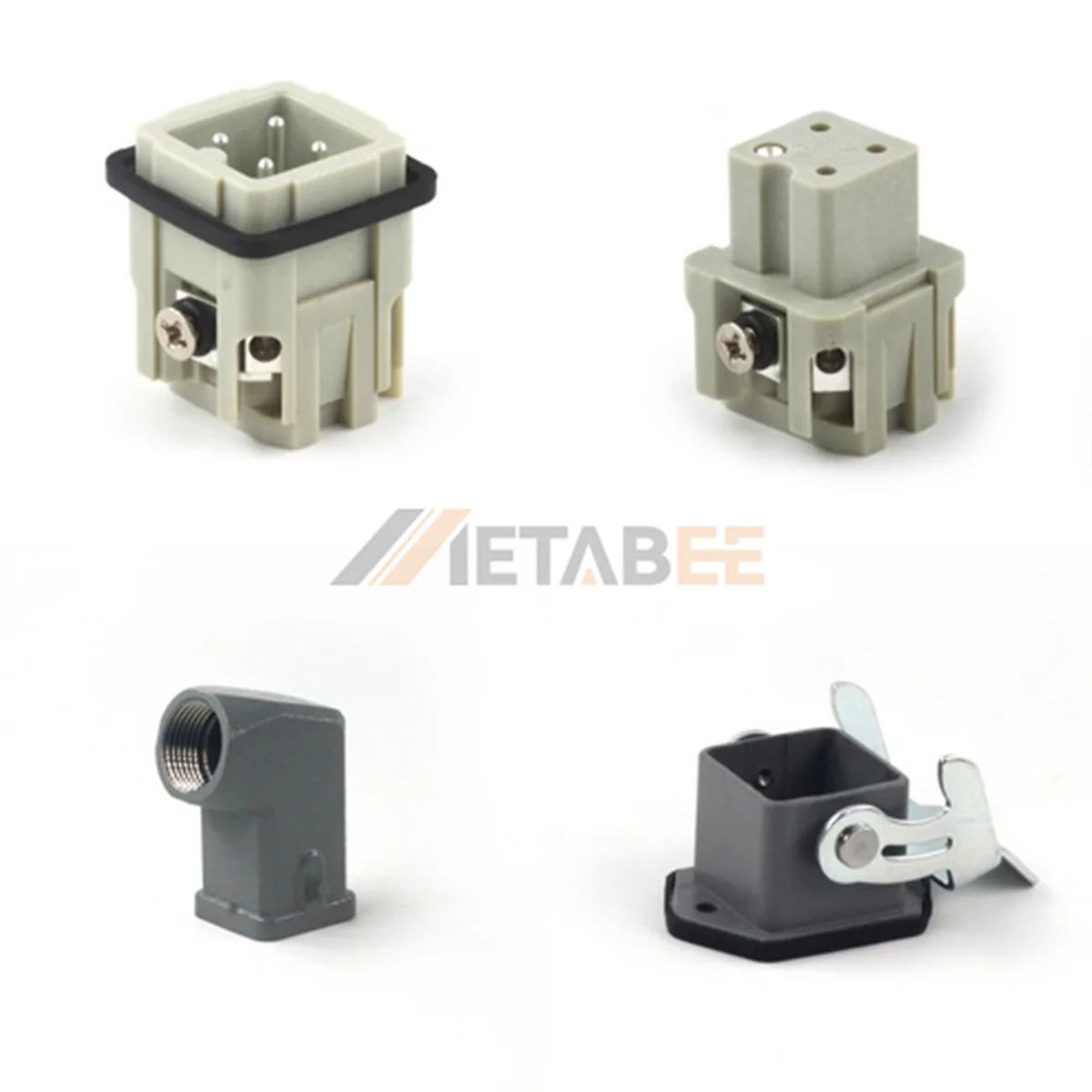

HA Series Heavy Duty Connector, 3+PE, Screw Terminal, Bulkhead Mounting, Side Entry, 10A/250V
Introduction:
Heavy-duty connectors (HDC) use strong aluminum or thermoplastic housings to protect against dust, moisture and mechanical stress. They consist of five main components: housing, hood, inserts, contacts and cable glands. Modular and monolithic inserts combine power, signal, data and pneumatic lines in one connector to save space in control cabinets. Flexible cable outlet directions and hoods for large-diameter cables also help with wiring in tight spaces.
The HA series heavy duty connector serves as a compact and efficient interface for power distribution in industrial automation. This 3+PE assembly, with a rating of 10A and 250V, features a bulkhead mounting base designed for direct installation on control cabinet panels. The kit includes a side entry hood, which is ideal for routing cables laterally to save vertical space. Equipped with screw terminal inserts, the system allows for straightforward field wiring using standard screwdrivers, ensuring a secure and maintenance-friendly connection that withstands the rigors of daily operation in harsh environments.
Note: The product supports multiple thread size options, and customers can choose the specification that matches their installation needs.
Key Features:
- Compact 3+PE configuration rated at 10A 250V.
- Bulkhead mounting base for secure panel attachment.
- Screw terminal inserts enable easy tool-free crimping.
- Side entry hood optimizes cable routing direction.
- Reliable locking mechanism ensures vibration resistance.
Main Specifications:
General Information:
| Product No.: | HA-003-MAG-MTS-M20 | |
| Category: | Heavy-Duty Connector Assemblies | |
| Inserts Series: | HA Series | |
| Number of Contacts: | 3+PE | |
| Contacts Termination: | Screw Terminal | |
| Hood/Housing Series: | H3A Series | |
| Housing Mounting Type: | Bulkhead Mounting | |
| Housing Locking: | 1 Locking Lever | |
| Cable Entry Angle: | Top Entry, Side Entry | |
| Sealable: | N/A | |
| Thread Size: | M20 | |
| Housing/Hood Material: | Die-cast aluminum | |
| Contact Material: | Copper Alloy | |
| Rated Current: | 10A | |
| Rated Voltage: | 250V | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 |
Heavy-duty connector main components
Four Types of Terminals
Heavy-duty Connector Housing Mounting Type
Applications
- Rail transportation;
- CNC equipment;
- Energy storage systems;
- Renewable energy devices;
- Smart grid installations;
- AC power distribution equipment;
- Power reliability systems;
