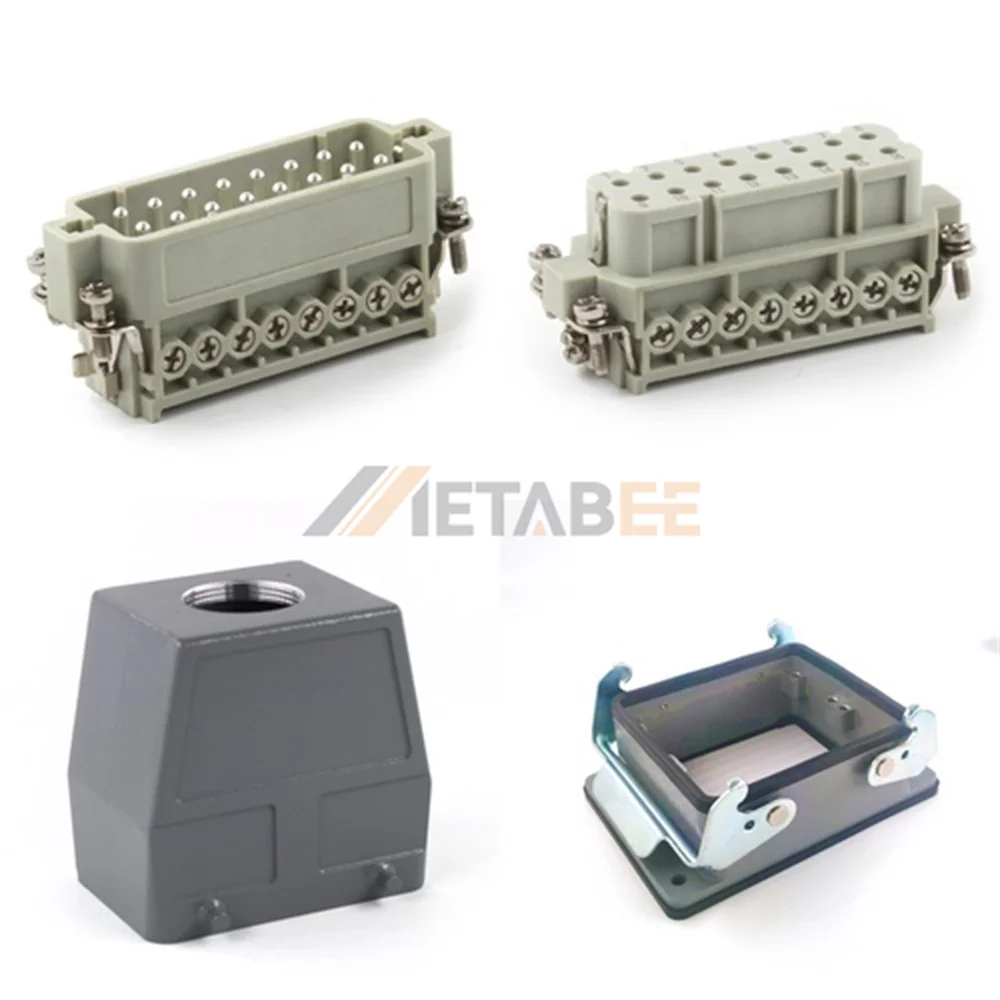

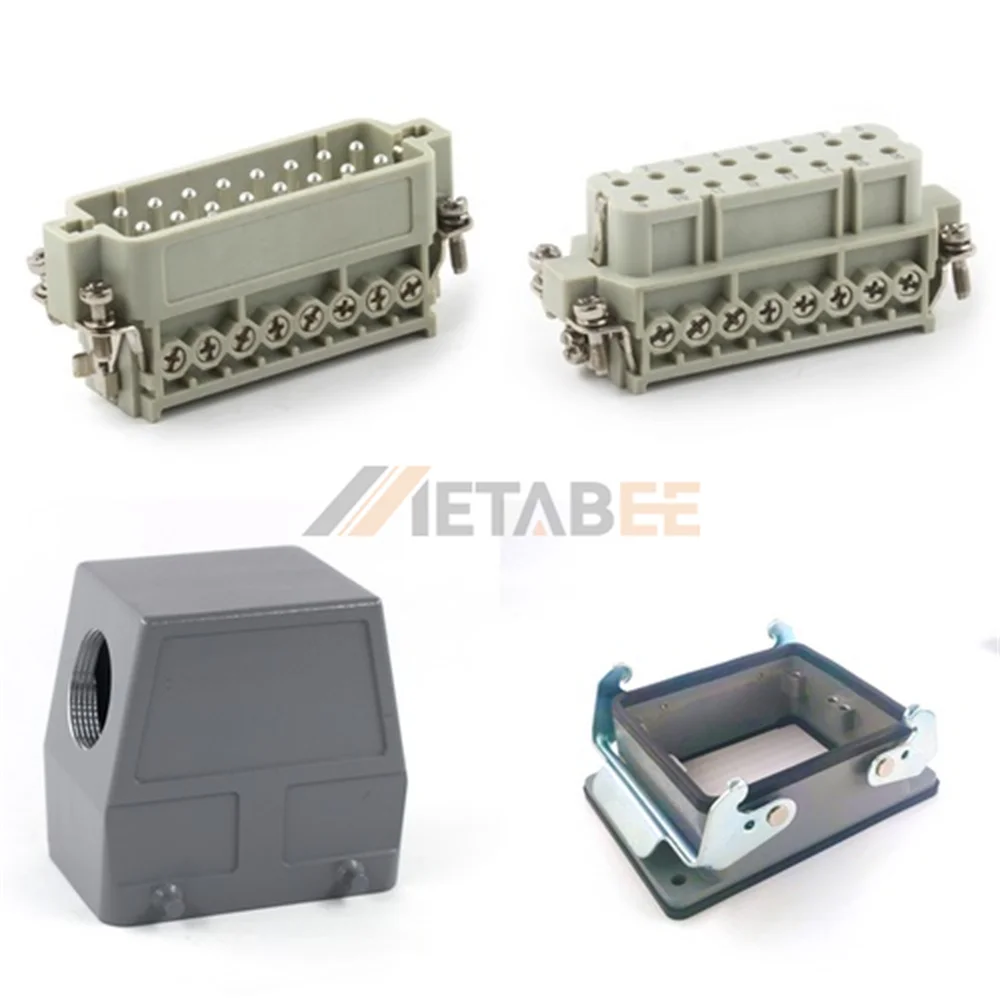

HA Series Heavy Duty Connector, 32+PE, Bulkhead Mount with 2 Levers, Screw Terminal, Top/Side Entry, 16A/250V
Introduction:
Heavy-duty connectors (HDC) use strong aluminum or thermoplastic housings to protect against dust, moisture and mechanical stress. They consist of five main components: housing, hood, inserts, contacts and cable glands. Modular and monolithic inserts combine power, signal, data and pneumatic lines in one connector to save space in control cabinets. Flexible cable outlet directions and hoods for large-diameter cables also help with wiring in tight spaces.
The HA series heavy duty connector utilizes a unique modular design. It combines two separate 16-pin inserts into a single size 32A housing. This creates a high-density 32+PE configuration for complex control systems. The kit includes a bulkhead mounting base equipped with two locking levers. This double locking system ensures the large assembly stays secure under industrial vibration. Wiring is straightforward because each insert uses screw terminal technology. It handles 16A and 250V loads reliably. The hood supports top or side cable entry.
Note: The product supports multiple thread size options, and customers can choose the specification that matches their installation needs.
Key Features:
- Combines two 16-pin inserts in one housing.
- High-density 32+PE configuration rated at 16A 250V.
- Two locking levers ensure maximum connection stability.
- Bulkhead mounting base fits standard panel cutouts.
- Screw terminal inserts need no special tools.
Main Specifications:
General Information:
| Product No.: | HA-032-AG-TG, HA-032-AG-TS | |
| Category: | Heavy-Duty Connector Assemblies | |
| Inserts Series: | HA Series | |
| Number of Contacts: | 32+PE | |
| Contacts Termination: | Screw Terminal | |
| Hood/Housing Series: | H32A Series | |
| Housing Mounting Type: | Bulkhead Mounting | |
| Housing Locking: | 2 Locking Levers | |
| Cable Entry Angle: | Top Entry, Side Entry | |
| Sealable: | N/A | |
| Thread Size: | M25, M32, M40, PG21, PG29 | |
| Housing/Hood Material: | Die-cast aluminum | |
| Contact Material: | Copper Alloy | |
| Rated Current: | 16A | |
| Rated Voltage: | 250V | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 |
Heavy-duty connector main components
Four Types of Terminals
Heavy-duty Connector Housing Mounting Type
Applications
- Rail transportation;
- CNC equipment;
- Energy storage systems;
- Renewable energy devices;
- Smart grid installations;
- AC power distribution equipment;
- Power reliability systems;
Factory pricing and exceptional product quality. OEM & ODM Services. Get a free quote now!
Metabee is a professional connector manufacturer from China. We can provide all kinds of heavy-duty connectors.
