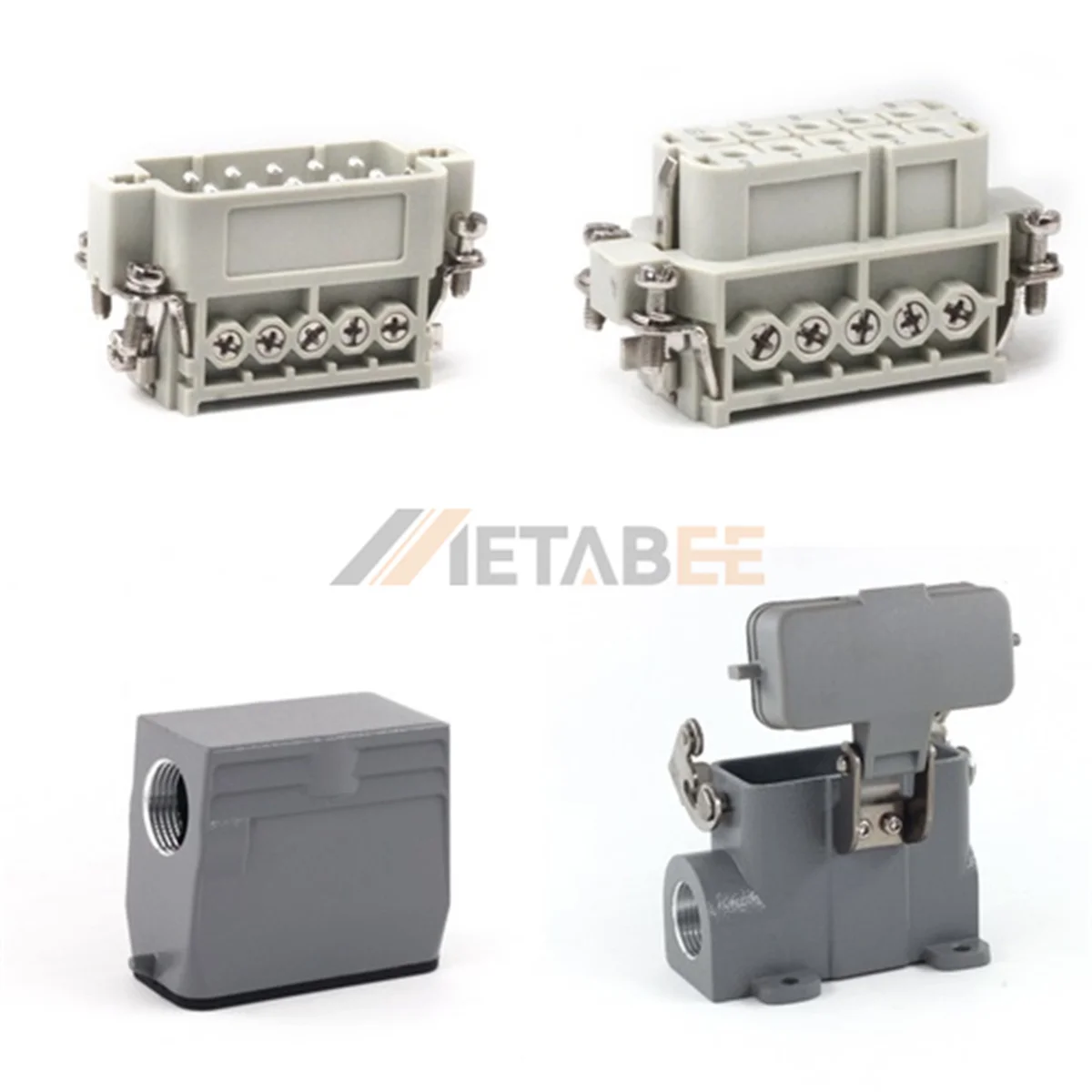

HA Series Heavy Duty Connector, 10+PE, Surface Mounting Cover, Screw Terminal, Top/Side Entry, 16A/250V
Introduction:
Heavy-duty connectors (HDC) use strong aluminum or thermoplastic housings to protect against dust, moisture and mechanical stress. They consist of five main components: housing, hood, inserts, contacts and cable glands. Modular and monolithic inserts combine power, signal, data and pneumatic lines in one connector to save space in control cabinets. Flexible cable outlet directions and hoods for large-diameter cables also help with wiring in tight spaces.
The HA series heavy duty connector is designed for secure wall mounting. It features a surface mounting base equipped with a protective cover. This cover keeps the inserts clean when the cable is disconnected. The kit provides a reliable 10+PE configuration rated at 16A and 250V. Installation is simple because the inserts use screw terminal technology. You can connect wires quickly with just a standard screwdriver. The hood supports top or side cable entry to fit your space. A single locking lever ensures stability against vibration.
Note: The product supports multiple thread size options, and customers can choose the specification that matches their installation needs.
Key Features:
- Surface mounting base installs without panel cutouts.
- Compact 10+PE configuration rated at 16A 250V.
- Screw terminal inserts need no special tools.
- Single locking lever ensures vibration-resistant mating.
- Hood design offers top or side cable entry.
Main Specifications:
General Information:
| Product No.: | HA-010-SDR-TS, HA-010-SDR-TG | |
| Category: | Heavy-Duty Connector Assemblies | |
| Inserts Series: | HA Series | |
| Number of Contacts: | 10+PE | |
| Contacts Termination: | Screw Terminal | |
| Hood/Housing Series: | H10A Series | |
| Housing Mounting Type: | Surface Mounting | |
| Housing Locking: | 1 Locking Lever | |
| Cable Entry Angle: | Top Entry, Side Entry | |
| Sealable: | With Cover | |
| Thread Size: | PG16, PG21 | |
| Housing/Hood Material: | Die-cast aluminum | |
| Contact Material: | Copper Alloy | |
| Rated Current: | 16A | |
| Rated Voltage: | 250V | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 |
Heavy-duty connector main components
Four Types of Terminals
Heavy-duty Connector Housing Mounting Type
Applications
- Rail transportation;
- CNC equipment;
- Energy storage systems;
- Renewable energy devices;
- Smart grid installations;
- AC power distribution equipment;
- Power reliability systems;
Factory pricing and exceptional product quality. OEM & ODM Services. Get a free quote now!
Metabee is a professional connector manufacturer from China. We can provide all kinds of heavy-duty connectors.
