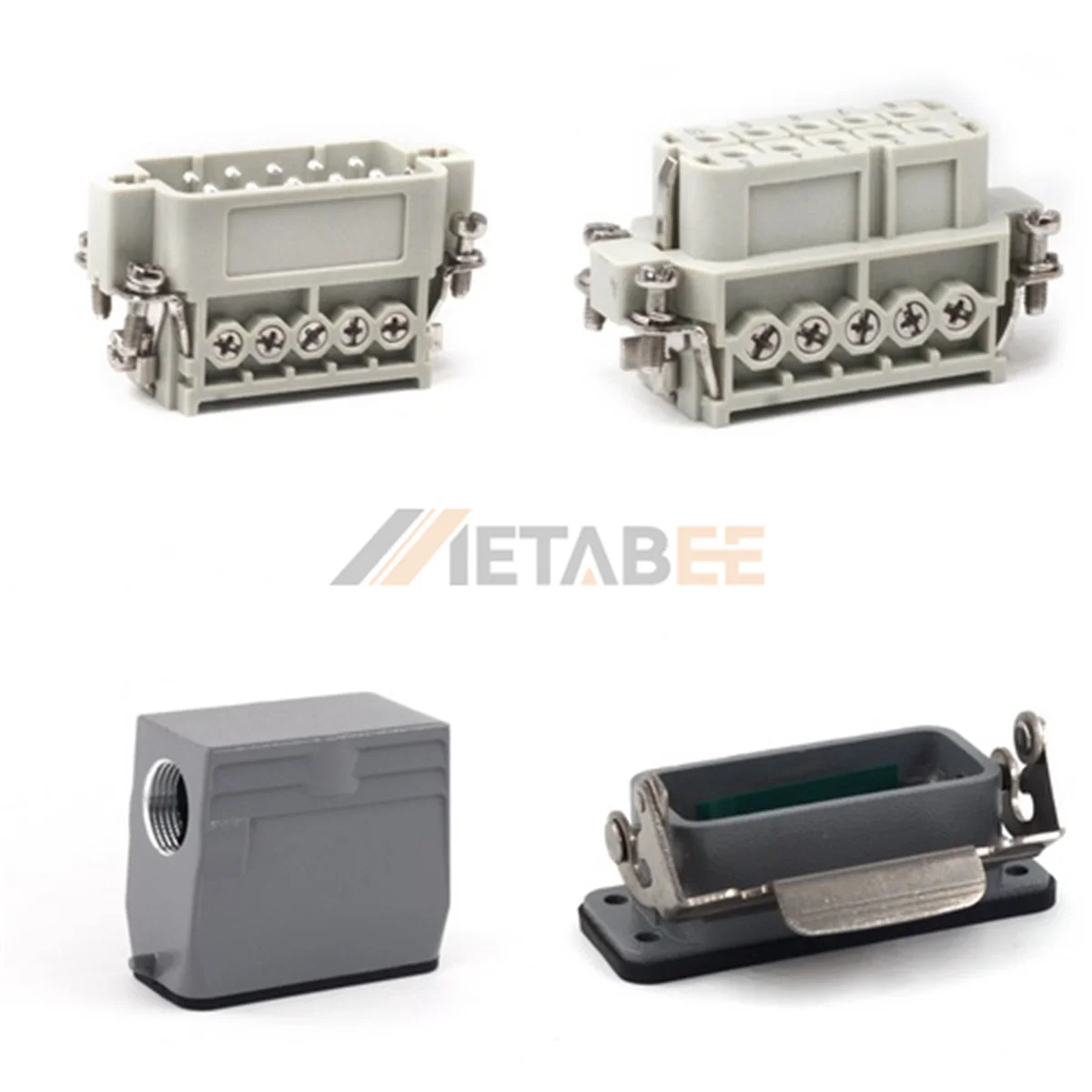

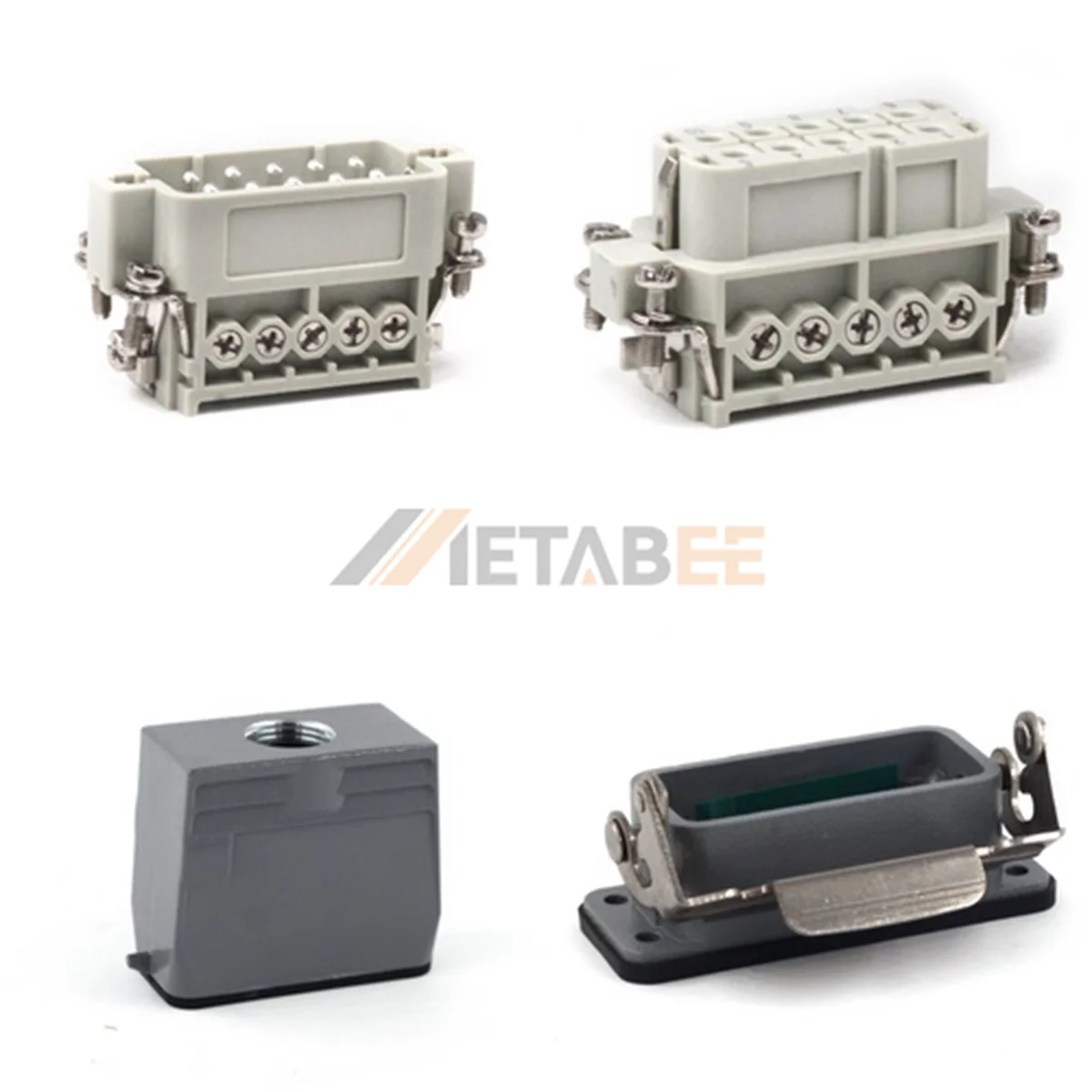

HA Series Heavy Duty Connector, 10+PE, Bulkhead, Screw Terminal, Top/Side Entry, 16A/250V
Introduction:
Heavy-duty connectors (HDC) use strong aluminum or thermoplastic housings to protect against dust, moisture and mechanical stress. They consist of five main components: housing, hood, inserts, contacts and cable glands. Modular and monolithic inserts combine power, signal, data and pneumatic lines in one connector to save space in control cabinets. Flexible cable outlet directions and hoods for large-diameter cables also help with wiring in tight spaces.
The HA series heavy duty connector provides a compact solution for multi-wire connections. This kit features a 10+PE configuration to handle more complex control circuits. It utilizes a bulkhead mounting base for secure attachment to machine panels. The screw terminal inserts allow you to connect wires easily using just a standard screwdriver. It is rated at 16A and 250V for reliable power transmission. The hood supports top or side cable entry to fit your wiring layout. A single locking lever keeps the system stable against vibration.
Note: The product supports multiple thread size options, and customers can choose the specification that matches their installation needs.
Key Features:
- Compact 10+PE configuration rated at 16A 250V.
- Bulkhead mounting base ensures secure panel attachment.
- Screw terminal inserts require no crimping tools.
- Single locking lever resists industrial vibration.
- Hood design supports top or side cable entry.
Main Specifications:
General Information:
| Product No.: | HA-010-AG-TS, HA-010-AG-TG | |
| Category: | Heavy-Duty Connector Assemblies | |
| Inserts Series: | HA Series | |
| Number of Contacts: | 10+PE | |
| Contacts Termination: | Screw Terminal | |
| Hood/Housing Series: | H10A Series | |
| Housing Mounting Type: | Bulkhead Mounting | |
| Housing Locking: | 1 Locking Lever | |
| Cable Entry Angle: | Top Entry, Side Entry | |
| Sealable: | N/A | |
| Thread Size: | M20, PG16, PG21 | |
| Housing/Hood Material: | Die-cast aluminum | |
| Contact Material: | Copper Alloy | |
| Rated Current: | 16A | |
| Rated Voltage: | 250V | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 |
Heavy-duty connector main components
Four Types of Terminals
Heavy-duty Connector Housing Mounting Type
Applications
- Rail transportation;
- CNC equipment;
- Energy storage systems;
- Renewable energy devices;
- Smart grid installations;
- AC power distribution equipment;
- Power reliability systems;
Factory pricing and exceptional product quality. OEM & ODM Services. Get a free quote now!
Metabee is a professional connector manufacturer from China. We can provide all kinds of heavy-duty connectors.
