H10A Series Heavy Duty Connector Housing with Cover, Bulkhead Mounting, 1 Locking Lever
Introduction:
The heavy-duty connector housing and hood series cover ten sizes: 3A, 10A, 16A, 32A, 6B, 10B, 16B, 24B, 32B, and 48B. Different sizes can match different types of inserts, allowing flexible configurations from low-pin signal connections to high-power transmission. The housing is made of aluminum die-cast material with a protection degree of IP65, offering excellent dustproof, waterproof, and impact-resistant performance. It ensures safe and reliable connections even in harsh industrial environments.
Maintain system reliability with this H10A bulkhead housing. Its attached cover keeps the connection point clean and protected when not in use, preventing contamination. The bulkhead mounting design provides a stable, panel-sealed interface. Mating is fast and secure thanks to the single locking lever, ensuring a vibration-resistant connection.
Main Specifications:
General Information:
| Product No.: | H10A-AG | |
| Category: | Heavy-Duty Connector Housings, Hoods | |
| Connector Product Type: | Housing | |
| Connector Series: | H10A Series | |
| Mounting Type: | Bulkhead Mounting | |
| Cable Entry Angle: | Bottom Entry | |
| Housing/Hood Locking: | 1 Locking Lever | |
| Sealable: | Cover | |
| Thread Size: | N/A | |
| Housing/Hood Material: | Die-cast aluminum | |
| Levers Material: | Stainless steel | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 | |
| Flammability Rating: | UL94 V-0 |
Structure of Heavy-Duty Connector

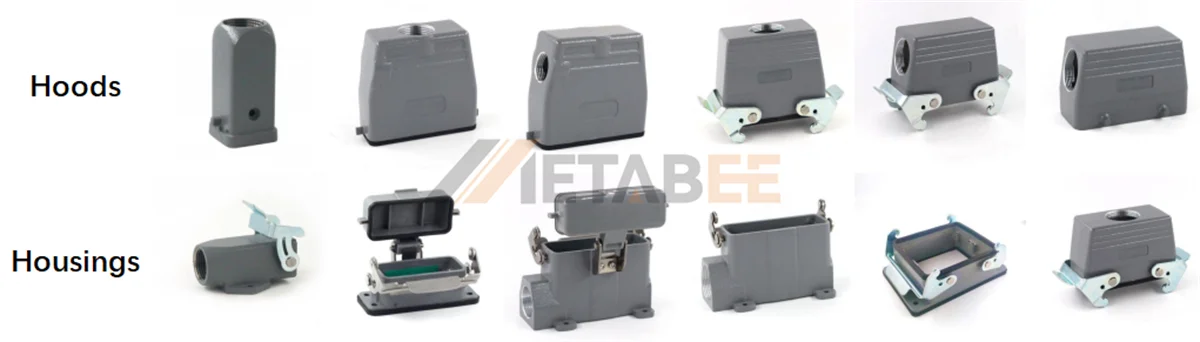

Hoods and Housings Example Diagram

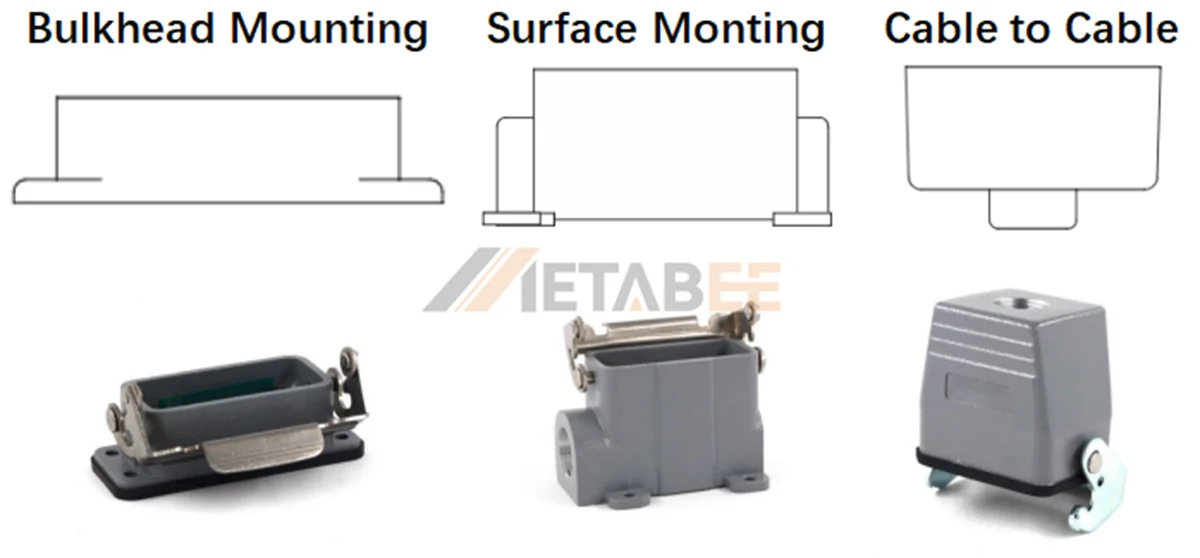

Heavy-duty Connector Housing Mounting Type (example)
Applications
- Control cabinets and panels;
- Factory automation systems;
- Robotics and motion systems;
- Heavy equipment connections;
- Conveyor and assembly lines.
