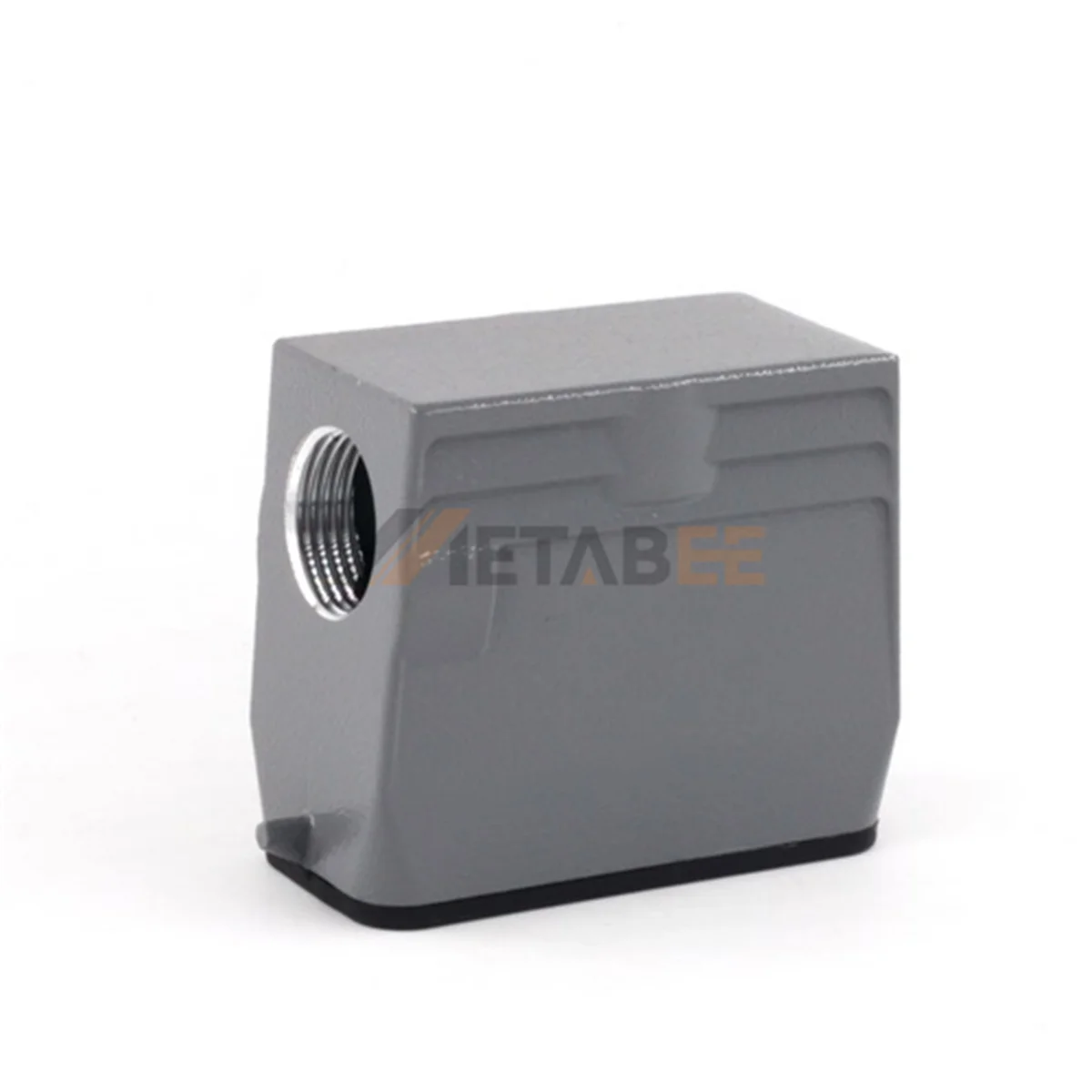

H10A Series Heavy Duty Connector Hood with 2 Bolts, Side Entry, Size 10A
Introduction:
The heavy-duty connector hoods are available in ten standard sizes: 3A, 10A, 16A, 32A, 6B, 10B, 16B, 24B, 32B, and 48B. They are made of aluminum die-cast material and provide reliable IP65 protection. Each hood features a robust locking interface and a built-in sealing gasket to ensure a secure connection with the matching housing. Multiple cable-entry directions and thread sizes are available to support different wiring layouts and installation needs.
The H10A hood guides cables through a side-entry port, making it suitable for flat panel layouts and low-clearance wiring. It joins with 10A housings and is secured by two bolts. The design provides a firm locking area and a threaded opening for clean cable entry.
Main Specifications:
General Information:
| Product No.: | H10A-TS | |
| Category: | Heavy-Duty Connector Housings, Hoods | |
| Connector Product Type: | Hoods | |
| Connector Series: | H10A Series | |
| Housing/Hood Size: | 10A | |
| Cable Entry Angle: | Side Entry | |
| Thread Size: | PG16, M20 | |
| Locking Components: | 2 Bolts | |
| Housing/Hood Material: | Die-cast aluminum | |
| Hood Finish: | Powder Coated | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 | |
| Flammability Rating: | UL94 V-0 |
Structure of Heavy-Duty Connector
Hoods and Housings Example Diagram
Applications
- Control cabinets and panels;
- Factory automation systems;
- Robotics and motion systems;
- Heavy equipment connections;
- Conveyor and assembly lines.
