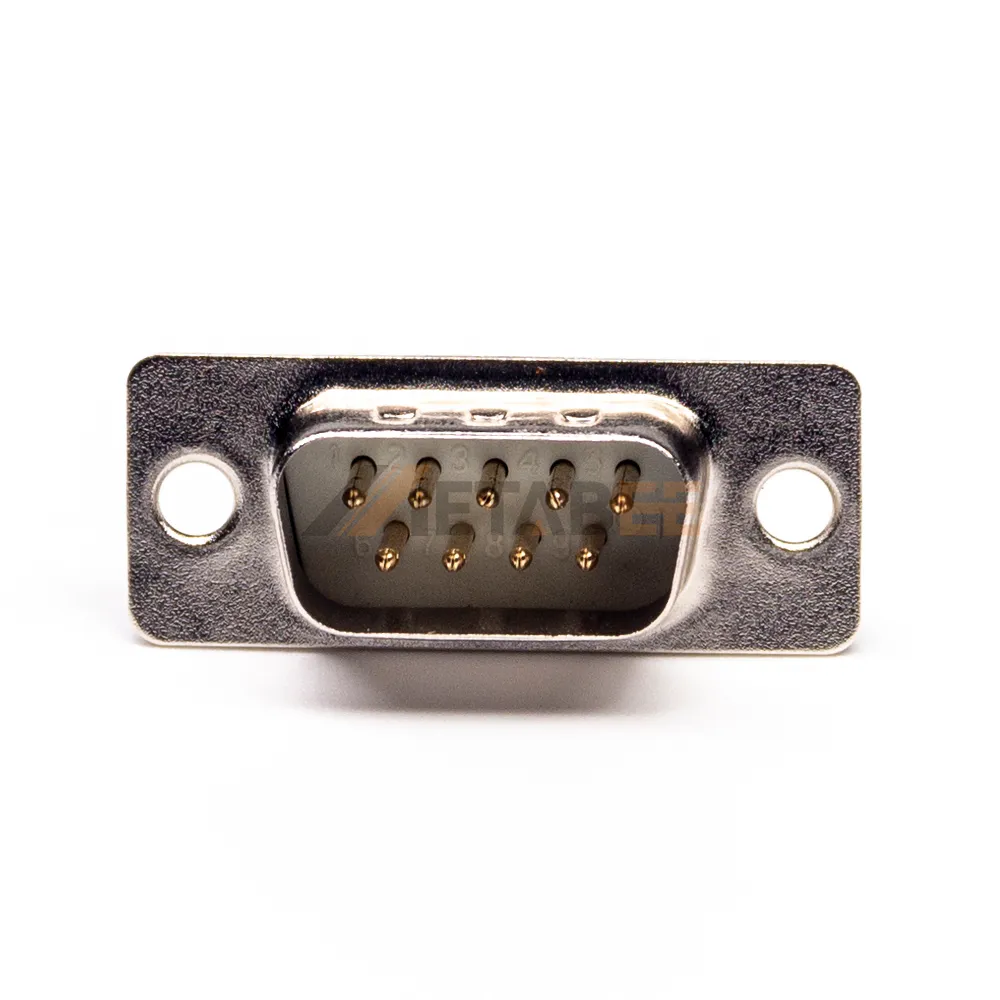

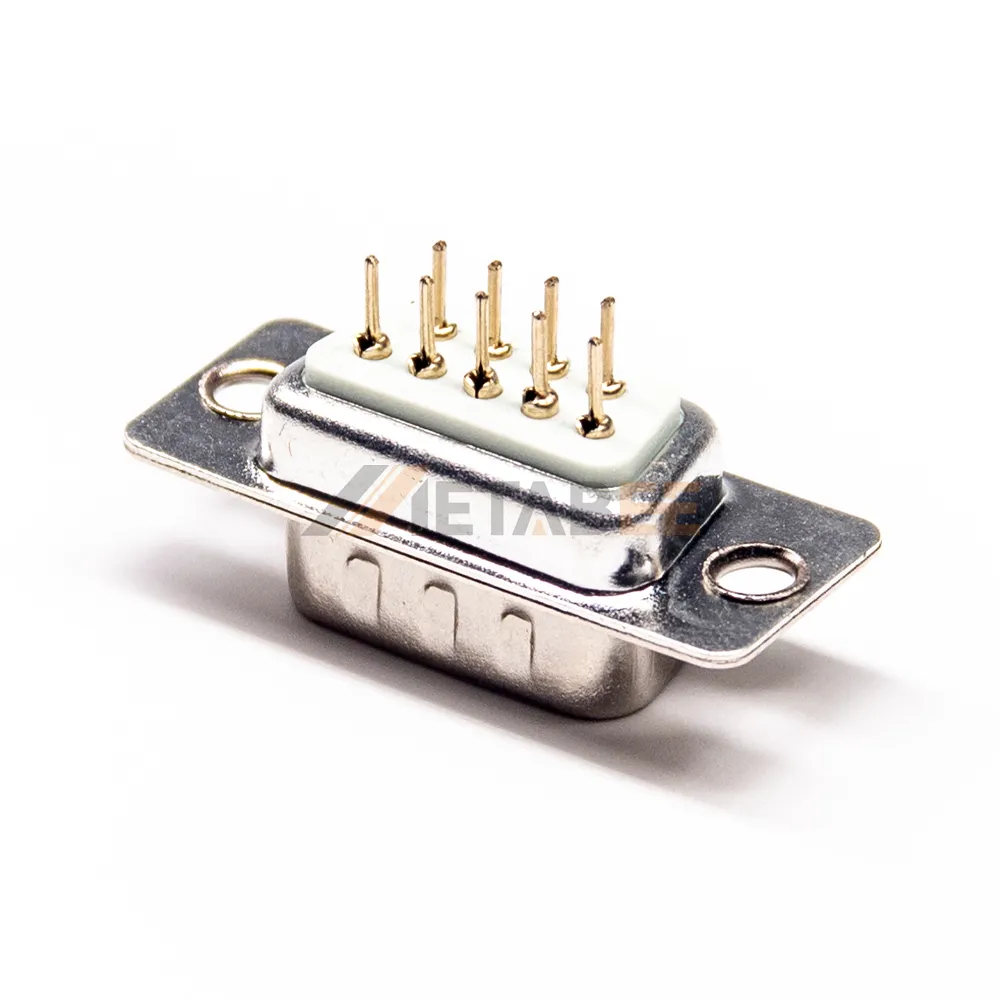

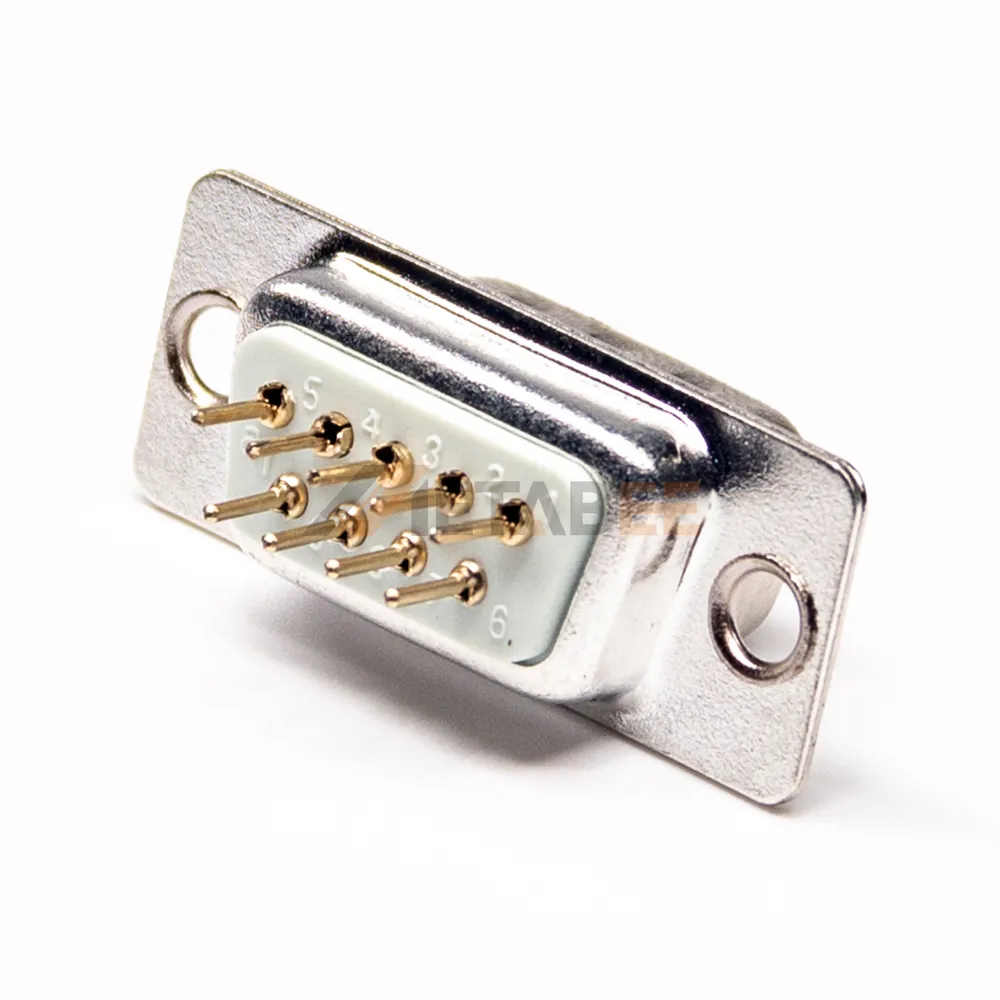

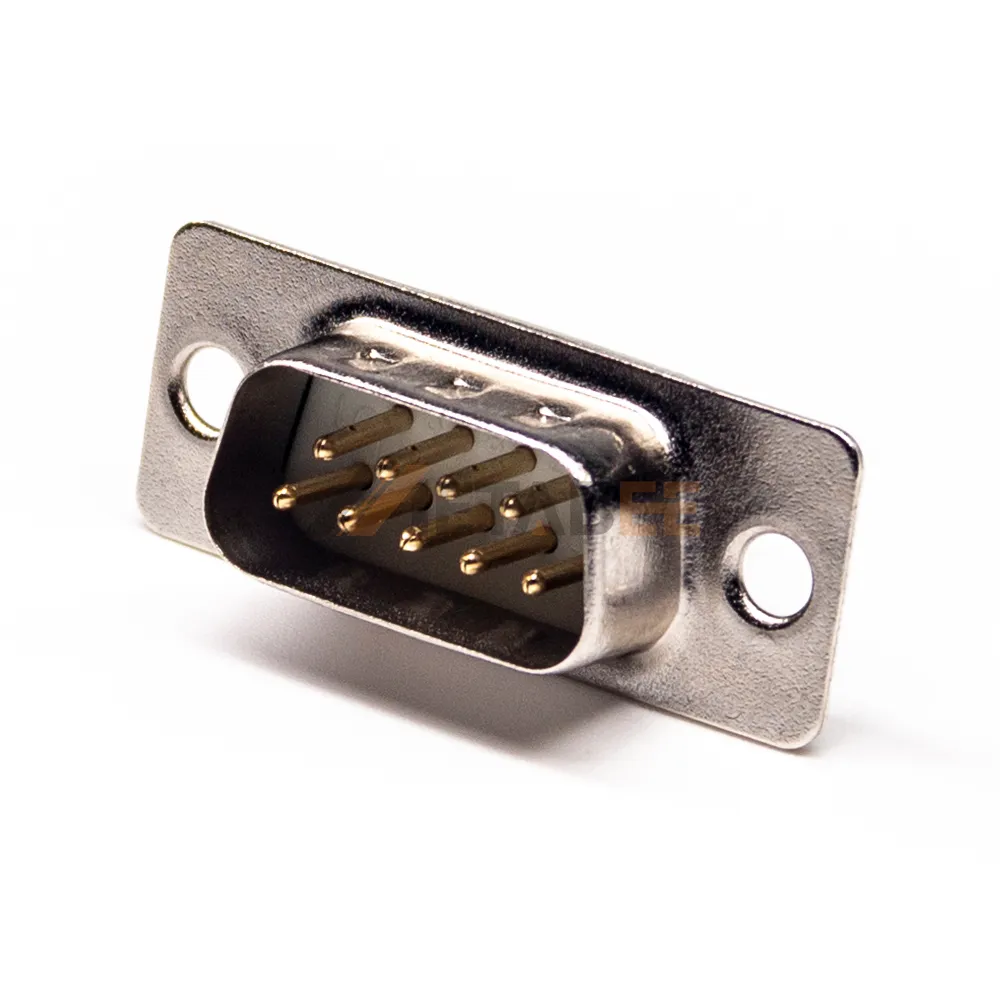

DB9 Straight Male Connector for PCB Mount, Through Hole, 2.77mm Pitch, IP20
Introduction:
This DB9 straight male connector is engineered for secure PCB mounting. The connector mounts using through-hole technology; its solder pins are inserted into the PCB and soldered to form a robust, permanent mechanical and electrical bond. A durable steel shell protects it from physical stress. Gold-plated contacts ensure superior signal integrity, making it a high-reliability choice for industrial hardware and embedded systems.
This DB9 straight male connector has many great features, including:
- PCB Mount: Provides a strong mechanical anchor when soldered directly to the circuit board.
- Solder Termination: Forms a permanent electrical bond between the connector and the PCB.
- Gold-Plated Contacts: Ensures superior signal integrity and excellent corrosion resistance.
- Durable Steel Shell: Offers robust physical protection for the connection point.
- IP20 Rating: Ensures touch-proof safety for use in standard indoor equipment.
Main Specifications:
General Information:
| Product No.: | YC-681-4017 | |
| Connector Series: | D-Sub Connectors | |
| Orientation: | Straight | |
| Connector Gender: | Male | |
| Number of Contacts: | 9 Pin | |
| Number of Rows: | 2 | |
| Pitch: | 2.77 mm | |
| Shell Sizes: | E | |
| Mount Type: | PCB Mount | |
| Mount Feature: | Through Hole | |
| Contact Termination: | Solder | |
| Contact Type: | Stamped Contact | |
| Contact Function: | Signal |
Materials and Plating:
| Shell Material: | Steel | |
| Shell Plating: | Nickel Plating | |
| Contact Material: | Brass | |
| Contact Plating: | Gold Plating | |
| Contact Plating Thickness: | 3.00 µin (0.076 µm) | |
| Insulator Material: | Thermoplastic Polyester |
Electrical Performance:
| Rated Current: | 5A | |
| Rated Voltage: | 500V AC | |
| Contact Resistance: | ≤ 20 mΩ |
Environmental Performance:
| Temperature Range: | -55℃ to +105℃ | |
| IP Rating: | IP20 | |
| Flammability Rating: | UL94 V-0 |
Applications of this DB9 straight male connector:
- Industrial Automation;
- Serial Communication;
- Telecommunications;
- Test & Measurement Equipment;
- Computer Peripherals;
- Robotics and CNC Machine Control;
- Prototyping and Custom Assemblies;
- Medical and Laboratory Equipment;
