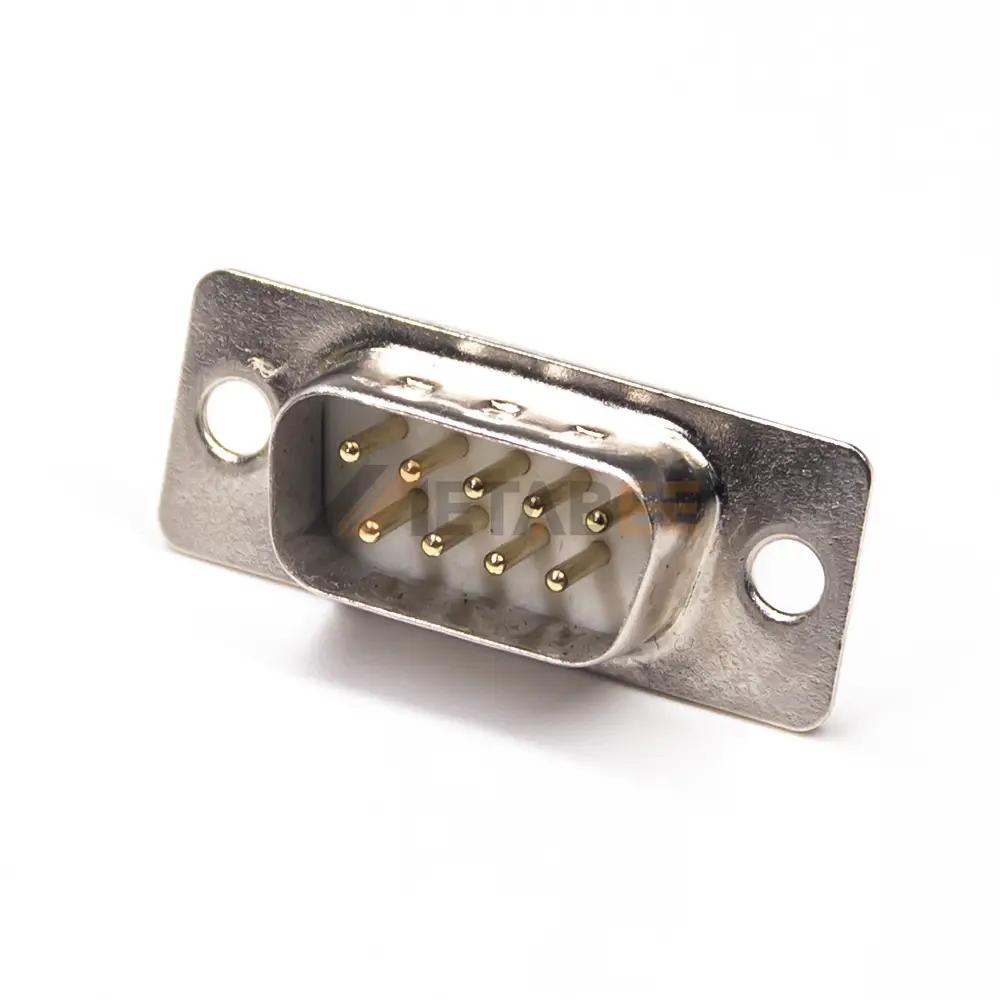

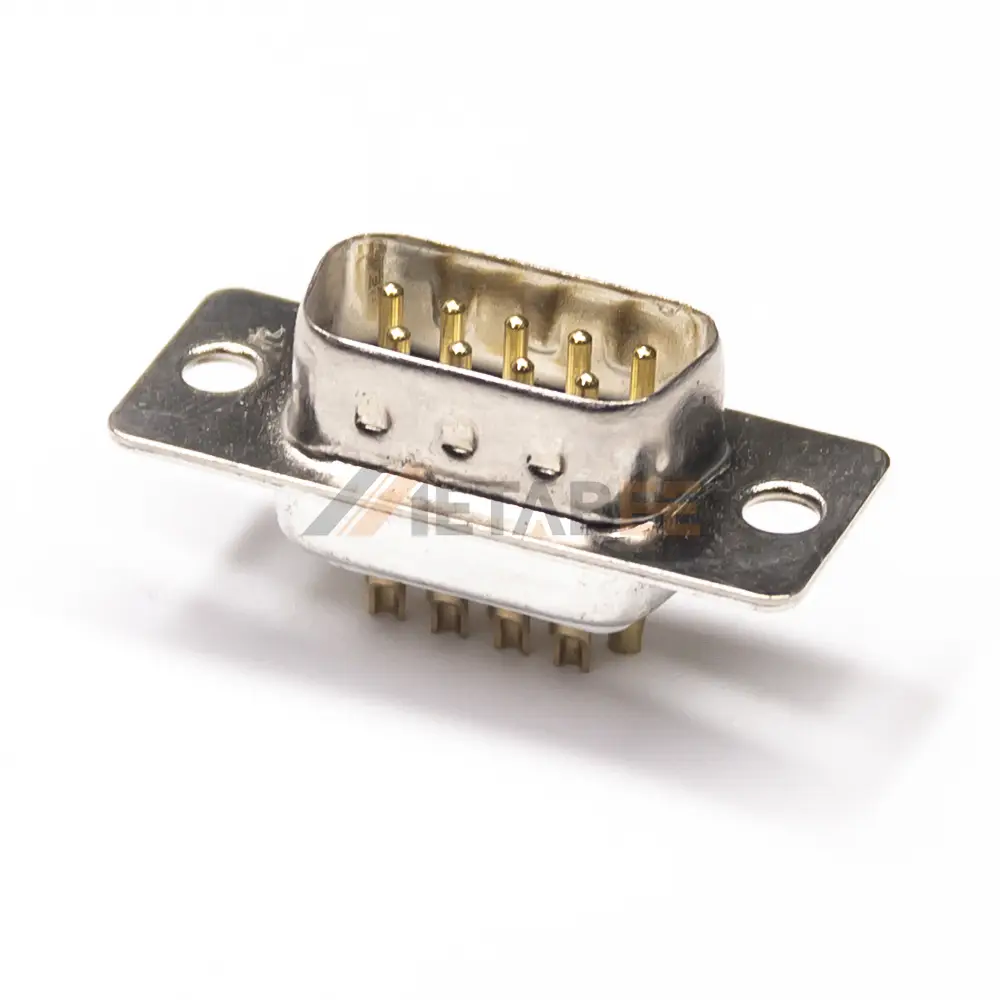

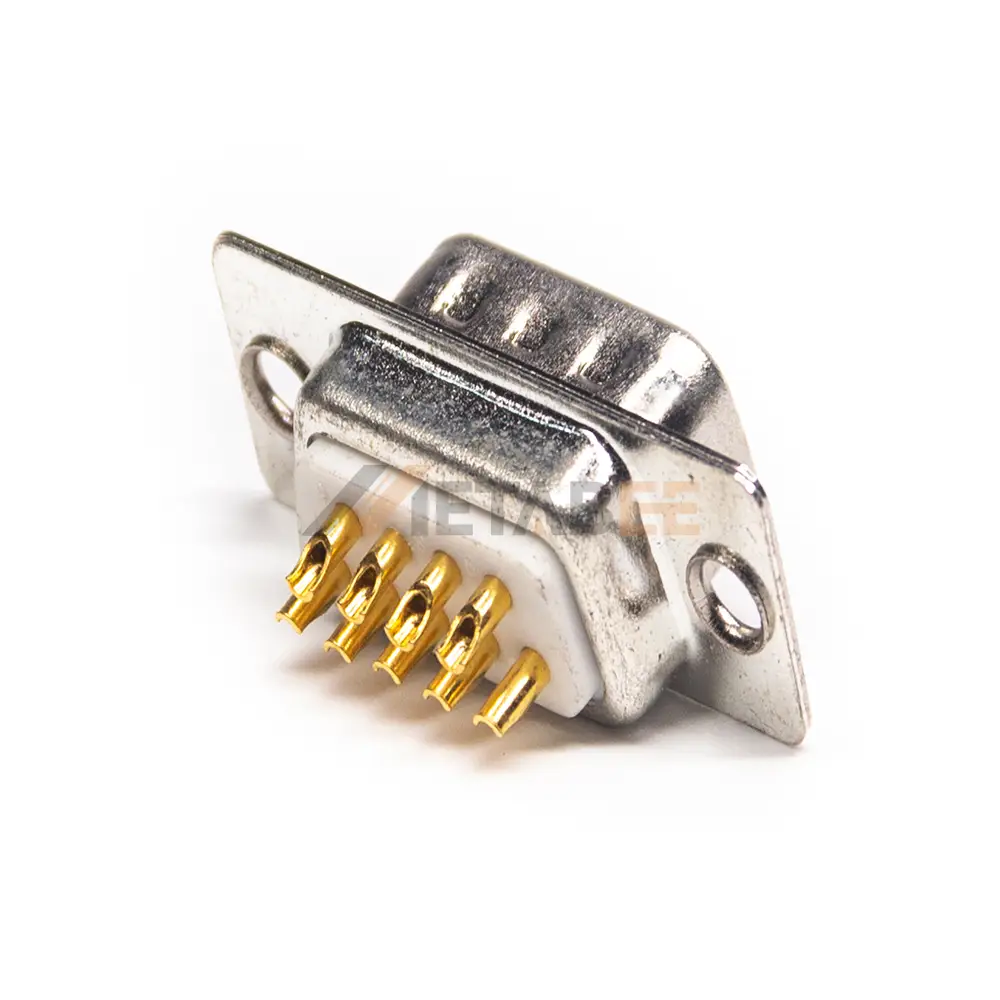

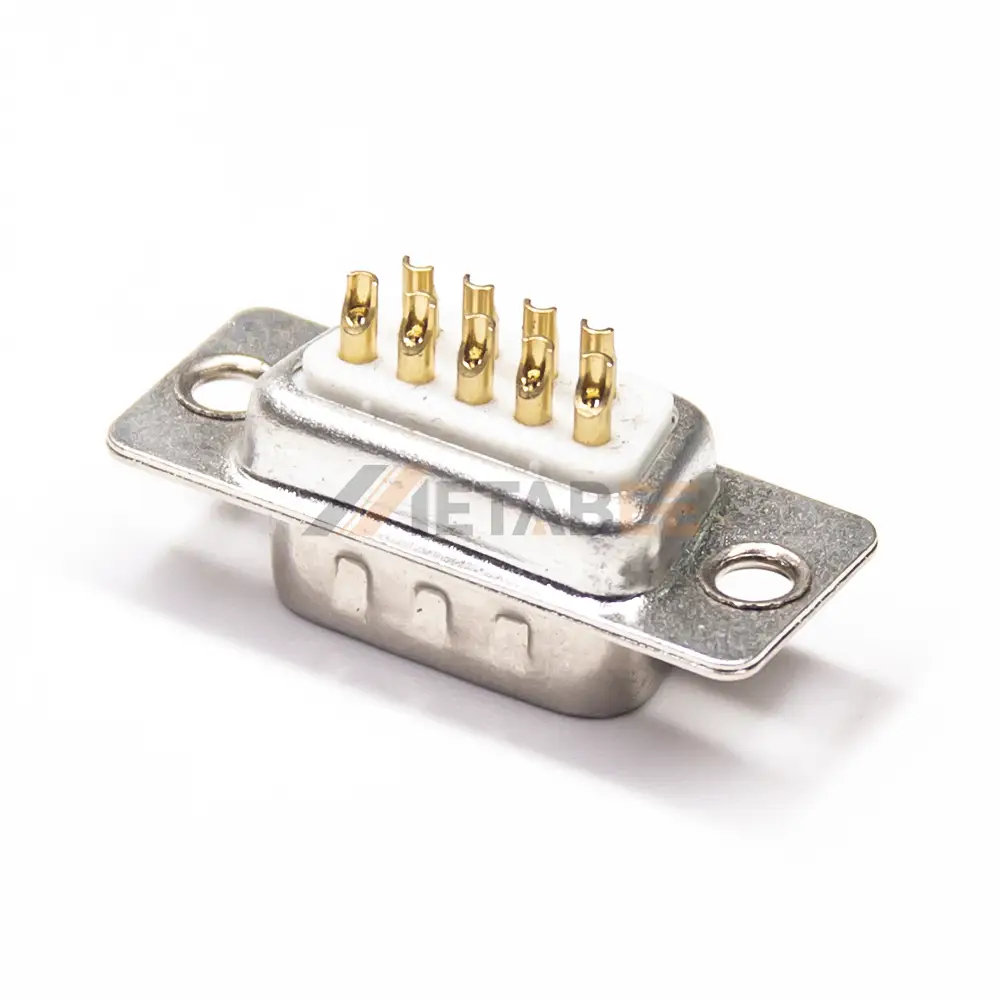

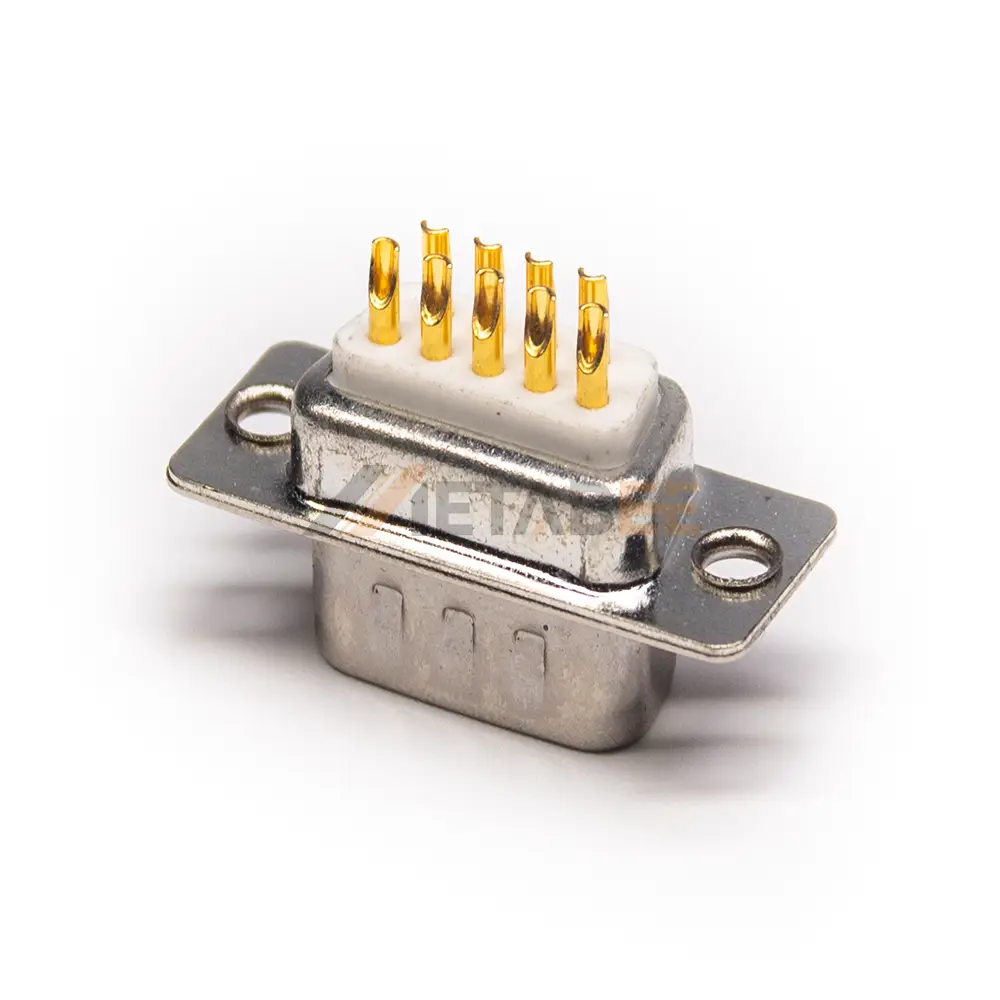

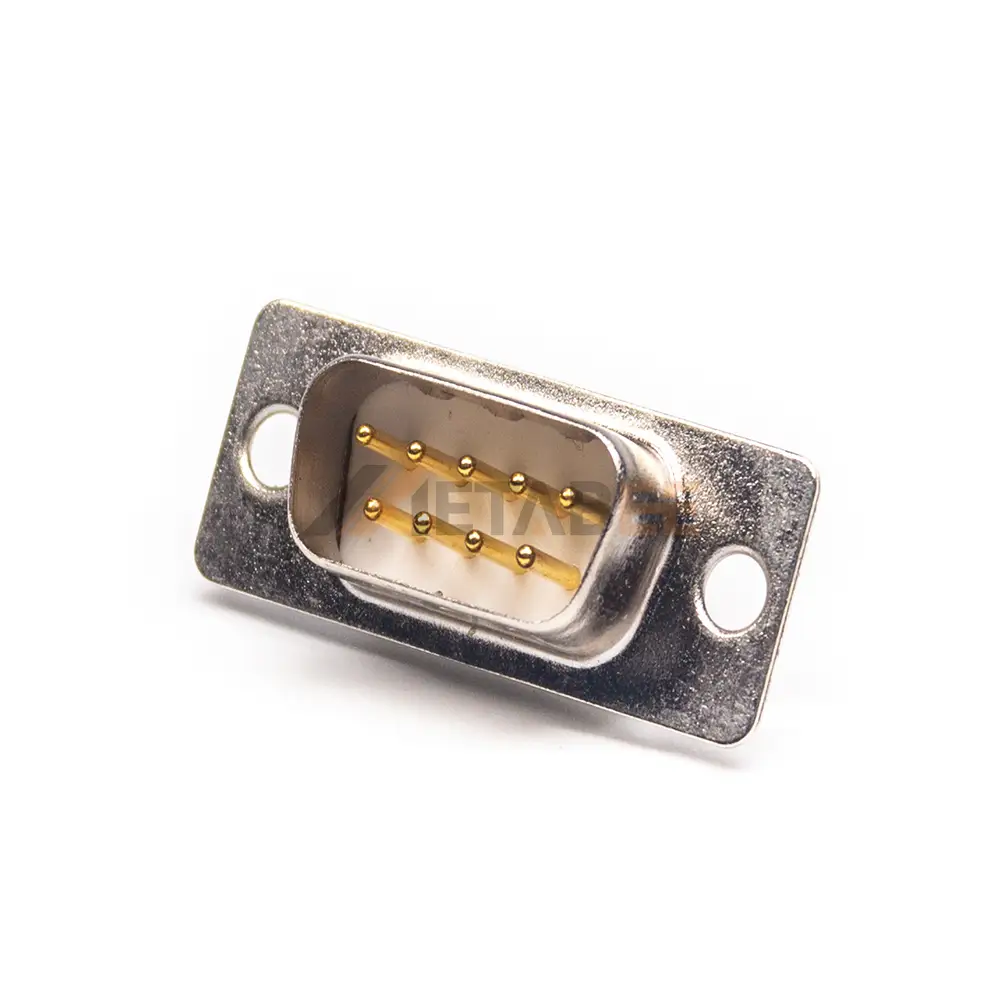

DB9 Male Solder Connector for Cable Mount, Solder Cup, Machined Pins, 2.77mm Pitch
Introduction:
Build your connections to last with this premium DB9 male solder connector. It’s designed for crafting custom, high-reliability cables. User-friendly solder cups allow for direct and permanent wire soldering. Inside, solid machined contacts are gold-plated to ensure a clean, stable signal path. A tough, nickel-plated steel shell protects the connection from physical damage and electronic interference. Rated for 5A and 500V AC, this connector confidently handles both power and data. It’s the professional’s choice for robust serial links and demanding industrial applications.
This high performance DB9 male solder connector is engineered for excellence, featuring:
- Solid Machined Contacts: Provides a durable, precise fit for a highly stable signal path.
- Solder Cup Design: Allows for direct wire soldering to create reliable, custom-length cables.
- Shielded Steel Housing: The nickel-plated steel housing protects against physical damage and electronic noise.
- Ready for Tough Environments: Performs reliably in extreme temperatures and has a UL94 V-0 safety rating.
- Insulation Material: A quality thermoplastic insulator prevents signal crosstalk and data errors between pins.
Main Specifications:
General Information:
| Product No.: | YC-681-4087 | |
| Connector Series: | D-Sub Connectors | |
| Orientation: | Straight | |
| Connector Gender: | Male | |
| Number of Contacts: | 9 Pin | |
| Number of Rows: | 2 | |
| Pitch: | 2.77 mm | |
| Shell Sizes: | E | |
| Mount Type: | Cable Mount | |
| Mount Feature: | Through Hole | |
| Contact Termination: | Solder Cup | |
| Contact Type: | Machined Contact | |
| Contact Function: | Signal |
Materials and Plating:
| Shell Material: | Steel | |
| Shell Plating: | Nickel Plating | |
| Contact Material: | Brass | |
| Contact Plating: | Gold Plating | |
| Contact Plating Thickness: | 3.00 µin (0.076 µm) | |
| Insulator Material: | Thermoplastic Polyester |
Electrical Performance:
| Rated Current: | 5A | |
| Rated Voltage: | 500V AC | |
| Contact Resistance: | ≤ 20 mΩ |
Environmental Performance:
| Temperature Range: | -55℃ to +105℃ | |
| IP Rating: | Not Applicable | |
| Flammability Rating: | UL94 V-0 |
Applications of this DB9 male solder connector:
- Industrial Automation;
- Serial Communication;
- Telecommunications;
- Test & Measurement Equipment;
- Computer Peripherals;
- Point-of-Sale (POS) Systems;
- Prototyping and Custom Assemblies;
- Medical equipment.
