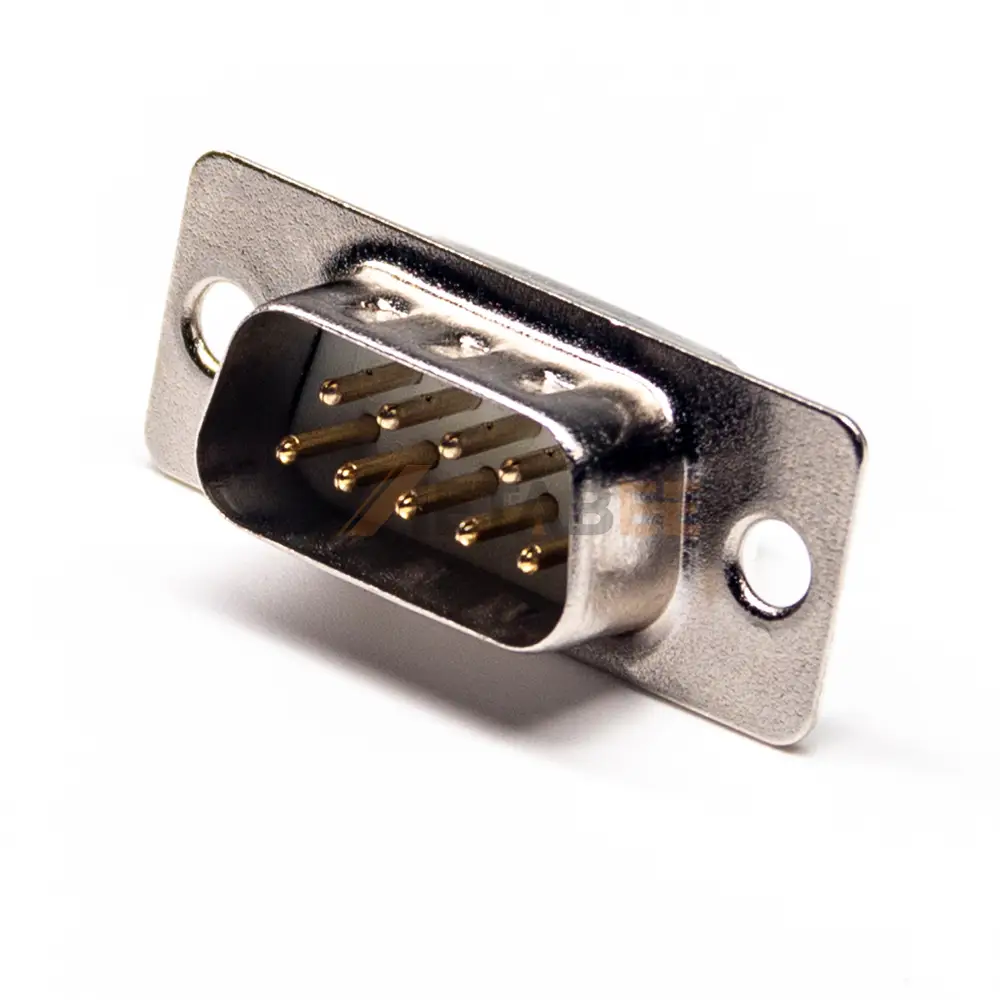

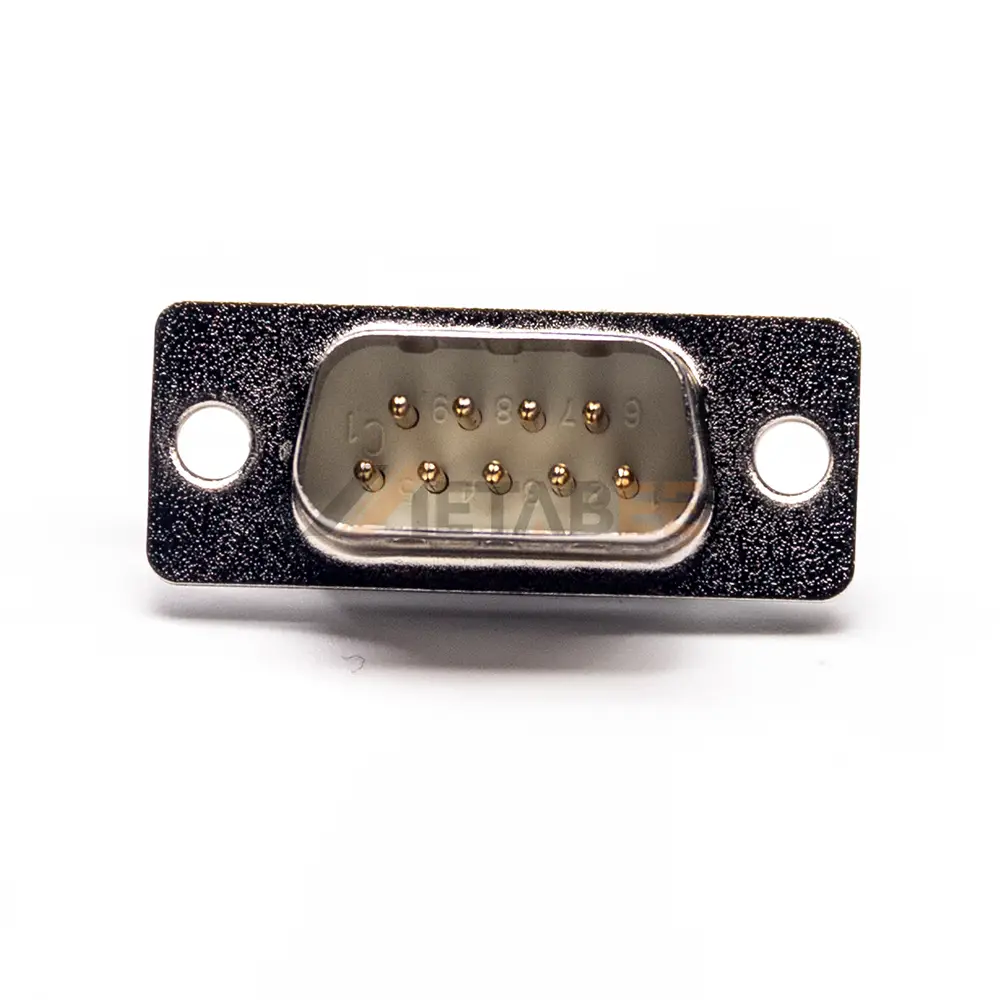

D-Sub 9 Pin Male Connector for Cable Mount, Solder Cup, 2.77mm Pitch, IP20
Introduction:
This D-Sub 9 pin male connector is IP20 rated. This provides essential touch-proof protection for indoor environments. Its design prioritizes safety, featuring a UL94 V-0 flame-retardant thermoplastic insulator. A durable steel shell with nickel plating shields the internal components from physical impact. Gold-plated stamped contacts offer reliable and economical performance for data applications. With easy-to-use solder cups, you can quickly build custom serial cables. It is a solid choice for lab equipment, computer peripherals, and control panels.
Engineered for both safety and easy integration, this DB9 9 pin male connector includes the following key features:

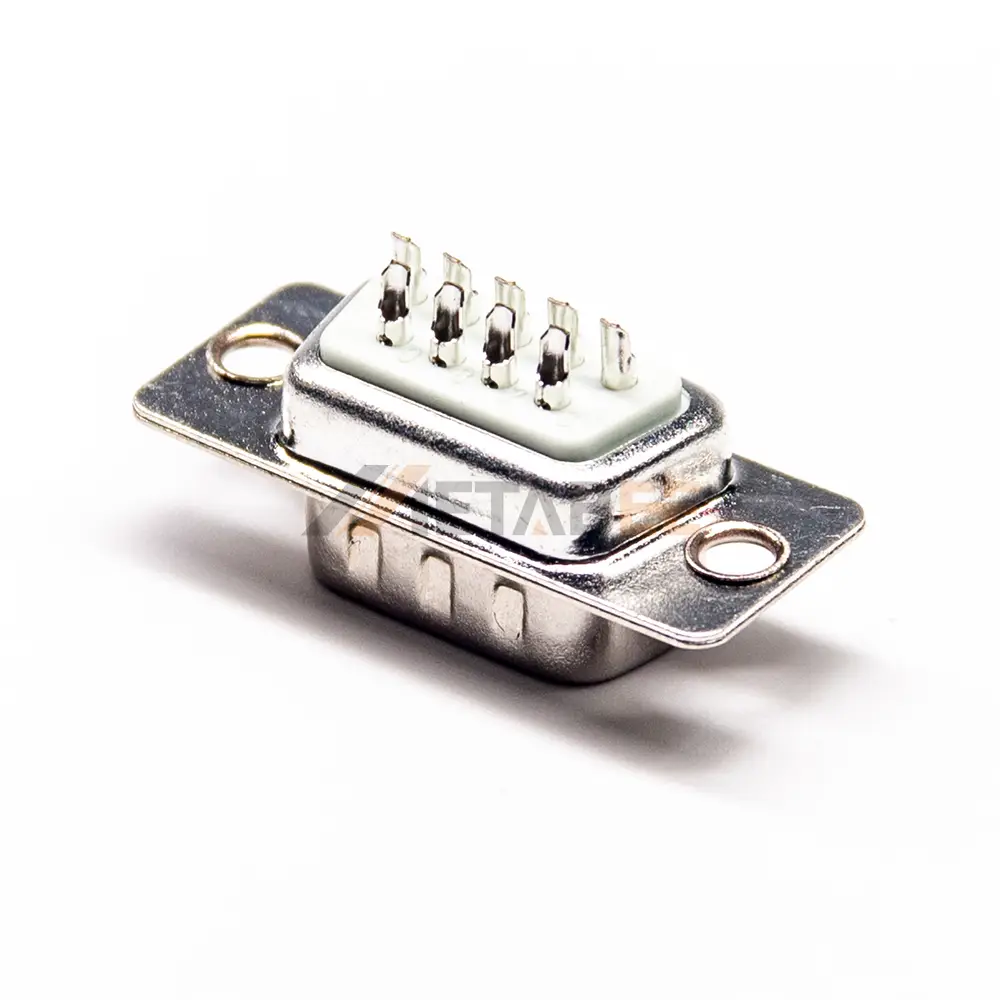

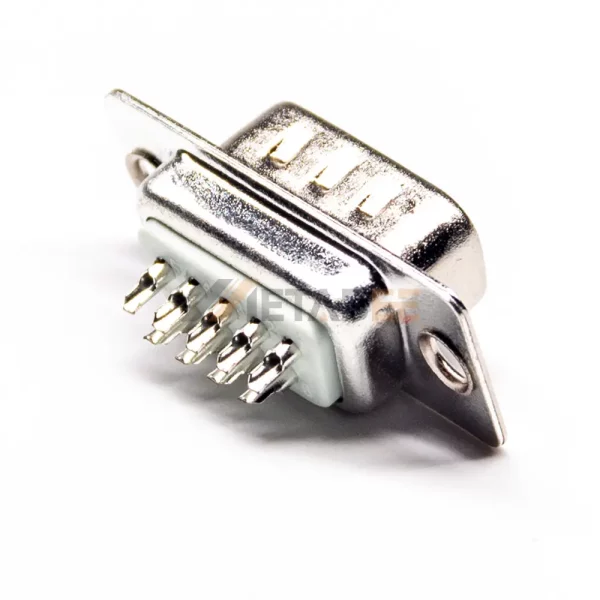

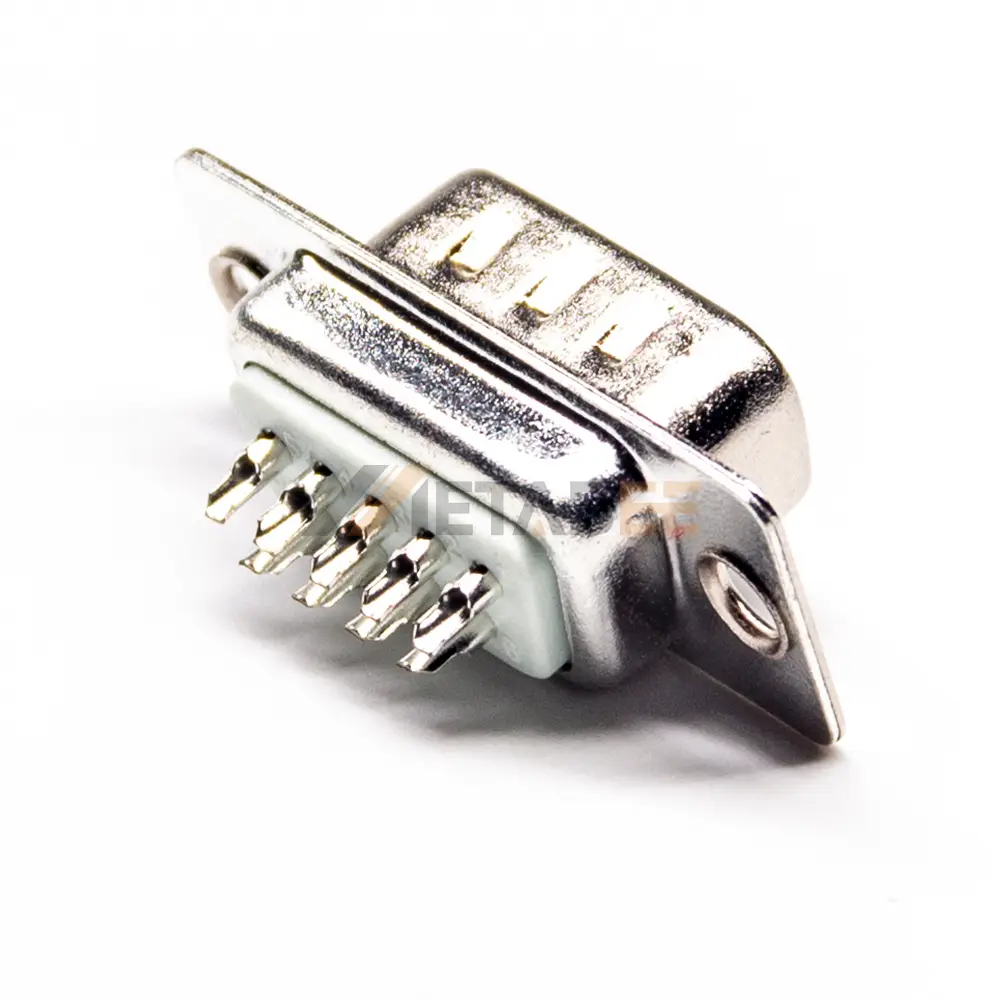

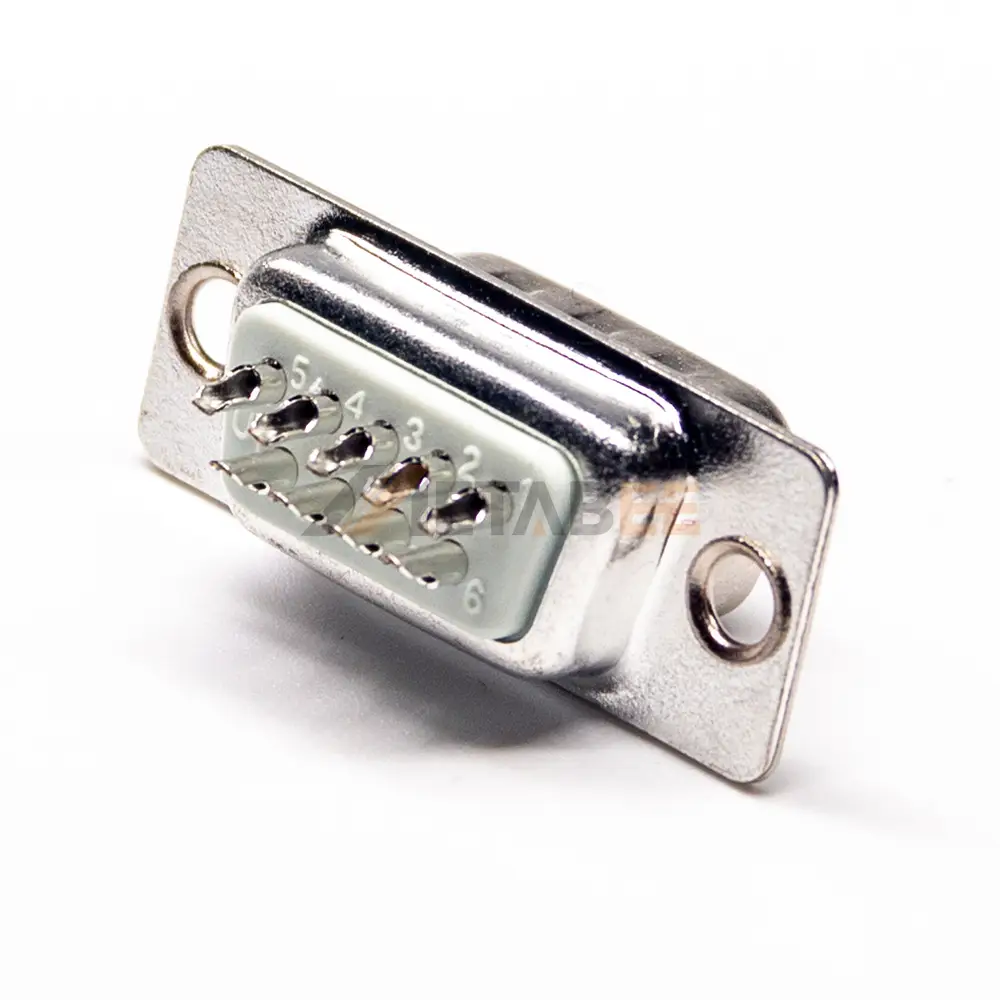

- Solder Cup Termination: Enables quick and secure soldering of wires for custom cable assemblies.
- Cable Mount Design: Gives you the freedom to build cables to the exact length required for your project.
- Durable Steel Shell: The nickel-plated housing provides robust protection against physical wear and tear.
- Certified Safety: Features a UL94 V-0 flame rating for enhanced safety in all applications.
- IP20 Rating: Offers protection against solid objects, making it ideal for indoor equipment.
Main Specifications:
General Information:
| Product No.: | YC-681-4077 | |
| Connector Series: | D-Sub Connectors | |
| Orientation: | Straight | |
| Connector Gender: | Male | |
| Number of Contacts: | 9 Pin | |
| Number of Rows: | 2 | |
| Pitch: | 2.77 mm | |
| Shell Sizes: | E | |
| Mount Type: | Cable Mount | |
| Mount Feature: | Through Hole | |
| Contact Termination: | Solder Cup | |
| Contact Type: | Stamped Contact | |
| Contact Function: | Signal |
Materials and Plating:
| Shell Material: | Steel | |
| Shell Plating: | Nickel Plating | |
| Contact Material: | Brass | |
| Contact Plating: | Gold Plating | |
| Contact Plating Thickness: | 3.00 µin (0.076 µm) | |
| Insulator Material: | Thermoplastic Polyester |
Electrical Performance:
| Rated Current: | 5A | |
| Rated Voltage: | 500V AC | |
| Contact Resistance: | ≤ 20 mΩ |
Environmental Performance:
| Temperature Range: | -55℃ to +105℃ | |
| IP Rating: | IP20 | |
| Flammability Rating: | UL94 V-0 |
Applications of this D-sub 9 pin male connector:
- Industrial Automation;
- Serial Communication;
- Telecommunications;
- Test & Measurement Equipment;
- Computer Peripherals;
- Robotics and CNC Machine Control;
- Prototyping and Custom Assemblies;
- Medical and Laboratory Equipment;
