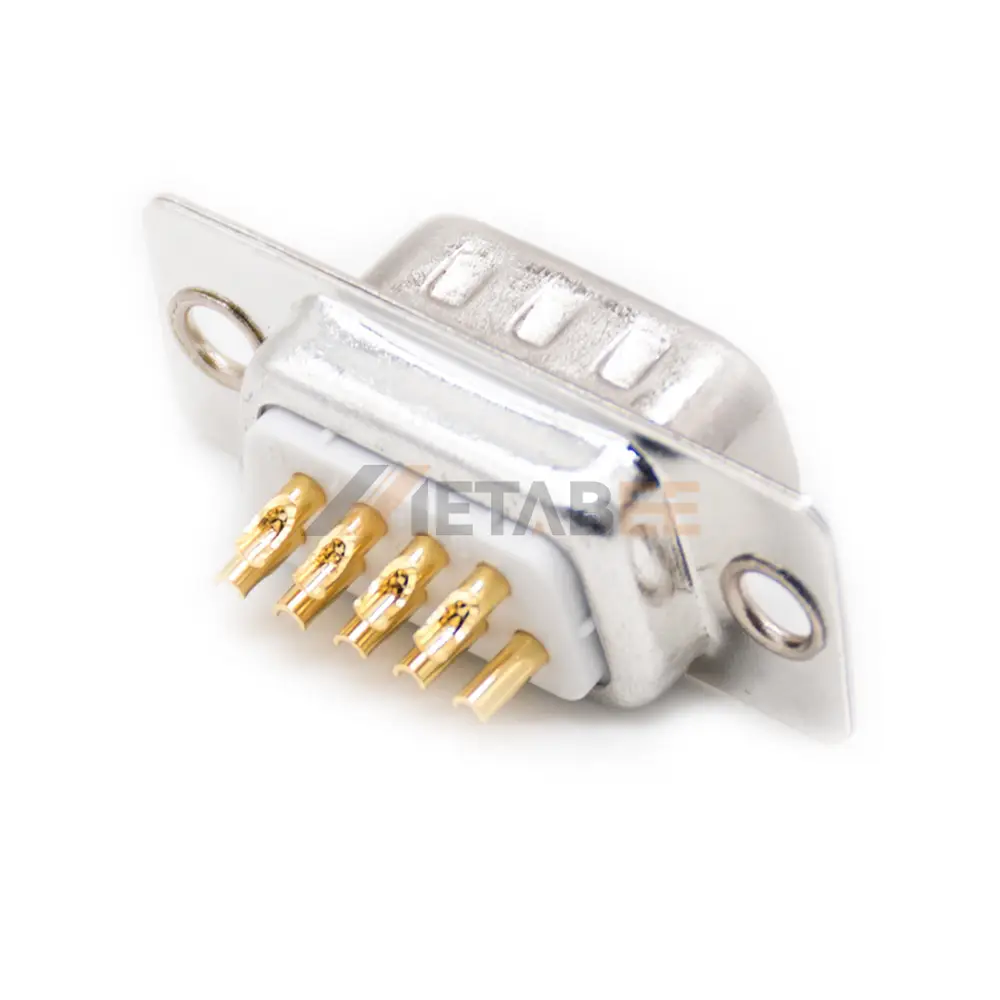

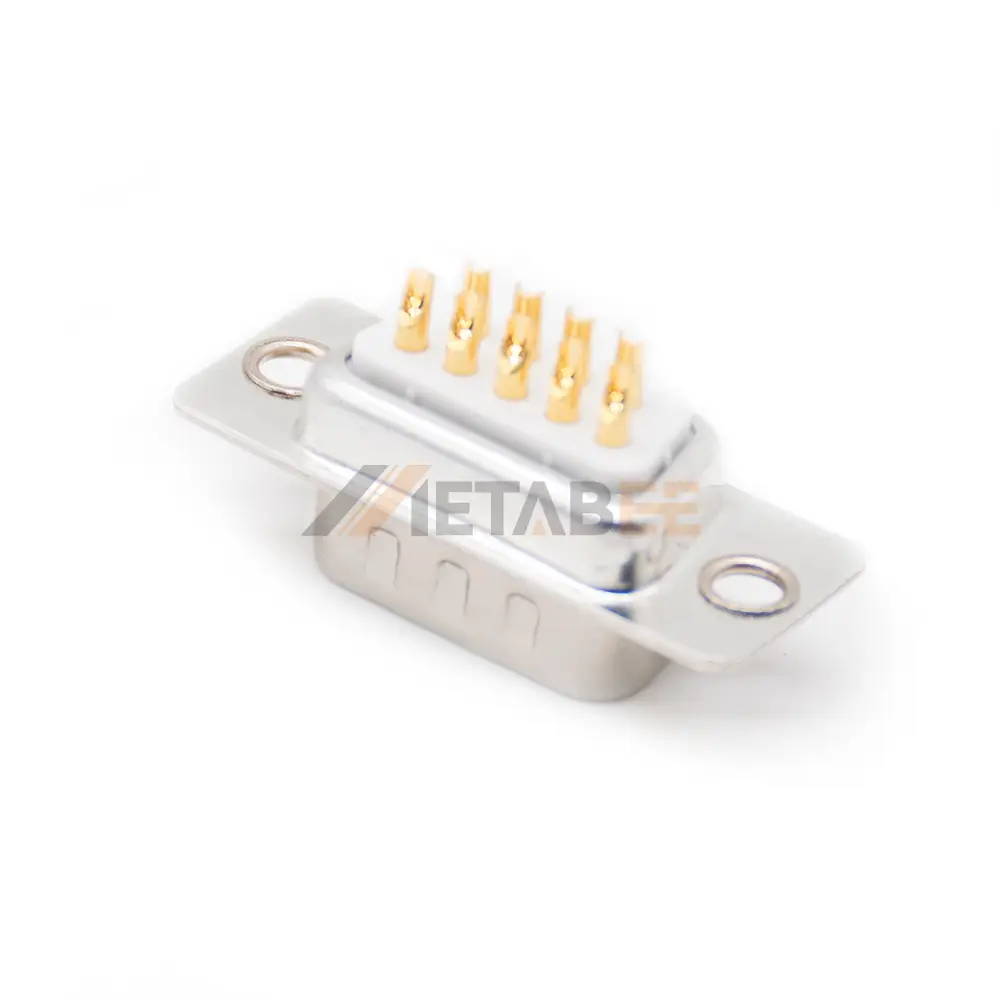

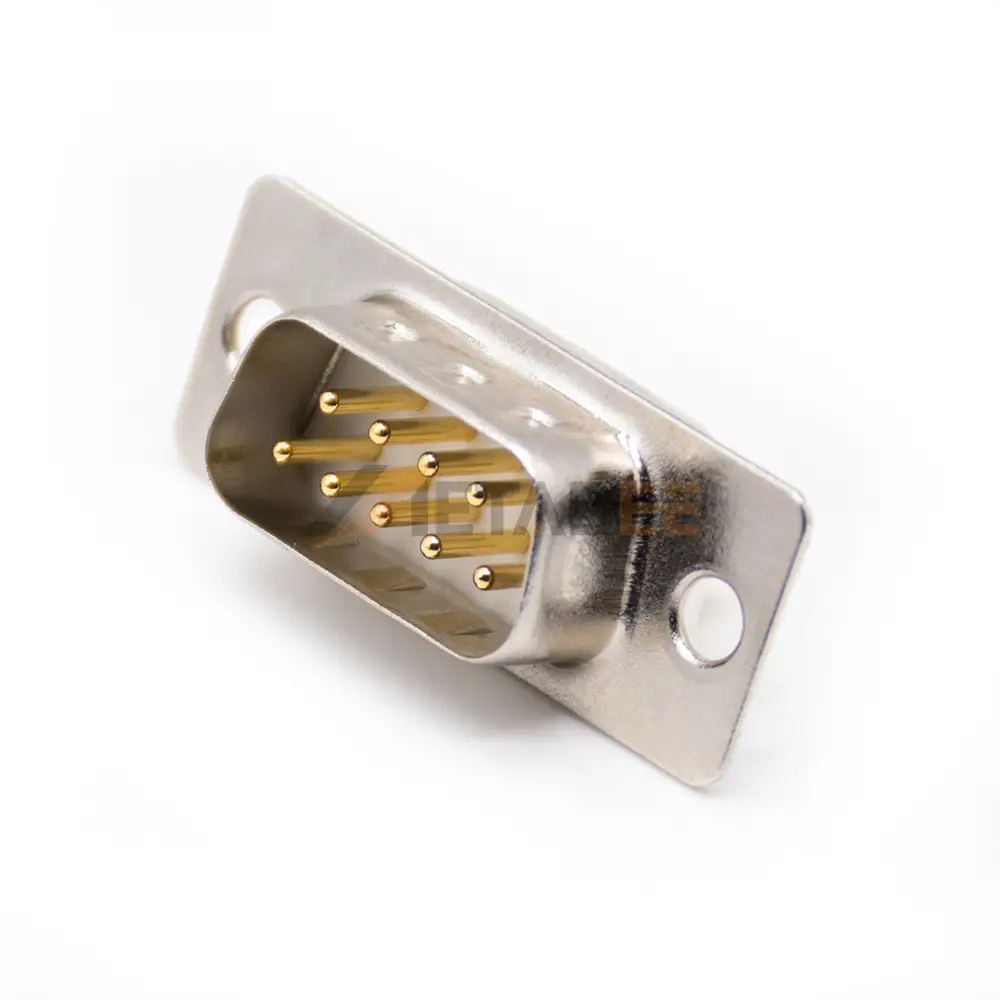

9 Pin D-Sub Male Connector, Cable Mount, Solder Cup, Machined Contacts, 2.77mm Pitch
Introduction:
Engineered for robust performance, this 9 pin D-sub male connector allows you to create high-integrity custom cables. It is designed for direct cable mounting and features user-friendly solder cups for a secure and permanent wire attachment. Its core strength lies in its solid, machined contacts. Made from brass and plated with gold, they work with the high-grade thermoplastic polyester insulator to ensure your data signals are clean and uninterrupted. A rugged steel shell with nickel plating shields the connection from physical damage and interference. This connector is built to perform reliably in demanding conditions, handling up to 5A and 500V AC. It is a versatile and dependable choice for industrial automation, serial communications, and custom electronic projects.
This high performance 9 pin D-sub male connector is engineered for excellence, featuring:
- Machined Contacts: These solid pins offer superior durability and more mating cycles than stamped alternatives.
- Solder Cup Termination: Enables easy and permanent wire attachment. Simply strip your wire, insert it into the cup, and solder for a secure electrical bond.
- Industrial-Grade Durability: Built with a nickel-plated steel shell to withstand harsh environments.
- Certified Safety & Isolation: Features a UL94 V-0 rated thermoplastic polyester insulator.
- Cable Mount Flexibility: Mounts directly onto your cable, giving you the freedom to create custom-length assemblies tailored to any project layout.
Main Specifications:
General Information:
| Product No.: | YC-681-4106 | |
| Connector Series: | D-Sub Connectors | |
| Orientation: | Straight | |
| Connector Gender: | Male | |
| Number of Contacts: | 9 Pin | |
| Number of Rows: | 2 | |
| Pitch: | 2.77mm | |
| Shell Sizes: | E | |
| Mount Type: | Cable Mount | |
| Mount Feature: | Through Hole | |
| Contact Termination: | Solder Cup | |
| Contact Type: | Machined Contact | |
| Contact Function: | Signal |
Materials and Plating:
| Shell Material: | Steel | |
| Shell Plating: | Nickel Plating | |
| Contact Material: | Brass | |
| Contact Plating: | Gold Plating | |
| Contact Plating Thickness: | 3.00µin（0.076µm） | |
| Insulator Material: | Thermoplastic Polyester |
Electrical Performance:
| Rated Current: | 5A | |
| Rated Voltage: | 500V AC | |
| Contact Resistance: | ≤ 20 mΩ |
Environmental Performance:
| Temperature Range: | -55℃ to +105℃ | |
| IP Rating: | Not Applicable | |
| Flammability Rating: | UL94 V-0 |
Applications of this 9 pin D-sub male connector:
- Industrial Automation;
- Serial Communication;
- Telecommunications;
- Test & Measurement Equipment;
- Computer Peripherals;
- Point-of-Sale (POS) Systems;
- Prototyping and Custom Assemblies;
- Medical equipment.
