7-16 DIN Female Clamp Connector, 50 Ohm
Introduction

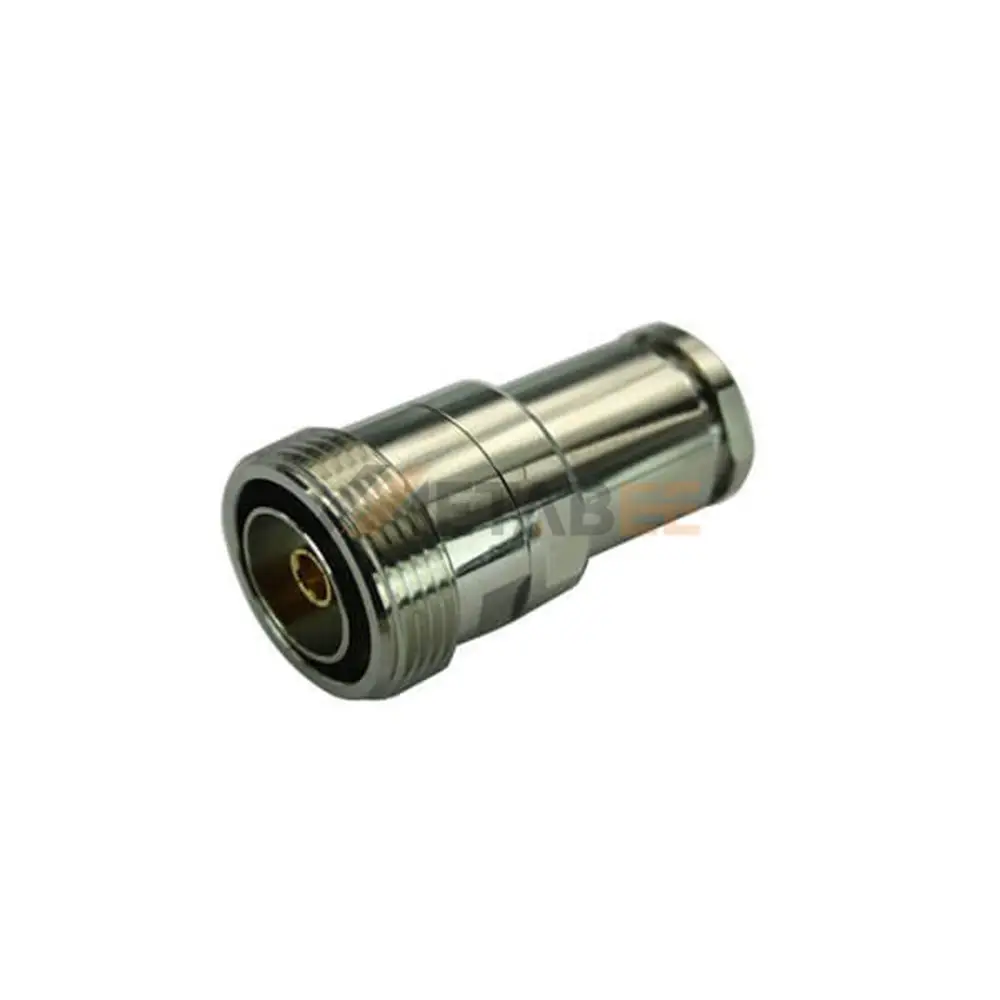

This straight 7/16 DIN female Connector (L29 Connector) is a high-performance RF connector designed for applications requiring robust mechanical strength and low signal loss. Designed for cable-type installations, it features a threaded coupling mechanism for secure and stable mating. It utilizes a clamp termination method for secure cable attachment. Constructed with a brass shell and nickel-plated finish, this connector offers excellent durability and corrosion resistance. The center contact is brass with a gold-plated finish, ensuring superior conductivity and long-term performance. This connector’s insulation is made from PTFE, offering superior dielectric properties. With an impedance of 50 Ohm, it operates efficiently across a broad frequency range from DC to 7.5 GHz. This 7/16 connector is designed to perform reliably in extreme temperature conditions, with an operating temperature range of -40°C to +155°C.
Main Specifications:
General Information:
| Product Series: | 7/16 DIN Connectors | |
| Brand: | Metabee | |
| Gender: | Female | |
| Orientation: | Straight | |
| Number of Contacts: | 1 Port | |
| Contact Termination: | Clamp | |
| Mount Method: | Cable Type | |
| Mount Feature: | Not Applicable | |
| Fastening Type: | Threaded Coupling | |
| Coupling Method: | M29 x 1.5 Thread | |
| Temperature Range: | -40°C to +155°C | |
| Durability(mating)： | ≧ 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Body Material: | Brass | |
| Body Plating: | Nickel-Plated | |
| Body Plating: | PTFE | |
| Contact Material: | Brass | |
| Contact Plating: | Gold-Plated |
Electrical Performance:
| Impedance: | 50 Ohm | |
| Frequency Range: | DC – 7.5 GHz | |
| VSWR： | ≤ 1.3 Max | |
| Insulation Resistance: | ≧ 5000 MΩ | |
| Dielectric Withstanding Voltage: | 750 V | |
| Working Voltage: | 2700 V rms | |
| Durability: | ≥ 500 Cycles |
7/16 DIN Connector Interface Dimensions:
Applications of this 7-16 DIN Female Clamp Connector:
7/16 DIN connectors are robust, high-power RF coaxial connectors widely utilized in applications demanding reliable and low-loss signal transmission.
Here are some main applications:
- Cellular Base Stations;
- Broadcast Systems;
- Military Communications;
- Industrial Applications;
- Satellite Communications;
- Radio Transmitters;
- Antenna Systems;
- Bluetooth Systems;
- Consumer Electronics.
