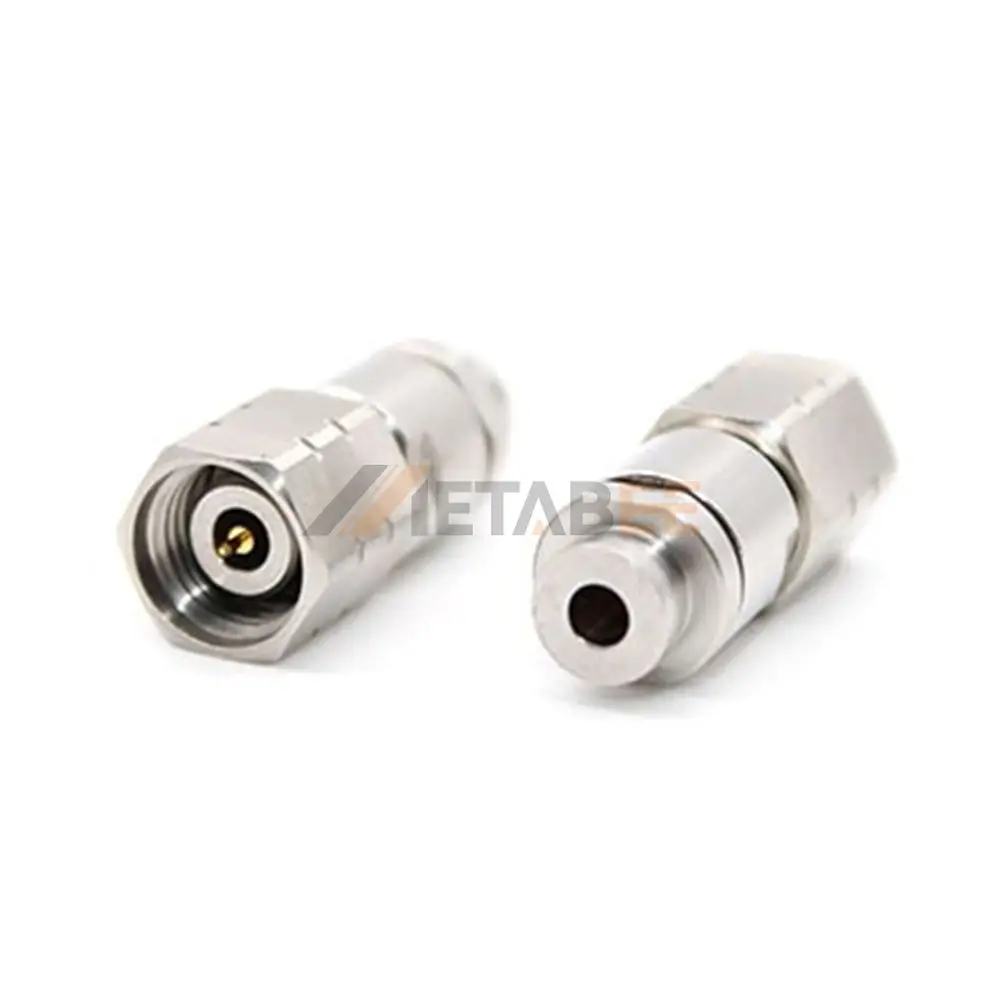

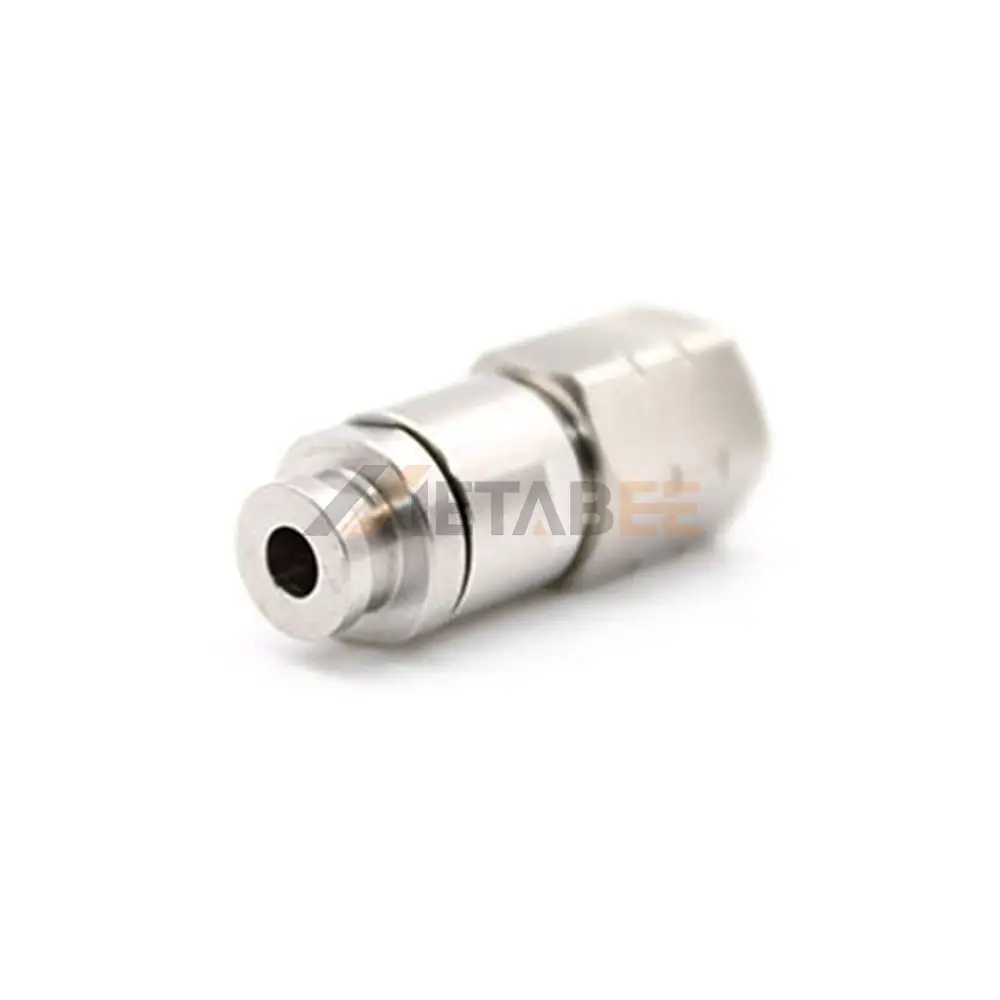

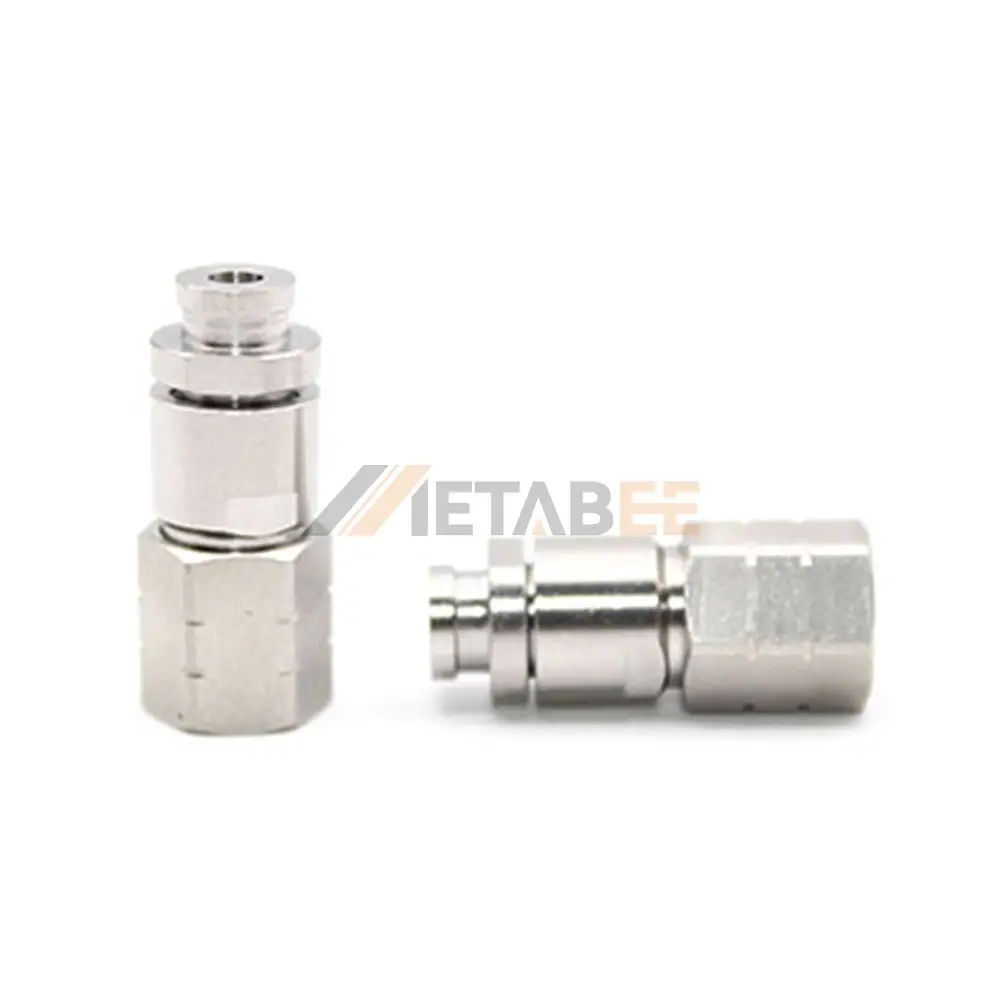

2.4 mm Male Clamp Coaxial Connector for Gore 3506 Cable, DC-50 GHZ
Introduction
Introducing our high-performance 2.4mm male connector, meticulously engineered for demanding applications requiring reliable signal transmission up to 50 GHz. The threaded coupling mechanism provides a secure and vibration-resistant connection. Designed for cable-type mounting, it utilizes a clamp contact termination for easy and secure assembly. This connector features a robust stainless steel shell with passivation plating, ensuring exceptional durability and corrosion resistance. Its beryllium-copper contact material with gold plating guarantees excellent electrical conductivity and long-term reliability. The insulator is made of PEI, offering superior electrical insulation properties. Engineered with a 50 Ohm impedance and a VSWR of less than or equal to 1.30:1, it ensures exceptional signal integrity across a broad frequency range. This 2.4mm connector is designed to operate within a wide temperature range of -45°C to +125°C and boasts a durability of over 500 mating cycles.
Main Specifications:
General Information:
| Part No.: | YC-2.4-J3506G | |
| Product Series: | 2.4mm Connectors | |
| Brand: | Metabee | |
| Gender: | Male | |
| Orientation: | Straight | |
| Number of Contacts: | 1 Port | |
| Contact Termination: | Clamp | |
| Mount Method: | Cable-Type | |
| Mount Feature: | Not Applicable | |
| Fastening Type: | Threaded Coupling | |
| Cable Type: | Gore 3506 Cable | |
| Temperature Range: | -45°C to +125°C | |
| Other Feature: | None |
Materials and Plating:
| Body Material: | Stainless Steel | |
| Body Plating: | Passivation | |
| Insulator Material: | PEI | |
| Contact Material: | Beryllium Bronze | |
| Contact Plating: | Gold-Plated |
Electrical Performance:
| Impedance: | 50 Ohms | |
| Frequency Range: | DC – 50 GHz | |
| VSWR： | ≤ 1.30:1 | |
| Insulation Resistance: | ≧ 3000 MΩ | |
| Dielectric Withstanding Voltage: | 750 V | |
| Durability: | ≥ 500 Cycles |
Applications of this 2.4 mm Male Clamp Coaxial Connector:
The 2.4mm connector is a precision RF and microwave connector for high-frequency applications up to 50 GHz.
Here are some main applications:
- Radar Systems;
- Test and Measurement Equipment;
- Satellite Communications;
- Microwave Communications;
- Aerospace and Defense.
Factory pricing and exceptional product quality. Get a free quote now!
