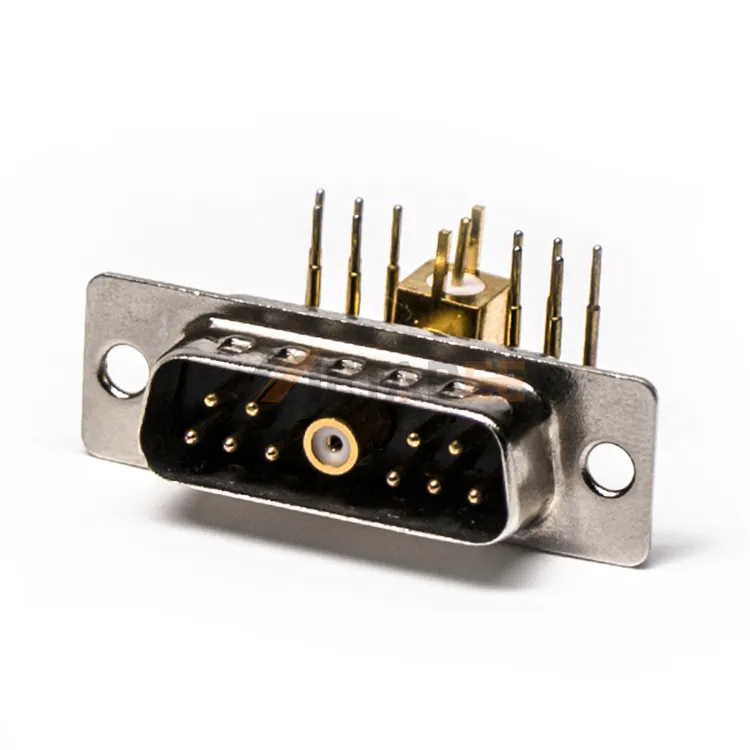

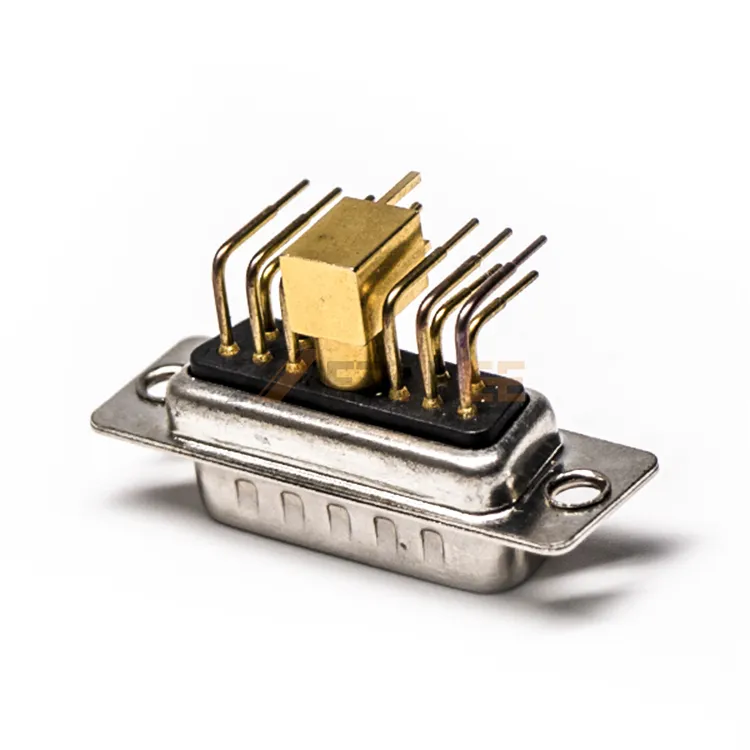

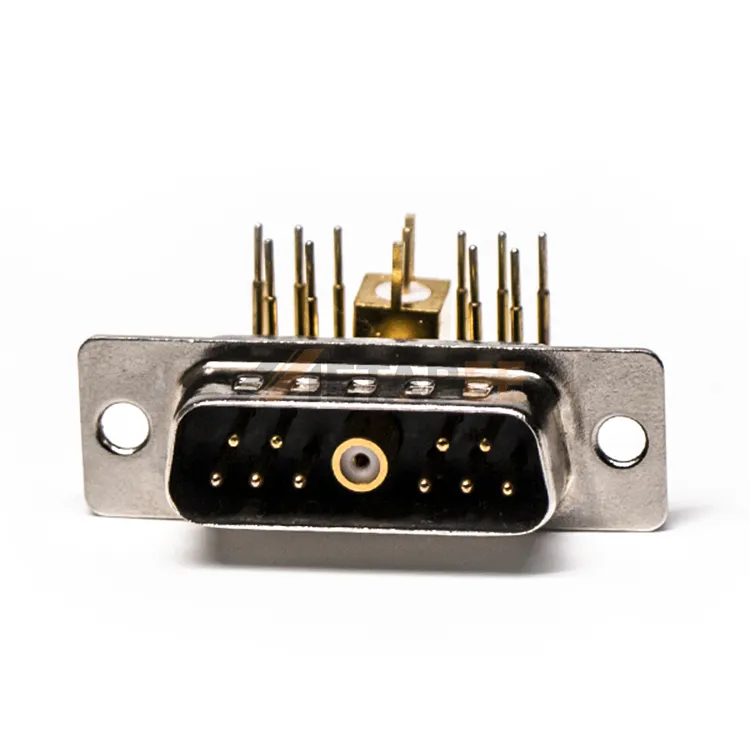

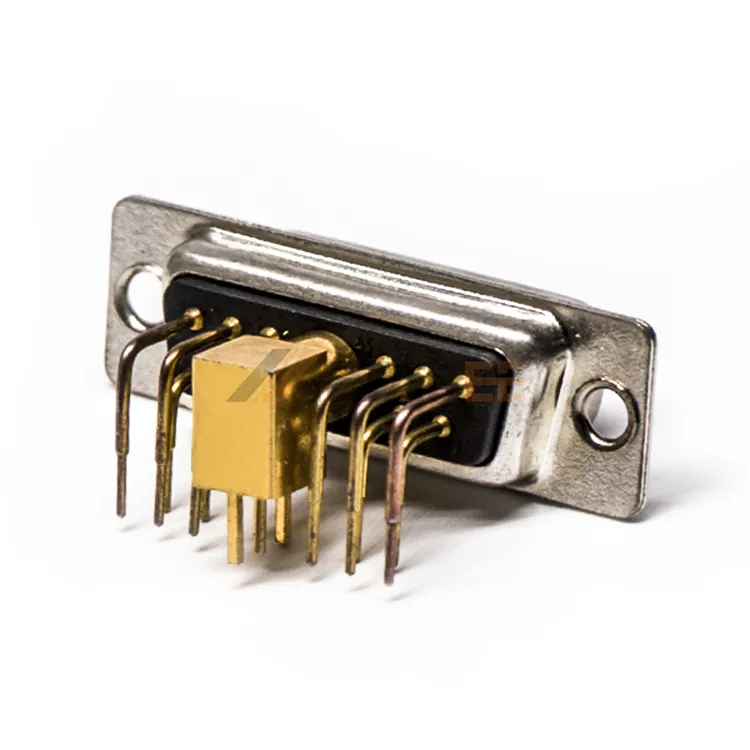

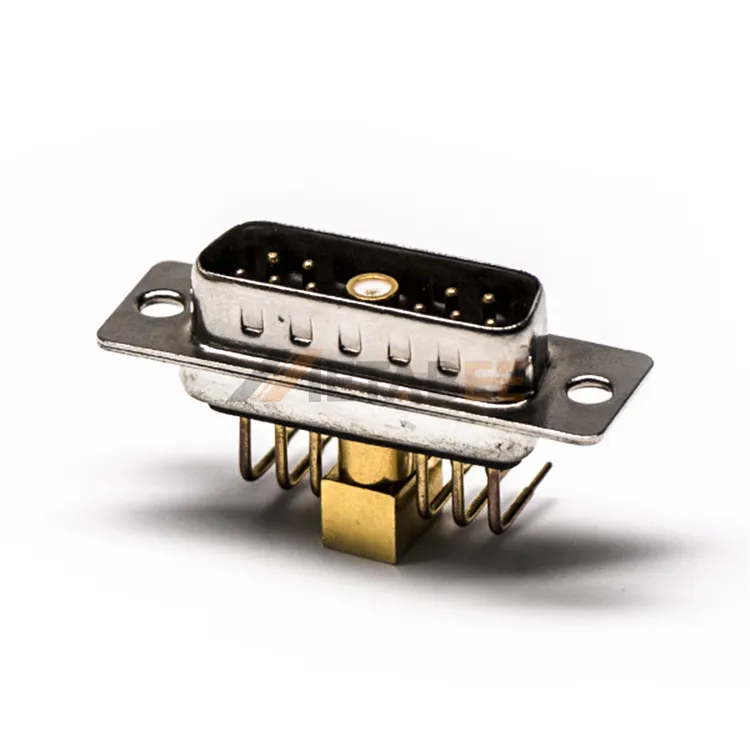

11W1 Combination D-Sub Male R/A Connector for PCB Mount, Through Hole, Coaxial & Signal
Introduction:
This is an 11W1 hybrid D-Sub connector with an A-size shell. The Combo D-Sub mixes both coaxial contacts and signal contacts in the same connector. 11W1 has one coaxial contact and ten signal contacts. This layout enables the simultaneous transmission of high-frequency RF signals and low-frequency control signals. The connector features a through-hole mounting design and can be directly soldered to the PCB for a stable and secure board-level connection. The connector utilizes high-quality, machined, gold-plated terminals, ensuring excellent conductivity and long-term reliability. Our complete D-sub product line and dedicated accessories enable us to provide flexible and cost-effective connectivity solutions to meet any complex application challenge.
This 11W1 combination D-sub male connector has many great features, including:
- Right Angle Orientation: Provides a space-saving, low-profile horizontal connection.
- PCB Mount: Provides a strong mechanical anchor when soldered directly to the circuit board.
- Precision Machined Contacts: Gold-plated brass contacts offer superior conductivity and long-term corrosion resistance.
- Wide Operating Temperature: Reliable performance in extreme conditions, from -55°C to +125°C.
- Metal Shielding Shell: Provides excellent EMI shielding and robust protection against shock and vibration.
Main Specifications:
General Information:
| Product Number: | YC-681-1235 | |
| Connector Series: | Combo D-Sub | |
| Contact Arrangement: | 11W1 | |
| Orientation: | Right Angle | |
| Connector Gender: | Male | |
| Number of Contacts: | 11 Pin | |
| Number of Rows: | 2 | |
| Shell Sizes: | A | |
| Mount Type: | PCB Mount | |
| Mount Feature: | Not Applicable | |
| Contact Termination: | Solder | |
| Contact Type: | Machined Contact | |
| Contact Function: | Coaxial and Signal |
Materials and Plating:
| Shell Material: | Steel | |
| Shell Plating: | Nickel Plating | |
| Contact Material: | Brass | |
| Contact Plating: | Gold Plating | |
| Contact Plating Thickness: | 3.00µin（0.076µm） | |
| Insulator Material: | Thermoplastic Polyester |
Electrical Performance:
| current rating: | 2A | |
| Rated Voltage: | 250V AC |
Environmental Performance:
| Temperature Range: | -55℃ to +125℃ | |
| IP Rating: | Not Applicable | |
| Flammability Rating: | UL94 V-0 |
Applications of the 11W1 combination D-sub male connector:
- Mobile Robotics and AGV;
- Professional A/V and Stage Lighting;
- Medical Equipment Carts;
- Industrial Power Supplies and DC Motor Drives;
- Industrial Lasers and Plasma Cutting Systems;
- High-Power Test and Measurement.
