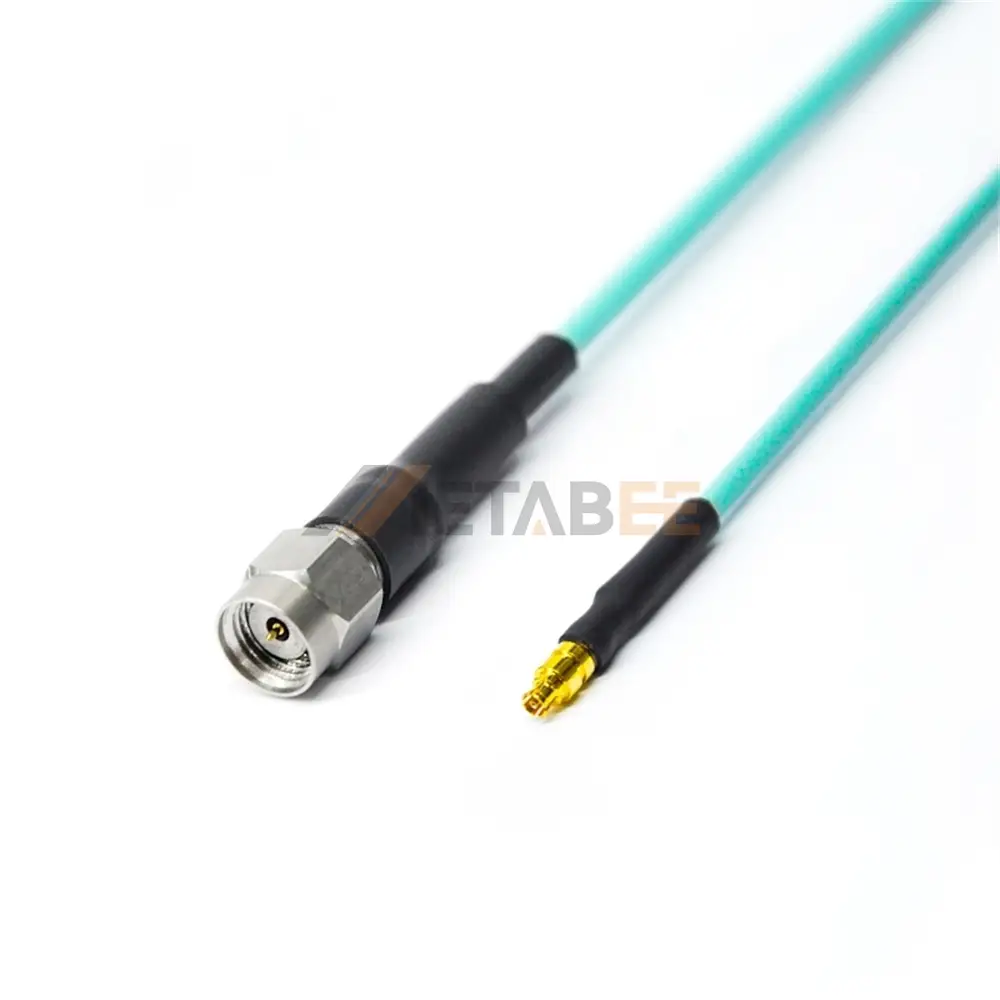

1.85mm Male to Mini-SMP (GPPO) Female using .086” Flexible Low Loss RF Coaxial Cable, DC-67 GHz

1.85mm Male to Mini-SMP (GPPO) Female using .086” Flexible Low Loss RF Coaxial Cable, DC-67 GHz

Introduction

This Metabee RF test cable is a high-performance coaxial cable designed for high-frequency testing and measurement applications. It features a 1.85 mm straight connector on one end and a Mini-SMP straight connector on the other, ensuring stable and reliable signal transmission. The cable assembly is the .086” flexible low-loss cable, providing reliable signal transmission. The cable supports frequencies up to 67 GHz and maintains a consistent impedance of 50 ohms, ensuring accurate and repeatable measurements across a broad frequency spectrum. Built to withstand harsh environments, it operates seamlessly in a temperature range of -40℃ to +125℃.

Main features are as follows:

• High-Performance Coaxial Cable: Designed for high-frequency testing and measurement applications
• 1.85 mm to Mini-SMP Connector: Ensures stable and reliable signal transmission with consistent connectivity.
• .086” Flexible Low-Loss Cable: Provides reliable signal transmission with minimal signal degradation
• Frequency Range up to 67 GHz: Supports high-frequency applications for precise measurements.
• 50 Ohm Impedance: Maintains consistent impedance for accurate and repeatable measurements.
• Wide Operating Temperature Range (-40℃ to +125℃): Built to withstand harsh environmental conditions.

Main Specifications:

Applications of this 1.85mm Male to Mini-SMP (GPPO) Female RF Coaxial Cable:

Here are some main applications:

• RF Testing and Measurement;
• Telecommunications;
• Broadcasting
• Aerospace and Defense;
• Satellite Communications;
• Medical Equipment;

We can customize this RF test cable assembly according to your special requirements. Get a free quotation now!
