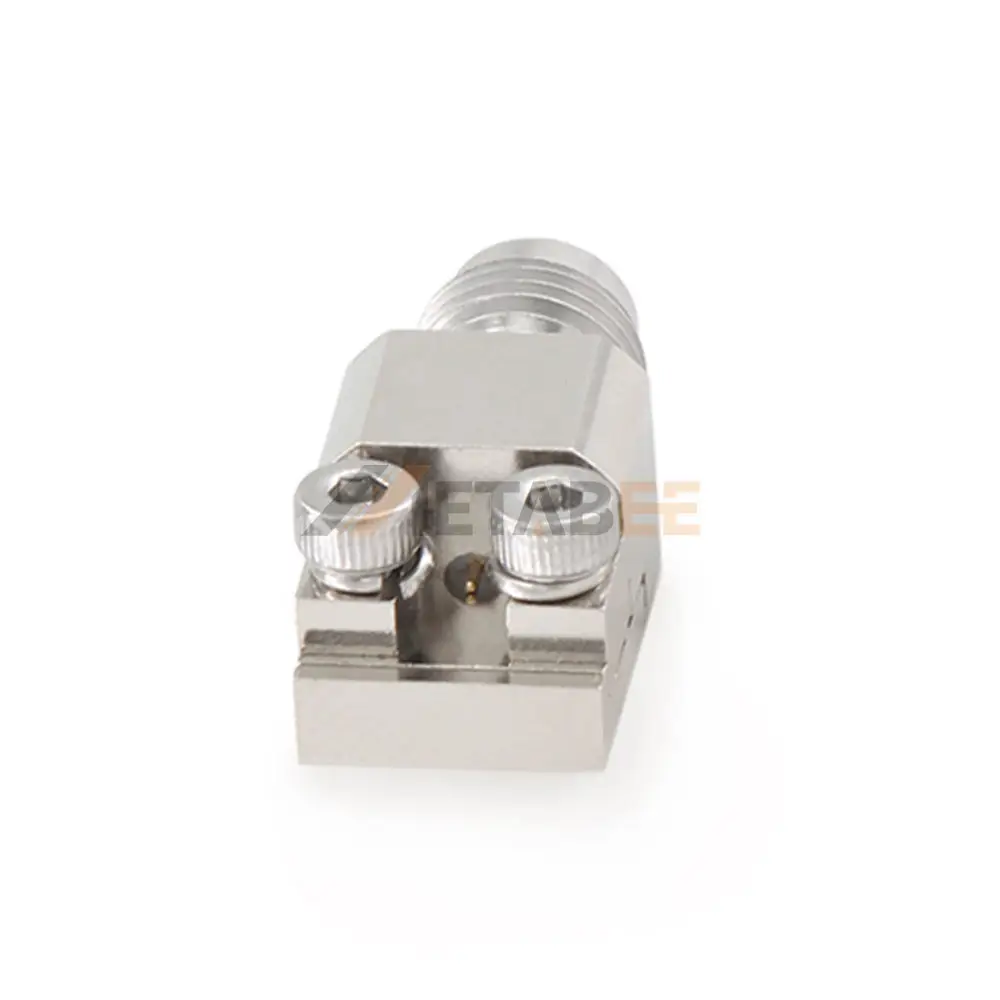

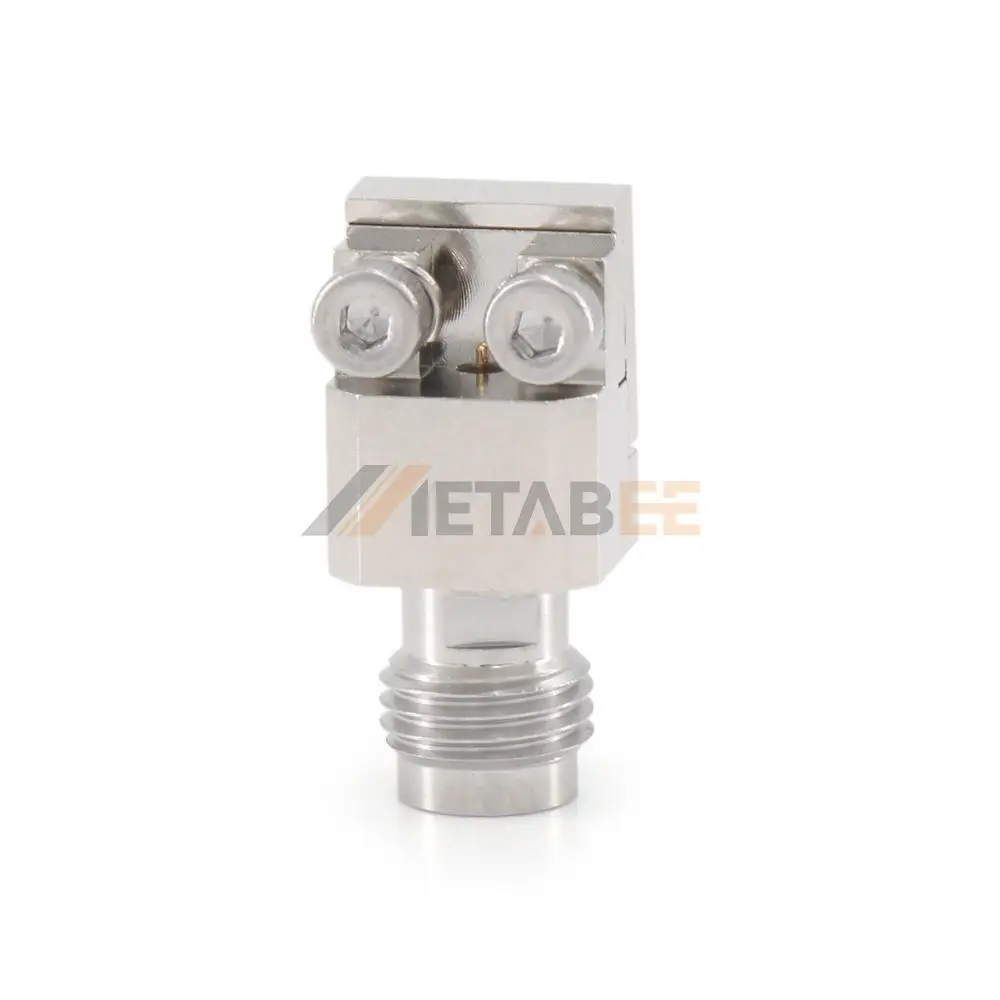

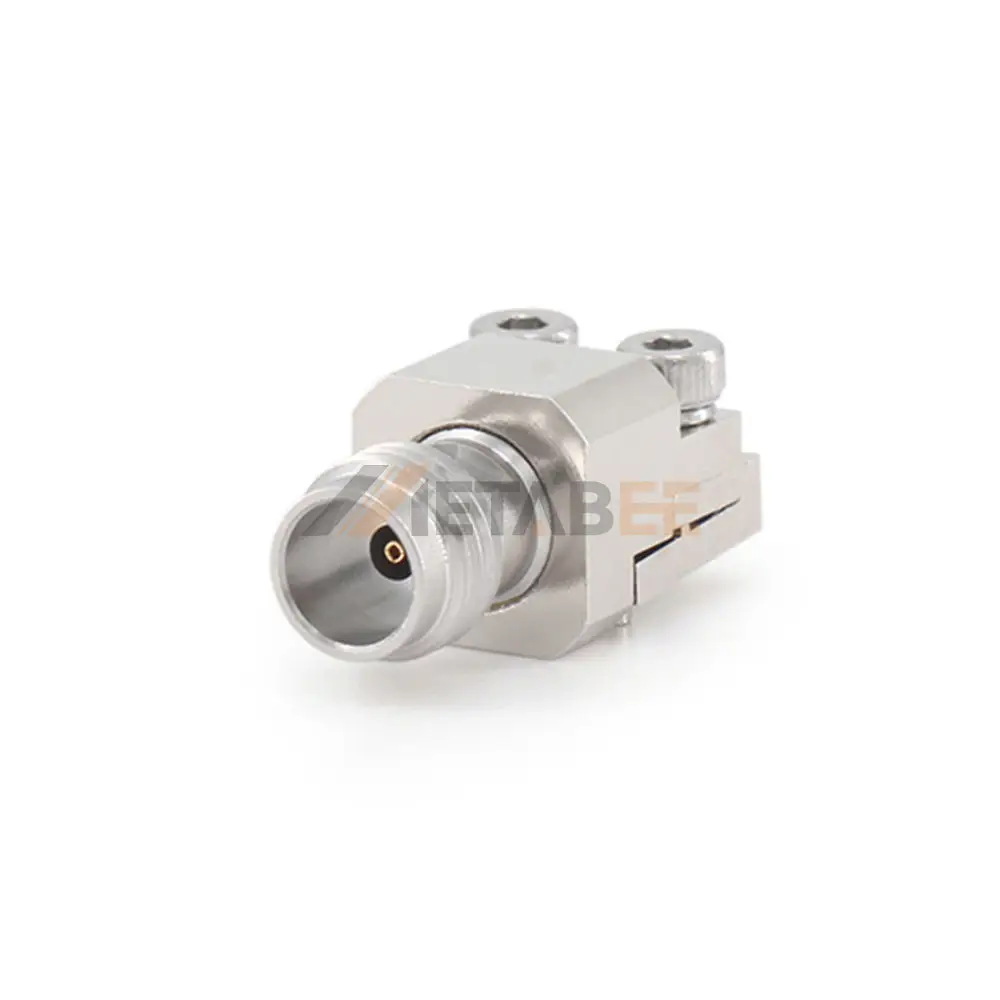

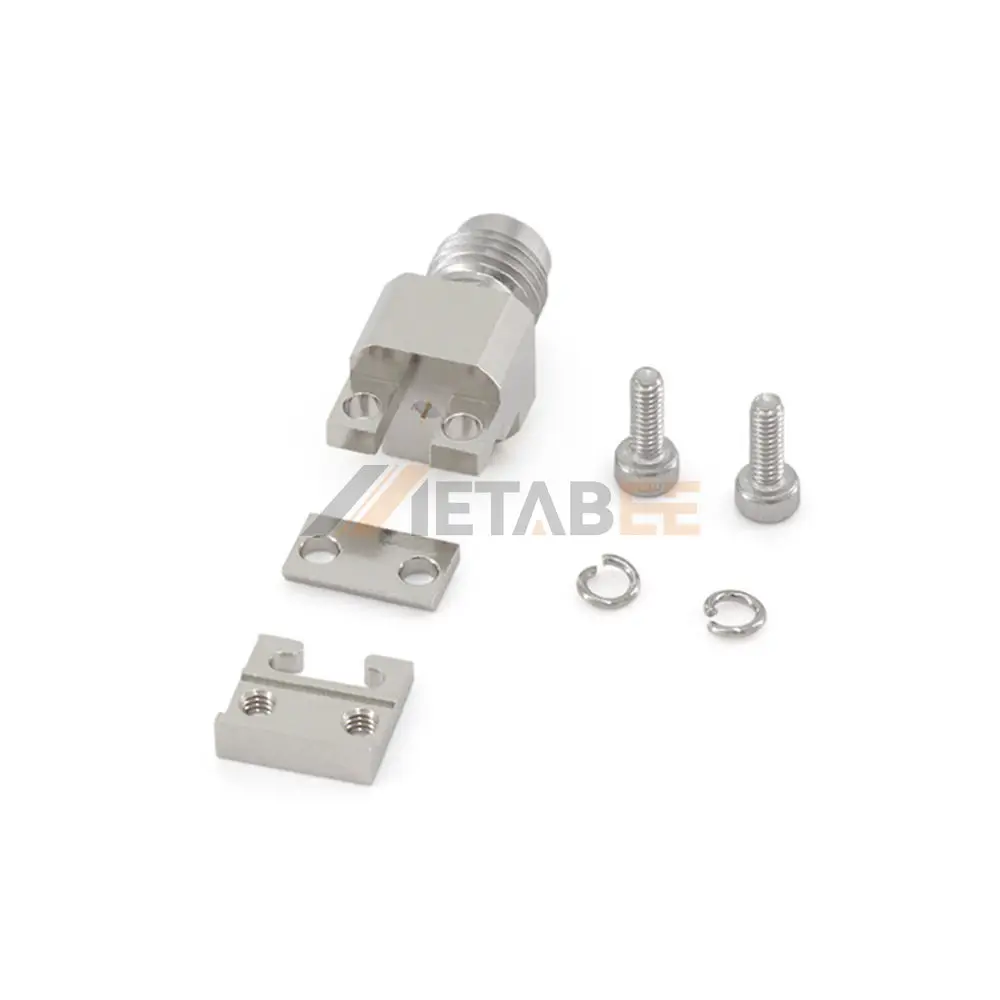

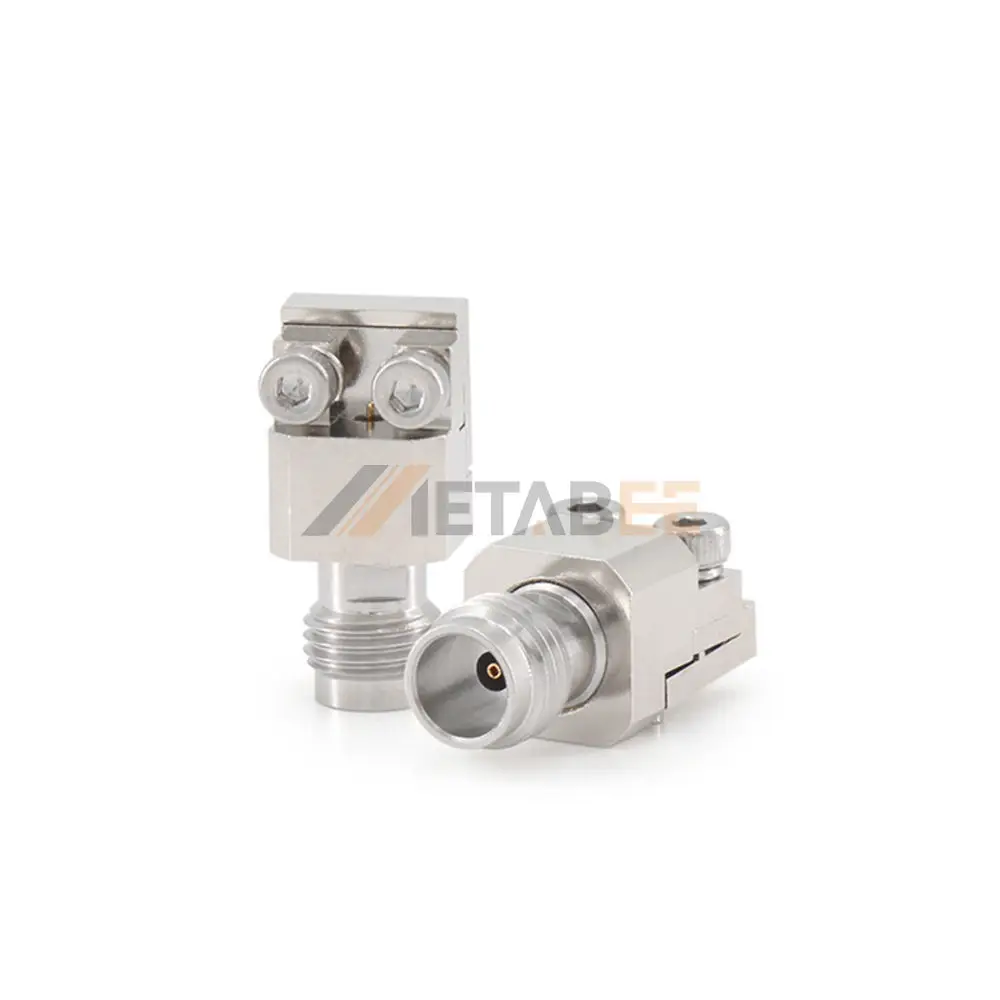

1.85mm Male End Launch Connector for PCB, DC-67 GHz
Introduction
The Metabee 1.85mm male connector (V connector) is a precision RF connector designed for high-frequency performance. The threaded coupling mechanism provides a secure and vibration-resistant connection. Designed for panel PCB mounting with ena launch, it utilizes a solder contact termination for easy and secure assembly. This connector boasts a robust stainless steel shell with gold-plated for corrosion resistance; its PTFE insulator and beryllium bronze contacts (gold-plated for optimal conductivity) ensure stable signal transmission. Engineered with a 50 Ohm impedance and a VSWR of less than or equal to 1.35:1, it ensures exceptional signal integrity across a broad frequency range. It also supports a broad frequency range of DC to 67 GHz. What’s more, it can operate reliably across a wide temperature range of -55°C to +165°C. With a durability of over 500 mating cycles, this connector is ideal for demanding RF systems where precision and reliability are paramount.
Main Specifications:
General Information:
| Part No.: | YC-1.85-KCD01G-0.25GD | |
| Product Series: | 1.85mm Connectors | |
| Brand: | Metabee | |
| Gender: | Male | |
| Orientation: | Straight | |
| Number of Contacts: | 1 Port | |
| Contact Termination: | Solder | |
| Mount Method: | PCB Mount | |
| Mount Feature: | End Launch | |
| Fastening Type: | Threaded Coupling | |
| Temperature Range: | -55°C to +165°C | |
| Other Feature: | None |
Materials and Plating:
| Body Material: | Stainless Steel | |
| Body Plating: | Gold-Plated | |
| Insulator Material: | PTFE | |
| Contact Material: | Beryllium-Copper | |
| Contact Plating: | Gold-Plated |
Electrical Performance:
| Impedance: | 50 Ohm | |
| Frequency Range: | DC – 67 GHz | |
| VSWR： | ≤ 1.35:1 | |
| Insulation Resistance: | ≧ 5000 MΩ | |
| Dielectric Withstanding Voltage: | 750 V | |
| Durability: | ≥ 500 Cycles |
Applications of this 1.85mm Male End Launch Connector:
The 1.85mm connector, or the “V connector,” is a precision coaxial connector for high-frequency applications up to 67 GHz.
Here are some main applications:
- Optical Transmission Devices;
- Data Transmission Measurement;
- Radio Communication Equipment;
- Test and Measurement;
- Network Routers and Switches;
- Military Applications;
- Aerospace Systems;
- Satellite Communications (SATCOM).
