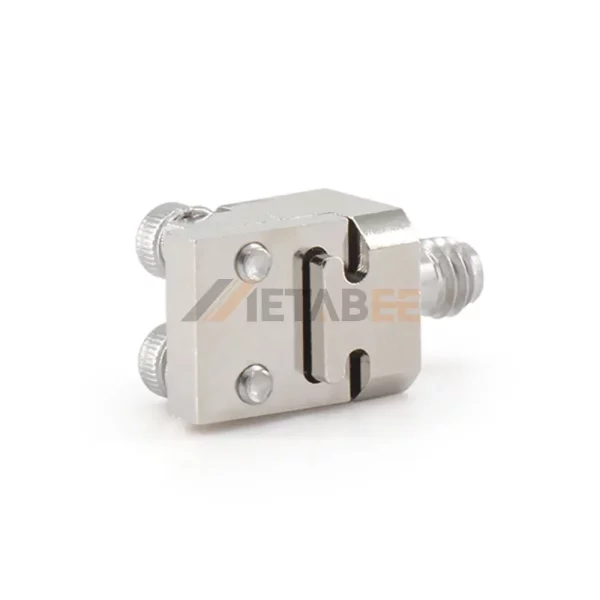

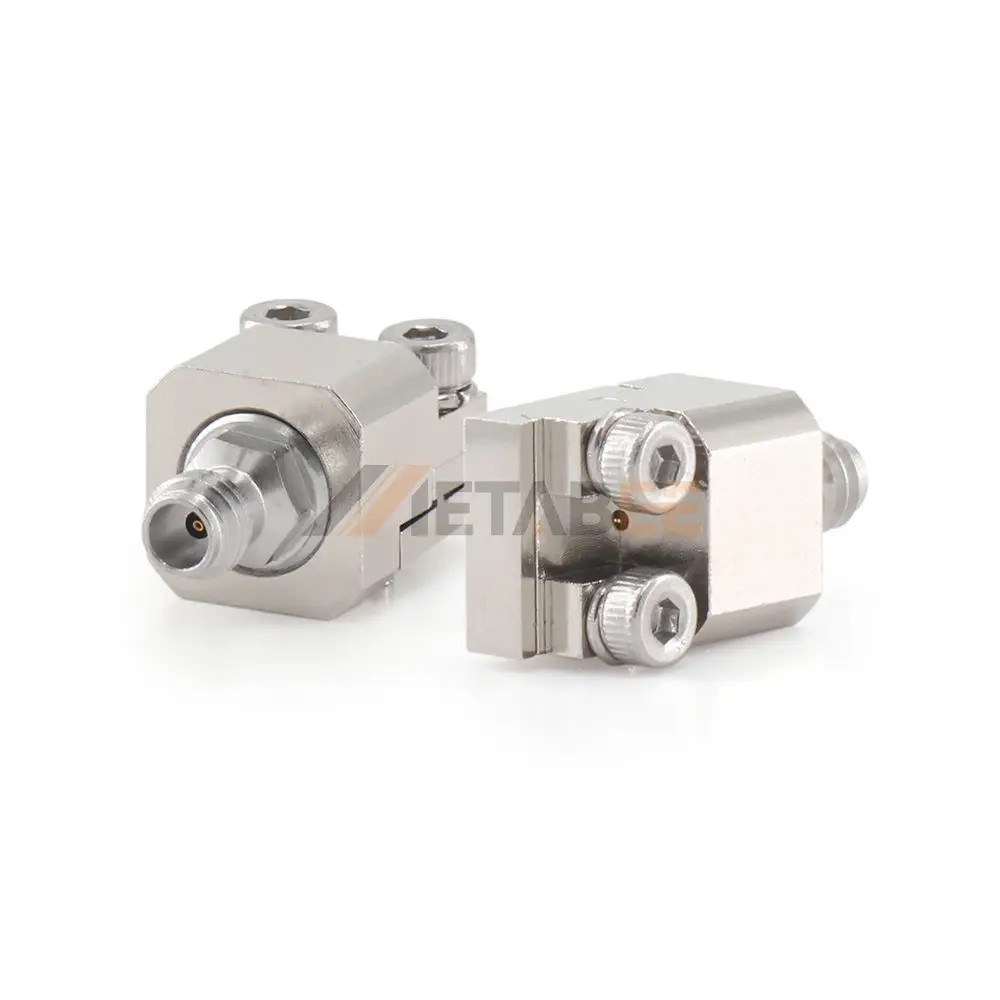

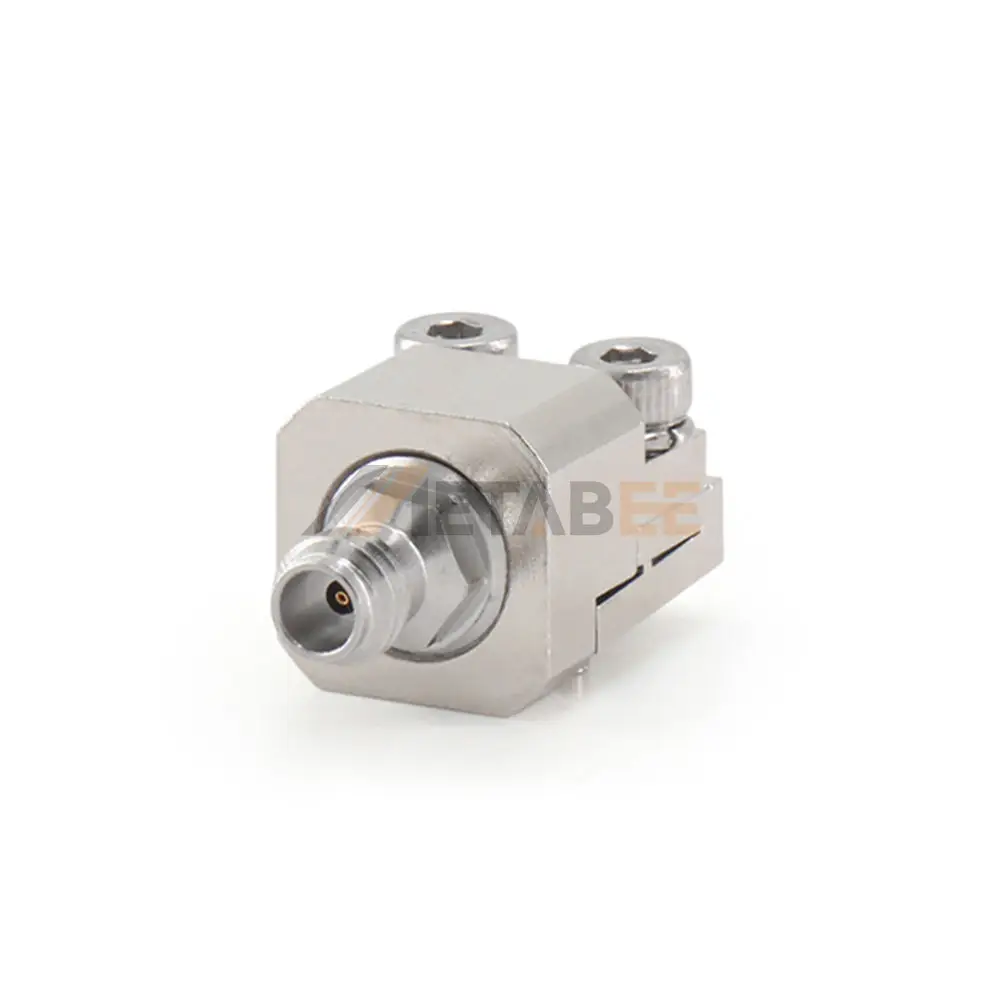

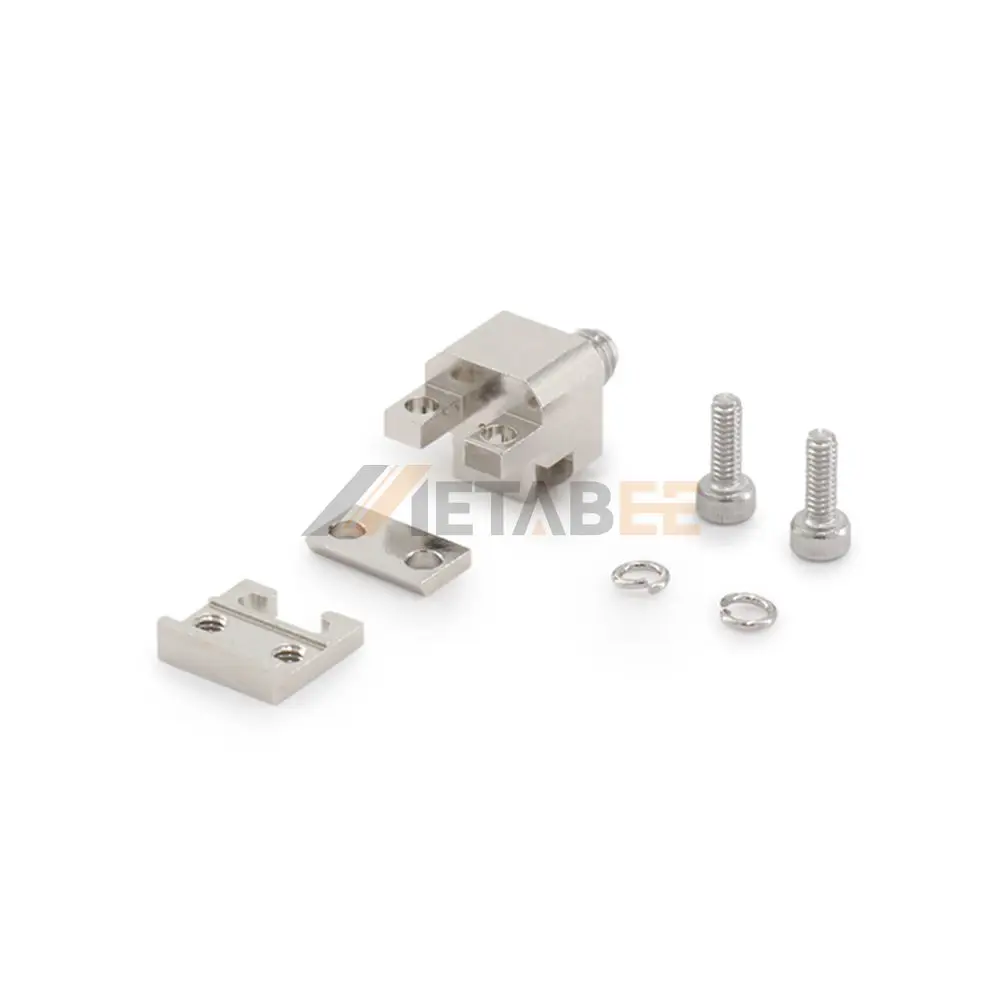

1.0 mm Female End Launch RF Connector for PCB, DC-110 GHz

Introduction

The Metabee 1.0mm female connector is a precision RF connector designed for high-frequency performance. The threaded coupling mechanism provides a secure and vibration-resistant connection. Designed for PCB mounting with end launch, it utilizes a solder contact termination for easy and secure assembly. This connector boasts a robust stainless steel shell with gold-plated for corrosion resistance; its PTFE insulator and beryllium bronze contacts (gold-plated for optimal conductivity) ensure stable signal transmission. Engineered with a 50 Ohm impedance and a VSWR of less than or equal to 1.45:1, it ensures exceptional signal integrity across a broad frequency range. It also supports a broad frequency range of DC to 110 GHz. It can operate reliably across a wide temperature range of -40°C to +70°C. With a durability of over 500 mating cycles, this connector is ideal for demanding RF systems where precision and reliability are paramount.

Main Specifications:

General Information:

Part No.: YC-1.0-KCD01GD
Product Series: 1.0mm Connectors
Brand: Metabee
Gender: Female
Orientation: Straight
Number of Contacts: 1 Port
Contact Termination: Solder
Mount Method: PCB Mount
Mount Feature: End Launch
Fastening Type: Threaded Coupling
Temperature Range: -40°C to +70°C
Other Feature: None

Materials and Plating:

Body Material: Stainless Steel
Body Plating: Gold-Plated
Insulator Material: PTFE
Contact Material: Beryllium Bronze
Contact Plating: Gold-Plated

Electrical Performance:

Impedance: 50 Ohms
Frequency Range: DC – 110 GHz
VSWR: ≤ 1.45:1
Insulation Resistance: ≥ 5000 MΩ
Dielectric Withstanding Voltage:  750 V
Durability: ≥ 500 Cycles

Applications of this 1.0 mm Female End Launch RF Connector:

The 1.0mm RF connector, known for its compact size and ability to operate at high frequencies (up to 110 GHz), finds applications in various cutting-edge technologies.

Here are some main applications:

  • Medical Devices;
  • High-Speed Data Transmission;
  • Industrial Control Systems;
  • Semiconductor Testing;
  • Quantum Computing;
  • Satellite Communication;
  • Automotive Radar Systems.

Factory pricing and exceptional product quality. Get a free quote now!

Product No.

YC-1.0-KCD01GD

Product Series

1.0mm Connectors

Product Name

1.0 mm Female End Launch RF Connector for PCB, DC-110 GHz

Brand

Metabee

Connector Gender

Female

Orientation

Straight

Number of Contacts

1 Port

Contact Termination

Solder

Mount Method

PCB Mount

Mount Feature

End Launch

Shell Material

Stainless Steel

Shell Plating

Gold-Plated

Insulator Material

PTFE

Contact Material

Beryllium Bronze

Contact Plating

Gold-plated

Coupling Method

Threaded Coupling

Impedance

50 Ohm

Frequency Range

DC-110 GHz

VSWR

≤1.45:1

Insulation Resistance

≧ 5000 MΩ

Dielectric Withstanding Voltage

750 V

Durability

≧ 500 Cycles

Temperature Range

-40°C to +70°C

Other Features

None
