1.0mm Male Solder RF Connector for 3657 Cable, DC-110 GHz

Introduction

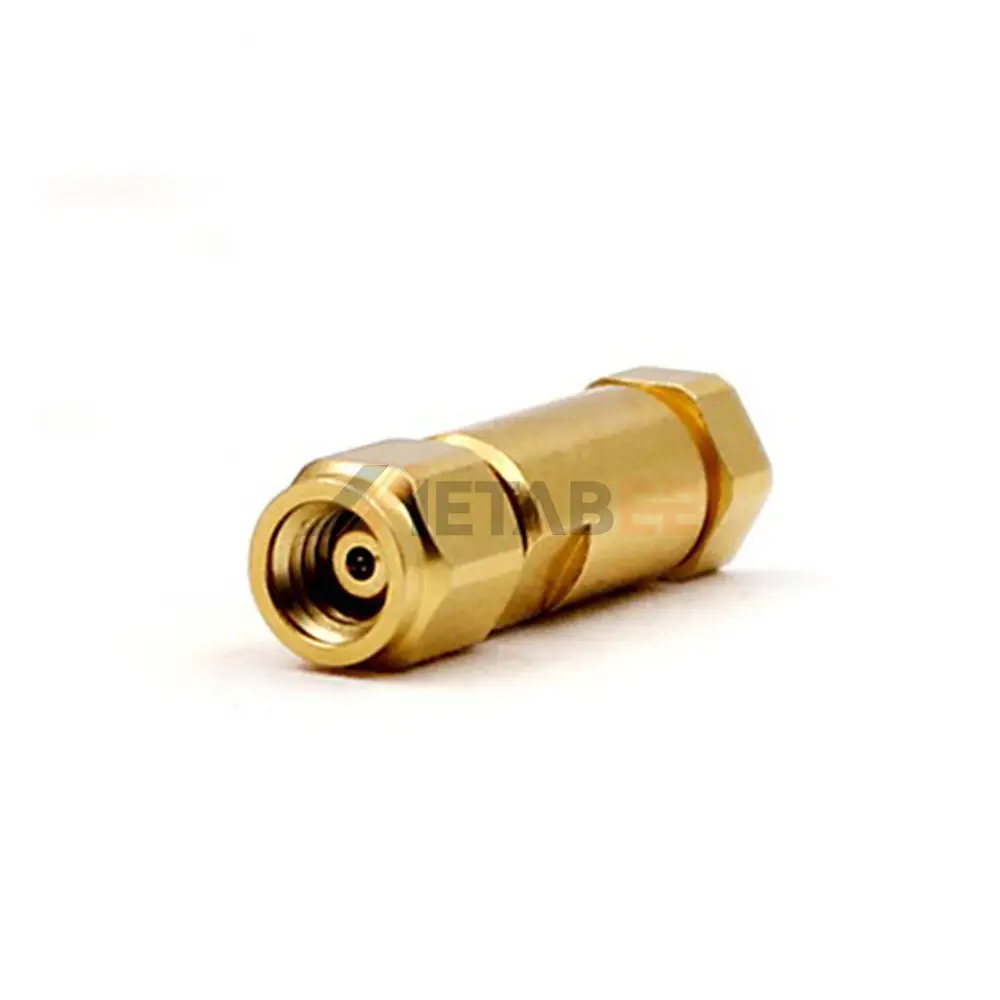

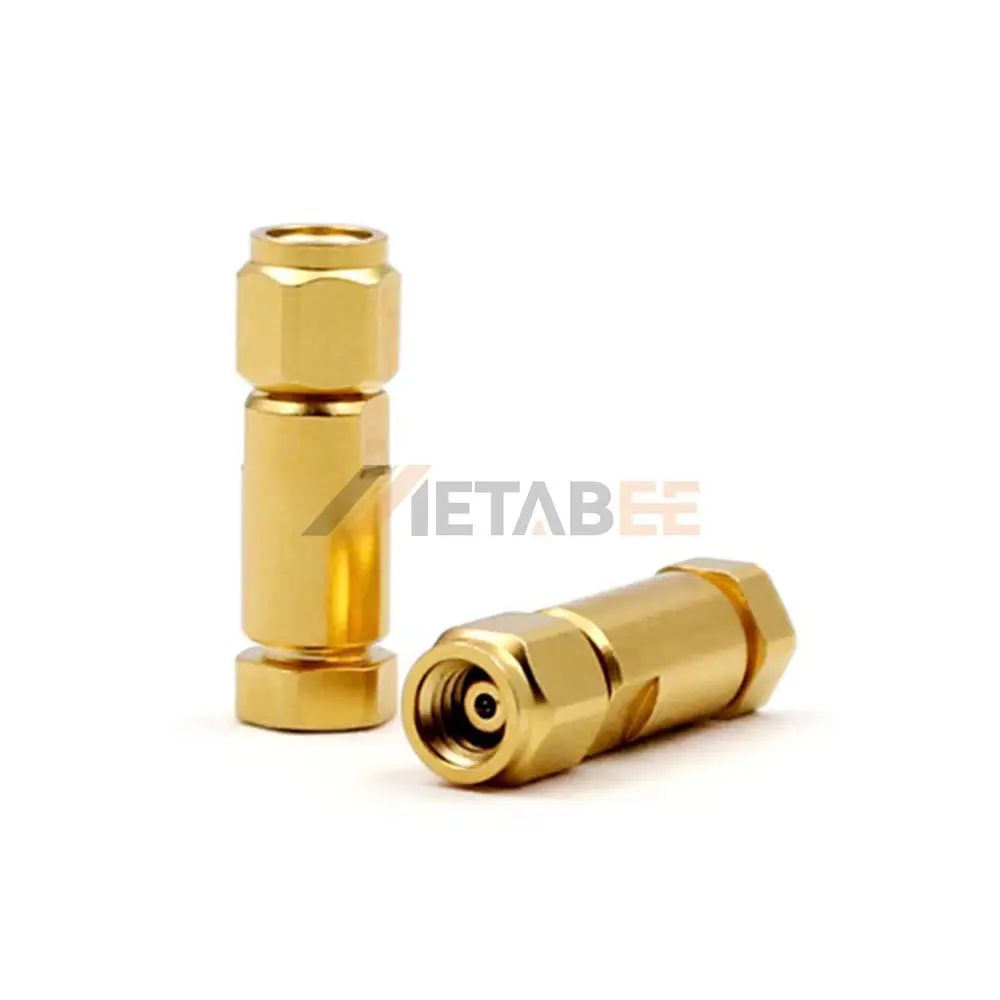

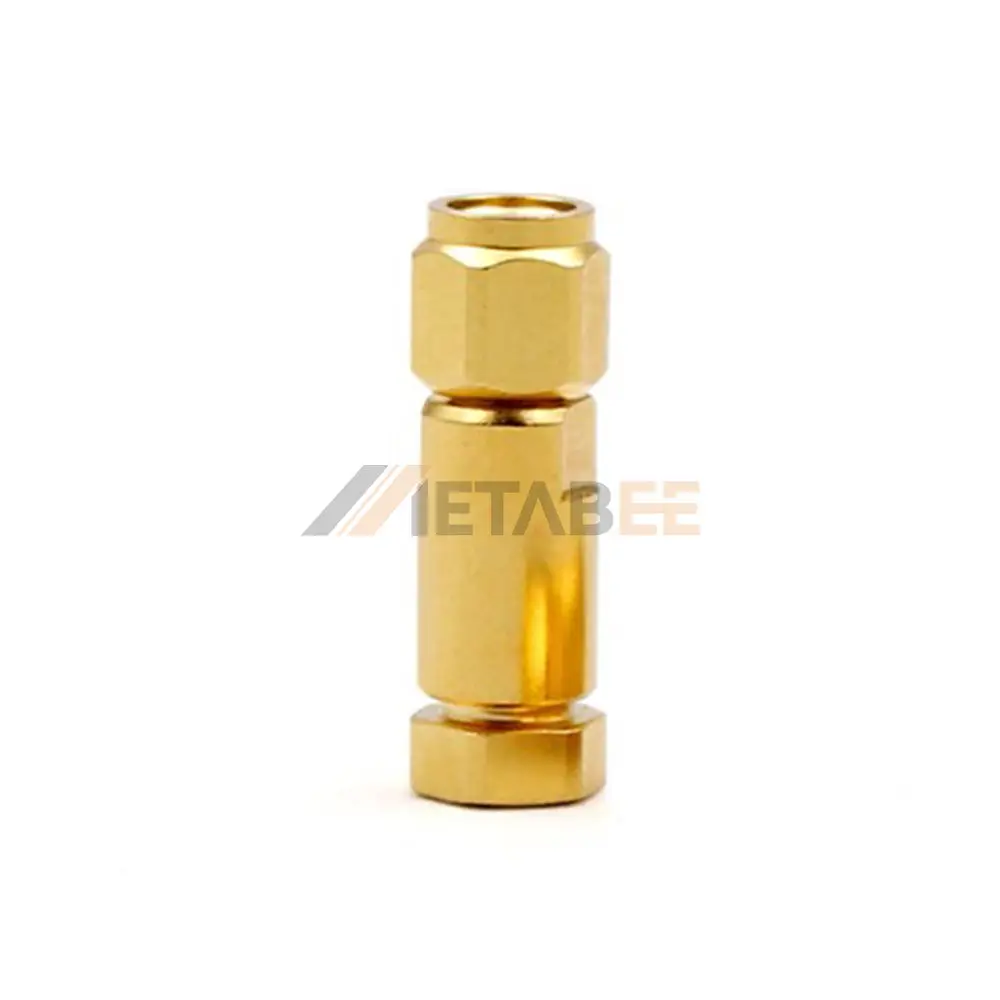

The Metabee 1.0mm male connector is a precision RF connector designed for high-frequency performance. The threaded coupling mechanism provides a secure and vibration-resistant connection. Designed for cable-type mounting, it utilizes a solder contact termination for easy and secure assembly. This connector boasts a robust stainless steel shell with Passivation platng for corrosion resistance; its PEI insulator and beryllium bronze contacts (gold-plated for optimal conductivity) ensure stable signal transmission. Engineered with a 50 Ohm impedance and a VSWR of less than or equal to 1.30:1, it ensures exceptional signal integrity across a broad frequency range. It also supports a broad frequency range of DC to 110 GHz. It can operate reliably across a wide temperature range of -55°C to +125°C. With a durability of over 500 mating cycles, this connector is ideal for demanding RF systems where precision and reliability are paramount.

Main Specifications:

General Information:

Part No.: YC-1.0-J3657G
Product Series: 1.0mm Connectors
Brand: Metabee
Gender: Male
Orientation: Straight
Number of Contacts: 1 Port
Contact Termination: Solder
Mount Method: Cable Type
Mount Feature: Not Applicable
Fastening Type: Threaded Coupling
Cable Type: 3657 Cable 3657 Cable
Temperature Range: -55°C to +125°C
Other Feature: None

Materials and Plating:

Body Material: Stainless Steel
Body Plating: Passivation
Insulator Material: PEI
Contact Material: Beryllium Bronze
Contact Plating: Gold-Plated

Electrical Performance:

Impedance: 50 Ohms
Frequency Range: DC – 110 GHz
VSWR: ≤ 1.30:1
Insulation Resistance: ≥ 5000 MΩ
Dielectric Withstanding Voltage:  750 V
Durability: ≥ 500 Cycles

Applications of this 1.0mm Male Solder RF Connector:

The 1.0mm RF connector, known for its compact size and ability to operate at high frequencies (up to 110 GHz), finds applications in various cutting-edge technologies.

Here are some main applications:

  • Medical Devices;
  • High-Speed Data Transmission;
  • Industrial Control Systems;
  • Semiconductor Testing;
  • Quantum Computing;
  • Satellite Communication;
  • Automotive Radar Systems.

Factory pricing and exceptional product quality. Get a free quote now!

Product No.

YC-1.0-J3657G

Product Series

1.0mm Connectors

Product Name

1.0mm Male Solder RF Connector for 3657 Cable, DC-110 GHz

Brand

Metabee

Connector Gender

Male

Orientation

Straight

Number of Contacts

1 Port

Contact Termination

Solder

Mount Method

Cable Type

Mount Feature

Not Applicable

Shell Material

Stainless Steel

Shell Plating

Passivation

Insulator Material

PEI

Contact Material

Beryllium Bronze

Contact Plating

Gold-plated

Coupling Method

Threaded Coupling

Cable Type

3657 Cable

Impedance

50 Ohm

Frequency Range

DC-110 GHz

VSWR

≤ 1.30:1

Insulation Resistance

≧ 5000 MΩ

Dielectric Withstanding Voltage

750 V

Durability

≧ 500 Cycles

Temperature Range

-55°C to +125°C

Other Features

None
