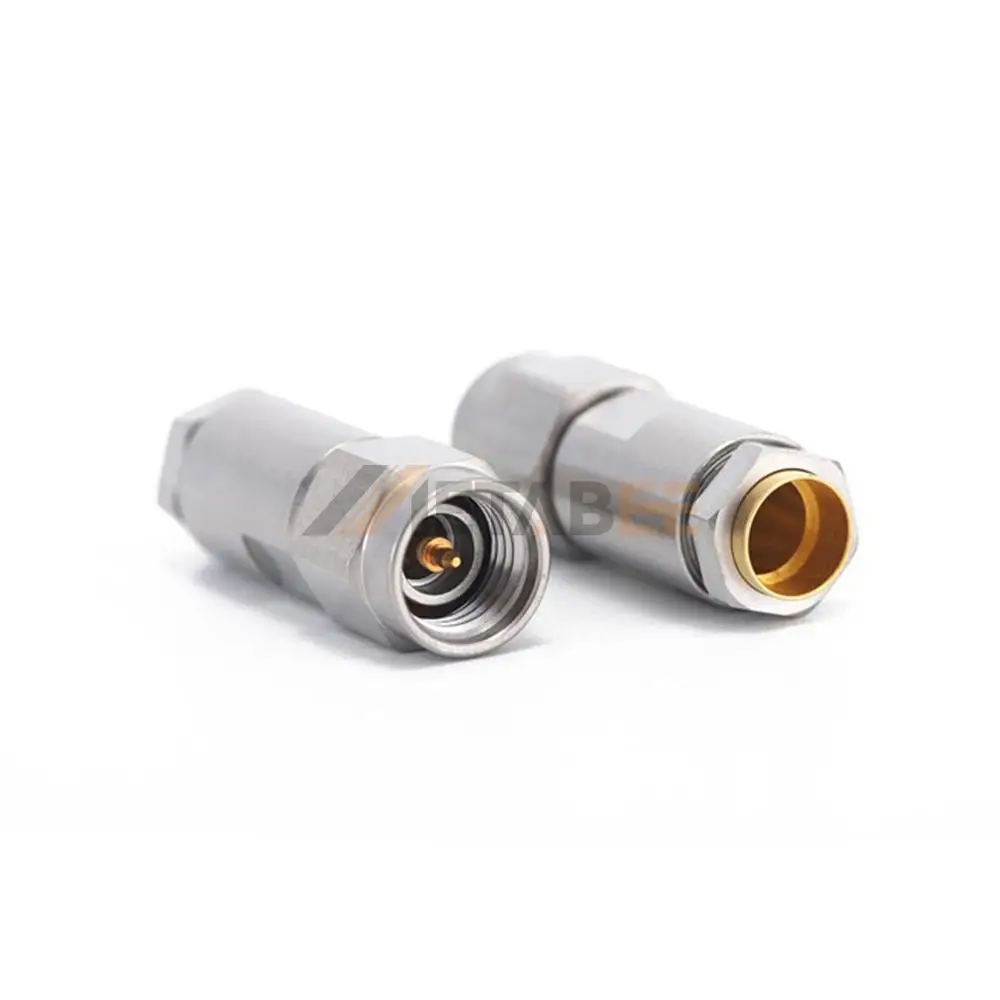

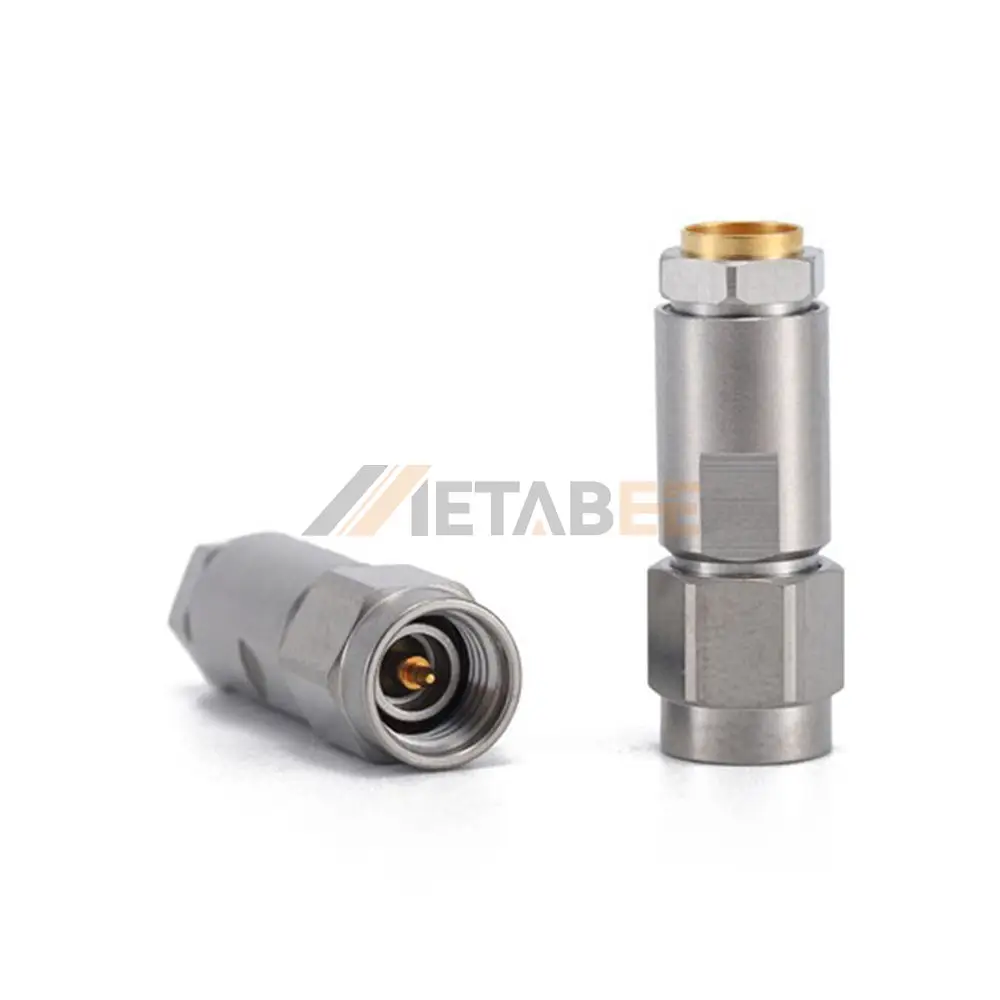

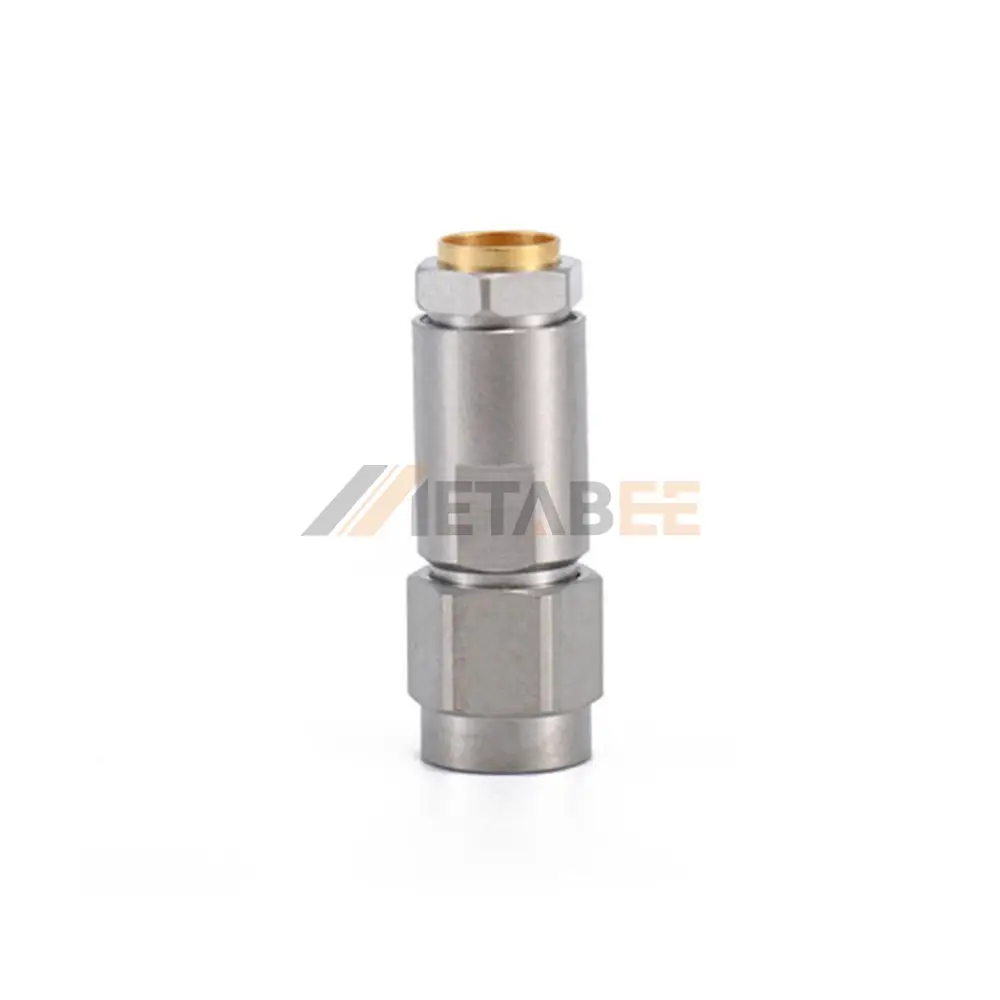

3.5 mm Male Solder RF Connector for Gore 3449 Cable, DC-18 Ghz
Introduction
The Metabee 3.5mm male connector is a precision RF connector designed for high-frequency performance. The threaded coupling mechanism provides a secure and vibration-resistant connection. Designed for cable-type mounting, it utilizes a solder contact termination for easy and secure assembly. This connector boasts a robust stainless steel shell with passivation plating for corrosion resistance; its PEI insulator and beryllium copper contacts (gold-plated for optimal conductivity) ensure stable signal transmission. Engineered with a 50 Ohm impedance and a VSWR of less than or equal to 1.20:1, it ensures exceptional signal integrity across a broad frequency range. It also supports a broad frequency range of DC to 18 GHz. It can operate reliably across a wide temperature range of -45°C to +85°C. With a durability of over 500 mating cycles, this connector is ideal for demanding RF systems where precision and reliability are paramount.
Main Specifications:
General Information:
| Part No.: | YC-3.5-J3449G | |
| Product Series: | 3.5mm Connectors | |
| Brand: | Metabee | |
| Gender: | Male | |
| Orientation: | Straight | |
| Number of Contacts: | 1 Port | |
| Contact Termination: | Solder | |
| Mount Method: | Cable Type | |
| Mount Feature: | Not Applicable | |
| Fastening Type: | Threaded Coupling | |
| Cable Type: | Gore 3449 Cable | |
| Temperature Range: | -45°C to +85°C | |
| Other Feature: | None |
Materials and Plating:
| Body Material: | Stainless Steel | |
| Body Plating: | Passivation | |
| Insulator Material: | PEI | |
| Contact Material: | Beryllium-Copper | |
| Contact Plating: | Gold-Plated |
Electrical Performance:
| Impedance: | 50 Ohms | |
| Frequency Range: | DC – 18 GHz | |
| VSWR: | ≤ 1.20:1 | |
| Insulation Resistance: | ≥ 1000 MΩ | |
| Dielectric Withstanding Voltage: | 750 V | |
| Durability: | ≥ 500 Cycles |
Applications of this 3.5 mm Male Solder RF Connector:
The 3.5mm RF connector is a precision coaxial connector designed for high-frequency applications and mode-free operation.
Here are some main applications:
- Satellite Communications;
- Semiconductor Testing;
- Medical Imaging;
- Microwave Research;
- Microwave Instrumentation;
- Radar Systems.
