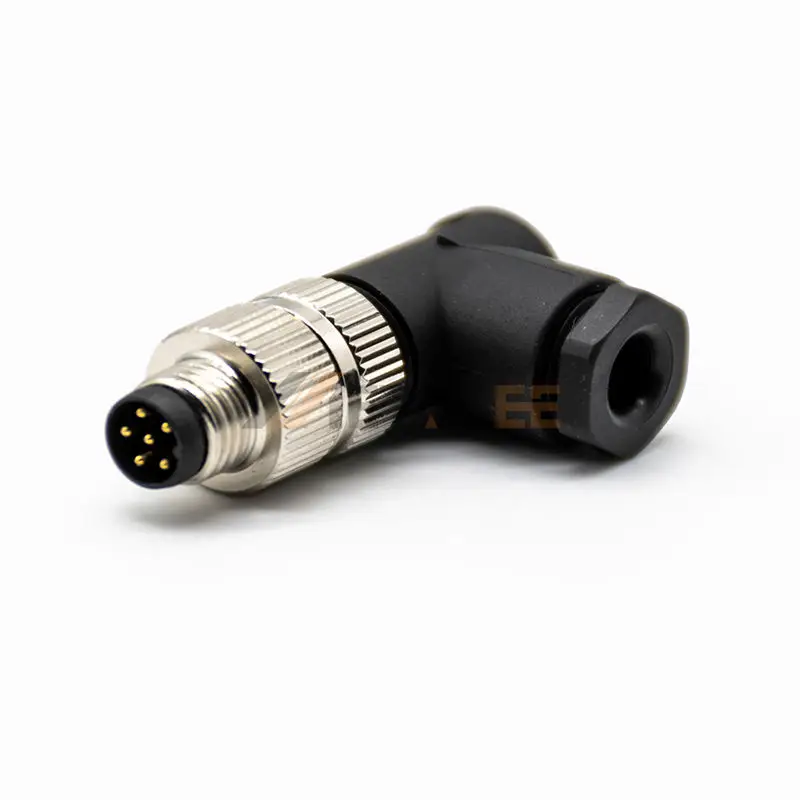

Right Angle M8 6 Pin A Coded Male Field Wireable Connector
introduction
The M8 connector is a compact and reliable solution designed for industrial sensors, automation, and control systems. Featuring a threaded coupling mechanism, this connector ensures a secure and vibration-resistant connection in demanding environments. Its right-angle design provides efficient cable routing in confined spaces, while the A-coded 6-pin configuration guarantees compatibility with standard M8 systems for signal transmission.
Built with a durable plastic housing and CuZn contacts plated with gold (Au), this connector offers excellent conductivity and corrosion resistance. The screw-joint contact termination simplifies field installation without requiring special tools, making it ideal for on-site wiring. Rated for 60V and 2A, it delivers stable electrical performance across a wide temperature range of -25°C to +85°C. With an IP67/IP68 protection rating, it resists dust and water ingress, ensuring long-term reliability in harsh industrial conditions.
Key Features:
- 6-pin, A-coded male connector for signal applications
- Right-angle design for space-saving installations

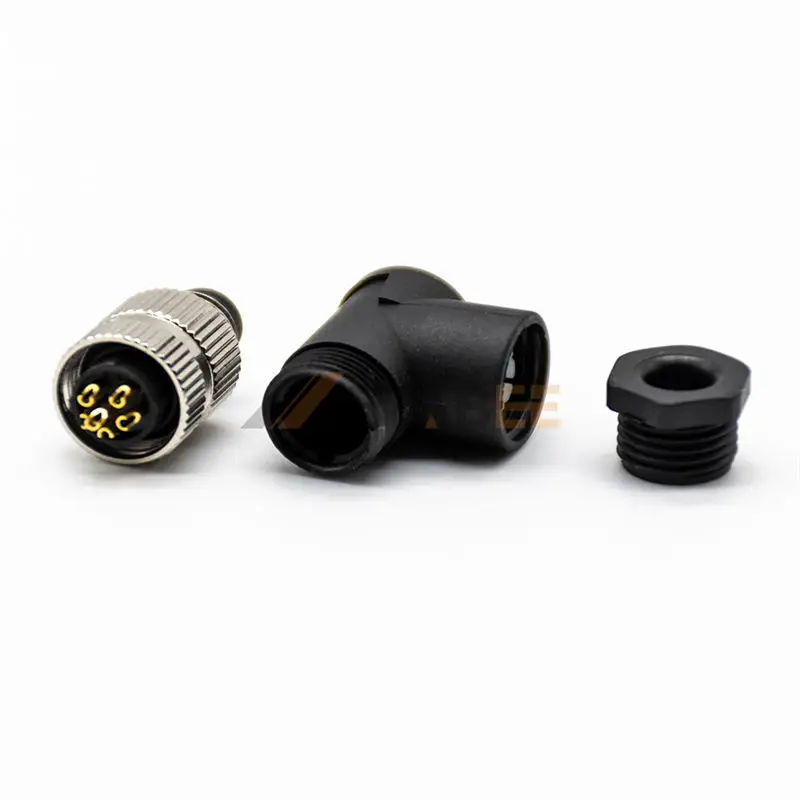

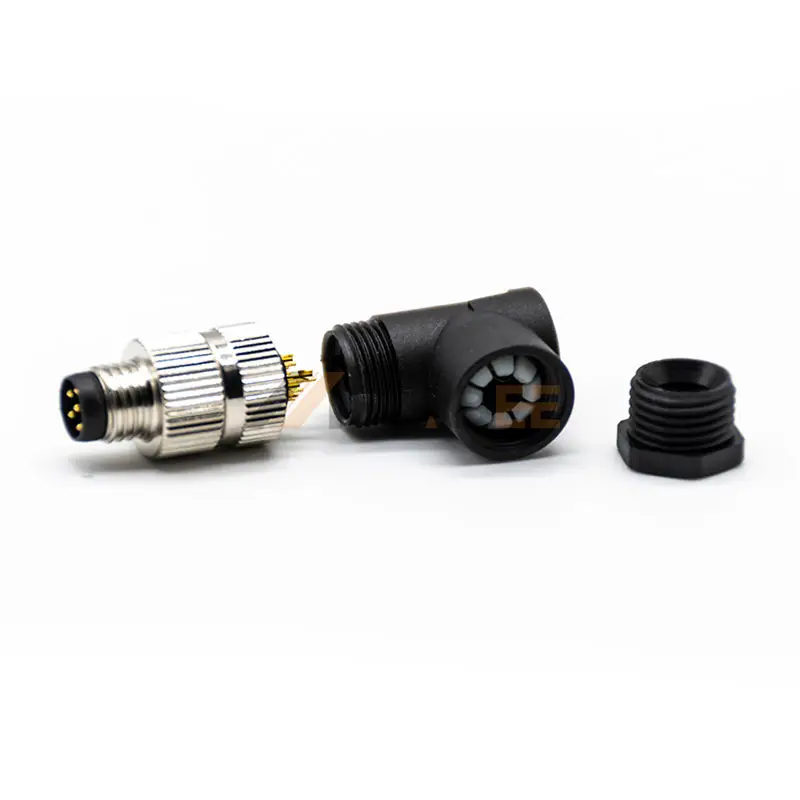

- Screw-joint termination for easy field assembly
- Plastic housing with gold-plated CuZn contacts
- Rated 60V, 2A with IP67/IP68 protection
- Operating temperature: -25°C to +85°C
Main Specifications:
General Information:
| Product Number: | M8-06-A-P-3-R | |
| Connector Series: | M8 Field Wireable Connector | |
| Connector Gender: | Male | |
| Orientation: | Right Angle | |
| Connector Coding: | A Coded | |
| Number of Contacts: | 6 Pin | |
| Contact Termination: | Screw-Joint | |
| Mount Method: | Cable Type | |
| Mount Feature: | Not Applicable | |
| Shielding: | Unshielded | |
| Weight: | 10g | |
| Other Features: | None |
Materials:
| Shell Material: | Plastic | |
| Contact Material: | CuZn | |
| Contact Plating: | Au |
Electrical Performance:
| Rated Voltage: | 60V | |
| Rated Current: | 2A | |
| Insulation Resistance: | ≥100 MΩ | |
| Contact Resistance: | ＜10 mΩ |
Mechanical Performance:
| Coupling method: | Threaded Coupling | |
| Threaded Size: | M8x1 | |
| Wire Gauge: | 0.14/0.25/0.34mm²/(26/24/22AWG) | |
| Durability: | ≥500 Cycles |
Environmental Performance:
| Temperature Range: | -25°C to 85°C | |
| IP Rating: | IP67 / IP68 |

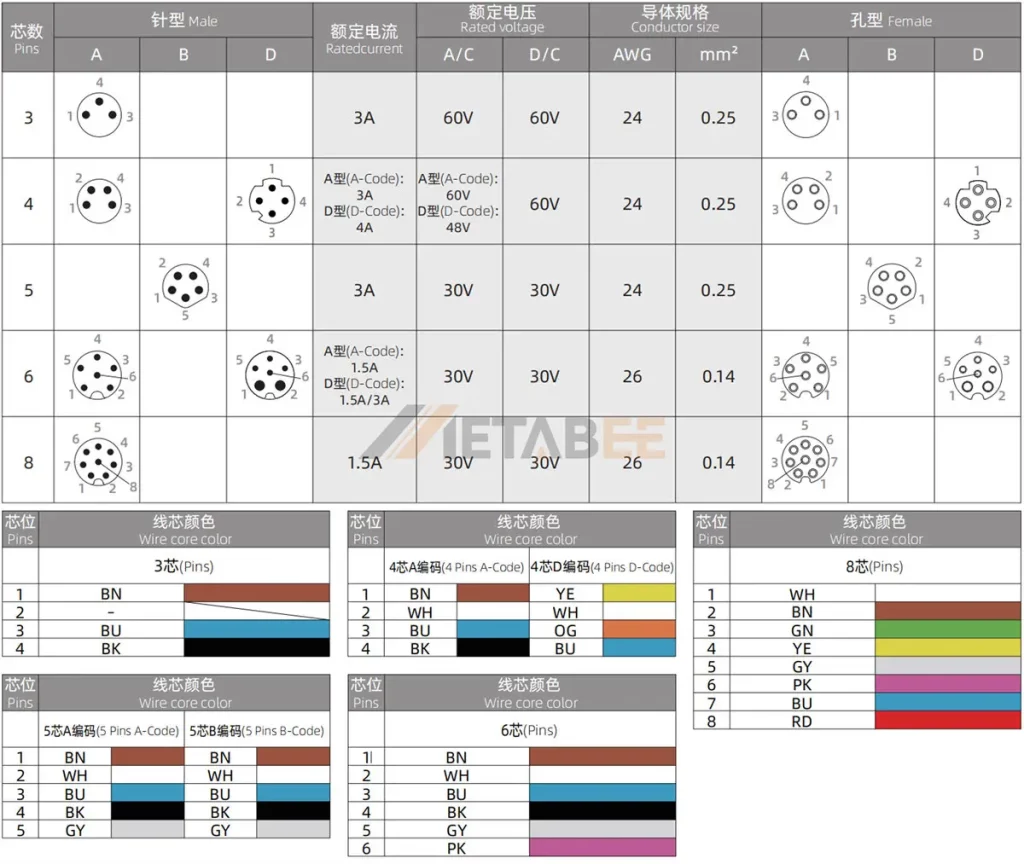

M8 Connector Pinout and Wiring Diagram:
Explore Our Comprehensive M8 Connector Catalog and Datasheet:
Metabee's M Series Circular Connectors, Adapters, and Cable Assemblies Catalog (PDF, 3.3Mb)Applications of this M8 6 Pin A Coded Male Field Wireable Connector:
M8 circular connector finds versatile applications across various industries due to their compact size and reliable connectivity. Here are some common applications:
- Industrial Automation;
- Robotics;
- Automotive;
- Food and Beverage;
- Pharmaceuticals;
- Packaging;
- HVAC (Heating, Ventilation, and Air Conditioning);
- Agriculture;
- Renewable Energy;
- Security Systems.
