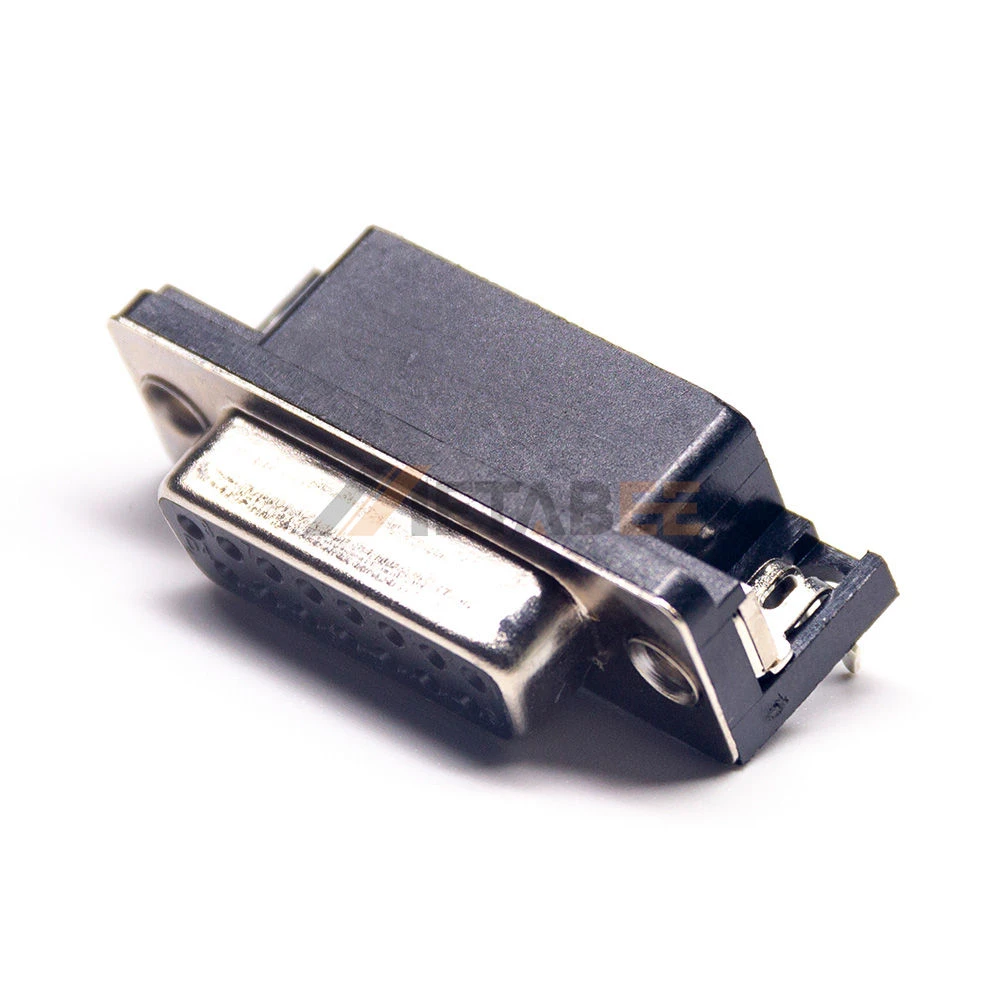

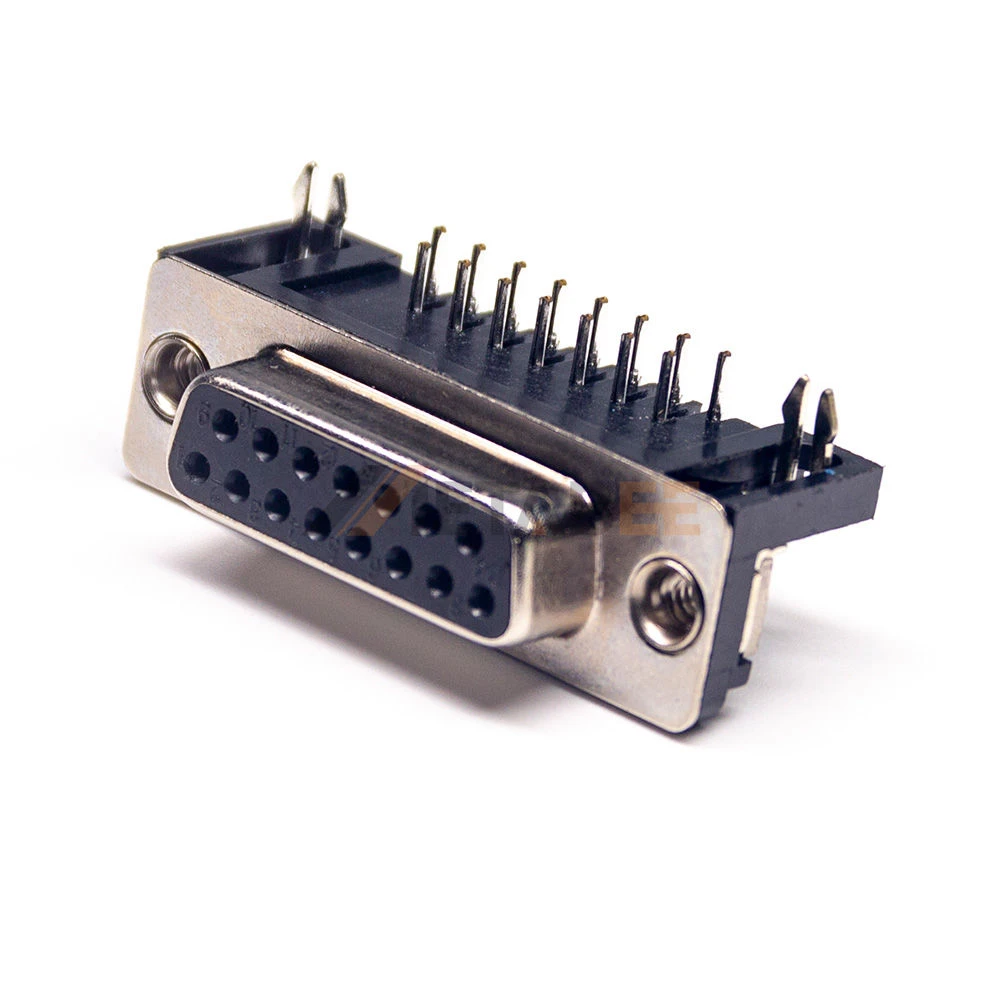

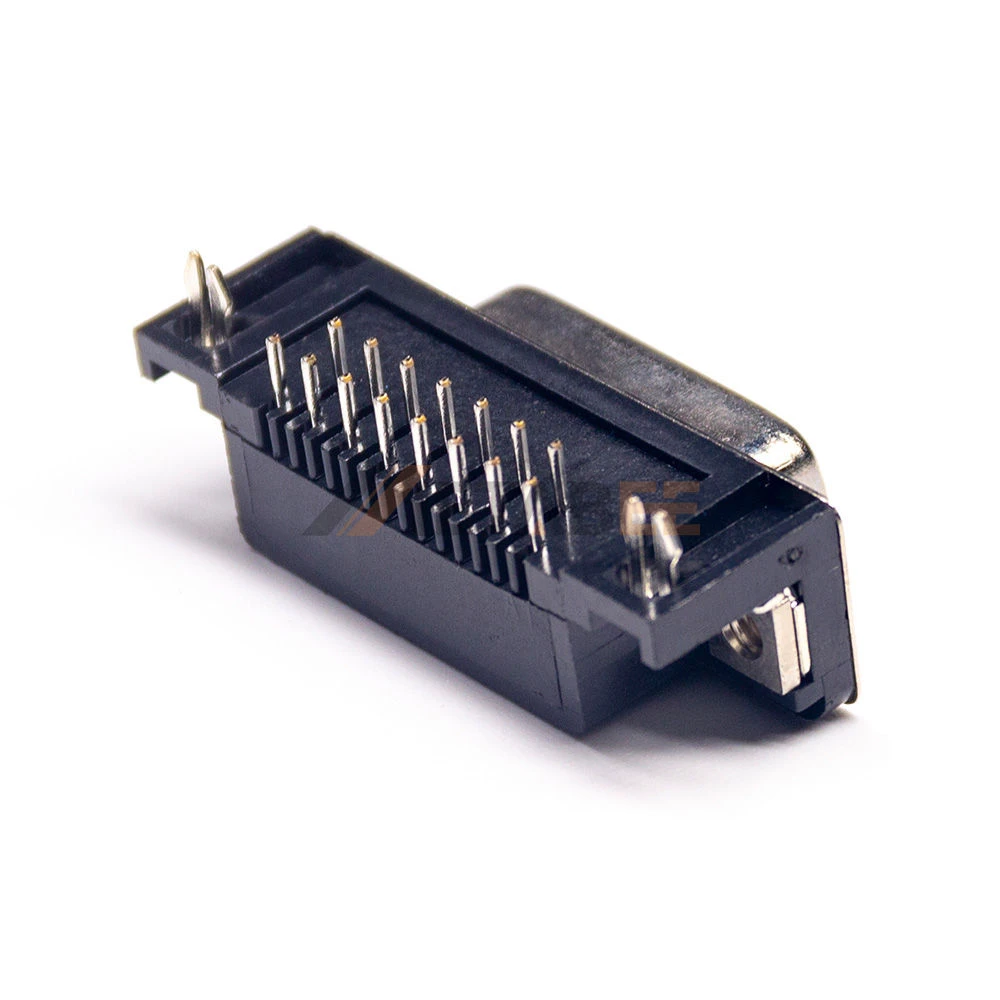

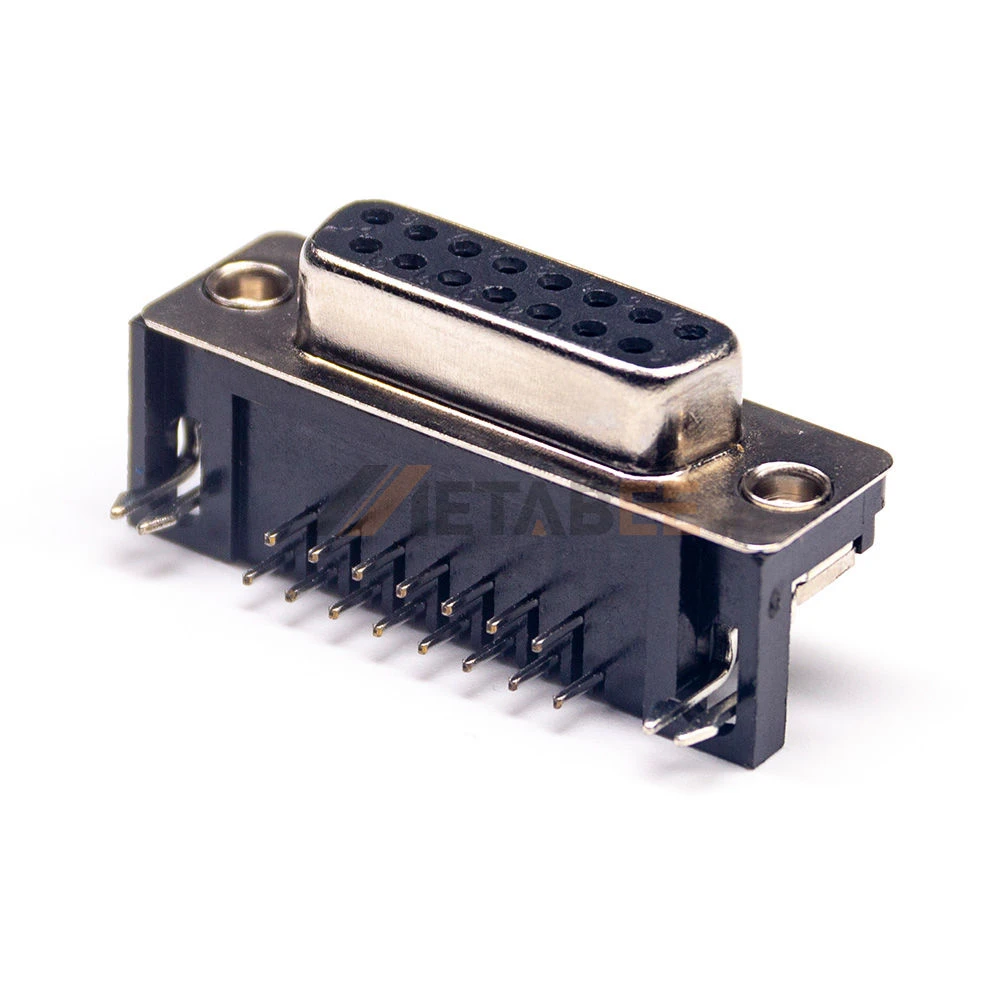

Right Angle D-Sub 15 Pin Female Connector for PCB Mount, Through Hole, 2.77mm Pitch, Rear Rivet Nut
Introduction:
This right-angle D-sub DB15 female connector delivers robust signal transmission. Designed for panel-mount PCB integration via through-hole soldering. Features a right-angle orientation for simple integration. Its stamped brass contacts ensure superior reliability. Standard 2.77mm pitch guarantees compatibility. Features 15 female signal contacts. Contacts are arranged efficiently in 2 rows. The rear rivet nut ensures vibration-proof mating security. Contacts feature a nickel underplate and tin plating. Offers IP20 basic environmental protection. Rated for 750V and 5A current capacity. Maximum contact resistance is 20 mΩ. The rugged nickel-plated steel shell provides excellent durability. Contact plating thickness is 3.00 µin. Rated UL94 V-0 for flame safety. Operates reliably from -55°C to +125°C. Ideal for demanding industrial and instrumentation applications requiring high-integrity connections.
Main Features:
- DB15 Female Connector: Industry-standard 15-pin D-sub female interface.
- Right-Angle Design: Compact PCB profile with vertical cable exit.
- PCB Panel Mount: Secures via through-hole soldering.
- Rear Rivet Nut Locking: Integrated screws for secure, vibration-resistant mating.
- 2.77mm Pitch: Standard pin spacing for DB15 series compatibility.
- IP20 Rated: Guarantees safety and basic protection.
- Wide Temperature Range: Performs from -55°C to +125°C.
Main Specifications:
General Information:
| Product Number: | YC-681-4065 | |
| Connector Series: | Standard D-Sub Connectors | |
| Orientation: | Right Angle | |
| Connector Gender: | Female | |
| Number of Contacts: | 15 Pin | |
| Number of Rows: | 2 | |
| Pitch: | 2.77mm | |
| Shell Sizes: | A | |
| Mount Type: | PCB Mount | |
| Mount Feature: | Rear Rivet Nut | |
| Contact Termination: | Solder | |
| Contact Type: | Stamped Contact | |
| Contact Function: | Signal |
Materials and Plating:
| Shell Material: | Steel | |
| Shell Plating: | Nickel Plating | |
| Contact Material: | Brass | |
| Contact Plating: | Tin Plating | |
| Contact Plating Thickness: | 3.00µin（0.076µm） | |
| Insulator Material: | Thermoplastic Polyester |
Electrical Performance:
| Rated Current: | 5A | |
| Rated Voltage: | 750V AC | |
| Contact Resistance: | ≤ 20 mΩ |
Environmental Performance:
| Temperature Range: | -55℃ to +125℃ | |
| IP Rating: | IP20 | |
| Flammability Rating: | UL94 V-0 |
Applications of the D-Sub DB15 Male Connector:
- VGA Monitor Connections
- Serial Data Communication
- Industrial Control Systems
- Legacy Peripherals
- Test & Measurement Equipment
- Medical Equipment Interfaces
