MMCX Female PCB Through Hole Connector
Introduction

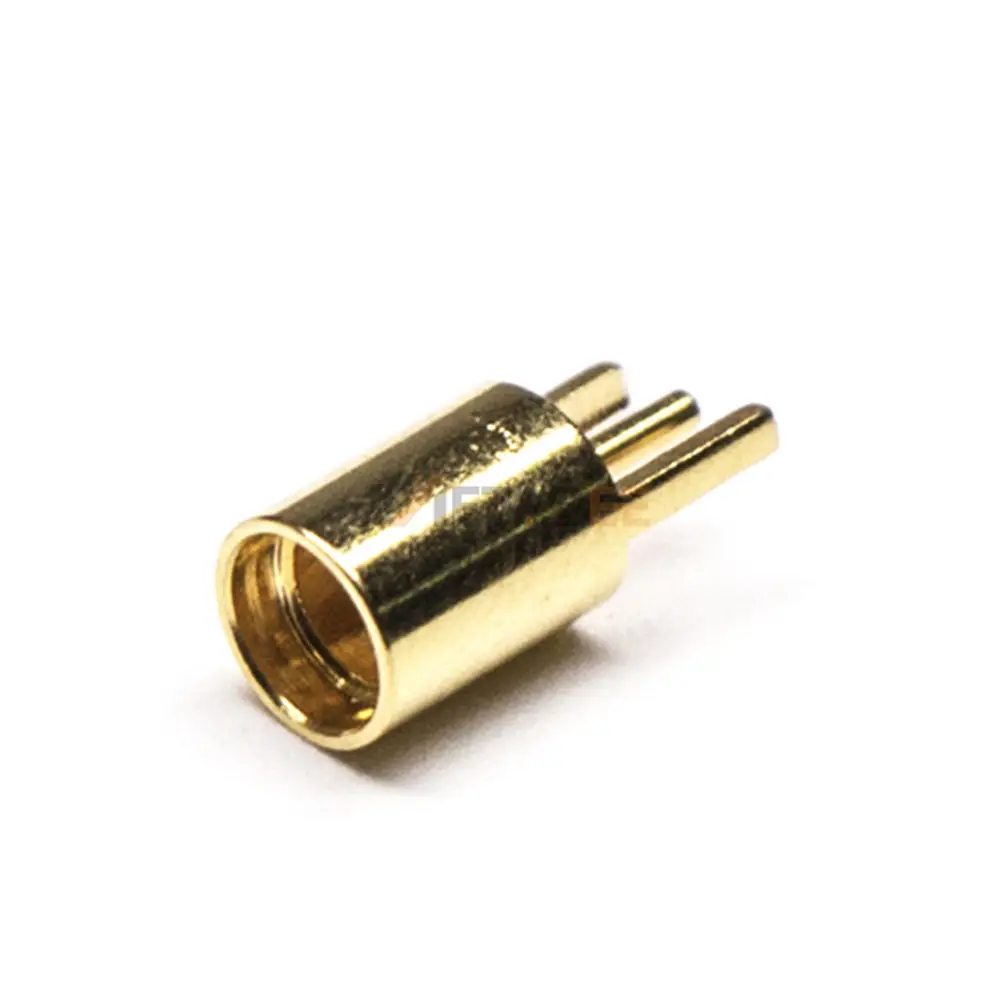

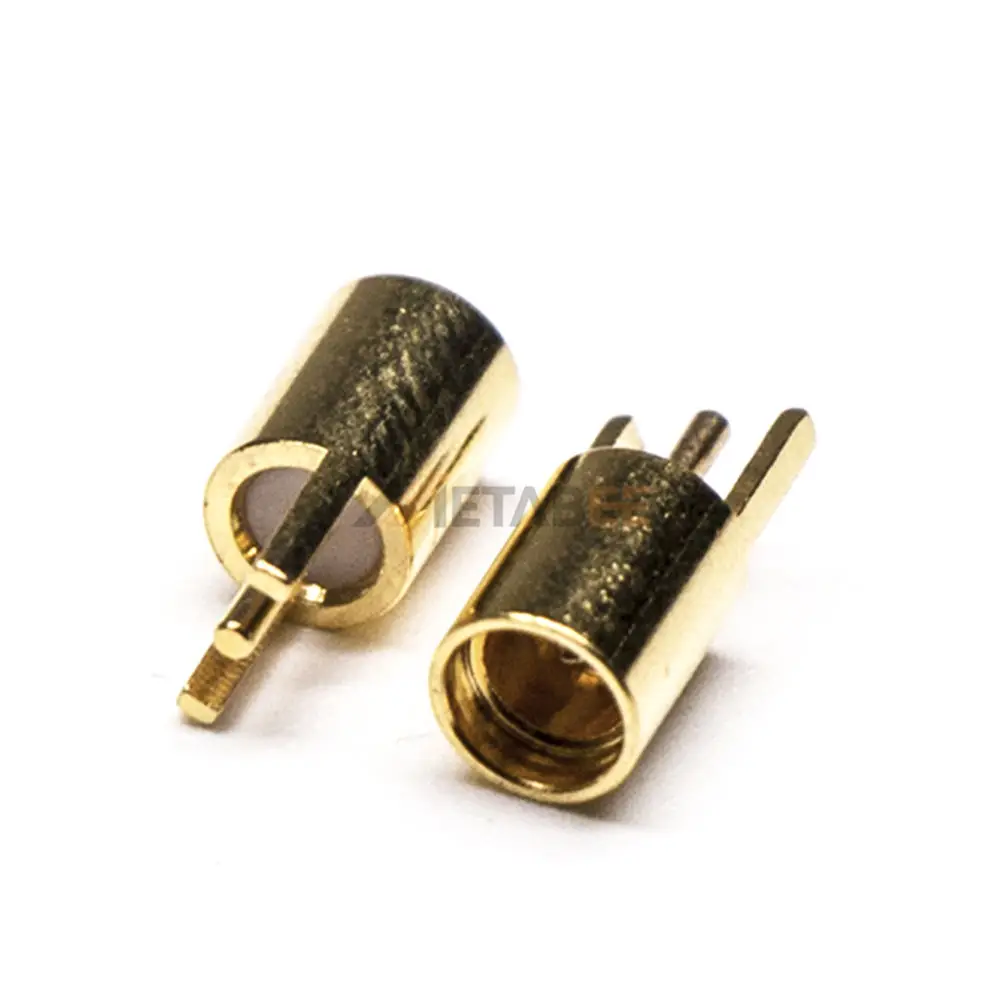

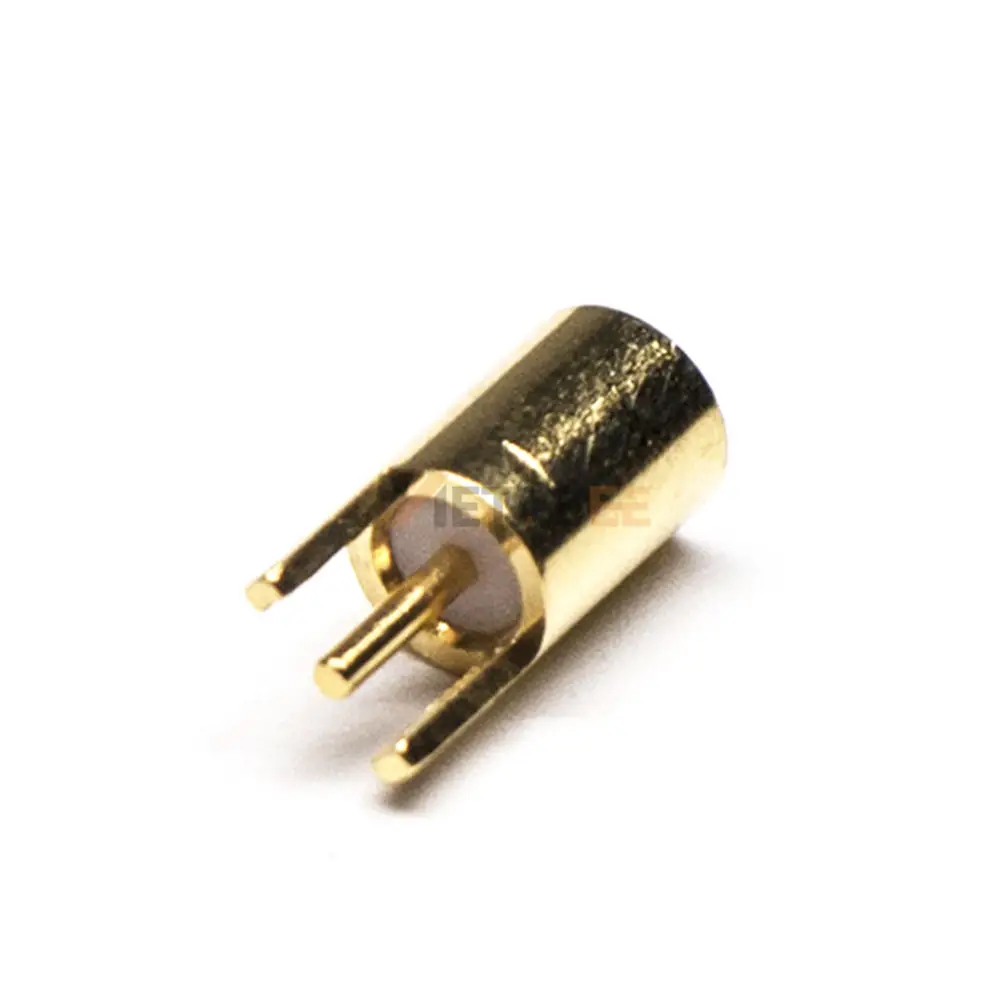

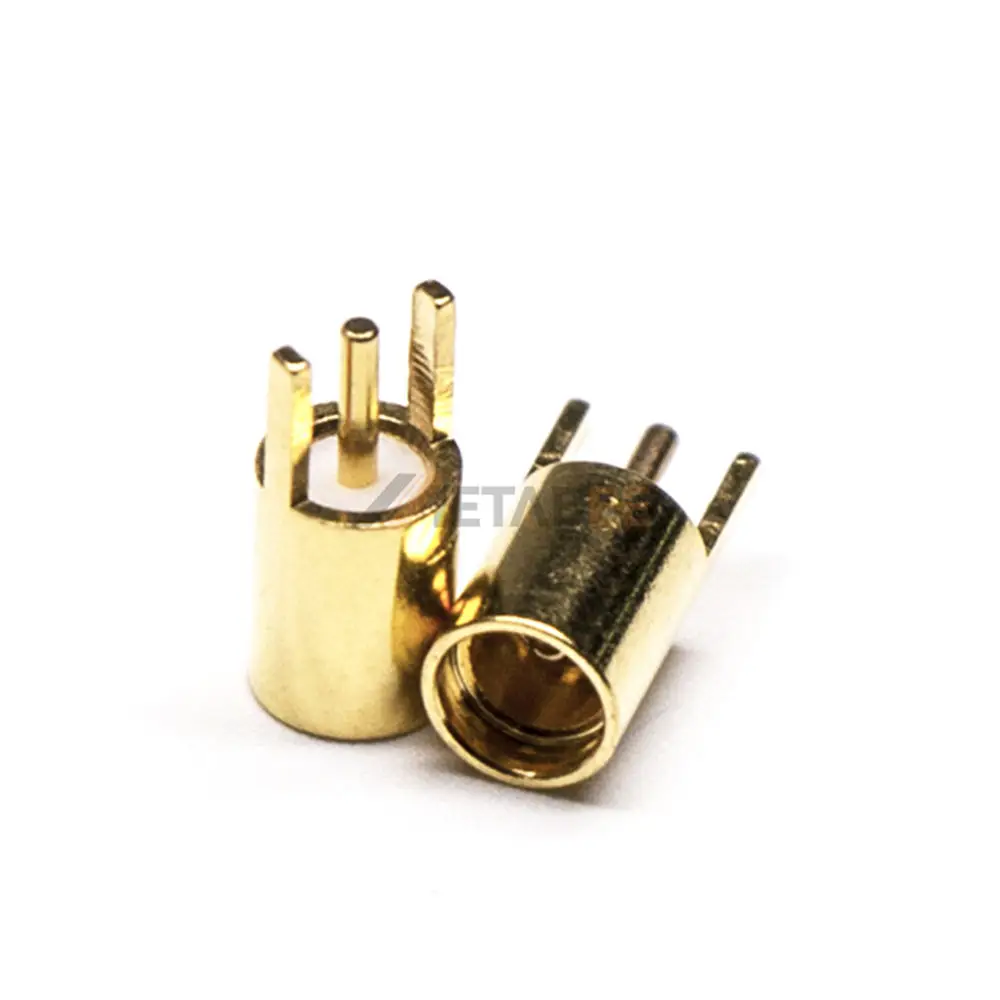

This MMCX female connector from Metabee is a straight-oriented high-performance RF connector designed for through-hole pcb mounting. It features a solder termination for secure attachment and a push-in fastening type for easy installation. It also ensures optimal signal integrity with a maximum frequency of 6 GHz and a 50 Ohm impedance. This MMCX connector’s shell is made from high-quality brass with a gold-plated finish. The TEFLON insulator offers exceptional dielectric strength and minimizes signal loss. Besides, the brass contact material with gold-plated is for improved connection reliability. Its broad operating temperature range of -65°C to +155°C makes it suitable for demanding environments.
Main Specifications:
General Information:
| Part No.: | YC-631-1007 | |
| Product Series: | MMCX Connectors | |
| Brand: | Metabee | |
| Gender: | Female | |
| Orientation: | Straight | |
| Number of Contacts: | 1 Port | |
| Contact Termination: | Solder | |
| Mount Method: | PCB Mount | |
| Mount Feature: | Through Hole | |
| Fastening Type: | Push-in | |
| Other Feature: | None |
Materials and Plating:
| Body Material: | Brass | |
| Body Plating: | Gold Plated | |
| Insulator Material: | TEFLON | |
| Contact Material: | Brass | |
| Contact Plating: | Gold Plated |
Electrical Performance:
| Impedance: | 50 Ohm | |
| Frequency: | 6 GHz | |
| VSWR: | ≤1.3 Max. | |
| Working Voltage: | 170V rms | |
| Dielectric Withstanding Voltage: | 500 V rms | |
| Center Contact Resistance: | ≤ 5.0 mΩ Max | |
| Outer Contact Resistance: | ≤ 1.0 mΩ Max | |
| Insulation Resistance: | ≥ 1000 MΩ (Megohms MIN.) |
Mechanical Performance:
| Coupling: | Push-in | |
| Contact Retention: | 2.3 in-lbs min. | |
| Durability: | ≥ 500 Times |
Environmental Performance:
| Temperature Range: | -65°C to +155°C | |
| Vibration: | MIL-STD-202 Meth.204 | |
| Corrosion resistance: | MIL-STD-202 Meth. 101 |
Applications of this MMCX Female PCB Through Hole Connector:

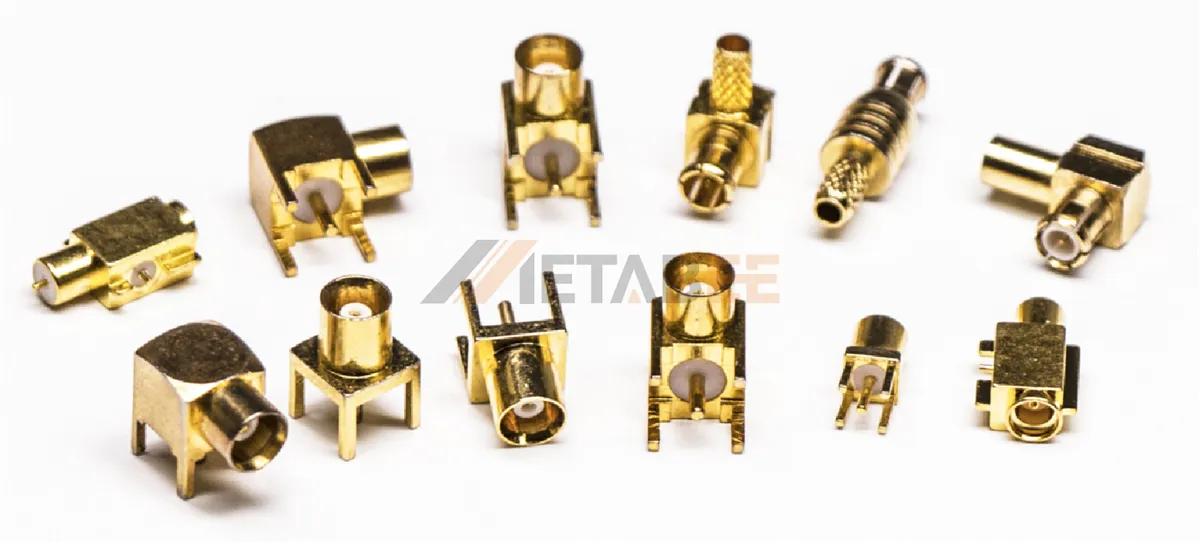

MMCX connectors are widely used in various applications that require reliable, high-performance RF (radio frequency) connections.
Here are some main applications:
- Audio Equipment;
- Wireless Communication Devices;
- RF Modules and Antennas;
- Wireless Communication Devices;
- GPS Receivers;
- Portable Audio Devices
- Satellite Communication Systems
- Base Stations and Networking Equipment;
- Consumer Electronics;
- Automotive Electronics.
